Front Extension Housing: Disassembly

REMOVE DRIVE CLUTCH HUB
1. Using a snap ring expander, remove the snap ring.

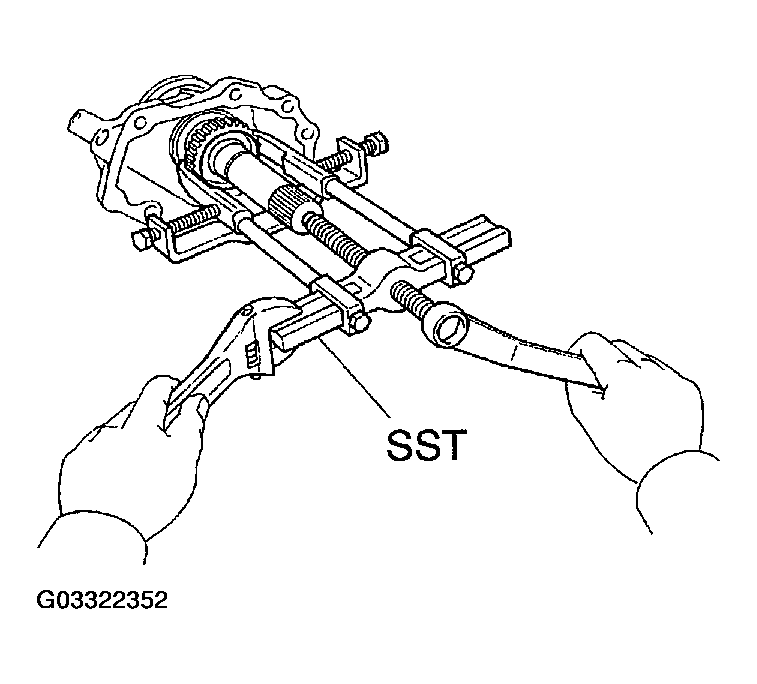

2. Using SST, remove the drive clutch hub.
  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04020, 09955-04021, 09957-04010, 09958-04011)
REMOVE FRONT OUTPUT SHAFT
Using a plastic hammer, drive out the front output shaft.

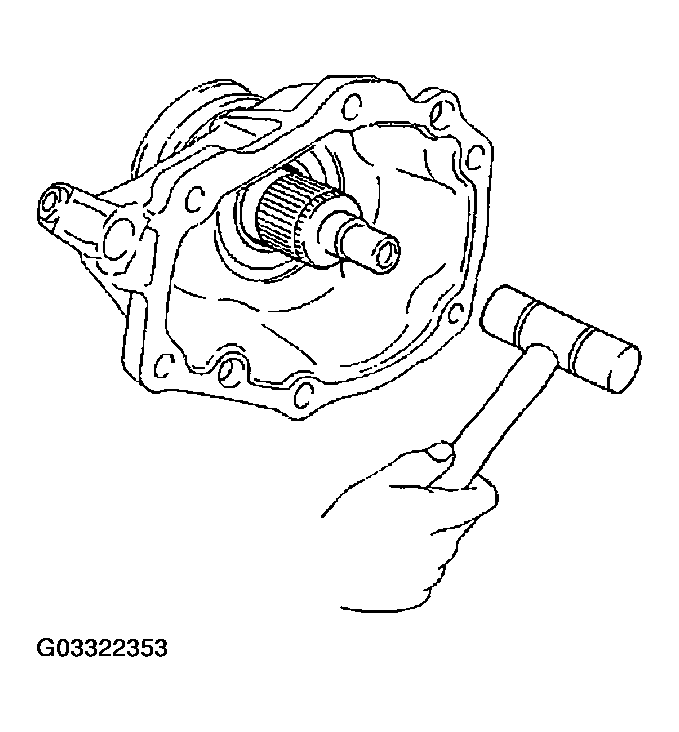

Fig 2: Removing Front Output Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DUST DEFLECTOR
1. Using SST, remove the dust deflector.

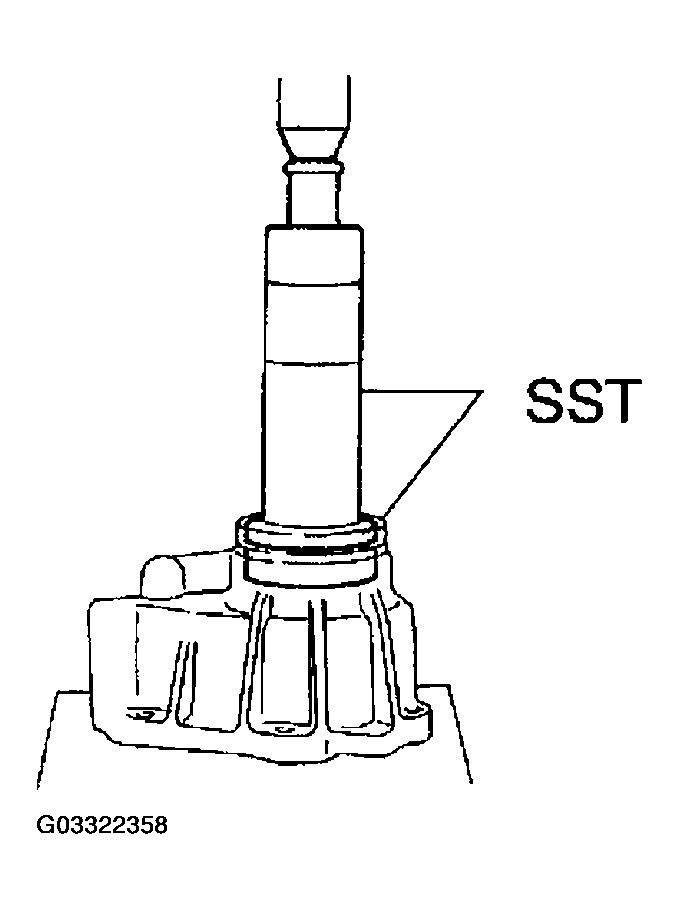

  Fig 3: Removing Dust Deflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09950-40011 (09951-04020, 09952-04010, 09953-04030, 09954-04010, 09955-04051, 09957-04010, 09958-04011)
2. Using a screwdriver and hammer, tap the dust deflector and remove it from the extension housing.

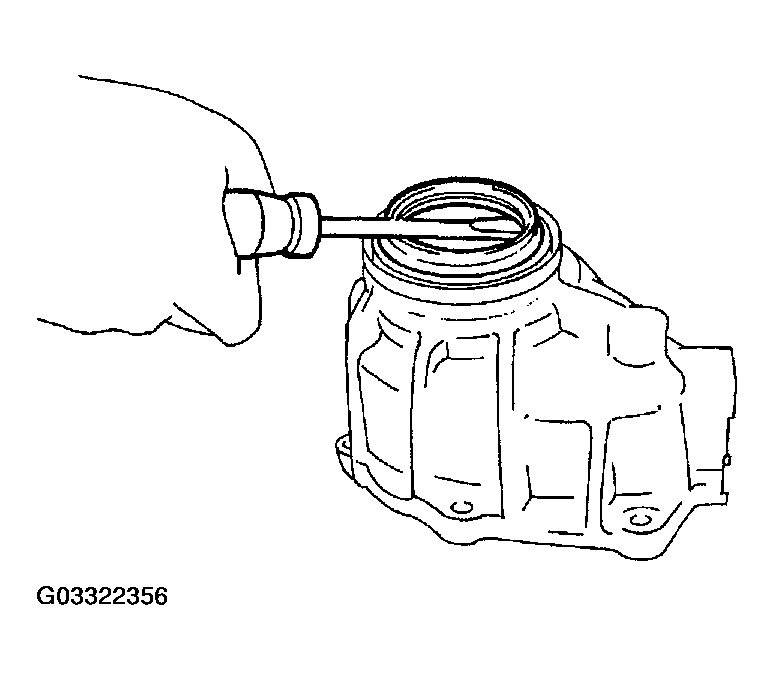

  Fig 4: Removing Dust Deflector From Extension Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL SEAL
Using a screwdriver, pry out the oil seal from the front extension housing.

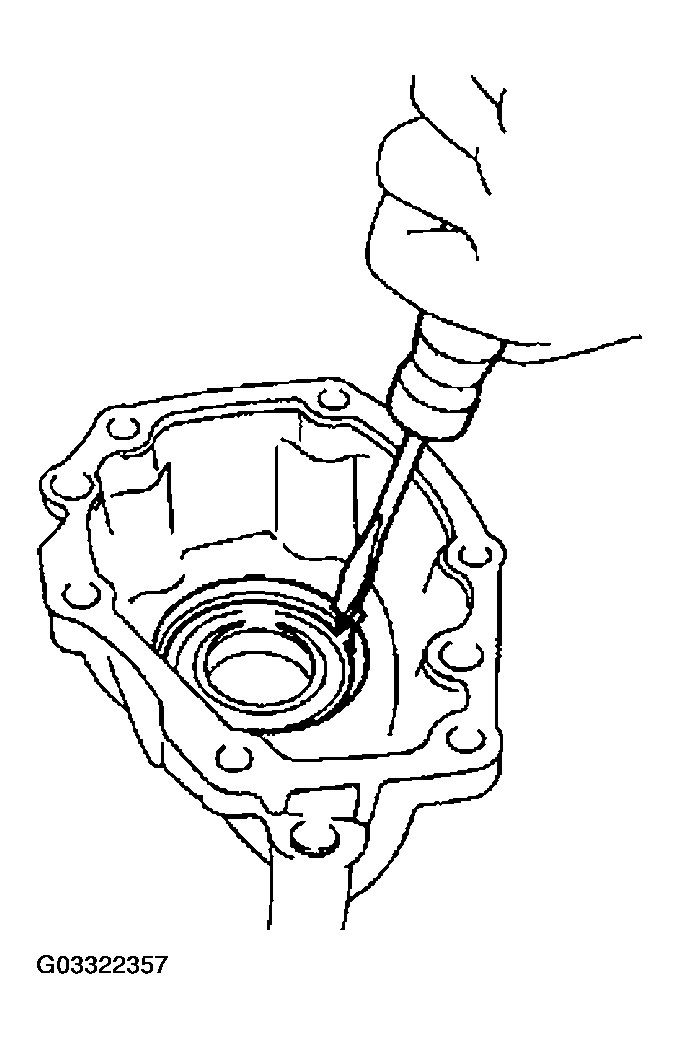

Fig 5: Removing Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BALL BEARING
1. Using a screwdriver, remove the snap ring.

  Fig 6: Removing Snap Ring
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, remove the ball bearing.

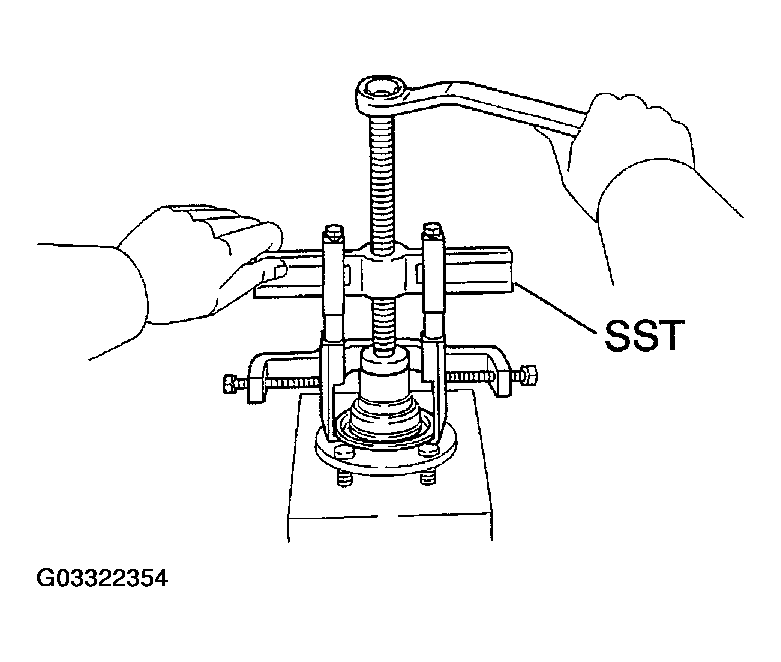

  Fig 7: Removing Ball Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09316-60011 (09316-00011, 09316-00071)
