Idler Gear: Reassembly

NOTE: Coat all of the sliding and rotating surfaces with gear oil before reassembly.

INSTALL FRONT TAPER ROLLER BEARING
Using SST and a press, install the front taper roller bearing.

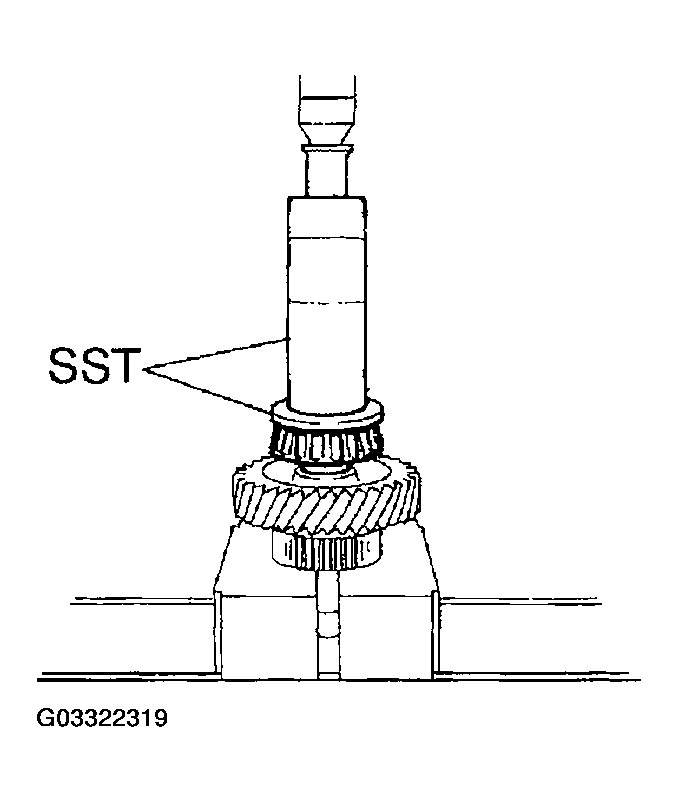

Fig 1: Installing Front Taper Roller Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

SST 09316-60011 (09316-00011,09316-00031)
INSTALL HIGH AND LOW CLUTCH SLEEVE
NOTE: Make sure to install the high and low clutch sleeve in the correct direction.

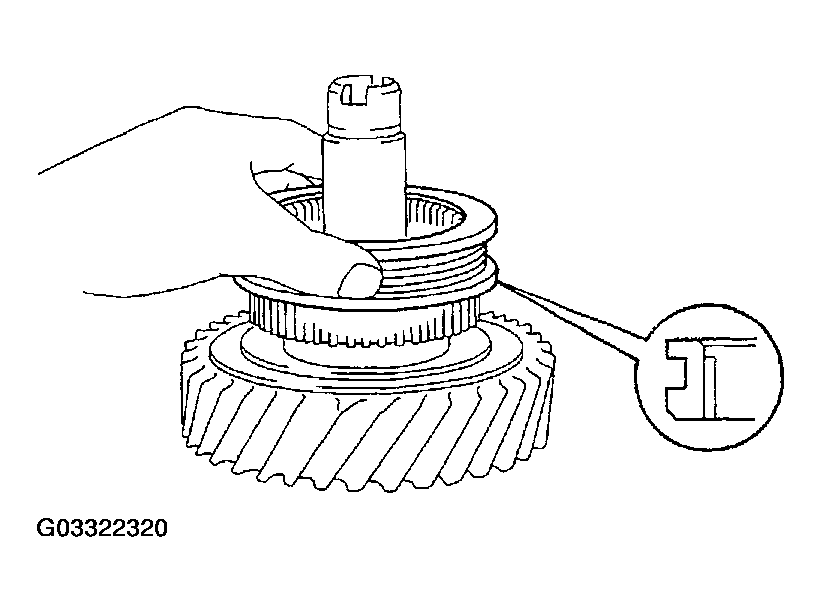

Fig 2: Installing High And Low Clutch Sleeve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NEEDLE ROLLER BEARING AND IDLER LOW GEAR TO IDLER GEAR
1. Apply gear oil to the needle roller bearing.

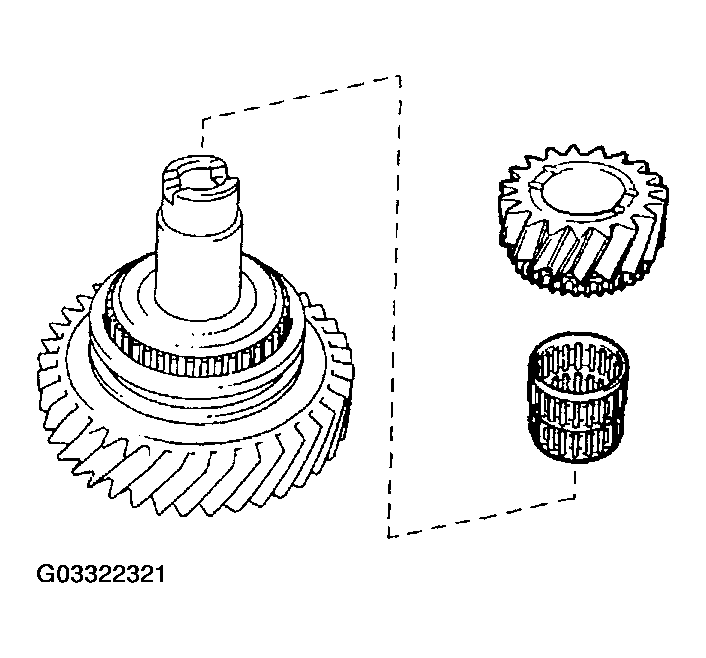

  Fig 3: Installing Needle Roller Bearing And Idler Low Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the needle roller bearing and idler low gear.
INSTALL REAR TAPER ROLLER BEARING
Using SST and a press, install the rear taper roller bearing.

SST 09316-60011 (09316-00011,09316-00071)
INSPECT IDLER LOW GEAR RADIAL AND THRUST CLEARANCE (See INSPECTION )

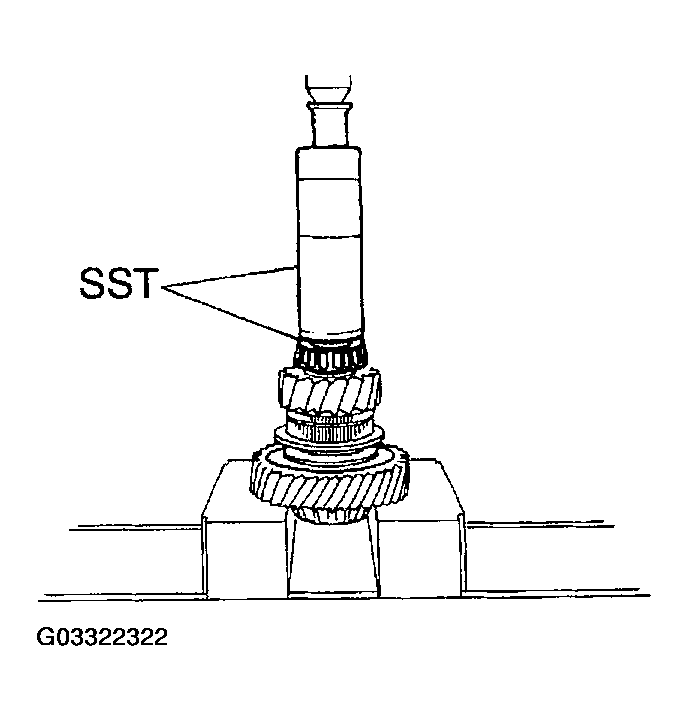

Fig 4: Installing Rear Taper Roller Bearing
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
