Testing Procedure

For wiring diagram, see Fig 1. For testing procedure, see Fig 2-Fig 5 .

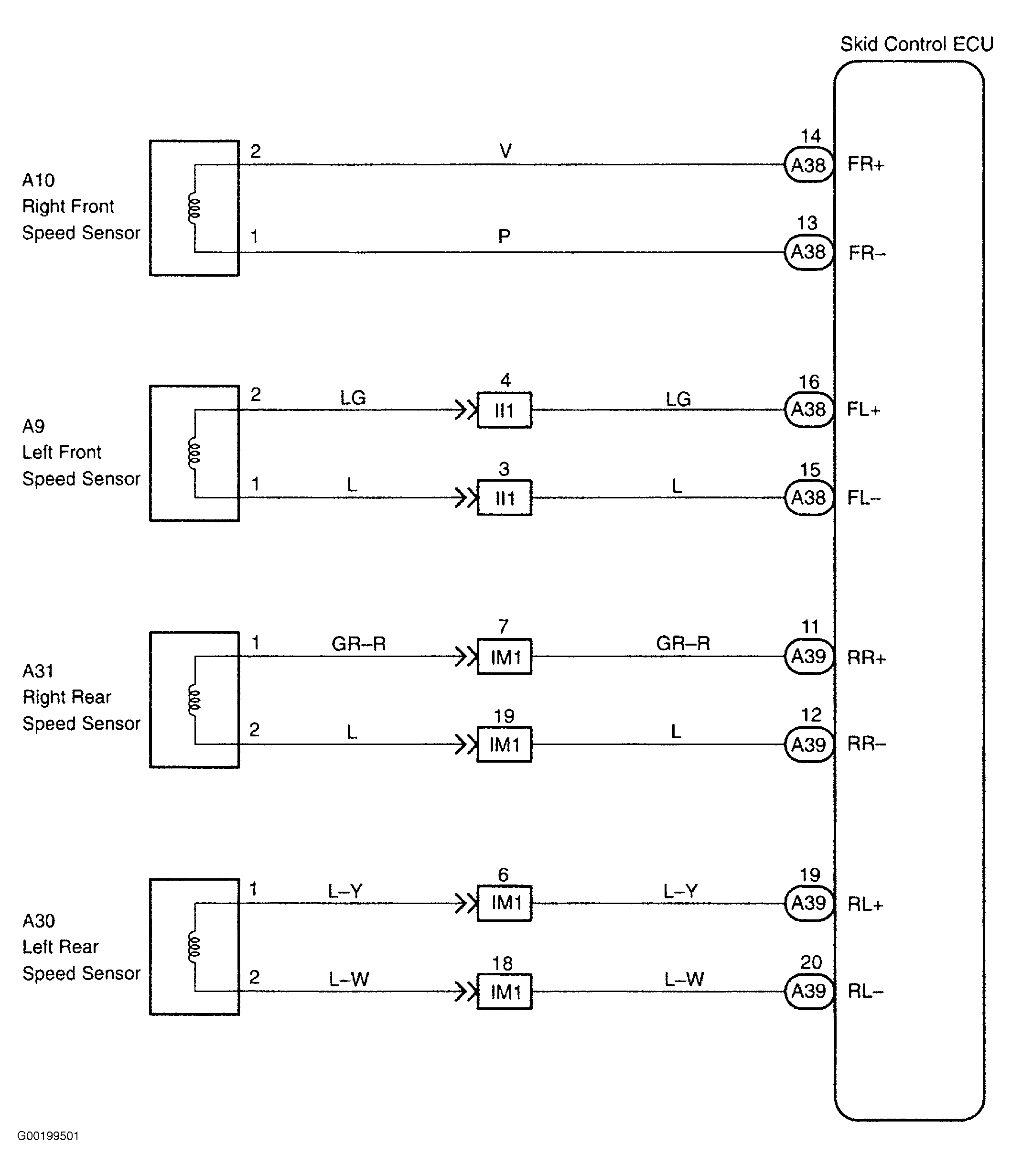

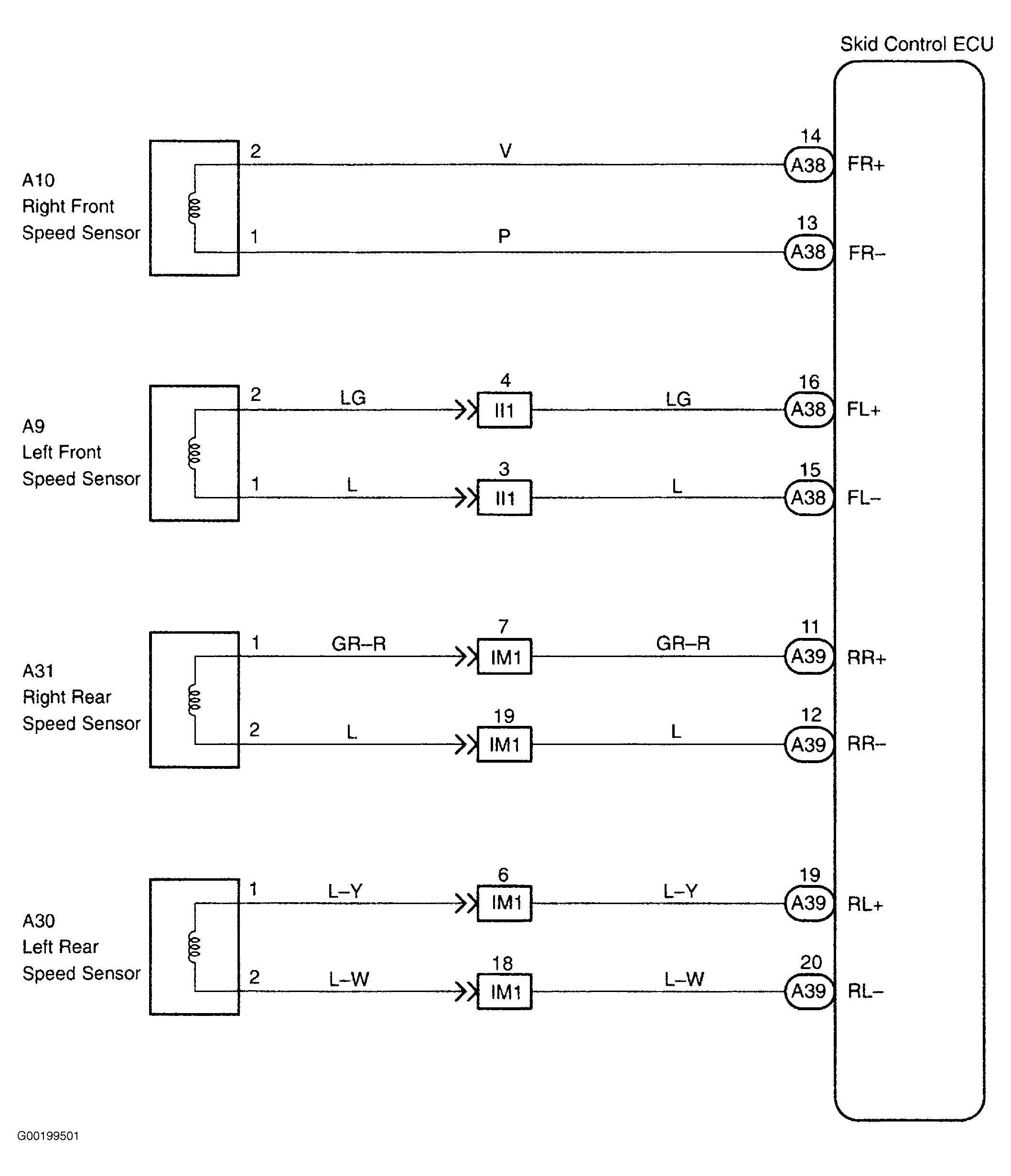

Fig 1: Wiring Diagram Speed Sensor Circuit

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

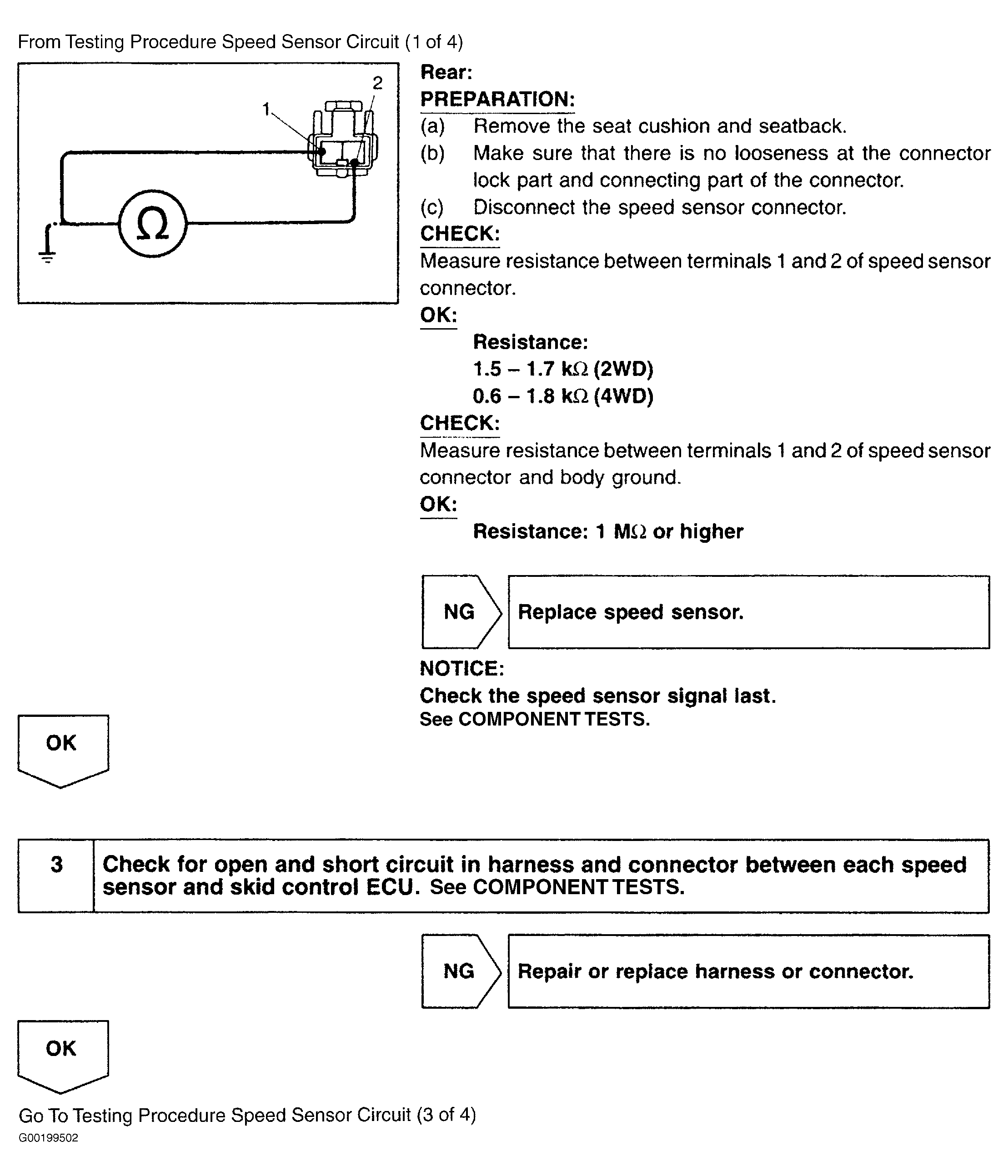

Fig 2: Testing Procedure Speed Sensor Circuit (1 Of 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Testing Procedure Speed Sensor Circuit (2 Of 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

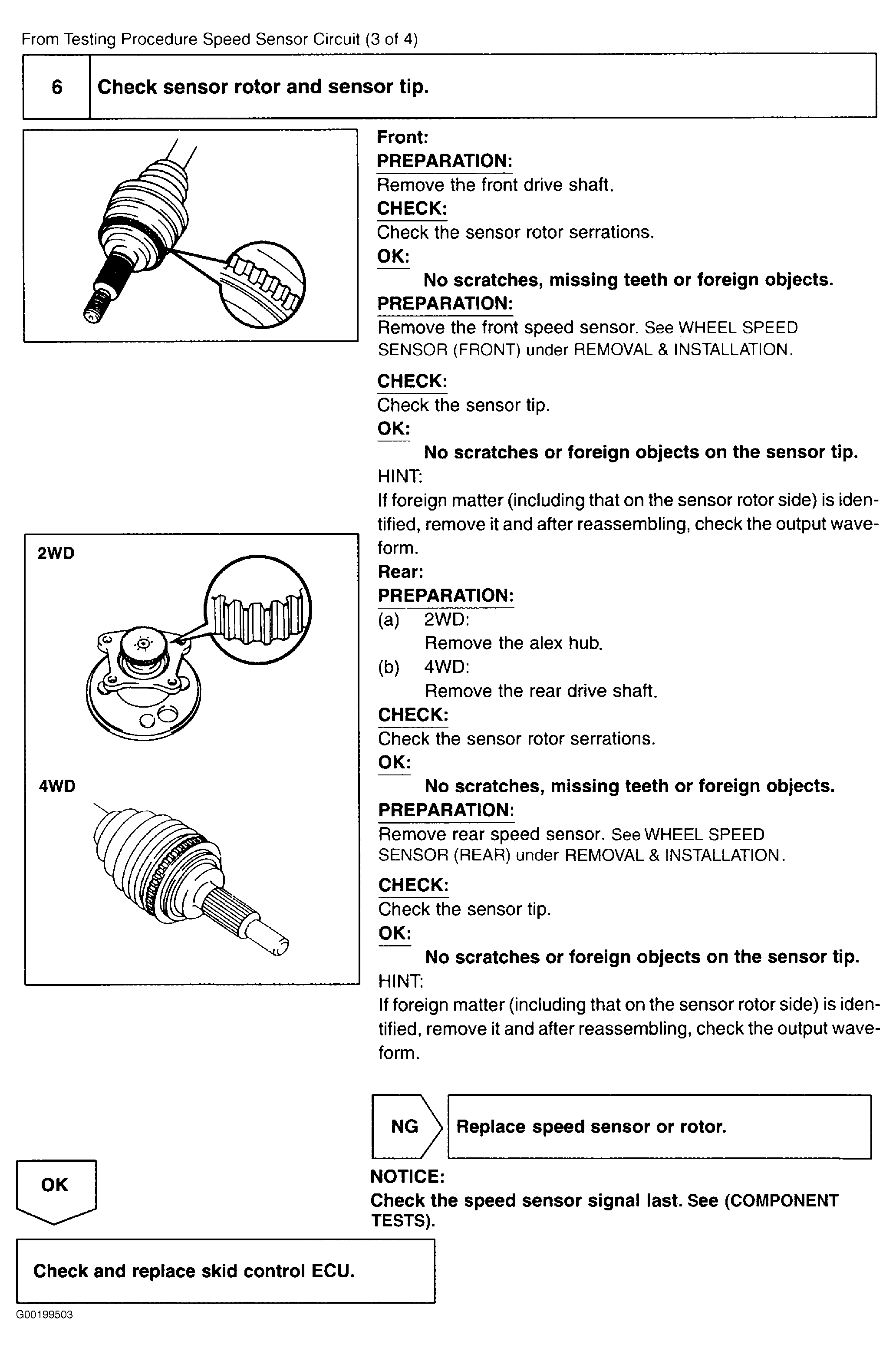

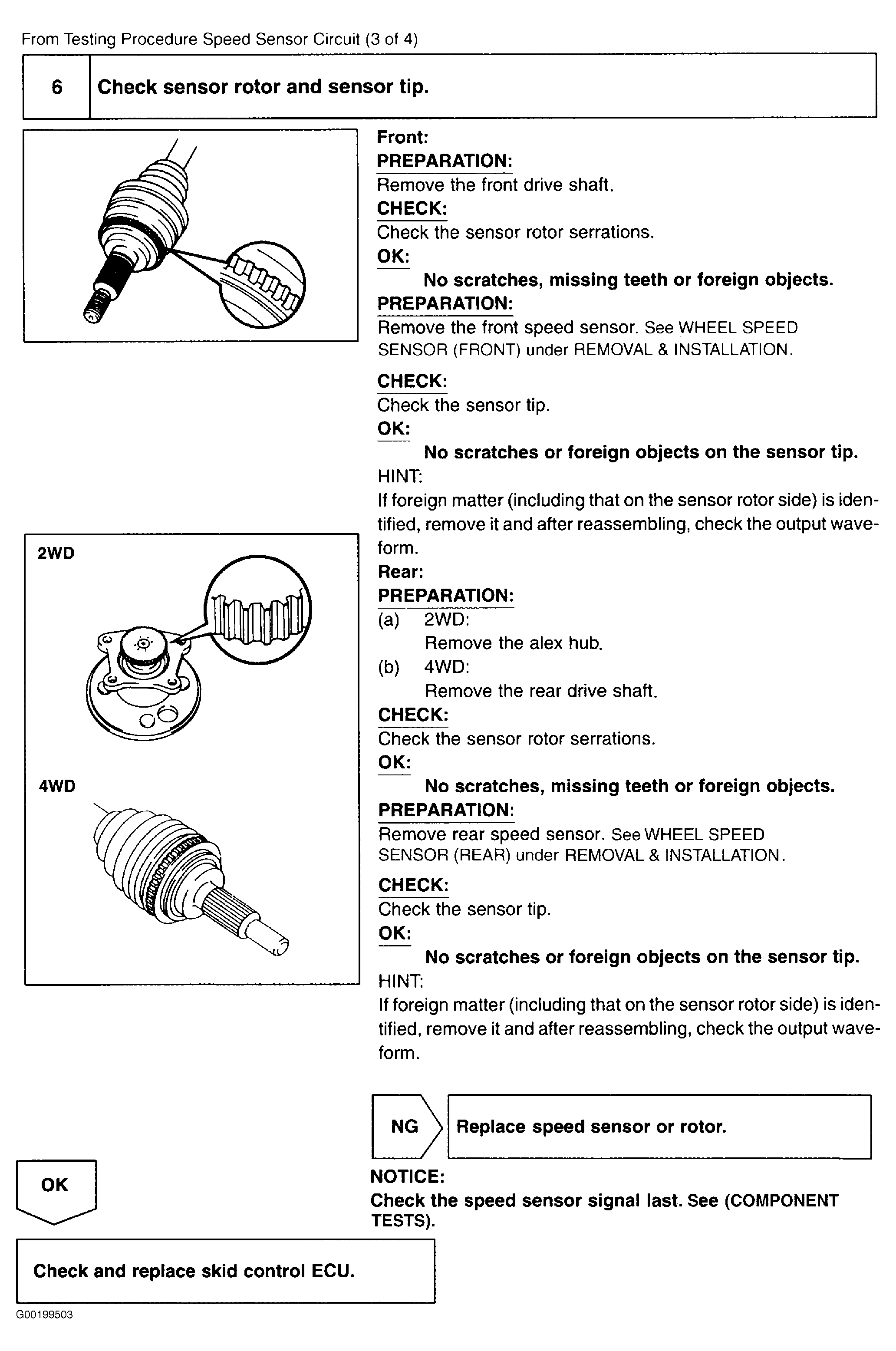

Fig 4: Testing Procedure Speed Sensor Circuit (3 Of 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Testing Procedure Speed Sensor Circuit (4 Of 4

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
