Tilt Steering Column: Components

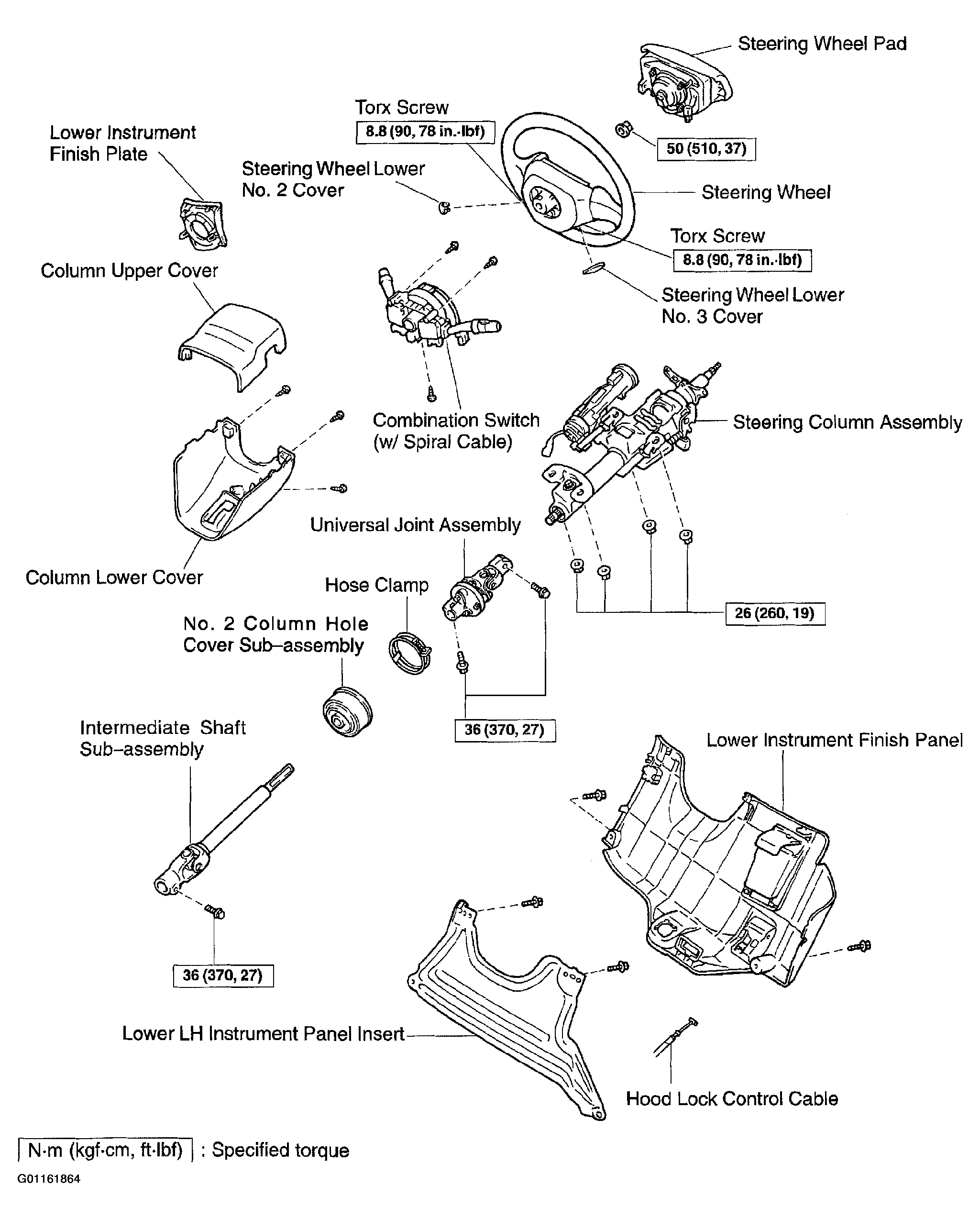

Fig 1: Exploded View Of Tilt Steering Column Components (1 Of 2)
G01161864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

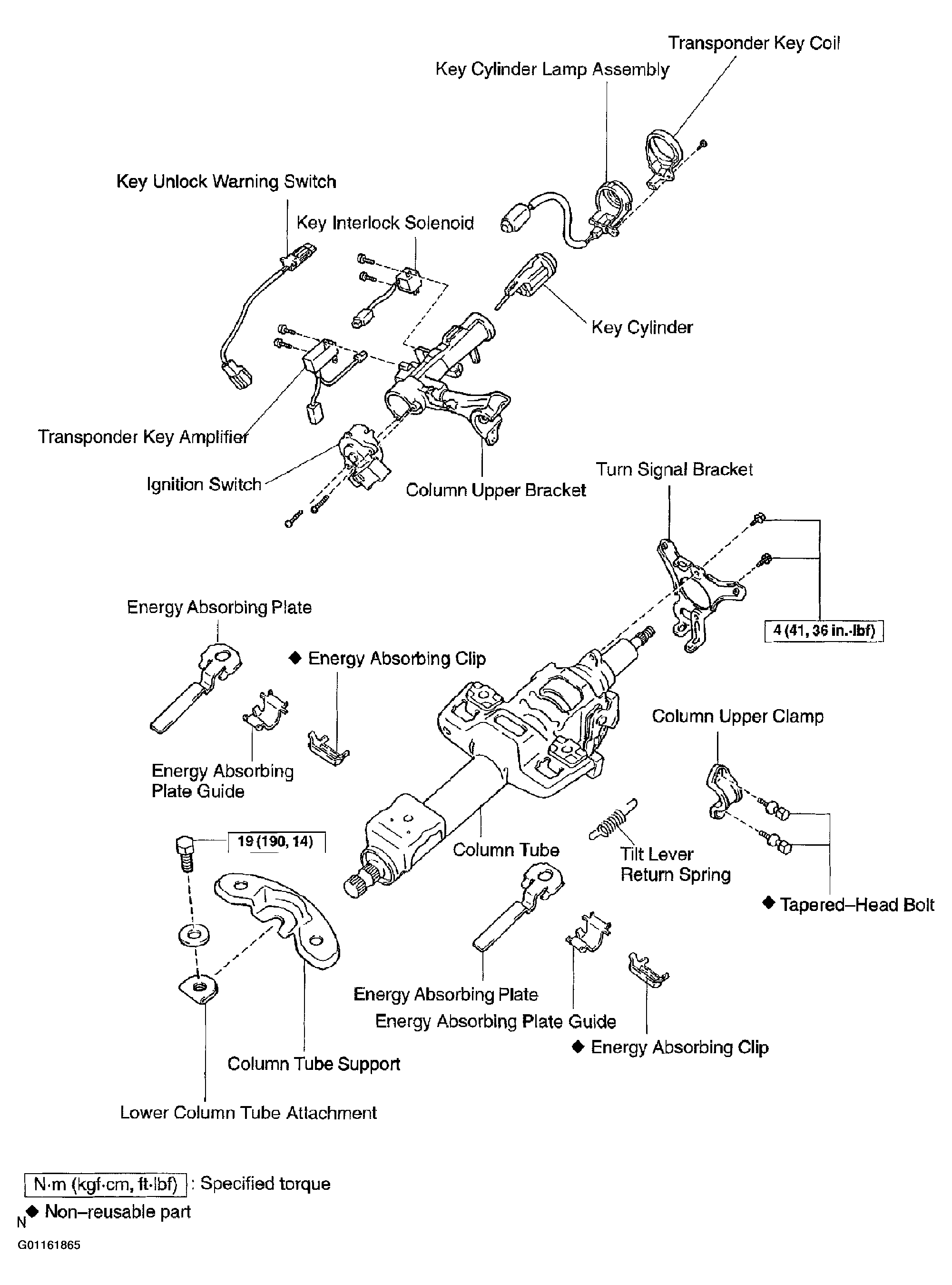

Fig 2: Exploded View Of Tilt Steering Column Components (2 Of 2)
G01161865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
