Tilt Steering Column: Removal
- REMOVE STEERING WHEEL PAD NOTE: If the airbag connector is disconnected with the ignition switch at ON or ACC, DTCs will be recorded.
- Place the front wheels facing straight ahead.
- Remove the steering wheel lower No. 2 and No. 3 covers.

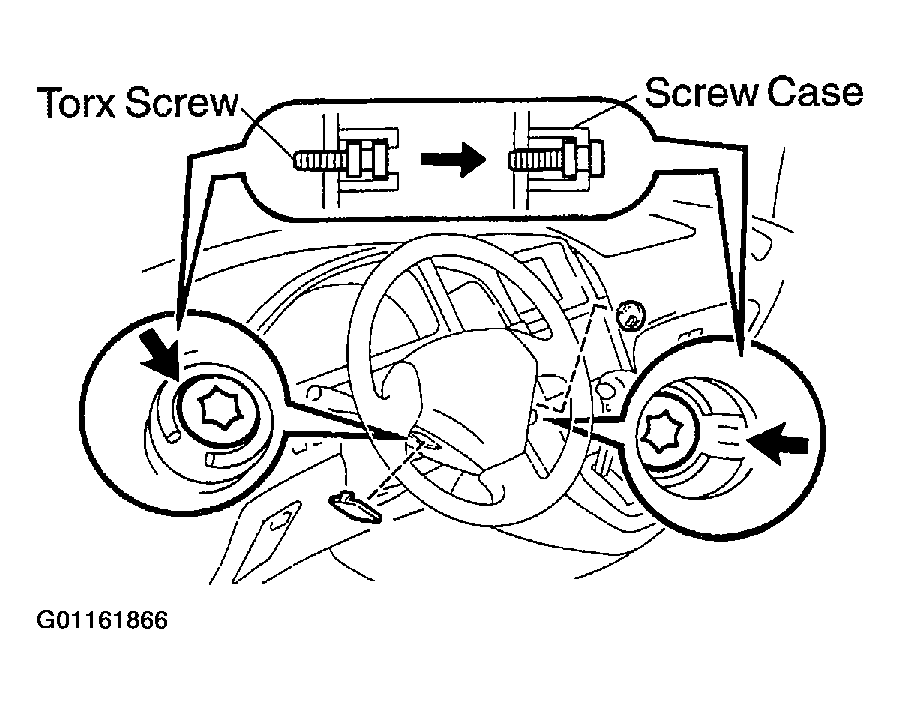

- Using a torx socket wrench, loosen the 2 torx screws.
HINT:
Loosen the 2 screws until the groove along the screw circumference catches on the screw case.

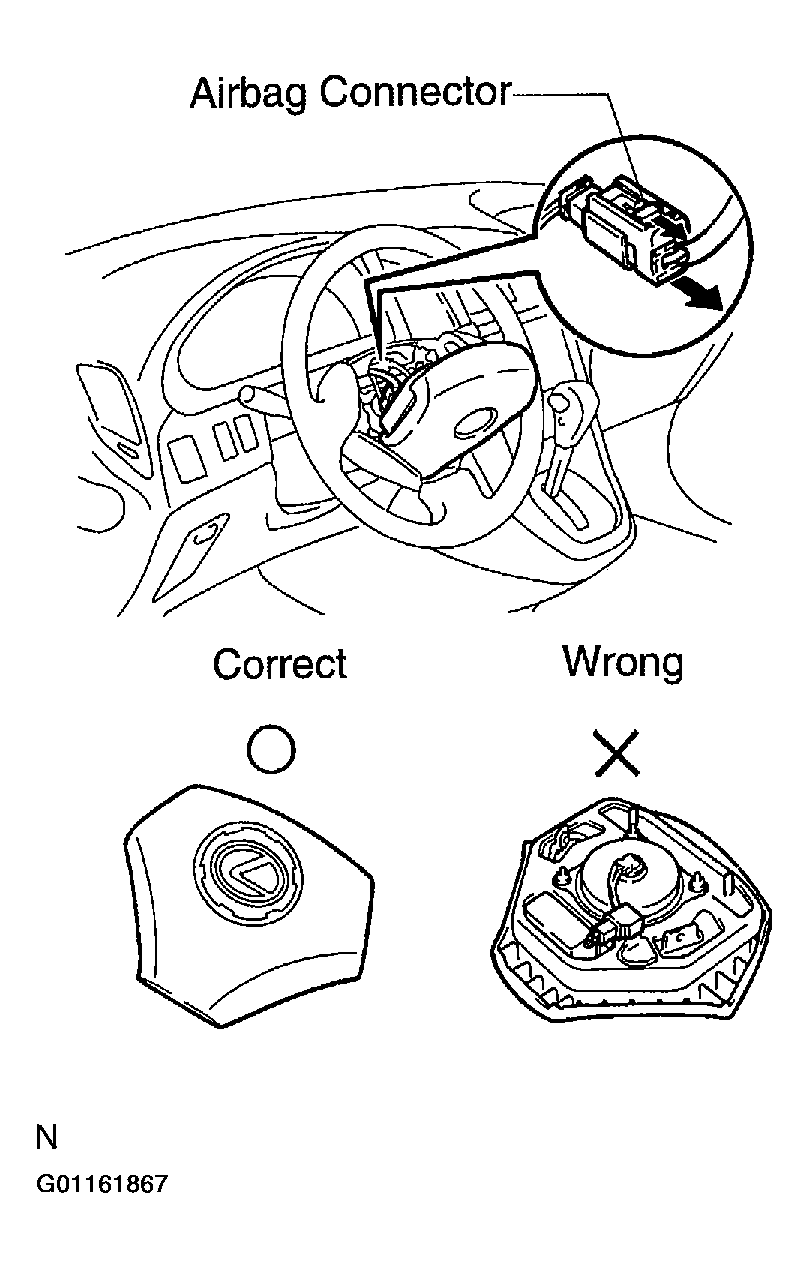

- Pull out the wheel pad from the steering wheel and disconnect the airbag connector.
CAUTION:- When storing the wheel pad, keep the upper surface of the pad facing upward.
- Never disassemble the wheel pad.
NOTE: When removing the wheel pad, take care not to pull the airbag wire harness. - REMOVE STEERING WHEEL
- Disconnect the connector.
- Remove the steering wheel set nut. Remove the steering wheel set nut.

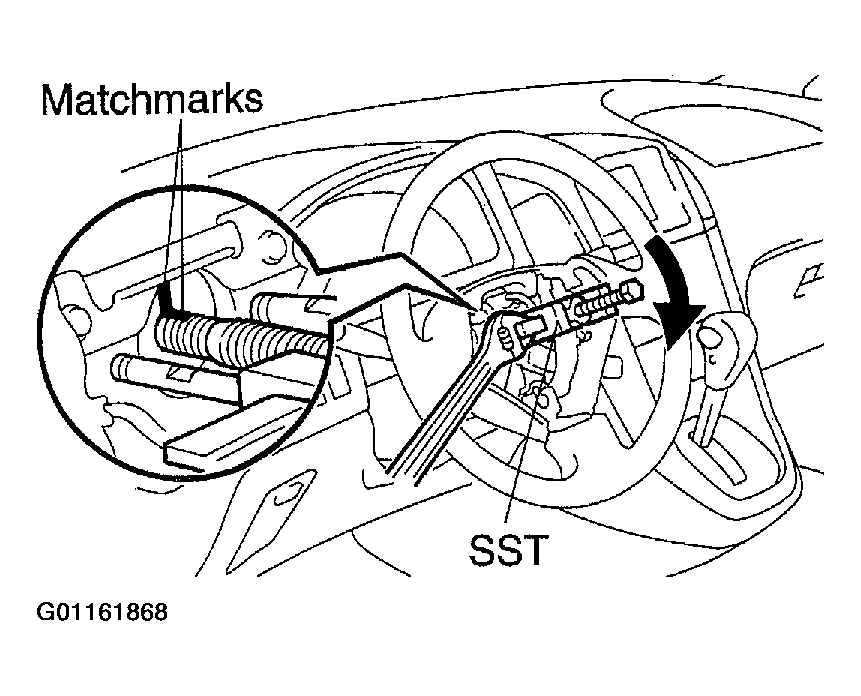

- Place matchmarks on the steering wheel and main shaft assembly.
- Using SST, remove the steering wheel.
- SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
- REMOVE LOWER INSTRUMENT FINISH PANEL
- Remove the 2 bolts.
- Disconnect the connector.
- Disconnect the hood lock control cable and remove the lower instrument finish panel.
- REMOVE LOWER LH INSTRUMENT PANEL INSERT
Remove the 2 bolts and lower LH instrument panel insert.
- REMOVE COLUMN UPPER AND LOWER COVERS
Remove the 3 screws, column upper and lower covers.
- REMOVE COMBINATION SWITCH WITH SPIRAL CABLE
- Disconnect the 3 connectors.
- Disconnect the airbag connector.
- Remove the 3 screws and combination switch with spiral cable.
- REMOVE SPIRAL CABLE (See SPIRAL CABLE
) NOTE: Do not disassemble the spiral cable or apply oil to it.
- DISCONNECT INTERMEDIATE SHAFT SUB-ASSEMBLY

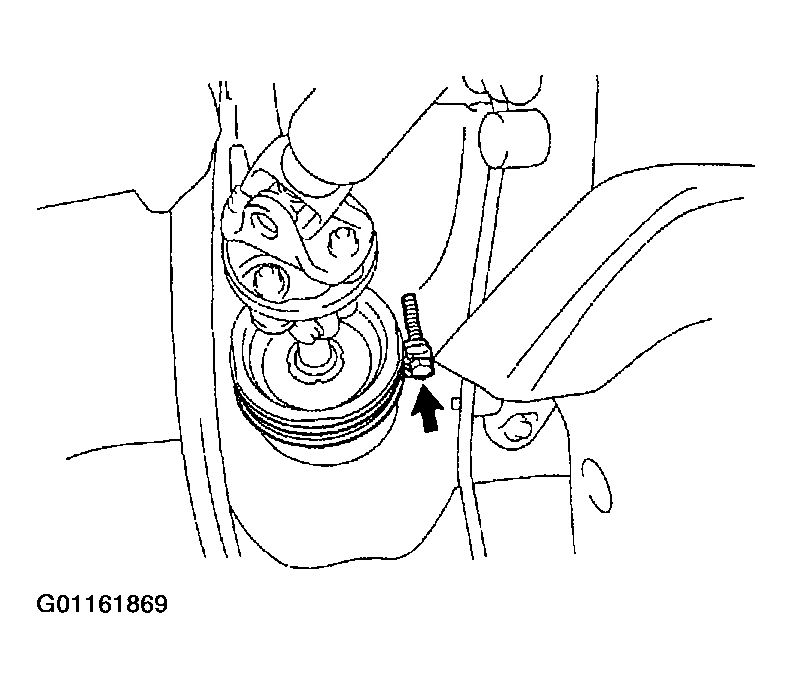

- Loosen the hose clamp.

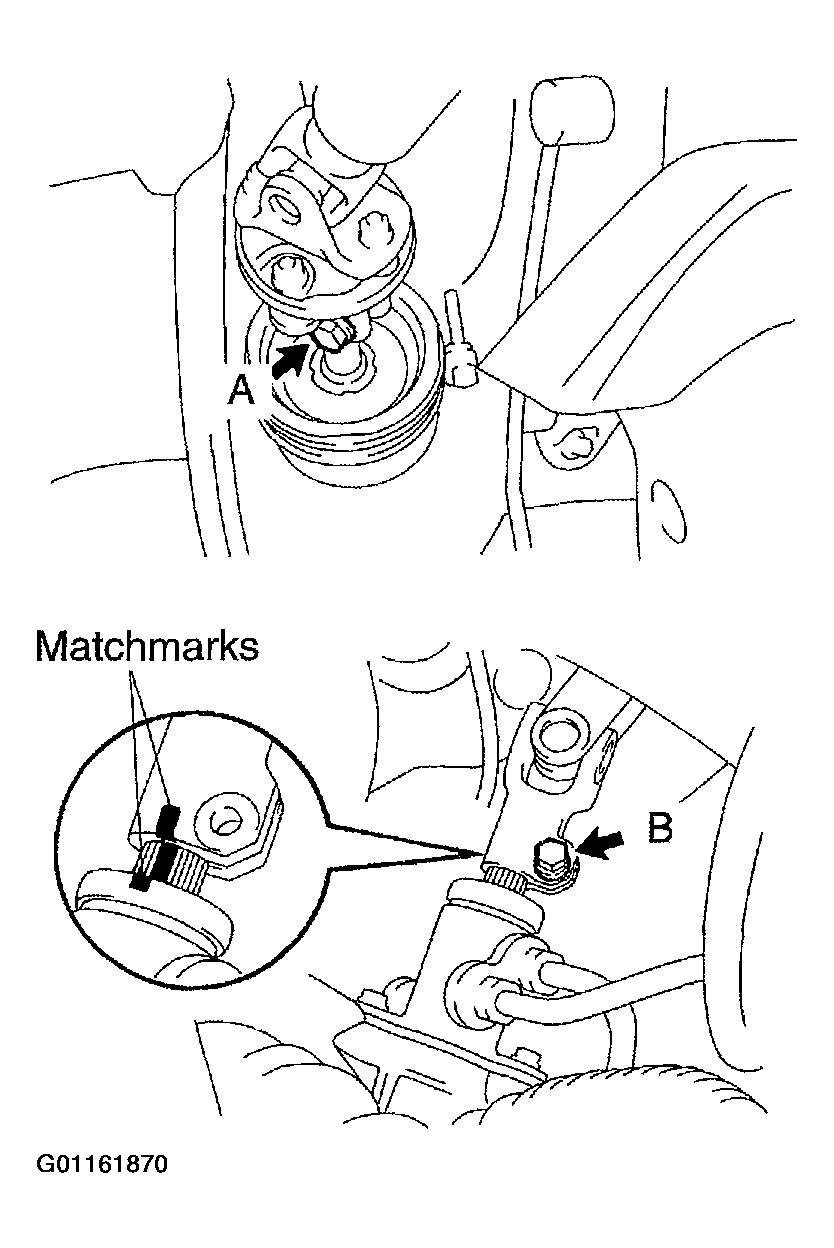

- Place matchmarks on the intermediate shaft and control valve shaft.
- Loosen the bolt "A" and remove the bolt "B", then disconnect the intermediate shaft sub-assembly.
- REMOVE LOWER INSTRUMENT FINISH PLATE
- REMOVE STEERING COLUMN ASSEMBLY
- Disconnect the connector.
- Remove the 4 column assembly set nuts and steering column assembly.
- REMOVE INTERMEDIATE SHAFT SUB-ASSEMBLY WITH NO.2 COLUMN HOLE COVER SUB- ASSEMBLY
Remove the bolt "A" and intermediate shaft sub-assembly with No. 2 column hole cover sub-assembly.
- REMOVE NO. 2 COLUMN HOLE COVER SUB-ASSEMBLY
- Remove the No. 2 column hole cover sub-assembly from the intermediate shaft sub-assembly.
- Remove the hose clamp.
- REMOVE UNIVERSAL JOINT ASSEMBLY

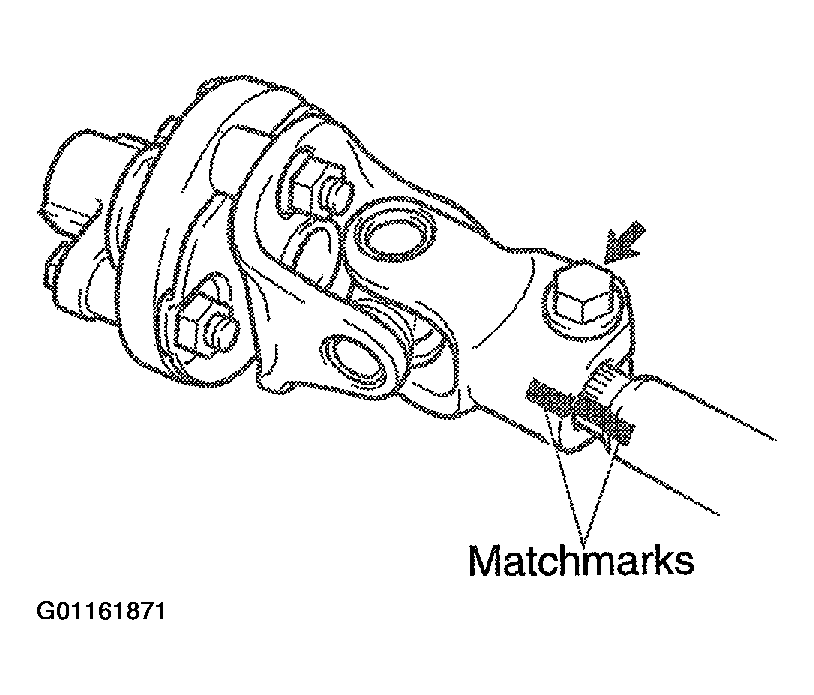

- Place matchmarks on the universal joint and main shaft.
- Remove the bolt and universal joint assembly.
