| A/C Compressor Housing Bracket-To-Cylinder Block |
18 (25) |
| Air Intake Chamber-To-Intake Manifold |
32 (43) |
| Air Intake Chamber Stay-To-Air Intake Chamber |
15 (20) |
| Air Intake Chamber Stay-To-RH Cylinder Head |
15 (20) |
| Camshaft Bearing Cap-To-Cylinder Head Fastener |
12 (16) |
| Camshaft Timing Gear Assembly (VVT-i)-To-Camshaft |
110 (150) |
| Camshaft Timing Pulley-To-Camshaft |
92 (125) |
| Camshaft Timing Pulley-To-Camshaft (With SST) |
65 (88) |
| Center Exhaust Pipe-To-Tailpipe |
46 (62) |
| Connecting Rod Cap-To-Connecting Rod |
| 1st Pass |
18 (25) |
| 2nd Pass |
Tighten An Additional 90 Degrees |
| Crankshaft Pulley-To-Crankshaft |
159 (215) |
| Cylinder Head-To-Cylinder Block |
| 1st Pass (12 Pointed Head) |
40 (54) |
| 2nd Pass (12 Pointed Head) |
Tighten Additional 90 Degrees |
| Recessed Head |
14 (19) |

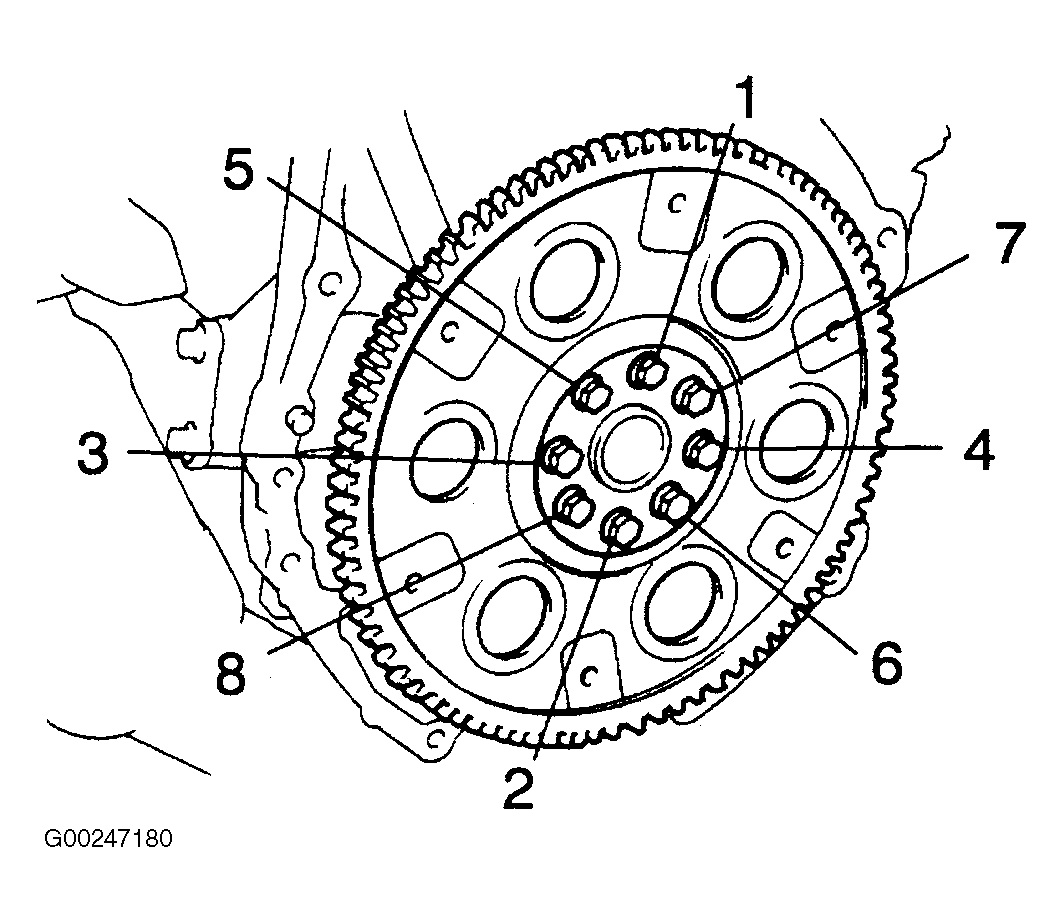

| Drive Plate-To-Crankshaft |
61 (83) |
| Engine Coolant Drain Union-To-Cylinder Block |
29 (39) |
| Engine Mounting Absorber-To-Front Suspension Member |
35 (48) |
| Engine Mounting Absorber-To-Transaxle |
35 (48) |
| Engine Moving Control Rod-To-RH Engine Mounting Bracket Bolt A |
47 (64) |
| Engine Moving Control Rod-To-RH Fender Apron Bolt B & C |
47 (64) |
| Engine Moving Control Rod-To-Water Outlet Bolt D |
24 (32) |
| Exhaust Manifold-To-Cylinder Head |
36 (49) |
| Exhaust Manifold Stay-To-Exhaust Manifold |
15 (20) |
| Exhaust Manifold Stay-To-Transmission Housing |
15 (20) |
| Front Engine Mounting Insulator-To-Cylinder Block |
47 (64) |
| Front Engine Mounting Insulator-To-Front Frame Assembly |
59 (80) |
| Front Exhaust Pipe-To-Center Exhaust Pipe |
46 (62) |
| Front Exhaust Pipe-To-RH Exhaust Manifold |
46 (62) |
| Front Lower Brace-To-Body Bolt |
134 (181) |
| Front Stabilizer-To-Front Frame Assembly |
14 (19) |
| Front Suspension Upper Brace-To-Body |
59 (80) |
| Fuel Inlet Hose-To-Fuel Filter |
21 (29) |
| Generator Bracket-To-Cylinder Block |
32 (43) |

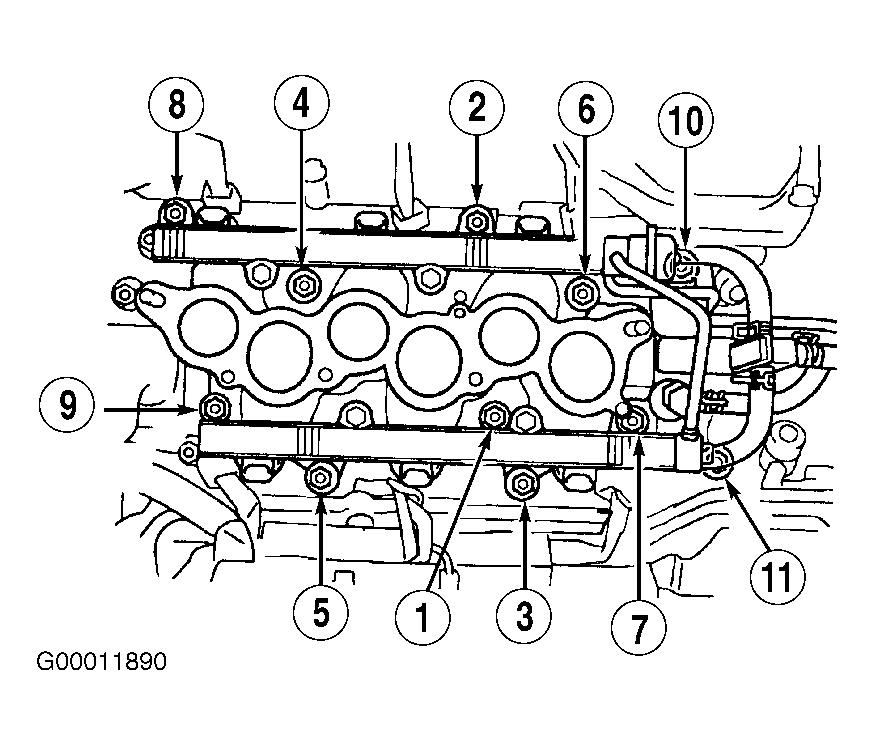

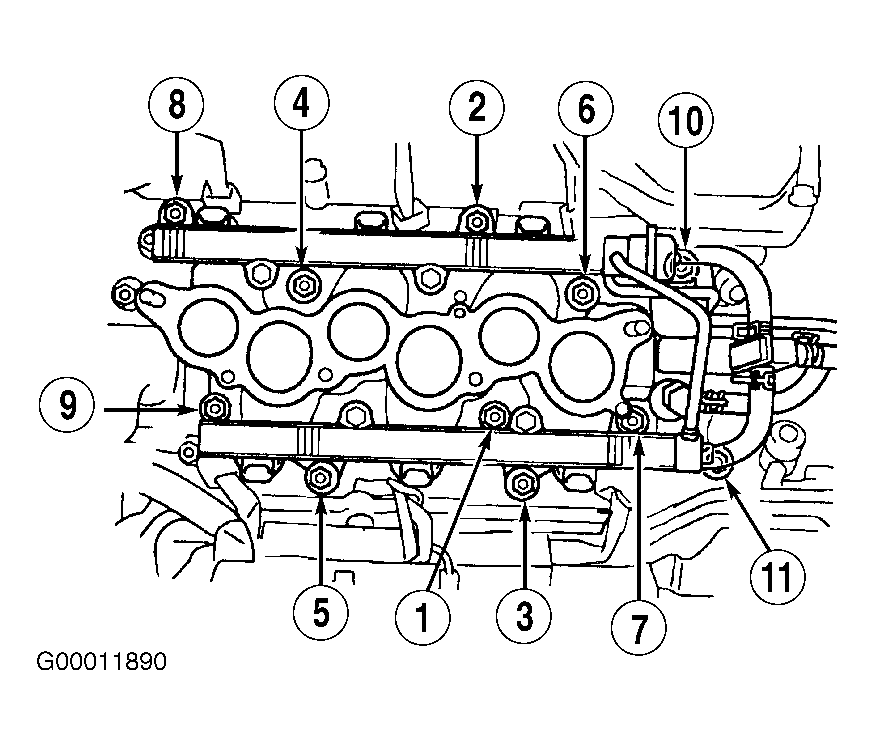

| Intake Manifold-To-Cylinder Head |
11 (15) |
| Knock Sensor-To-Cylinder Block |
29 (39) |
| LH Engine Mounting Insulator-To-Transaxle |
47 (64) |

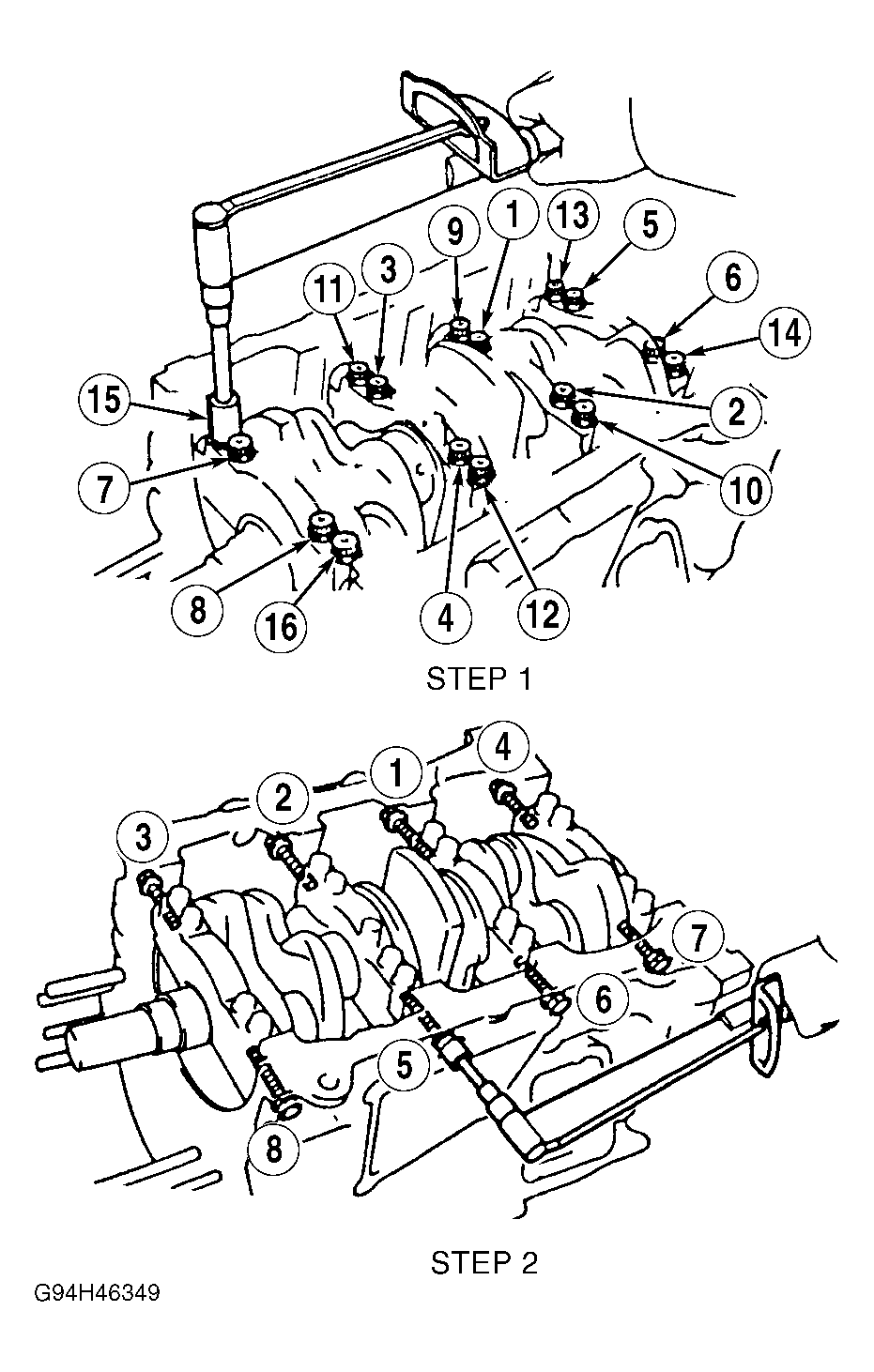

| Main Bearing Cap-To-Cylinder Block |
| 1st Pass (12 Pointed Head) |
16 (22) |
| 2nd Pass (12 Pointed Head) |
Tighten Additional 90 Degrees |
| 6 Pointed Head |
20 (27) |
| No. 1 Engine Hanger-To-RH Cylinder Head |
15 (20) |
| No. 1 Engine Hanger-To-Intake Air Chamber |
15 (20) |
| No. 1 Idler Pulley-To-Oil Pump Fastener |
25 (34) |
| No. 1 Oil Pan-To-Cylinder Block |
14 (20) |
| No. 1 Oil Pan-To-Transaxle |
27 (37) |
| No. 2 Front Exhaust Pipe-To-Front Exhaust Pipe |
41 (56) |
| No. 2 Front Exhaust Pipe-To-TWC |
41 (56) |
| No. 2 Generator Bracket-To-Engine RH Mounting Bracket |
21 (28) |
| No. 2 Idler Pulley-To-No. 2 Idler Pulley Bracket |
32 (43) |
| No. 2 Idler Pulley Bracket-To-Cylinder Block |
21 (28) |
| Oil Control Valve Filter-To-Cylinder Head |
33 (45) |
| Oil Filter Union-To-Cylinder Block |
22 (30) |
| PS Gear Assembly-To-Front Frame Assembly |
134 (181) |
| PS Pump Bracket-To-RH Cylinder Head |
32 (43) |
| PS Vane Pump-To-PS Pump Bracket |
32 (43) |
| Rear Engine Mounting Bracket-To-Cylinder Block |
47 (64) |
| Rear Engine Mounting Bracket-To-Rear Engine Insulator |
64 (87) |
| Rear Lower Brace-To-Body Bolts |
| 14 mm Head (Bolt B) |
24 (32) |
| 19 mm Head (Bolt A) |
134 (181) |
| RH Engine Mounting Bracket-To-Cylinder Block |
21 (28) |
| Timing Belt Tensioner-To-Oil Pump Assembly |
20 (27) |
| Water Inlet Pipe-To-LH Cylinder Head |
15 (20) |
| Water Outlet-To-Intake Manifold |
11 (15) |
| Water Seal Plate-To-Cylinder Block |
13 (18) |
| Wiper Arm-To-Wiper Link |
18 (25) |
| INCH Lbs. (N.m) |
| Cylinder Block Side Cover-To-Cylinder Block |
80 (9) |
| Cylinder Head Cover-To-Cylinder Head |
71 (8) |
| Cylinder Head Rear Cover-To-Cylinder Head |
89 (10) |
| Cylinder Head Rear Plate-To-LH Cylinder Head |
71 (8) |
| No. 1 Oil Pan-To-No. 2 Oil Pan |
69 (8) |
| No. 1 Oil Pan-To-Rear Oil Seal Retainer |
69 (8) |
| No. 1 Timing Belt Cover-To-Oil Pump Assembly |
75 (8.5) |
| No. 2 Timing Belt Cover-To-No. 3 Timing Belt Cover |
75 (8.5) |
| No. 3 Timing Belt Cover-To-Cylinder Head |
75 (8.5) |
| Oil Dipstick Guide-To-LH Cylinder Head |
71 (8) |
| Rear Oil Seal Retainer-To-Cylinder Block |
71 (8) |
| Timing Belt Plate-To-Oil Pump Fastener |
71 (8) |
| Water Inlet Housing-To-Cylinder Block |
71 (8) |
