Connector Code Lists

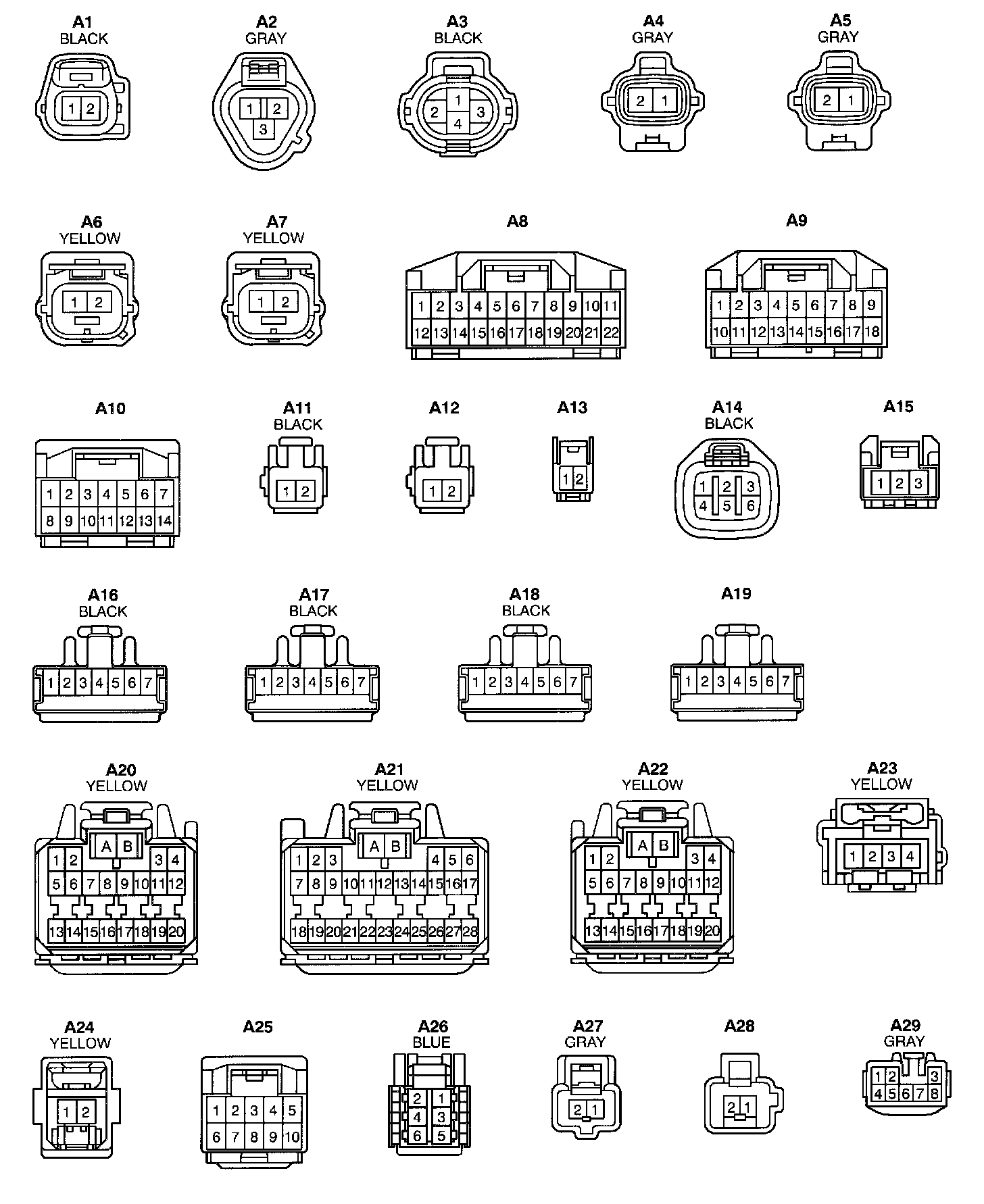

Connector View A1 - A29:

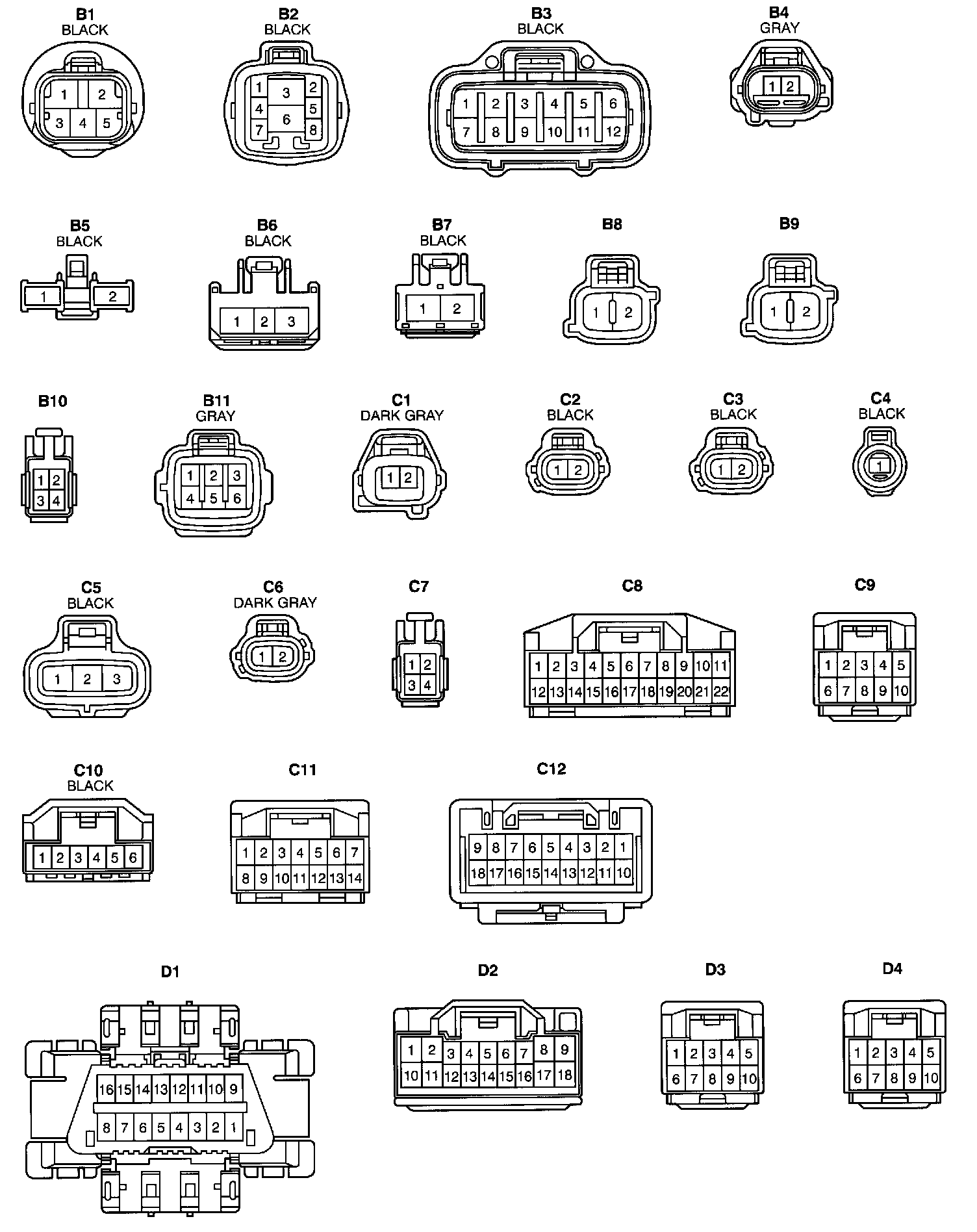

Connector View B1 - D4:

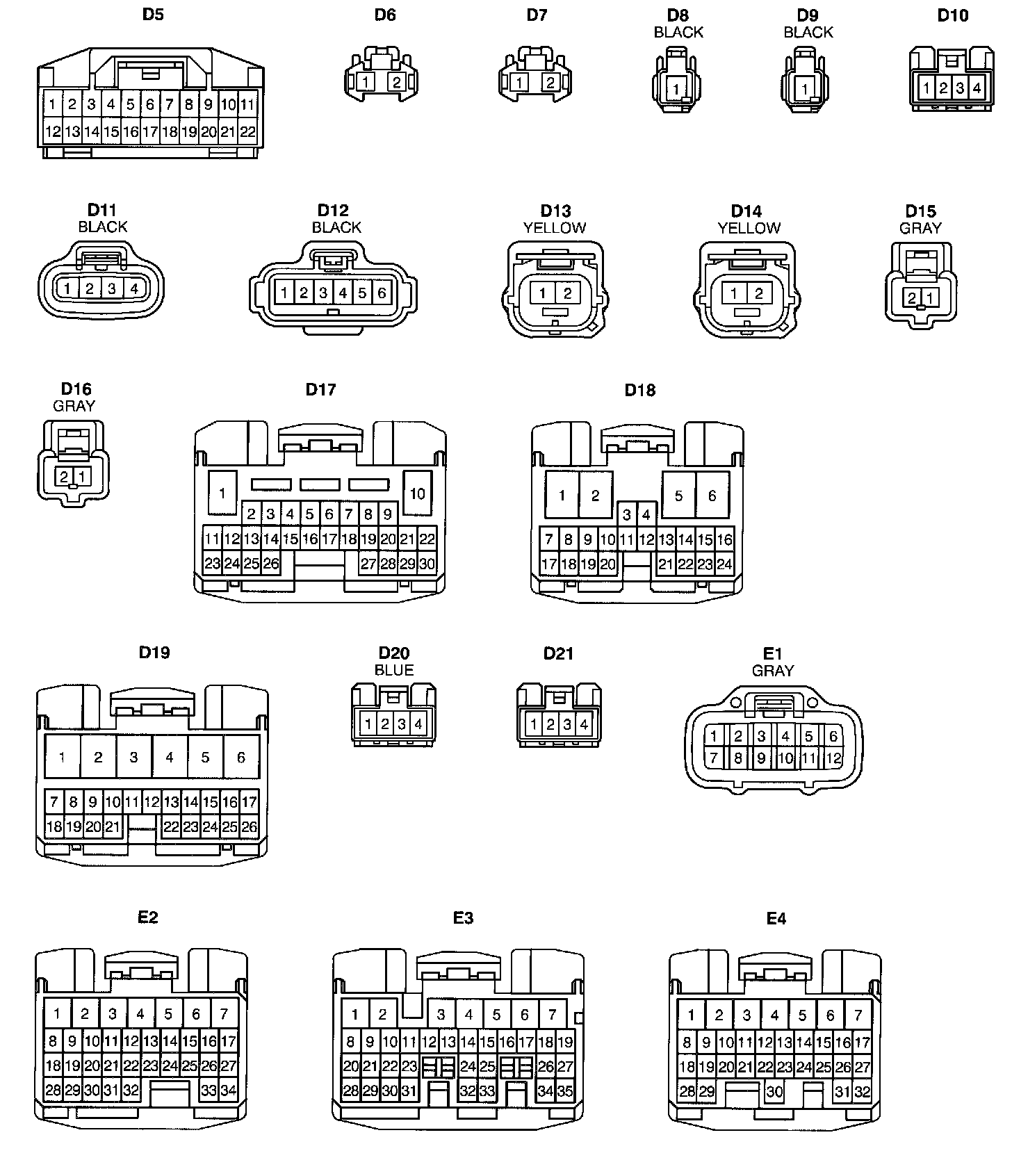

Connector View D5 - E4:

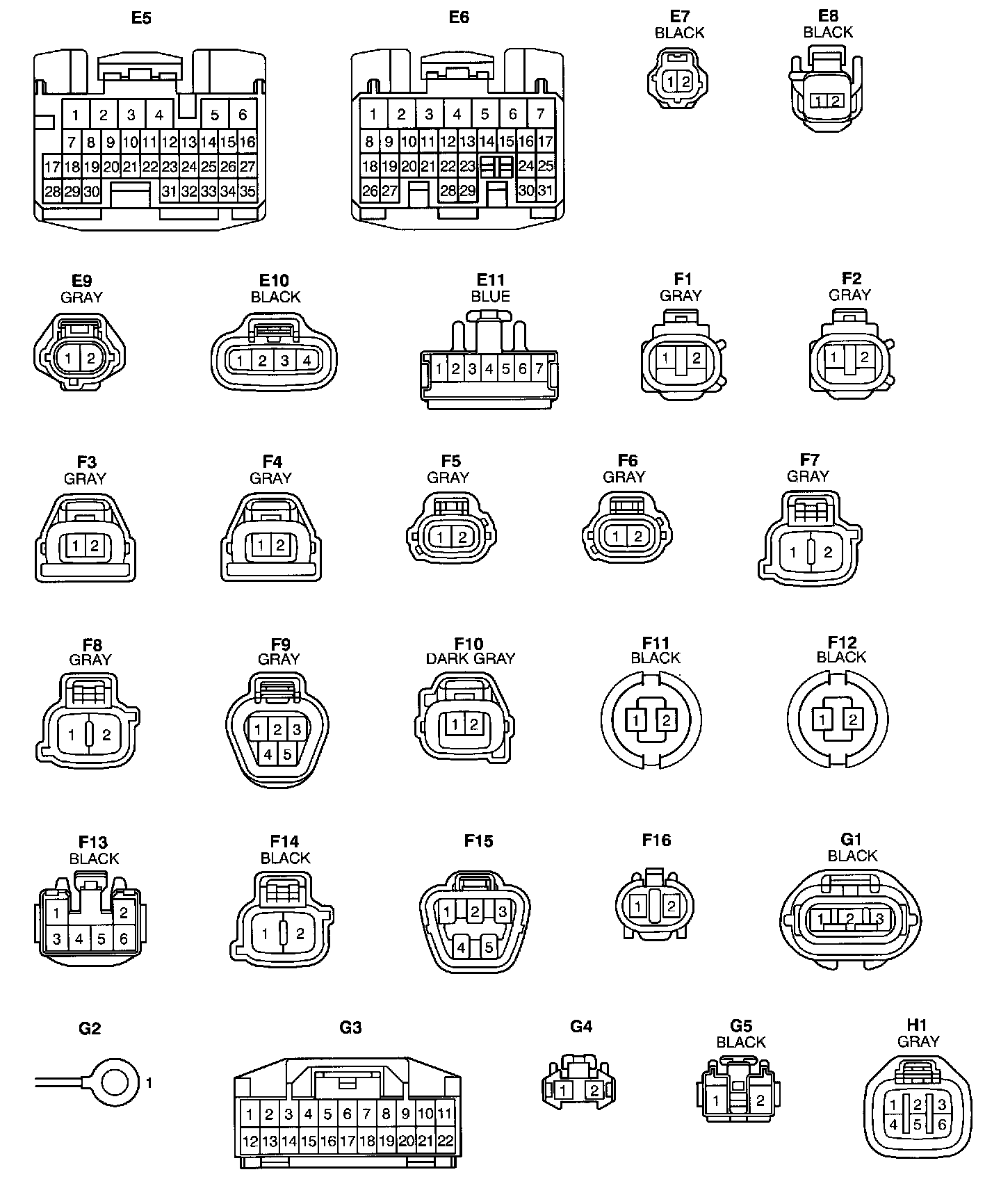

Connector View E5 - H1:

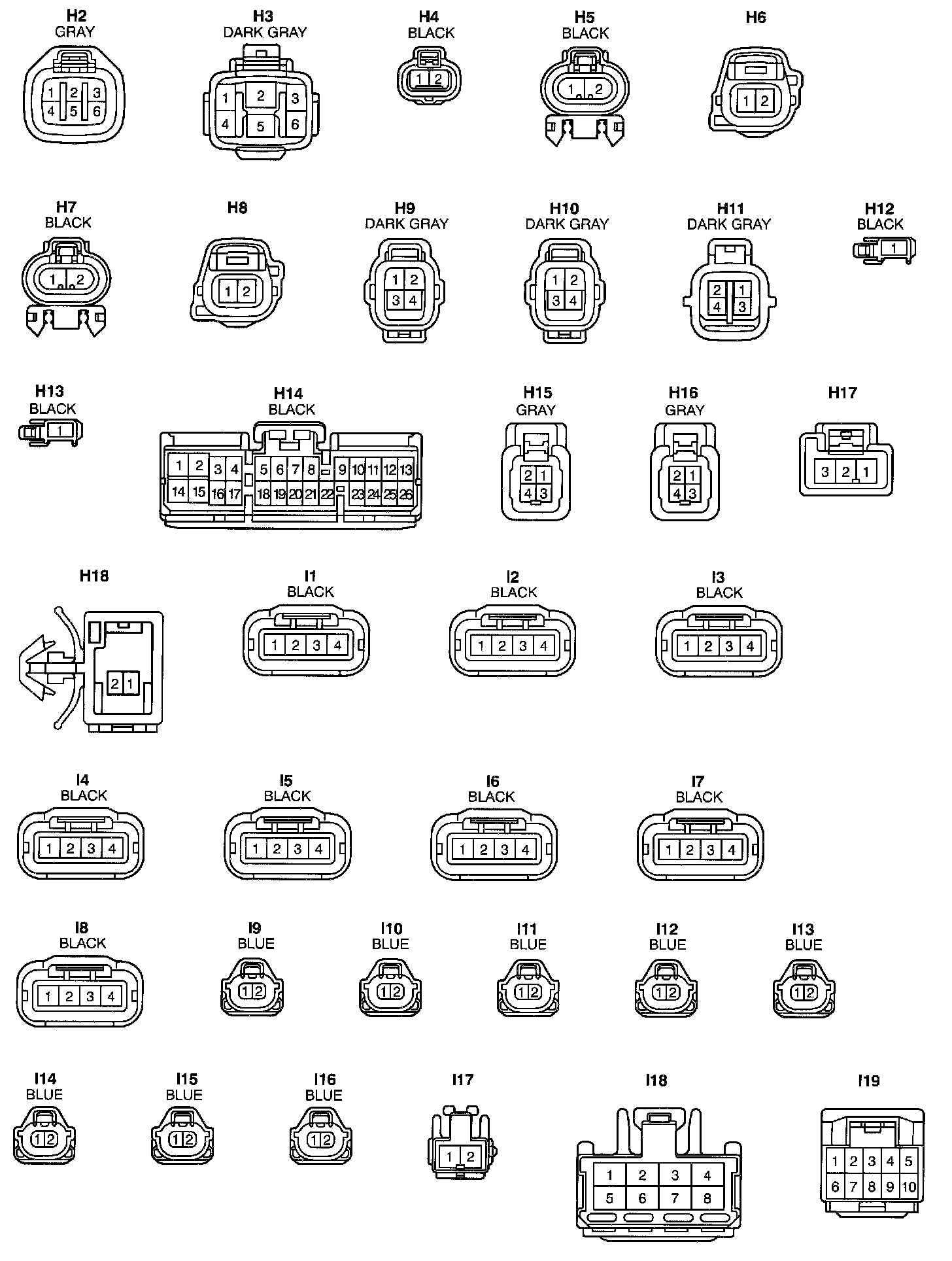

Connector View H2 - I19:

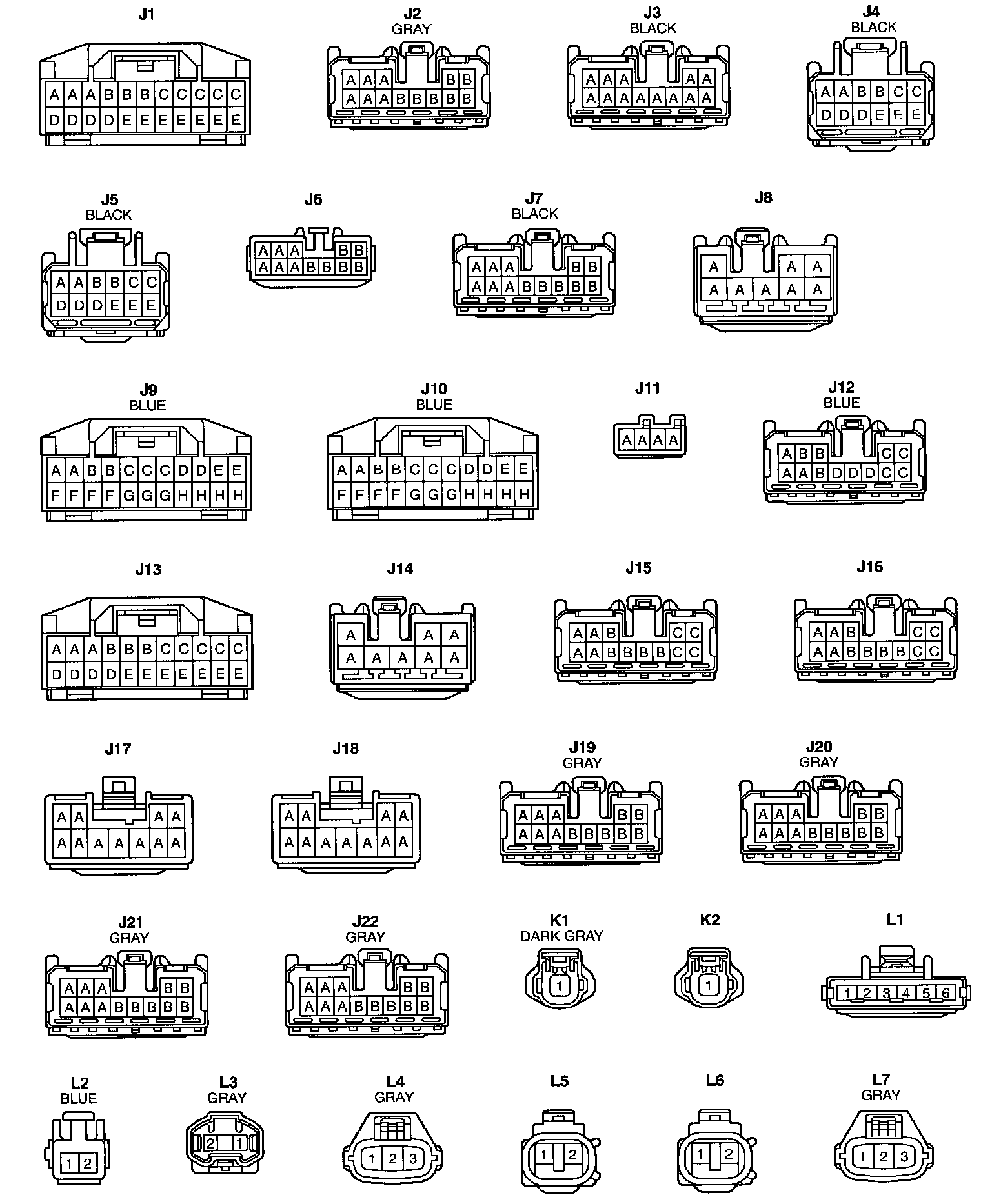

Connector View J1 - L7:

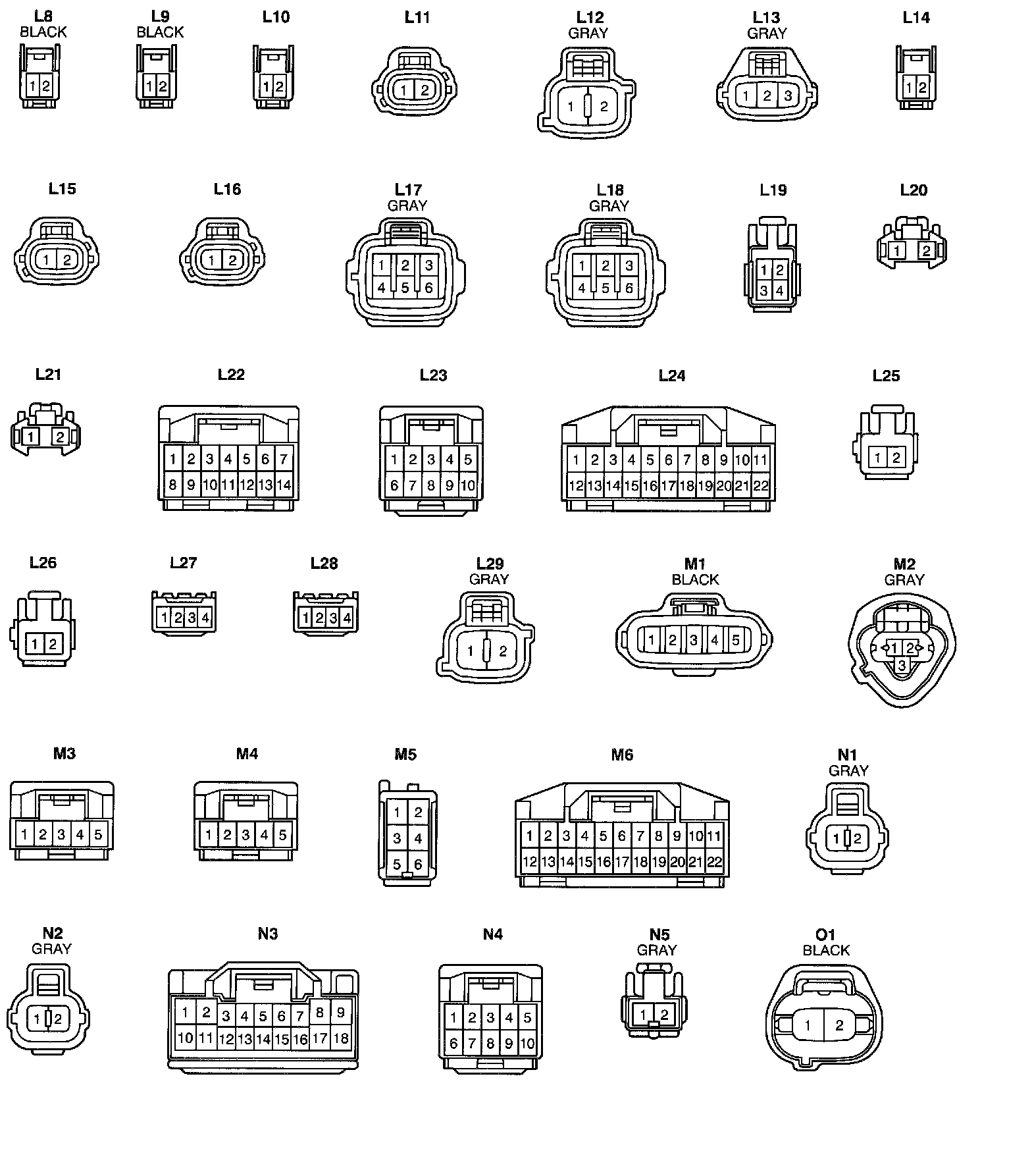

Connector View L8 - O1:

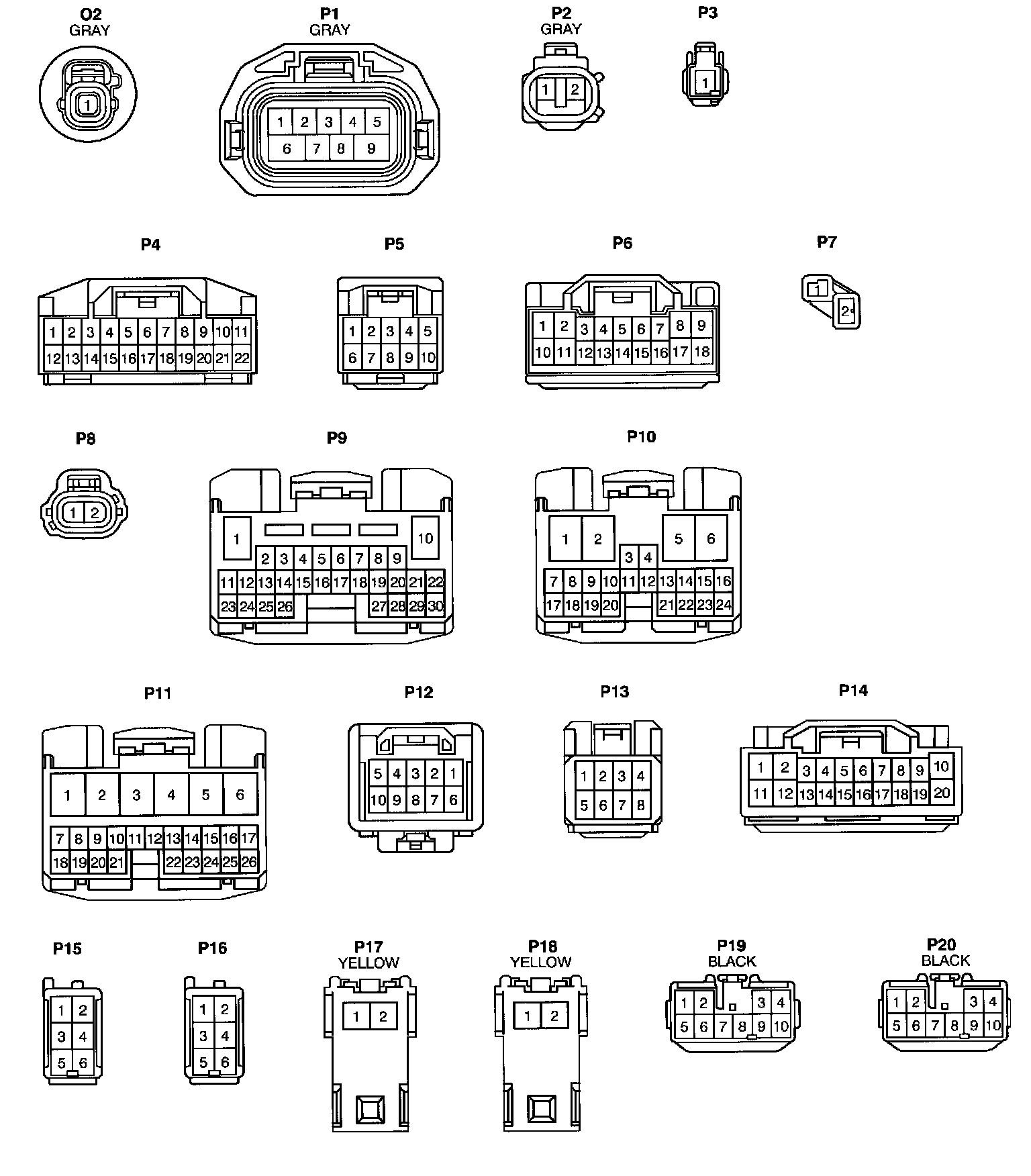

Connector View O2 - P20:

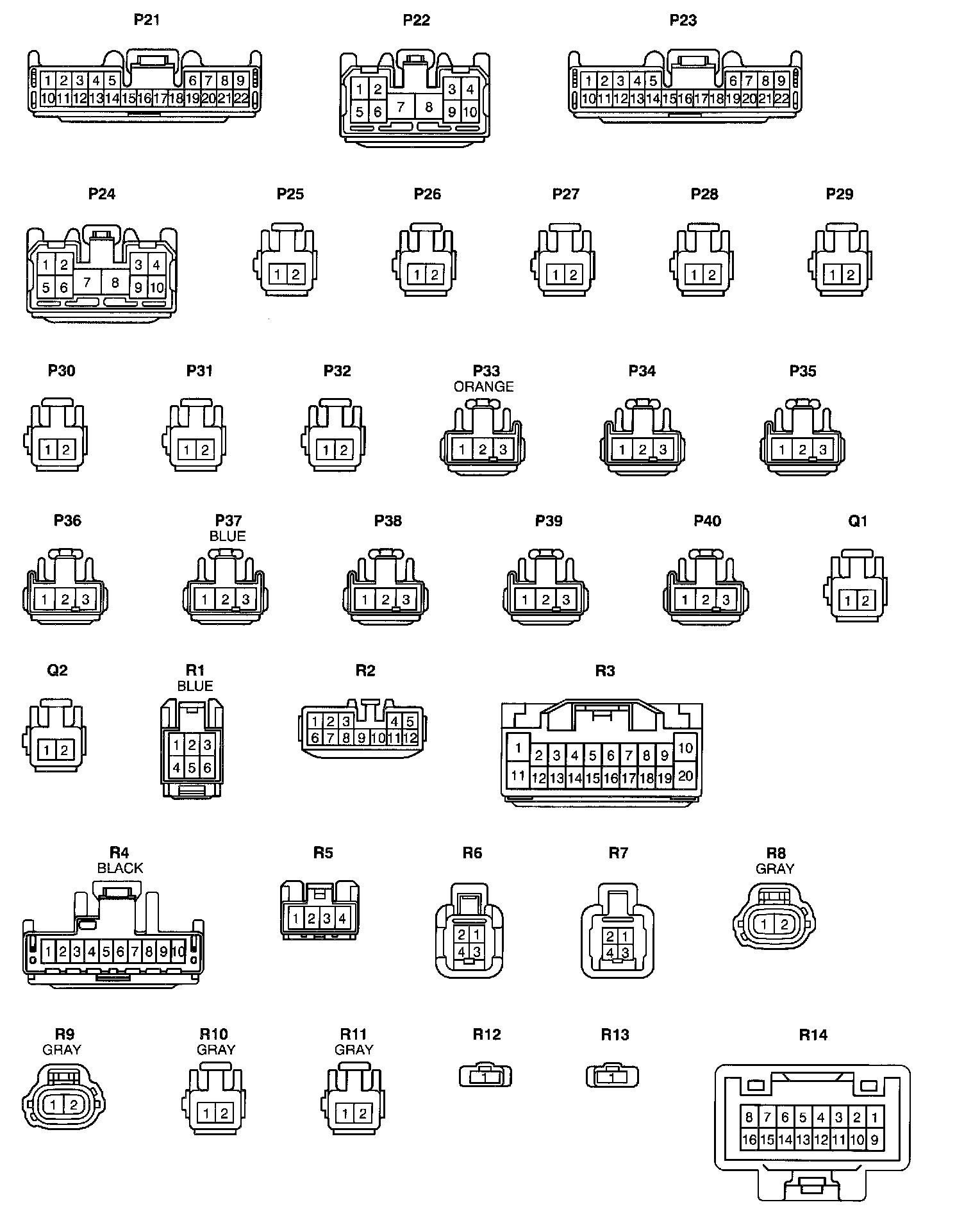

Connector View P21 - R14:

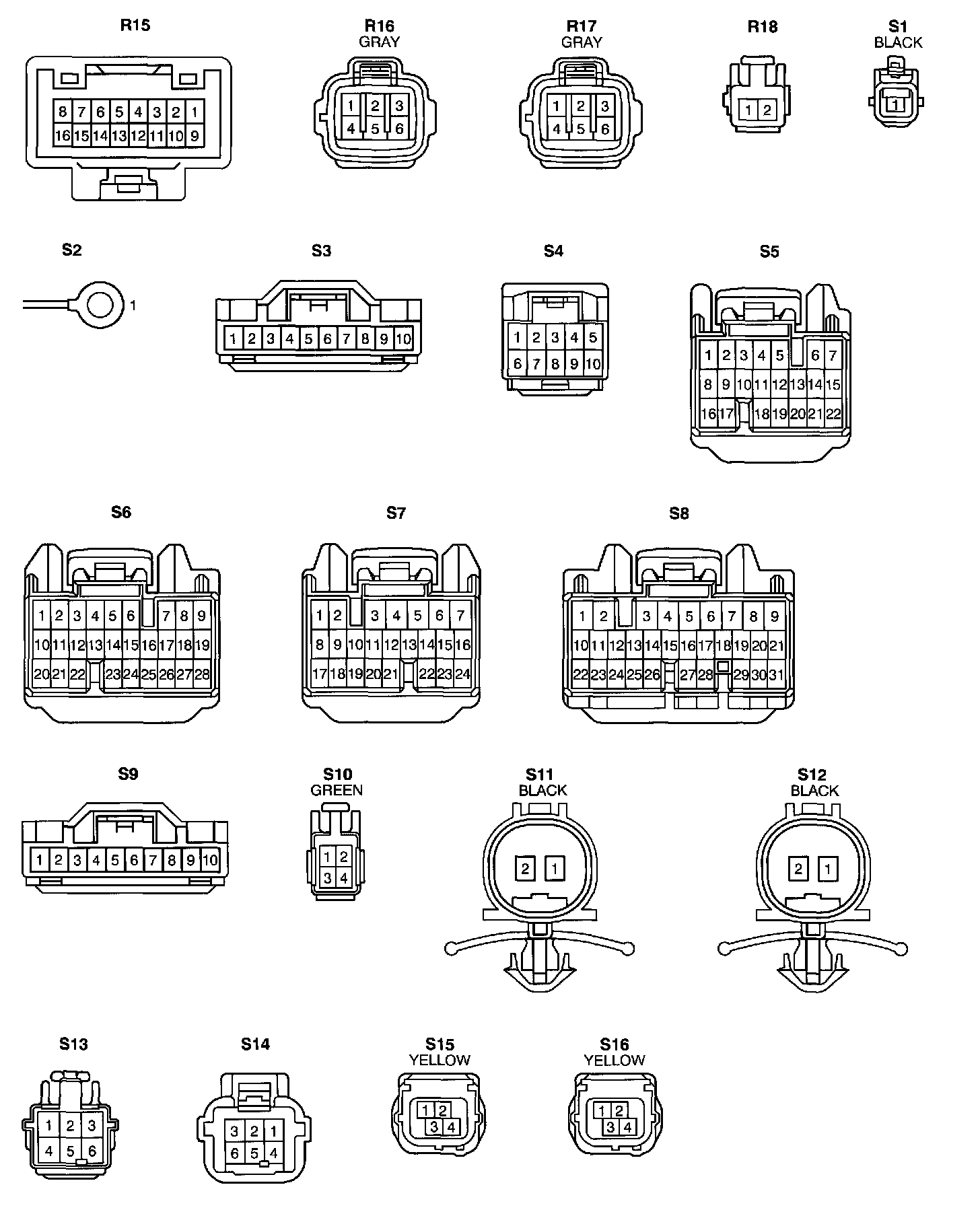

Connector View R15 - S16:

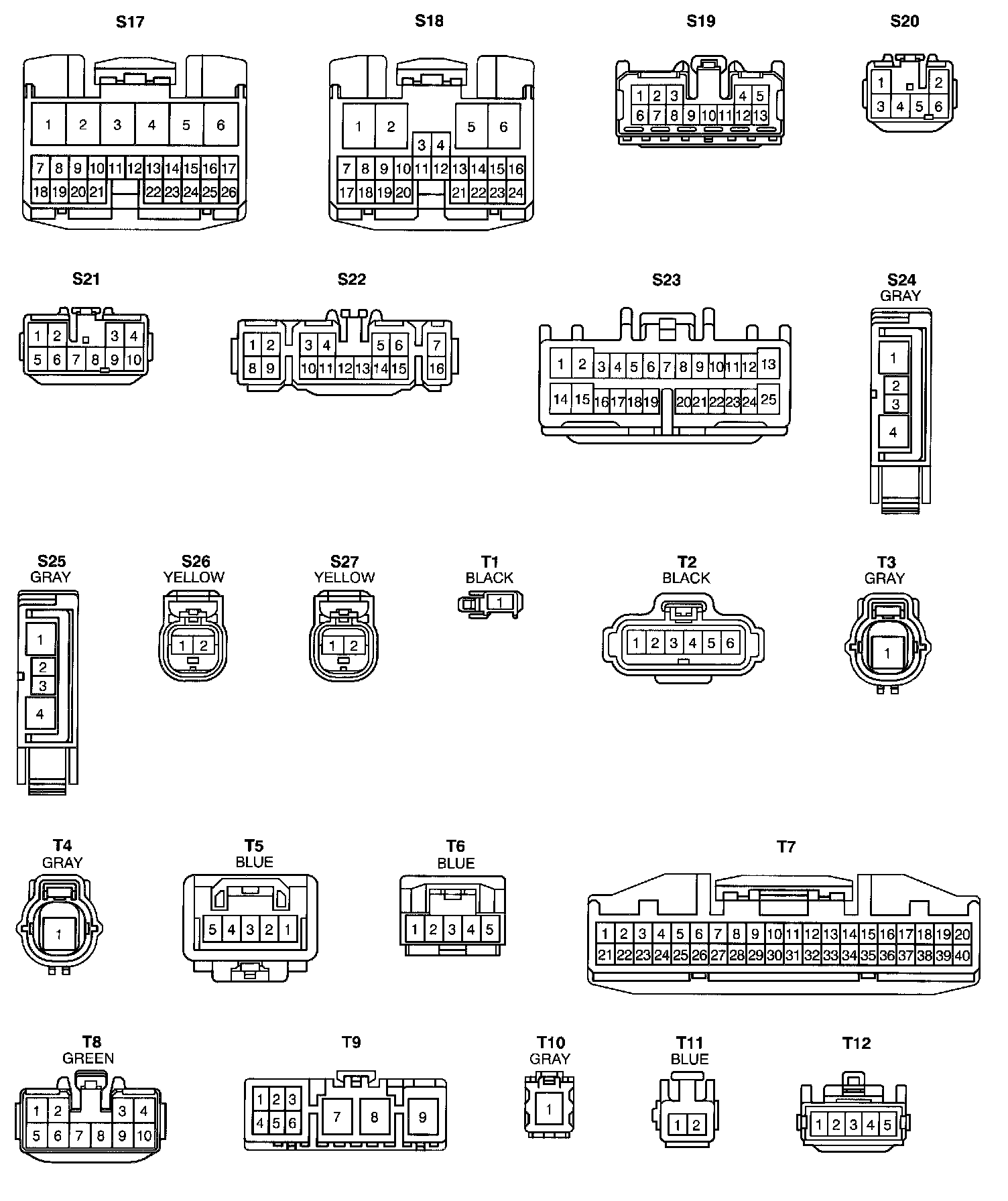

Connector View S17 - T12:

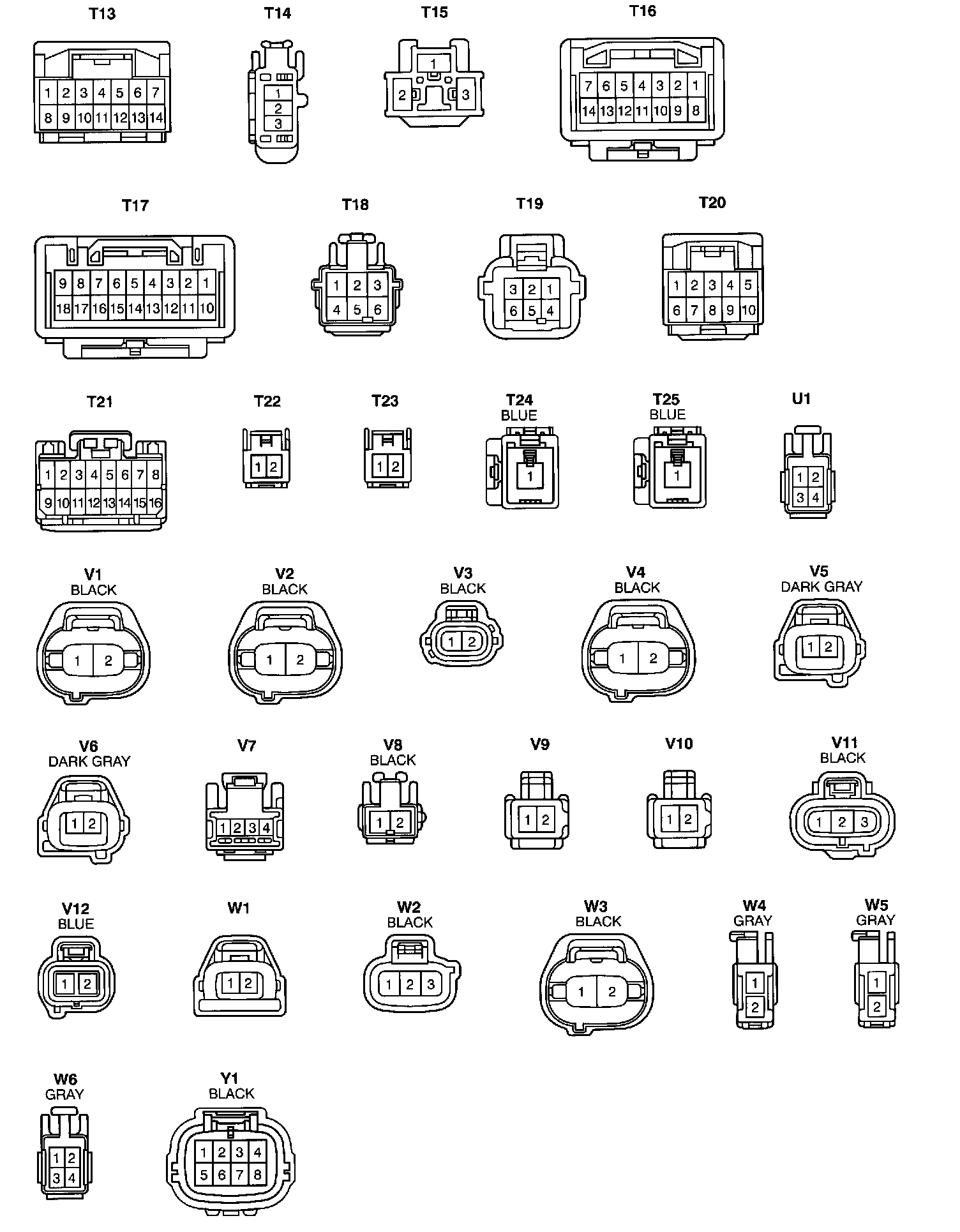

Connector View T13 - Y1:
