Trunk / Liftgate

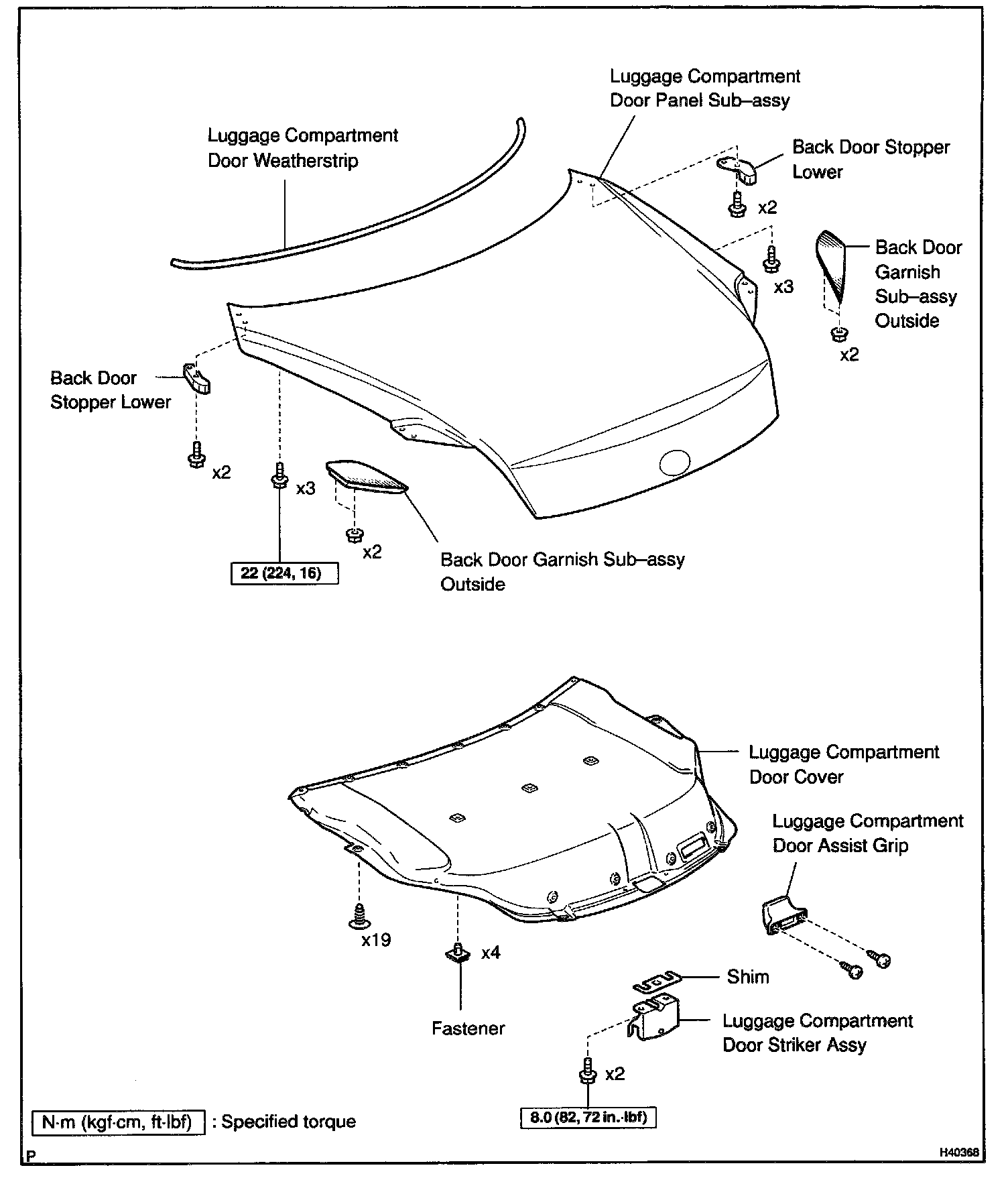

Luggage Compartment Door Panel Sub-Assy:

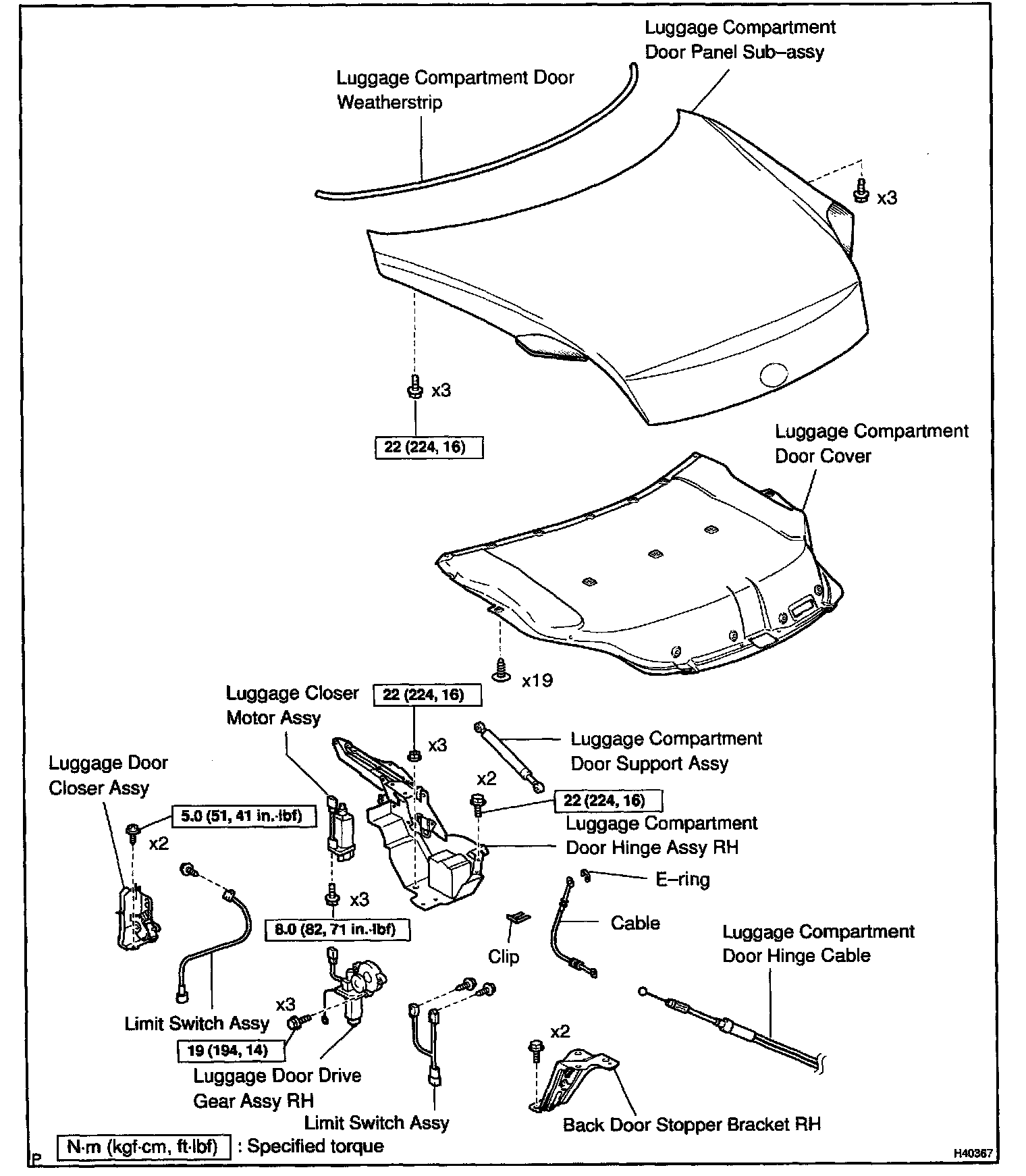

Luggage Compartment Door Hinge Assy RH Part 1:



Luggage Compartment Door Hinge Assy RH Part 2:

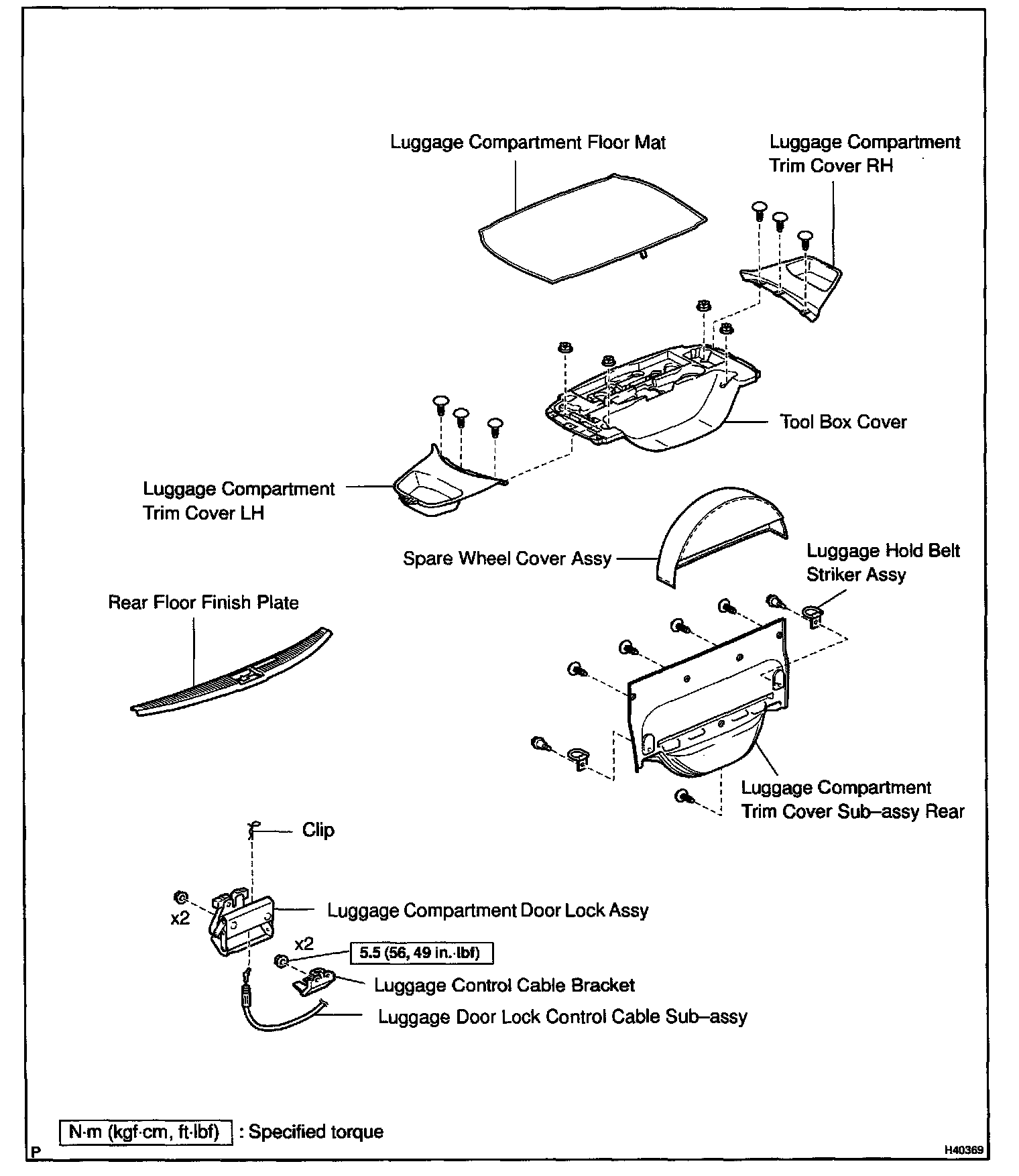

Luggage Compartment Door Lock Assy:
