Splice Locations

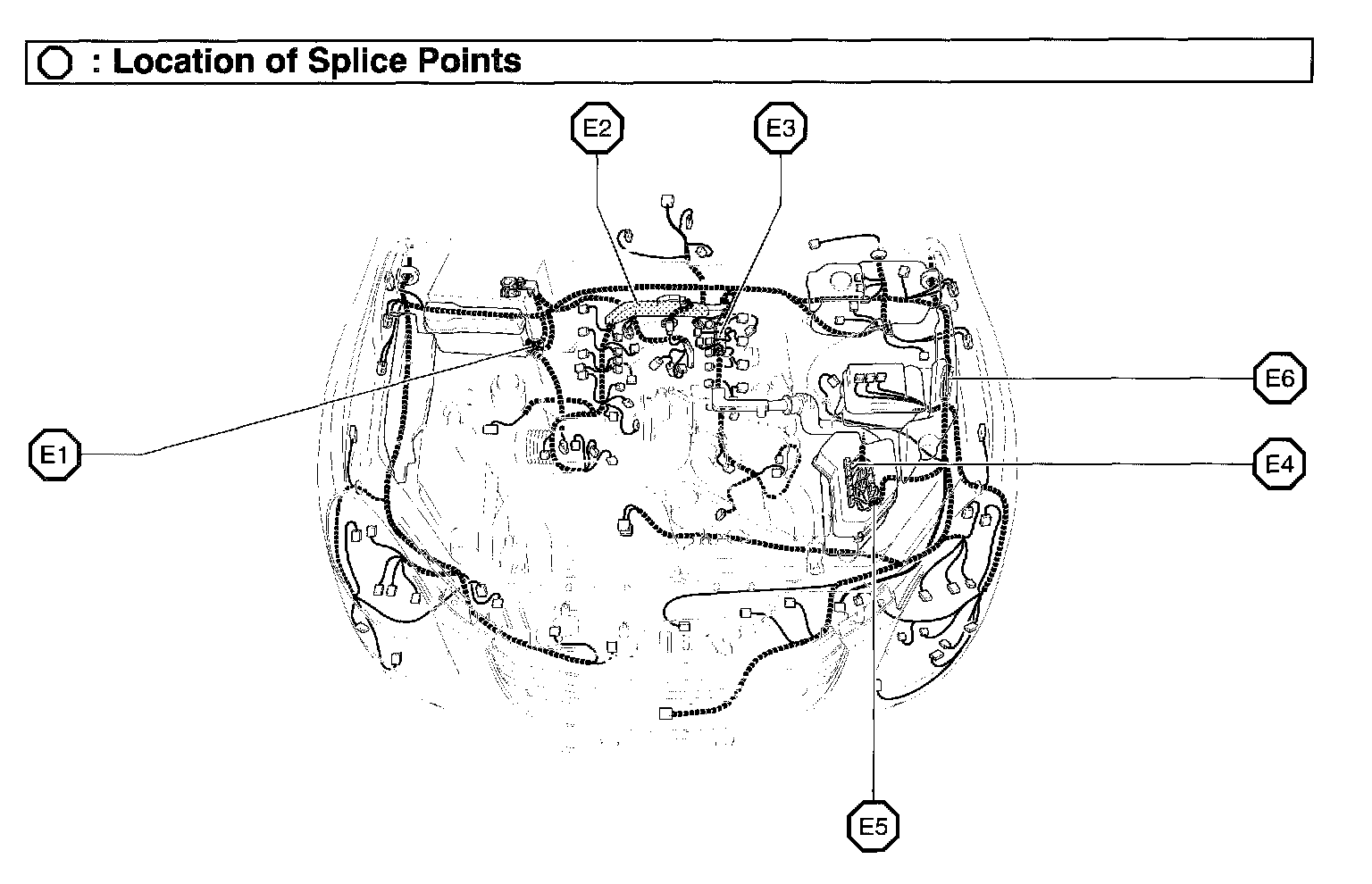

Engine Compartment:

Splice Location
E1 Engine Room Main Wire
E2 Engine Wire
E3 Engine Wire
E4 Engine Wire
E5 Engine Room Main Wire
E6 Engine Room Main Wire

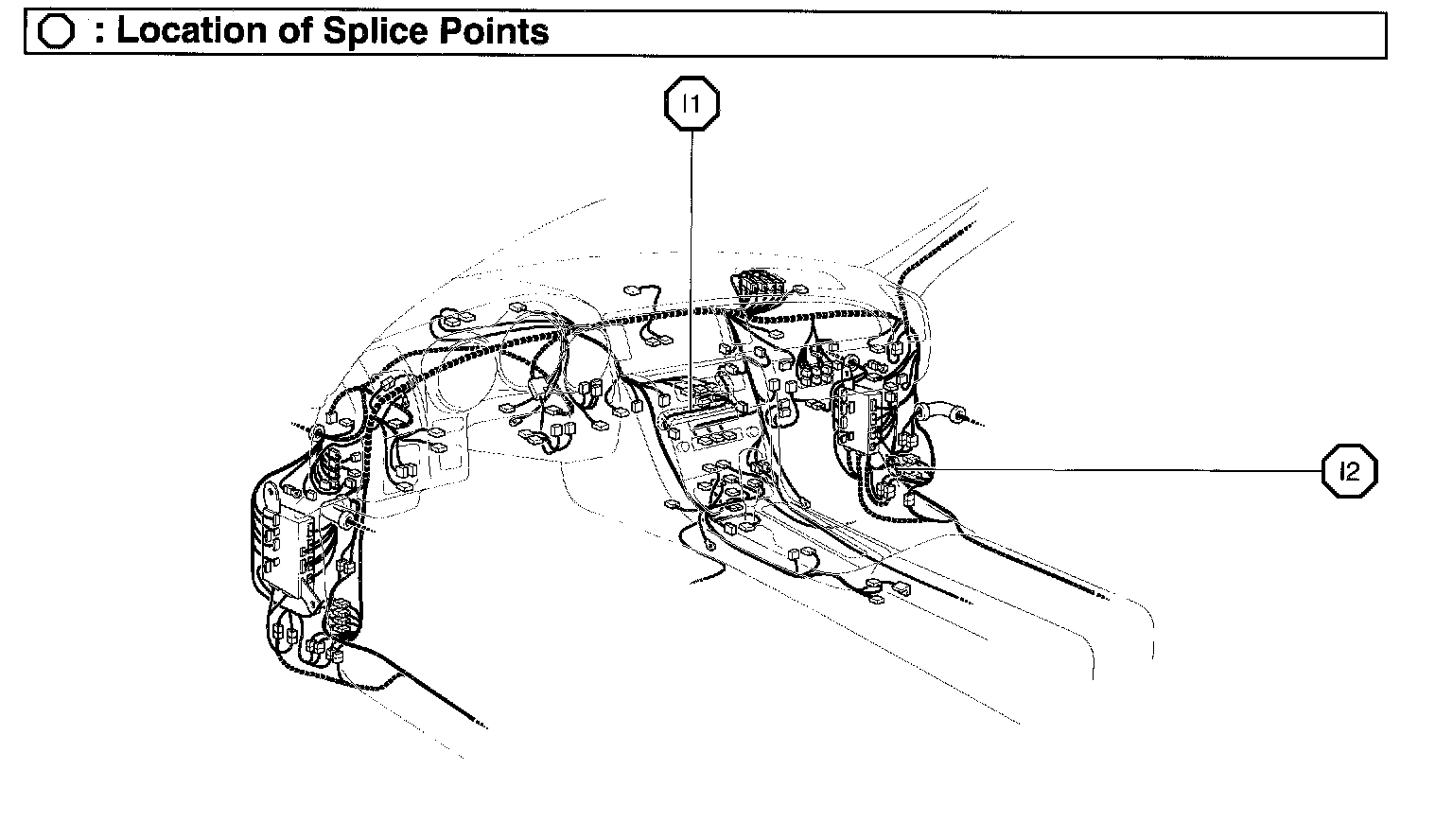

Instrument Panel:

Splice Location
I1 A/C Sub No.2 Wire
I2 Floor Wire

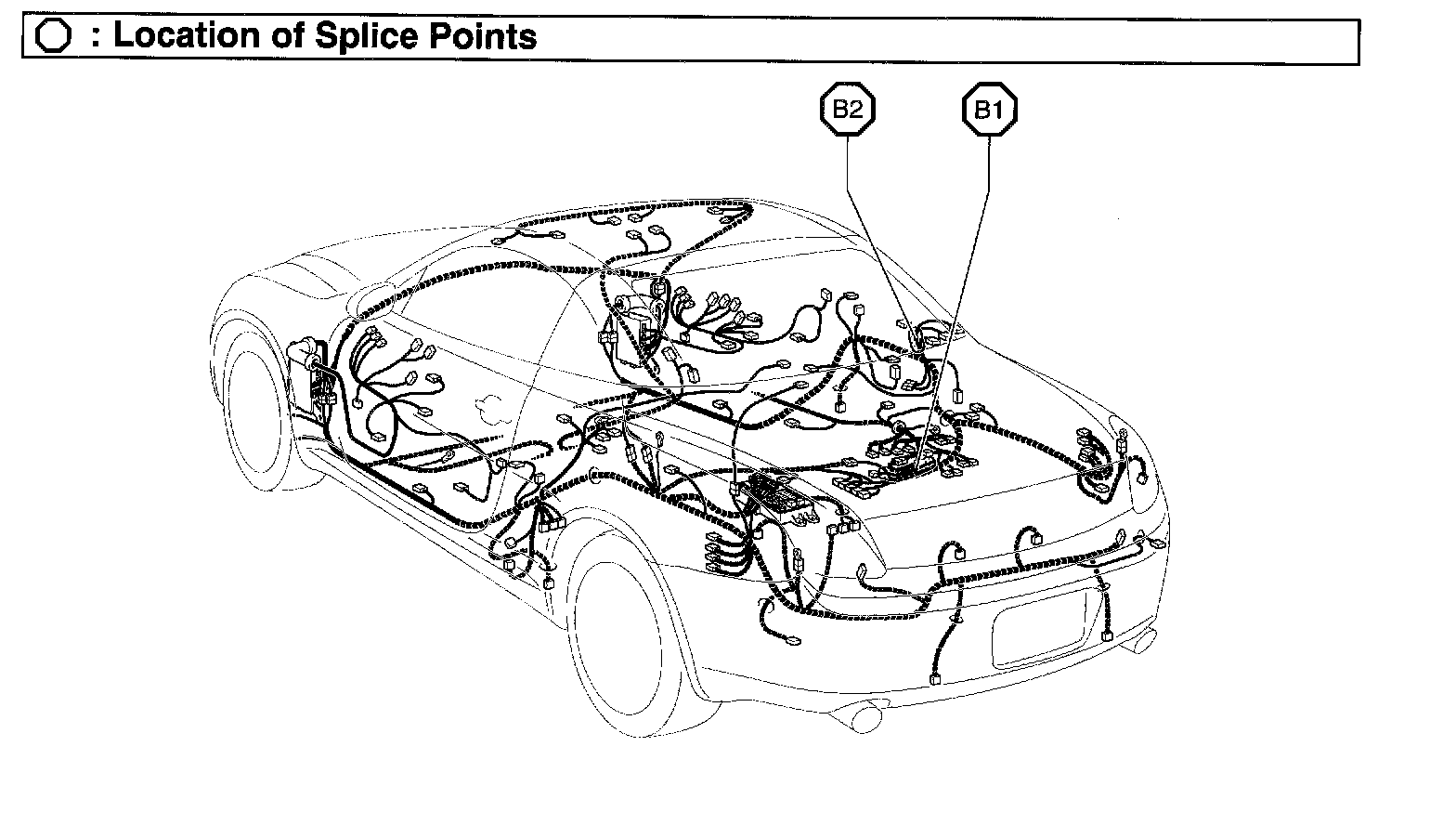

Body:

Splice Location
B1 Telephone Computer Wire
B2 Floor Wire
