Standard Bolt

STANDARD BOLT

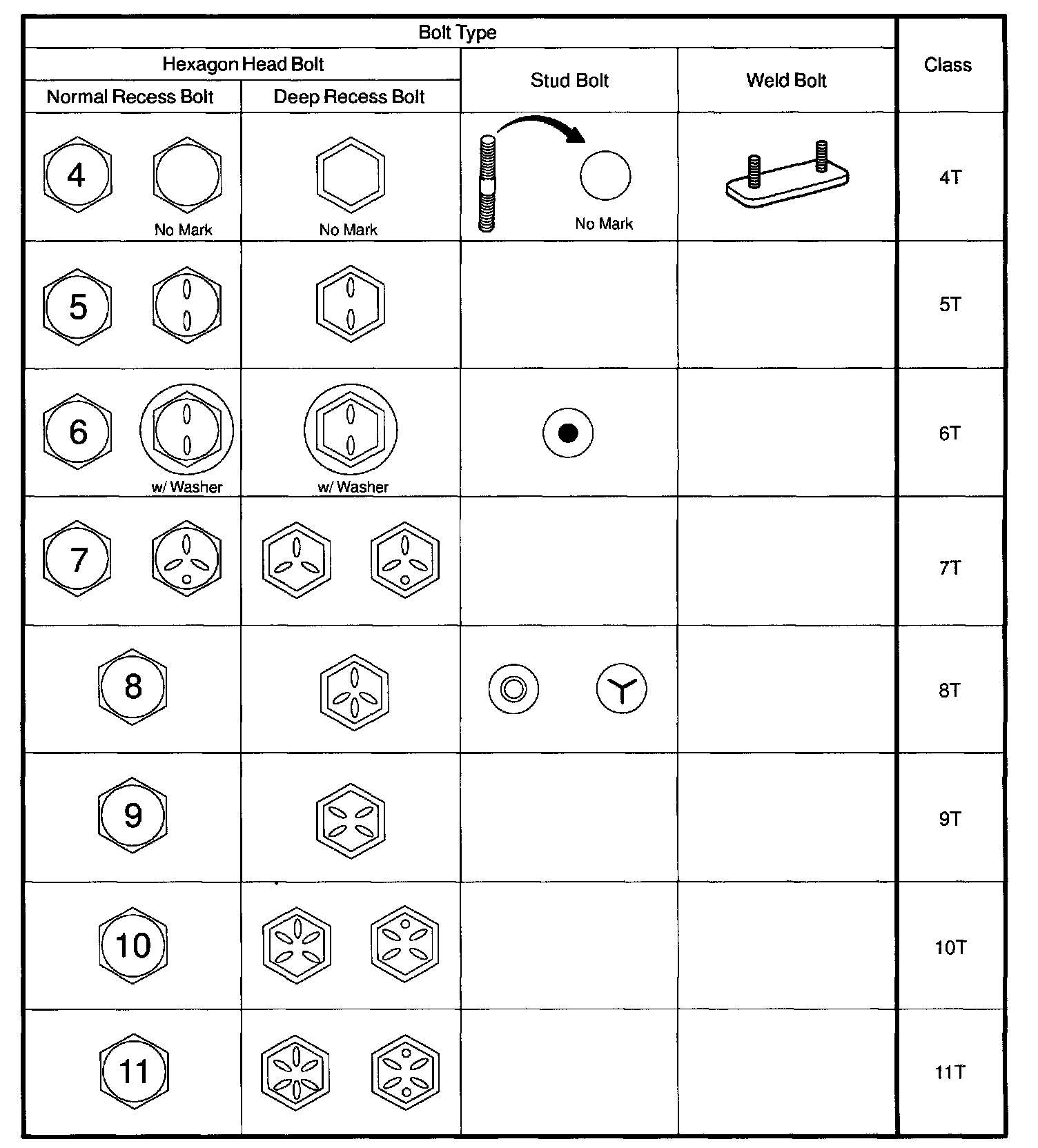

HOW TO DETERMINE BOLT STRENGTH

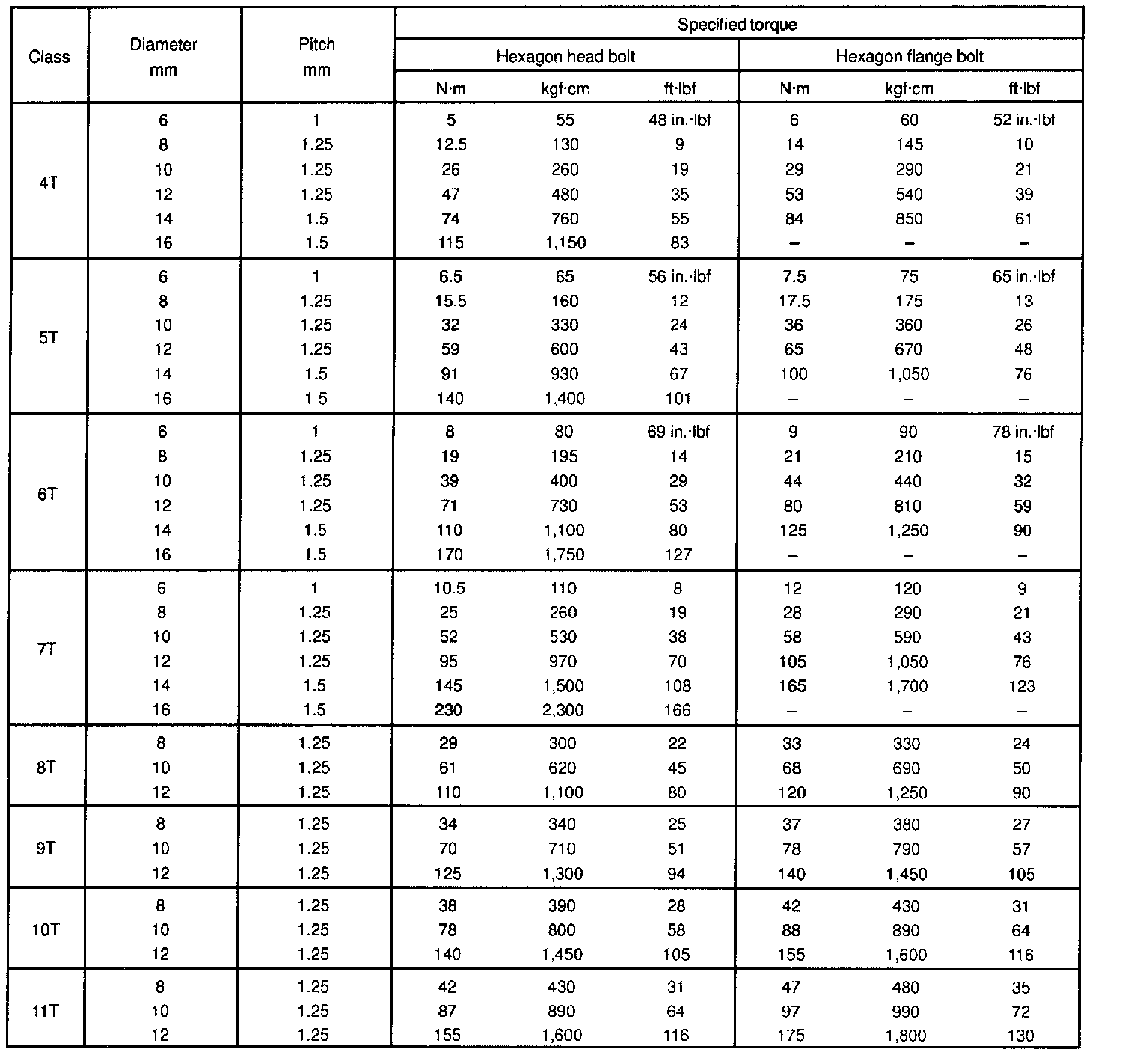

SPECIFIED TORQUE FOR STANDARD BOLTS

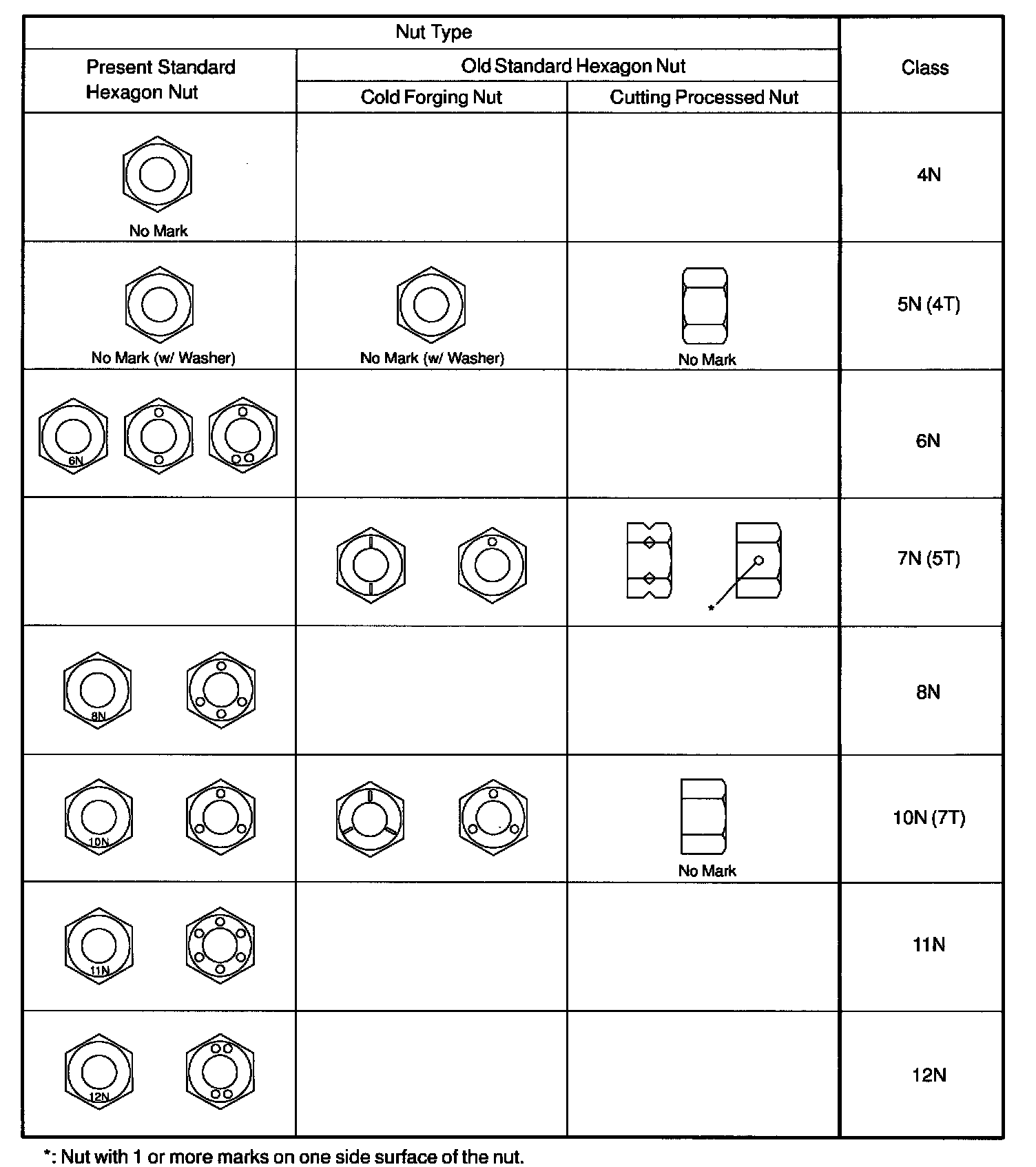

HOW TO DETERMINE NUT STRENGTH





HINT: Use the nut with the same number of the nut strength classification or the greater than the bolt strength classification number when tightening parts with a bolt and nut.
Example:
Bolt = 4T
Nut = 4N or more
