Oil Pump, Engine





Torque:

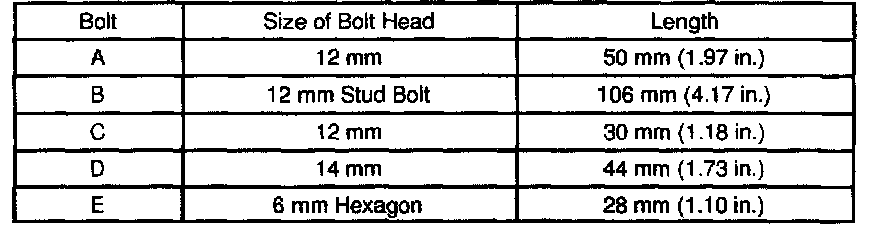

15.5 Nm (160 kgf-cm, 11 ft. lbs.) for bolt A, B, C and E
30.5 Nm (310 kgf-cm, 22 ft. lbs.) for bolt D

NOTICE: Do not reuse the stud bolt.
