Cruise Control Main Switch ASSY: Replacement

NOTE: COMPONENTS: See COMPONENTS

PRECAUTION
SEPARATE BATTERY NEGATIVE TERMINAL (See AIR BAG SAFETY PRECAUTIONS )
REMOVE STEERING WHEEL COVER LOWER NO.2
(See OVERHAUL )
REMOVE SWITCH & VOLUME CASE
(See REPLACEMENT )
REMOVE STEERING PAD SWITCH MODULATOR
(See REPLACEMENT )
REMOVE HORN BUTTON ASSY
REMOVE STEERING WHEEL ASSY
(See OVERHAUL )

SST 09950-50012 (09951-05010, 09952-05010, 09953-05020, 09954-05020)
REMOVE CRUISE CONTROL MAIN SWITCH ASSY
1. Remove the 3 screws.

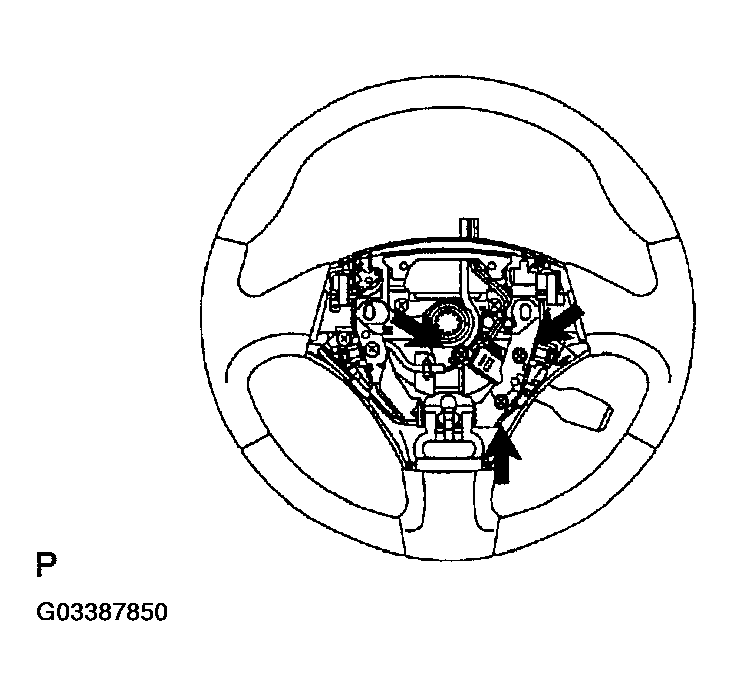

  Fig 1: Removing Cruise Control Main Switch Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the steering wheel and remove the 3 screws.
3. Remove the steering wheel boss cover lower and cruise control main switch assy.

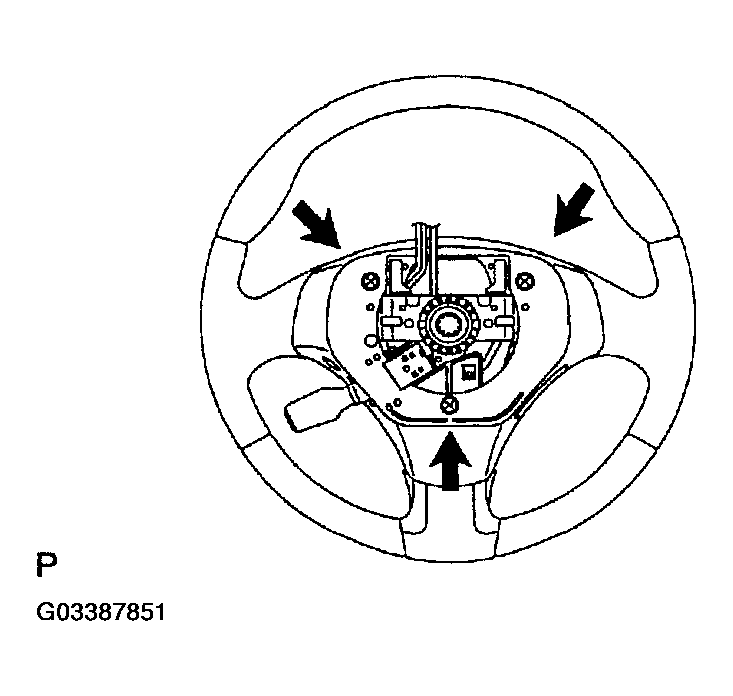

  Fig 2: Locating Steering Wheel Boss Cover Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT STEERING WHEEL CENTER POINT
INSTALL STEERING WHEEL ASSY
(See OVERHAUL )
INSPECT HORN BUTTON ASSY
INSTALL HORN BUTTON ASSY
INSPECT SRS WARNING LIGHT
