Steering Pad Switch Modulator: Replacement

NOTE: COMPONENTS: See COMPONENTS

REMOVE SWITCH & VOLUME CASE
1. Apply protective tape to the steering wheel boss cover lower as shown in the illustration.
2. Using a screwdriver, disengage the 3 claws and remove the switch & Volume Case.

  Fig 1: Removing Switch & Volume Case
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: Tape the screwdriver tip before use.
REMOVE STEERING PAD SWITCH MODULATOR
1. Remove the 2 screws.
2. Remove the steering pad switch modulator then disconnect the connector.

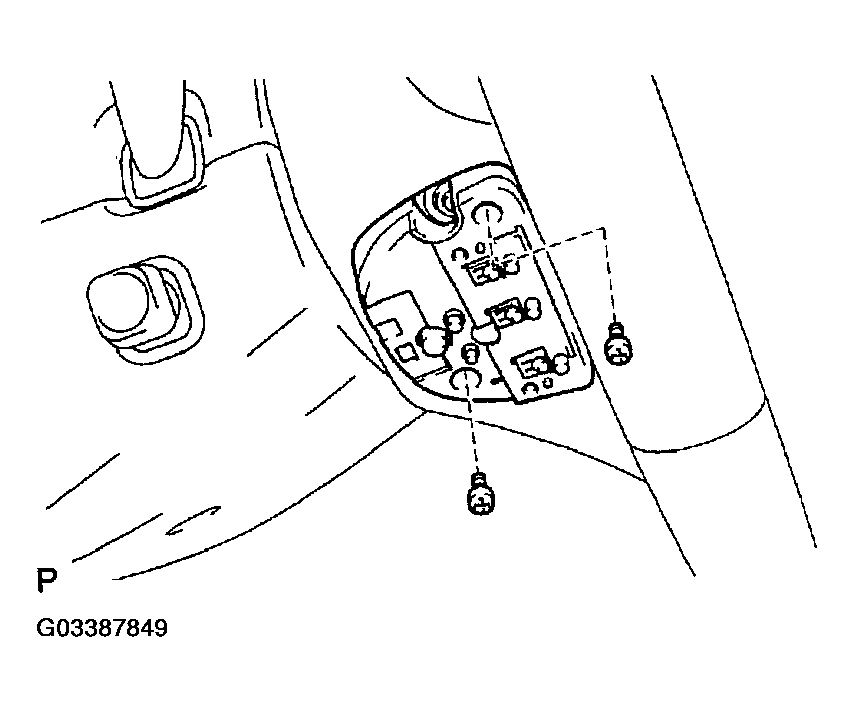

Fig 2: Removing Steering Pad Switch Modulator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
