Back Window Frame Sub-ASSY Upper: Components

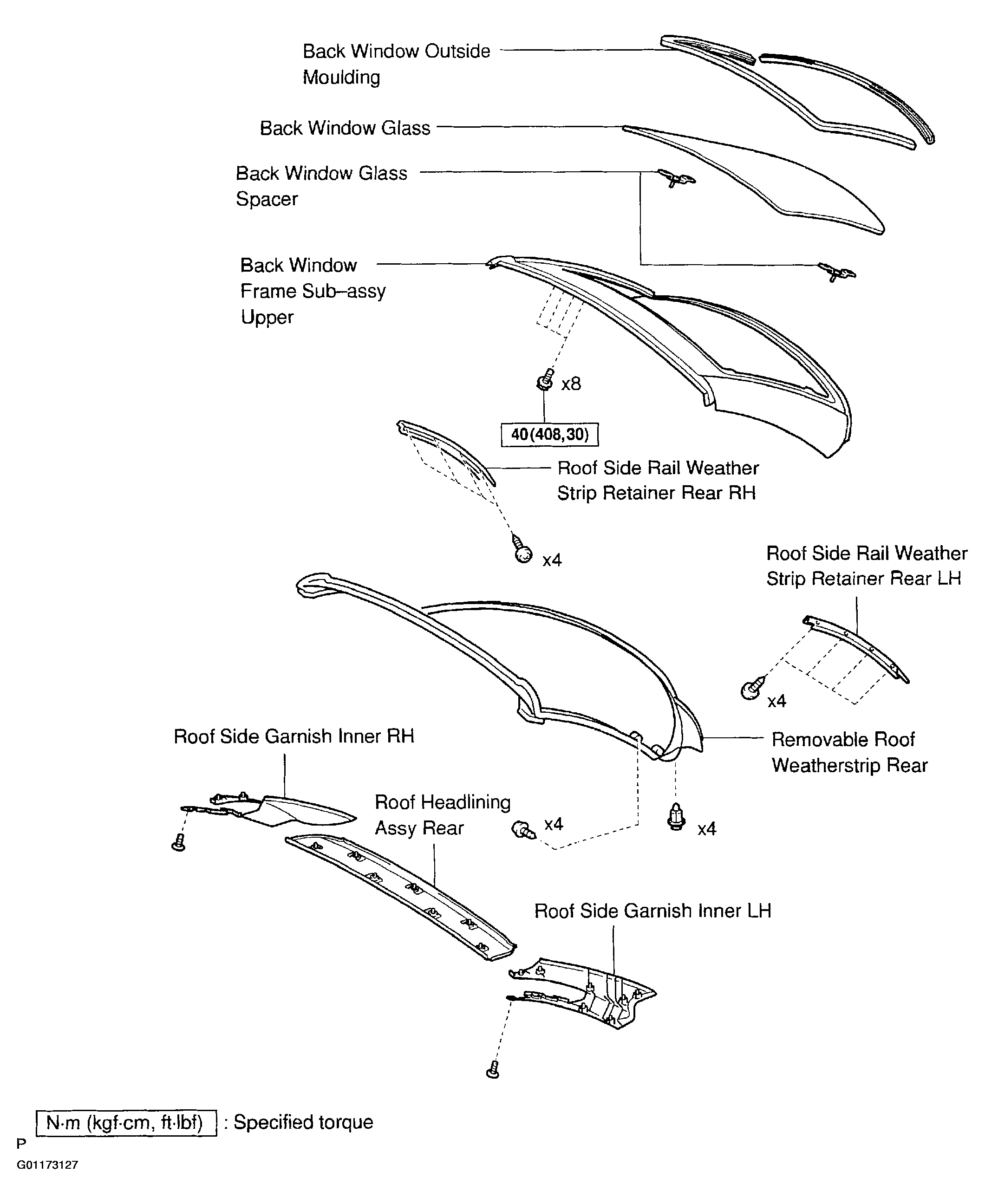

Fig 1: Back Window Frame Sub-Assembly Upper Components
G01173127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
