Inner Rear View Mirror: Replacement

NOTE: Installation is in the reverse order of removal. But, the installation is indicated only when it has a point.
  1. REMOVE MAP LAMP ASSY
  2. REMOVE INNER REAR VIEW MIRROR STAY HOLDER COVER
    1. Using a screwdriver, remove the inner rear view mirror stay holder cover.
    NOTE: Tape the screwdriver tip before use.

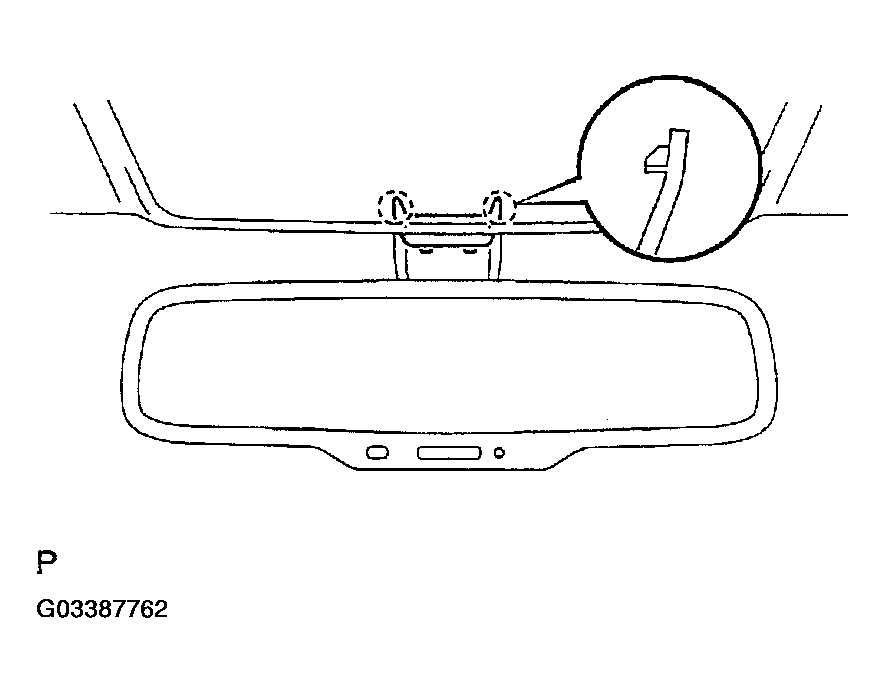

    Fig 1: Removing Inner Rear View Mirror Stay Holder Cover
    G03387762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE INNER REAR VIEW MIRROR ASSY
    1. Disconnect the inner rear view mirror connector.
    2. Remove the mirror assembly by turning the stay part of the mirror counterclockwise.

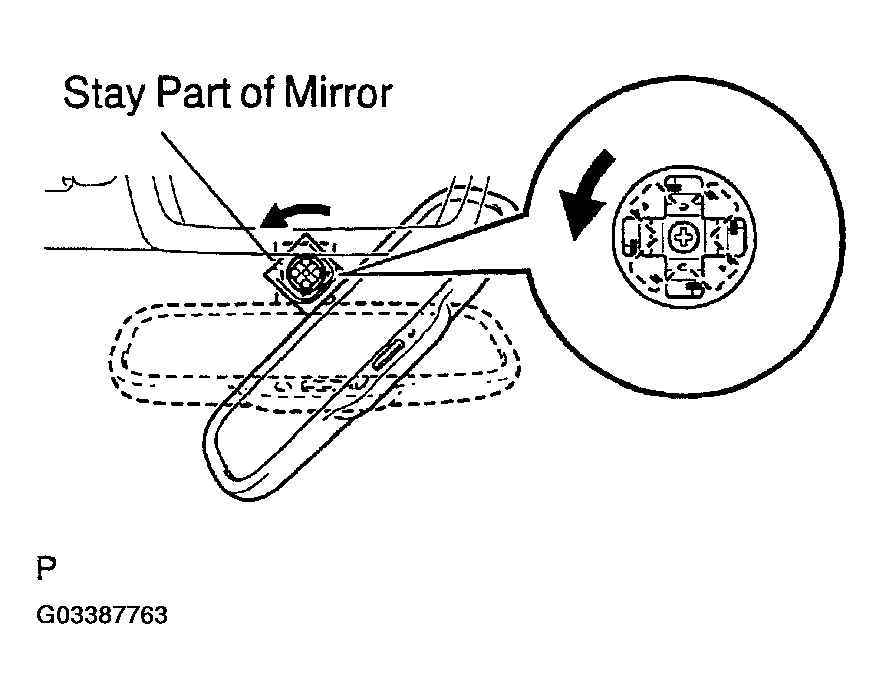

      Fig 2: Removing Mirror Assembly
      G03387763Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL INNER REAR VIEW MIRROR ASSY
    1. Match the claw of the stay part of the mirror with a cut part of the base.

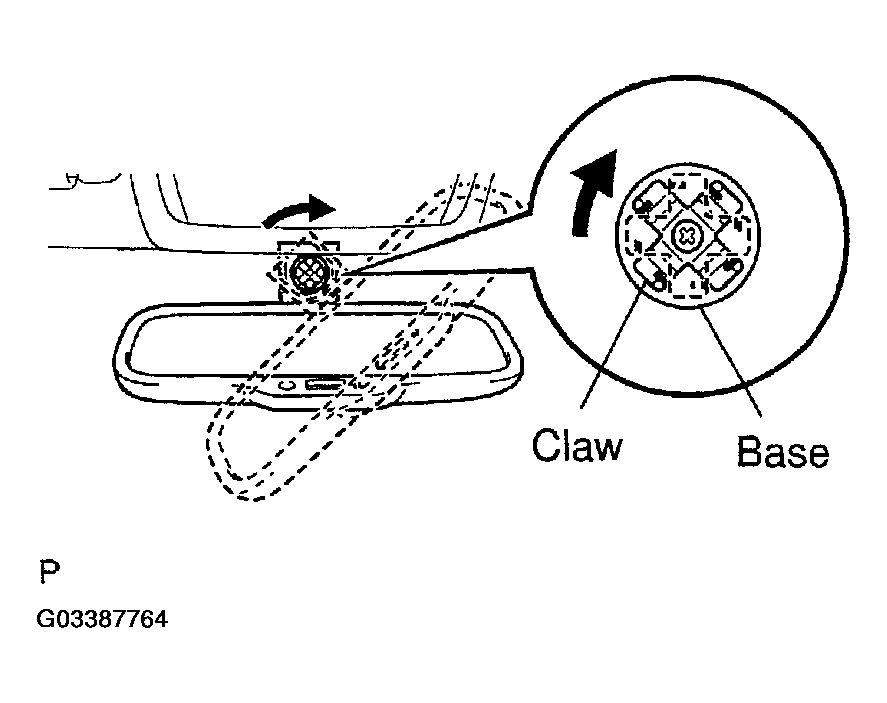

      2. Fig 3: Installing Inner Rear View Mirror Assy
      G03387764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Turn the stay part of the mirror clockwise so that the stay can come to the original position, and then install the mirror assembly.
    3. Connect the inner rear view mirror connector.
