Inspection Procedure
- USE LEXUS HAND-HELD TESTER
- NO: GO TO STEP 4
- YES: GO TO NEXT STEP
- READ VALUE OF LEXUS HAND-HELD TESTER(DRIVER'S DOOR ECU)
- Monitor Code:
- Inspect the monitor code of the driver door ECU.
NOTE:- Monitor code shows the switch condition when a DTC is output.
- In case of that a code is indicated when the switch is not operated, it is detected that the switch is stuck.
In case of that a code is not indicated when the switch is operated, it is detected that the switch contact condition is bad.
DIAGNOSIS CHARTSAE code Item Diagnosis Specified condition B1223 passenger's side switch ON Regulator switch neutral --> UP or DOWN No code --> Yes - NG: GO TO STEP 4
- OK: GO TO NEXT STEP
- Monitor Code:
- READ VALUE OF LEXUS HAND-HELD TESTER(PASSENGER'S DOOR ECU)
- Data Monitor:
- Perform a data monitor of the door ECU.
Standard:
Door ECU (passenger's side) (switch condition)
STANDARD CHARTSwitch operation Measuring condition Specified condition P/W AUTO SW Pressed --> unpressed ON / OFF
- OK: GO TO FLOW CHART (See WINDOWS CANNOT BE OPERATED VIA REGULATOR SWITCH IN EACH SEAT )
- NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
- Data Monitor:
- INSPECT POWER WINDOW REGULATOR SWITCH ASSY

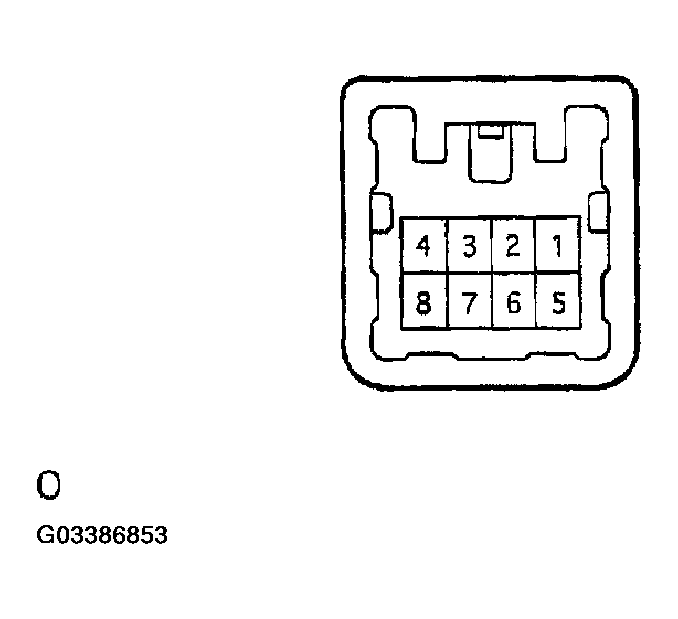

- Continuity check of the power window switch.
- Check the continuity of each terminal of the connector, when each switch is operated.
Standard:
STANDARD CHARTSwitch operation Tester connection Specified condition UP AUTO 1 <=> 8 <=> 3 Continuity UP MANUAL 1 <=> 8 Continuity OFF - - DOWN MANUAL 6 <=> 8 Continuity DOWN AUTO 3 <=> 8 <=> 6 Continuity
- NG: REPLACE POWER WINDOW REGULATOR SWITCH ASSY
- OK: GO TO NEXT STEP
- Continuity check of the power window switch.
- INSPECT WIRE HARNESS

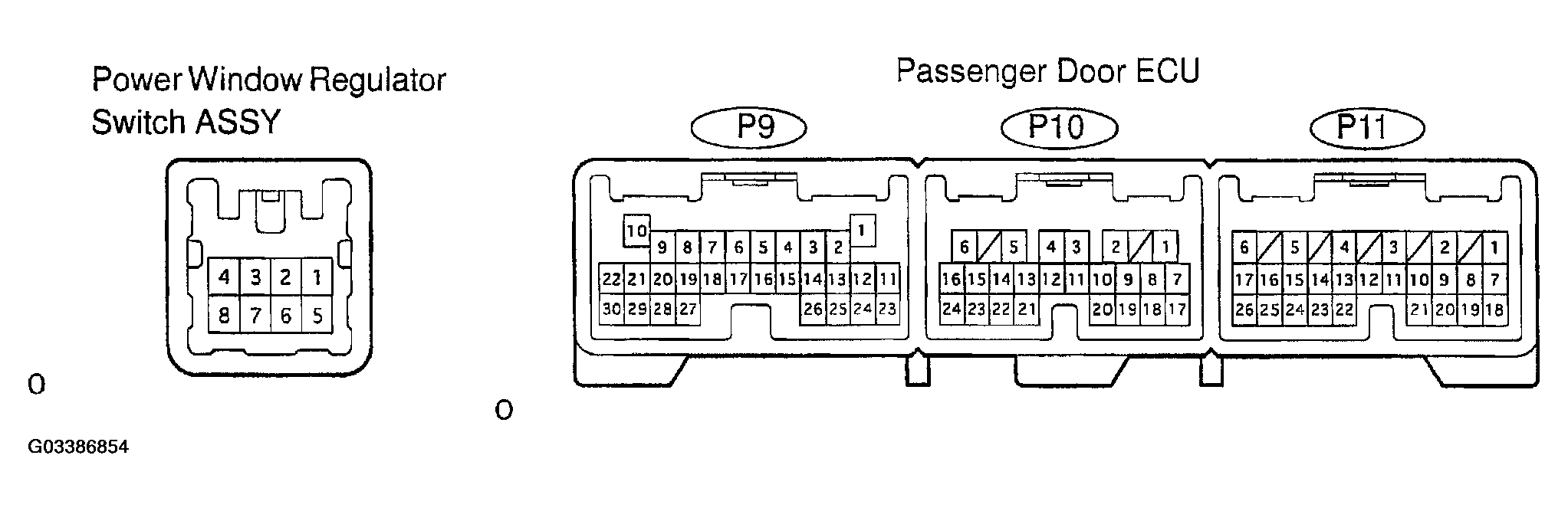

- Check the continuity of the wire harness between the power window regulator switch and the passenger door ECU.
- Disconnect the power window regulator switch connector and the passenger door ECU connector P9.
- Check the continuity of the vehicle's side wire harness between the regulator switch and the passenger door ECU.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard:
STANDARD CHARTTerminal No. (regulator switch <=> passenger door ECU) Specified condition 8 (PCT) <=> P9-20 (WLS1) Continuity 4 (E) <=> P9-29 (PWE) Continuity 3 (A) <=> P9-2 (AUTO) Continuity 6 (D) <=> P9-25 (MDN) Continuity 1 (U) <=> P9-23 (MUP) Continuity NOTE:- With LEXUS hand-held tester, proceed to "OK-A"
- Without LEXUS hand-held tester, proceed to "OK-B"
- OK-A: REPLACE MULTIPLEX NETWORK DOOR ECU FRONT RH
- OK-B: GO TO FLOW CHART (See WINDOWS CANNOT BE OPERATED VIA REGULATOR SWITCH IN EACH SEAT )
- NG: REPAIR OR REPLACE WIRE HARNESS OR CONNECTOR
- Check the continuity of the wire harness between the power window regulator switch and the passenger door ECU.
