Windows Cannot Be Operated Via Regulator Switch In Each Seat: Wiring Diagram

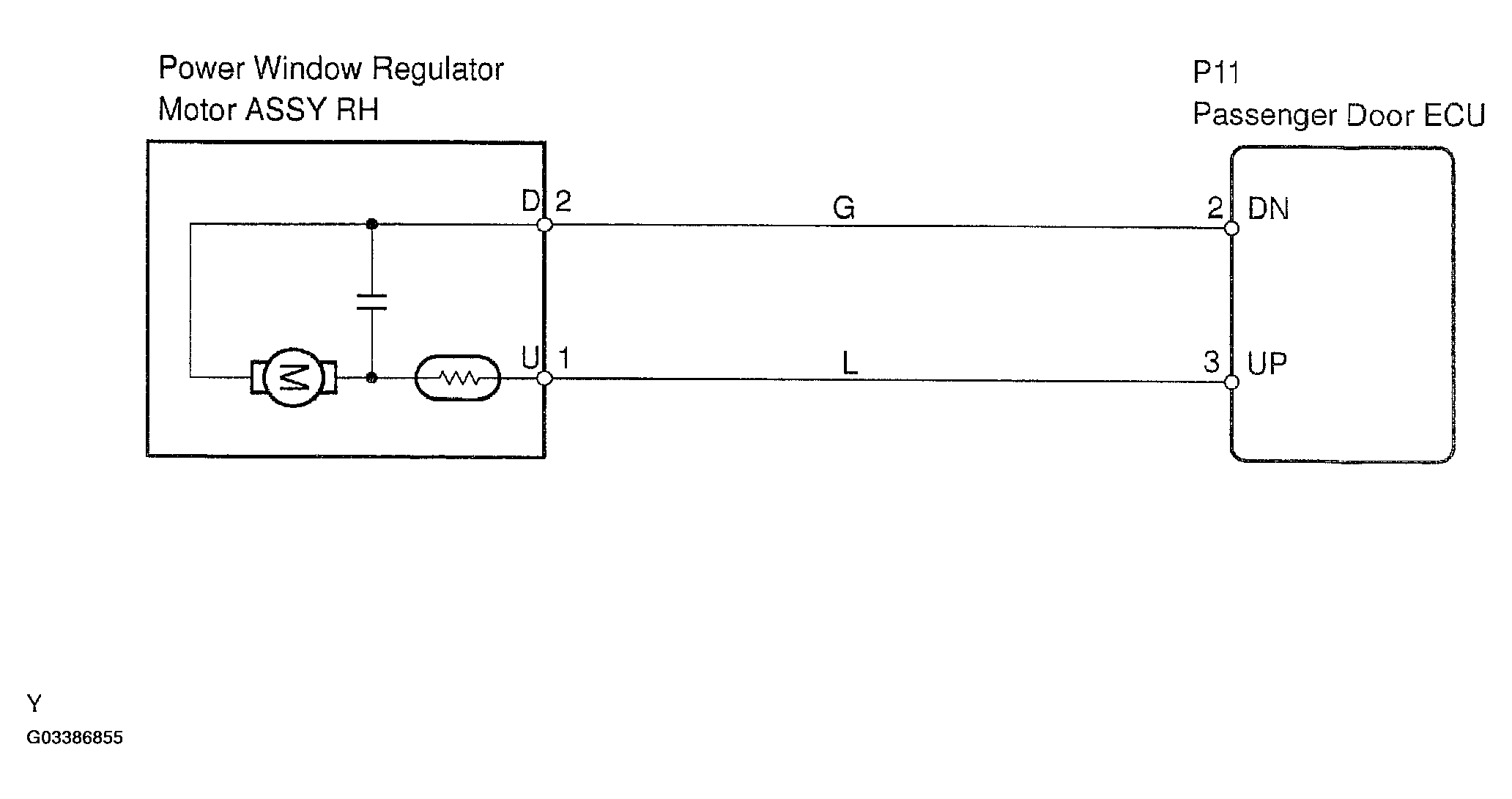

Fig 1: Windows Cannot Be Operated Via Regulator Switch In Each Seat Wiring Diagram
G03386855Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
