Manual Close Operation

REMOVE REAR SEAT CUSHION ASSY
1. Pull up the front portion of the seat cushion assembly, then remove it.

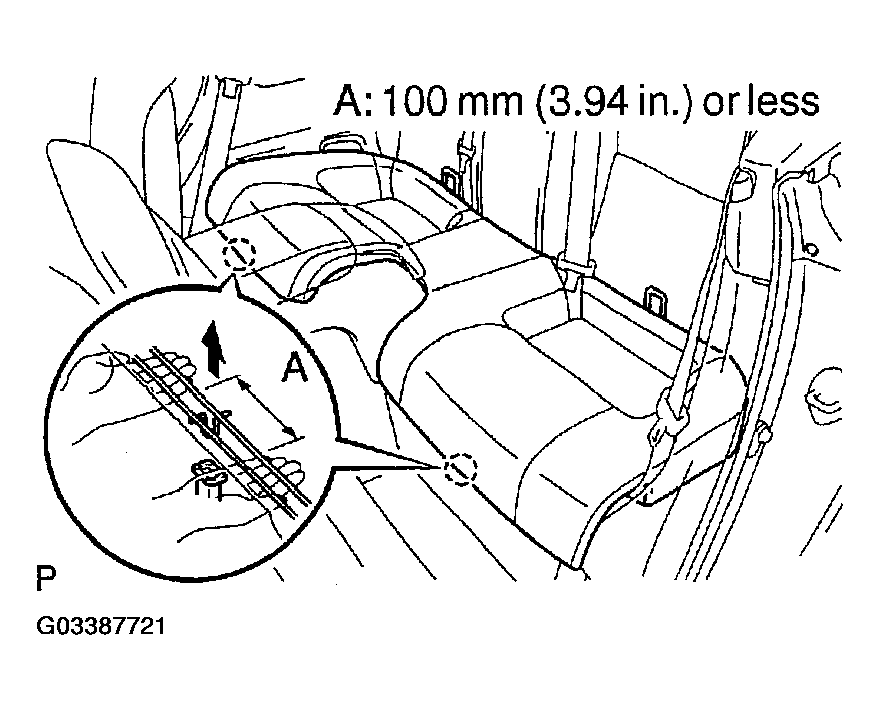

  Fig 1: Removing Rear Seat Cushion Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE: In the case, hold the base of the clip up to prevent the cushion frame from being distorted.
REMOVE REAR SEAT HEADREST PLATE COVER
1. Using a screwdriver, remove the rear seat headrest plate cover.

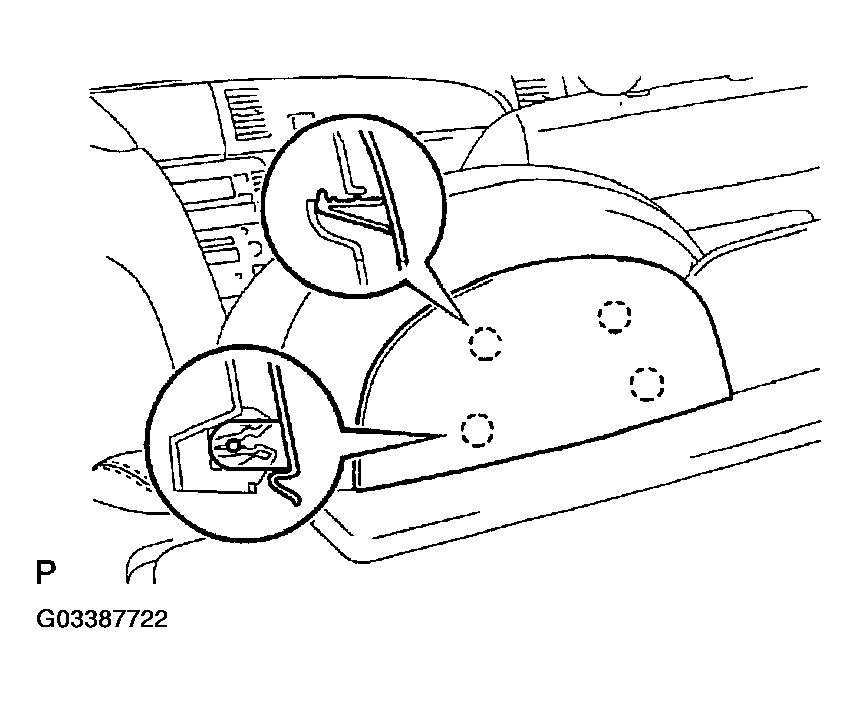

  Fig 2: Removing Rear Seat Headrest Plate Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.
REMOVE WIND DEFLECTOR BOARD ASSY
1. Remove the 4 bolts and wind deflector board assembly.
REMOVE REAR SEAT HEADREST PLATE
1. Using a screwdriver, remove the rear seat headrest plate.
  NOTE: Tape the screwdriver tip before use.
2. Use the same manner described above to the other side.

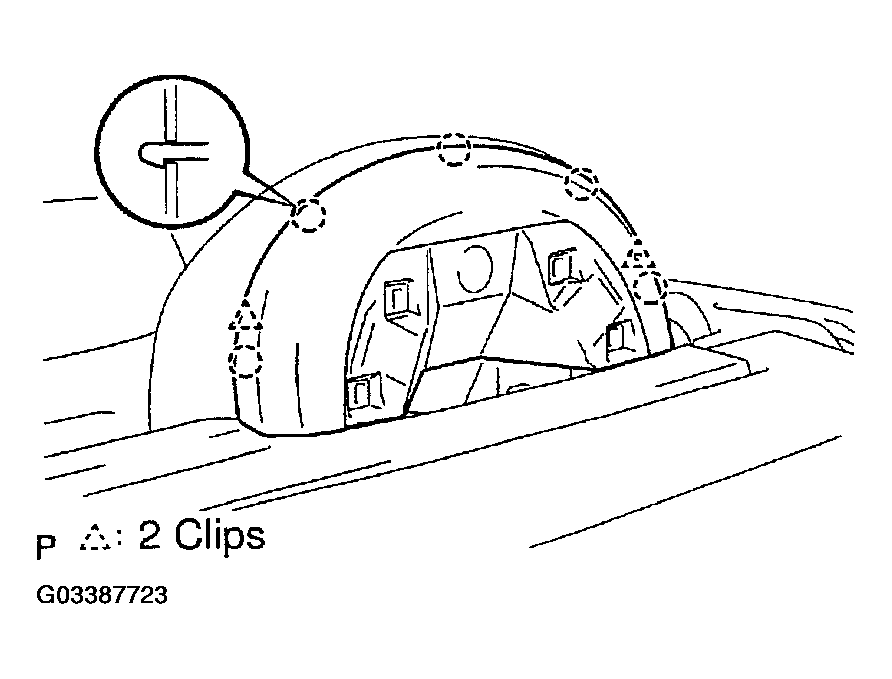

Fig 3: Removing Rear Seat Headrest Plate
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST ASSY
1. Remove the 2 nuts and rear seat headrest assembly.
2. Use the same manner described above to the other side.
Fig 4: Removing Rear Seat Headrest Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT BACK ASSY
1. Remove the 2 nuts, 2 bolts and rear seat back assembly.

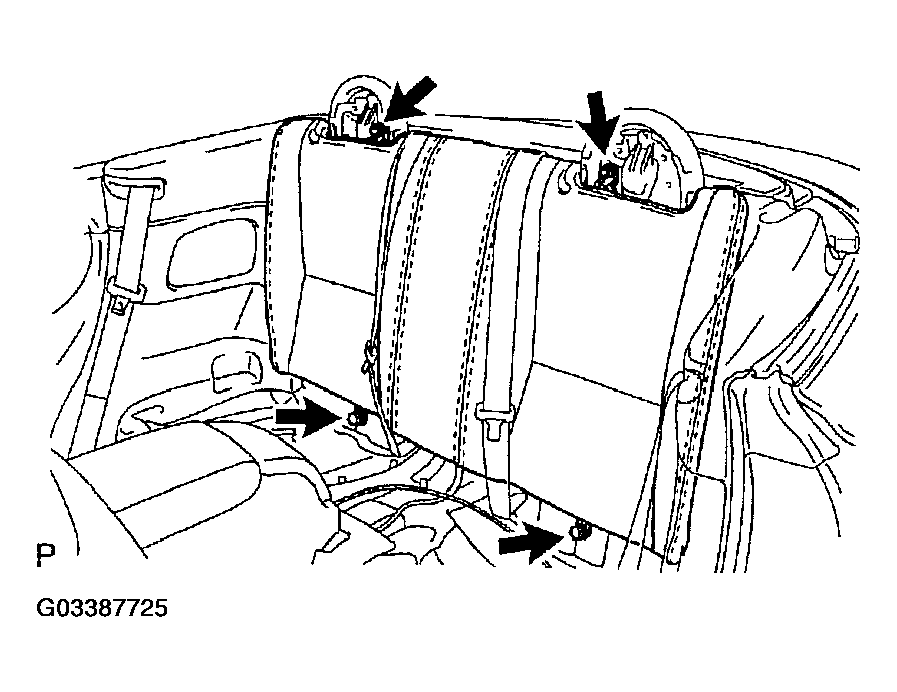

Fig 5: Removing Rear Seat Back Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR SCUFF PLATE ASSY RH
1. Using a screwdriver, remove the door scuff plate assy RH as shown in the illustration.
NOTE: Tape the screwdriver tip before use.

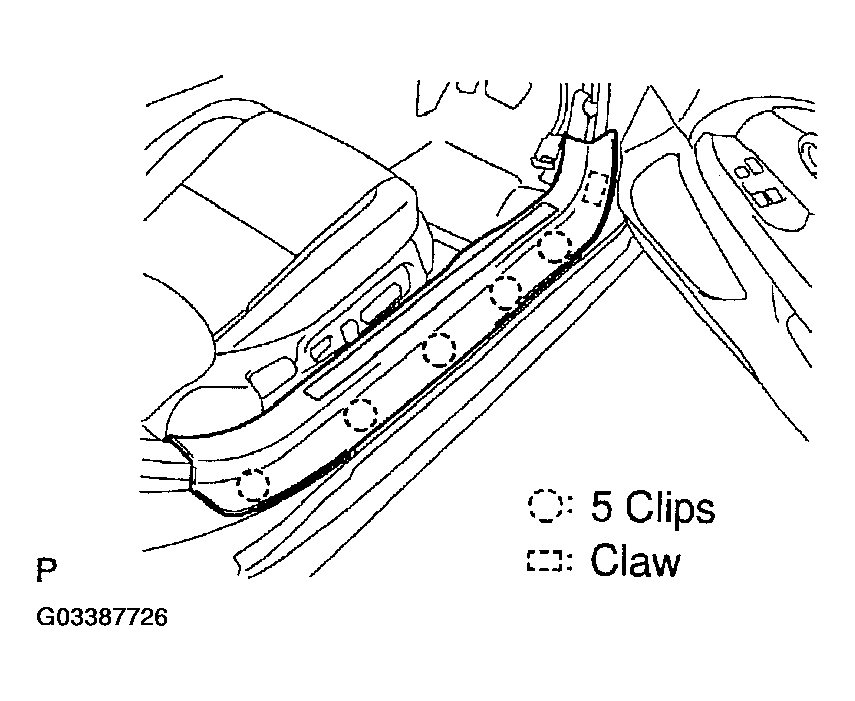

Fig 6: Removing Door Scuff Plate Assembly RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE QUARTER TRIM PANEL ASSY FRONT RH
1. Using a screwdriver, release the 4 claws and remove the front seat outer belt garnish.
  NOTE: Tape the screwdriver tip before use.

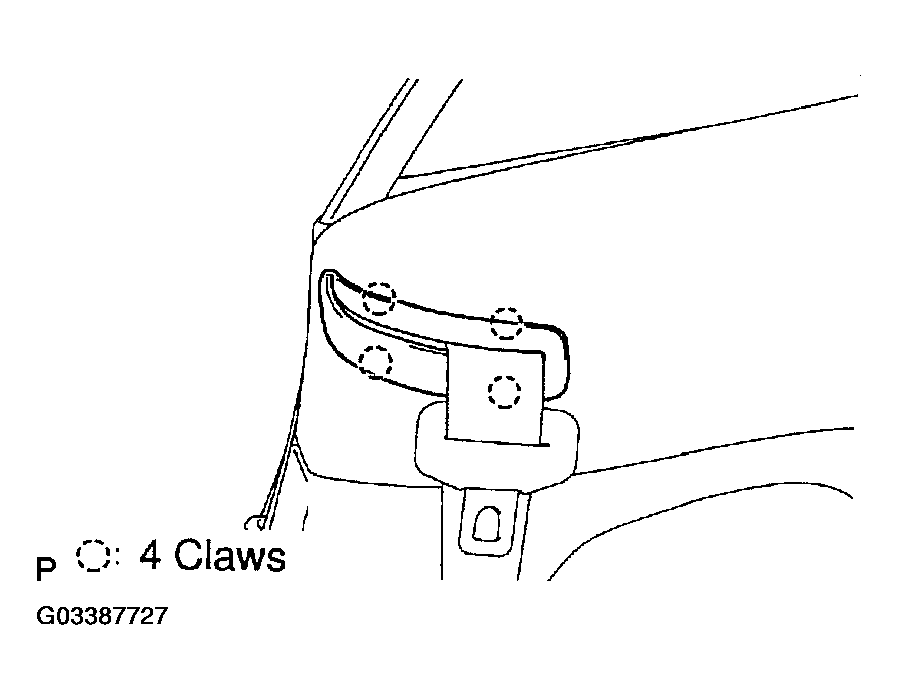

  Fig 7: Removing Front Seat Outer Belt Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 6 screws and clip.
3. Disengage the 4 clips, then remove the quarter trim panel RH.

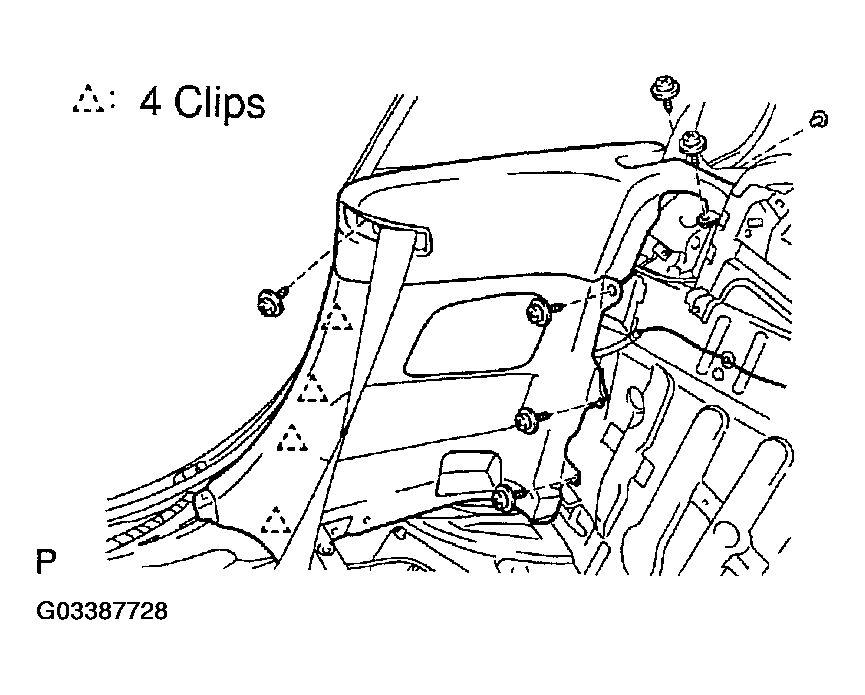

Fig 8: Removing Quarter Trim Panel RH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
MANUALLY CLOSE QUARTER WINDOW ASSY RH
1. Remove the connector of the power window regulator motor RH.

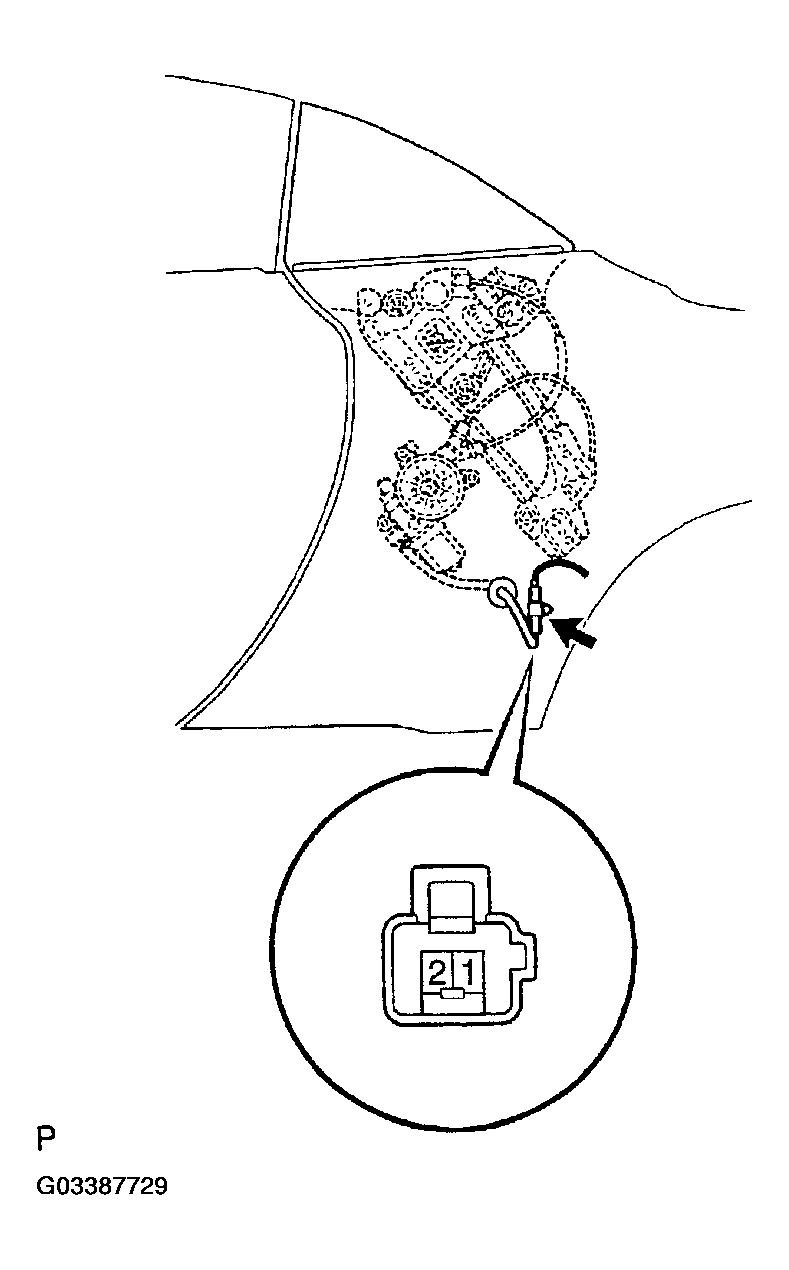

  Fig 9: Removing Connector Of Power Window Regulator Motor RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connecting the battery positive terminal to terminal 1 t the connector, and the negative one to terminal 2, raise the quarter window assy.
NOTE: For the LH side, connect the battery positive terminal to terminal 2 and the negative one to terminal 1.
INSTALL QUARTER TRIM PANEL ASSY FRONT RH
INSTALL DOOR SCUFF PLATE ASSY RH
INSTALL REAR SEAT BACK ASSY (See OVERHAUL )
Torque:

Bolt: 18 N.m (184 kgf.cm, 13 ft.lbf)

Nut: 7.0 N.m (71 kgf.cm, 63 in.lbf)
