Circuit Description

For circuit description see Fig 1.

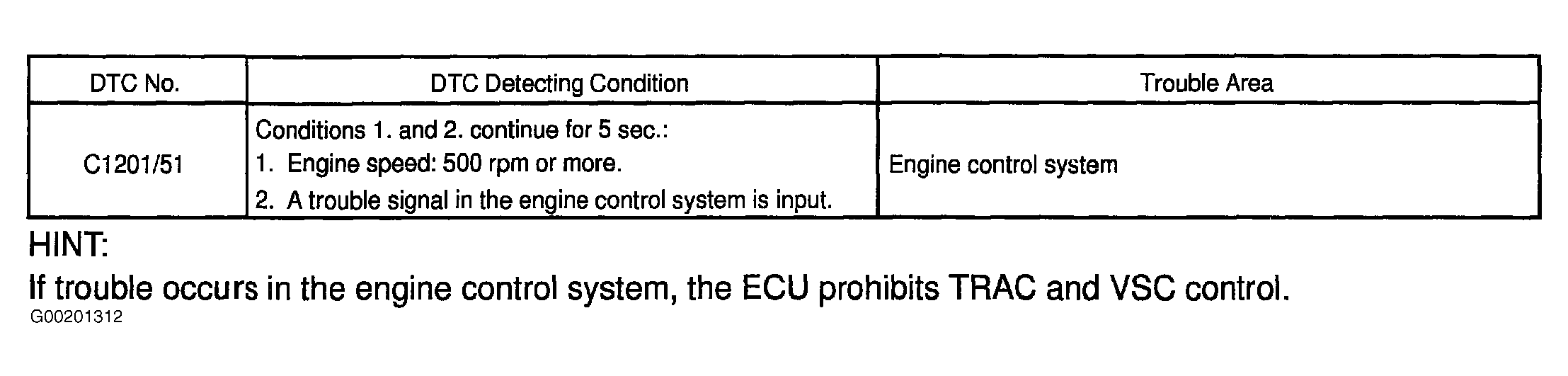

Fig 1: Circuit Description Engine Control System Malfunction
G00201312Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
