Combination Meter ASSY: Overhaul

HINT:

COMPONENTS: See INSTRUMENT PANEL/METER

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See  REPLACEMENT   )
2. REMOVE COMBINATION METER ASSY (See  REPLACEMENT  )
3. REMOVE COMBINATION METER GLASS

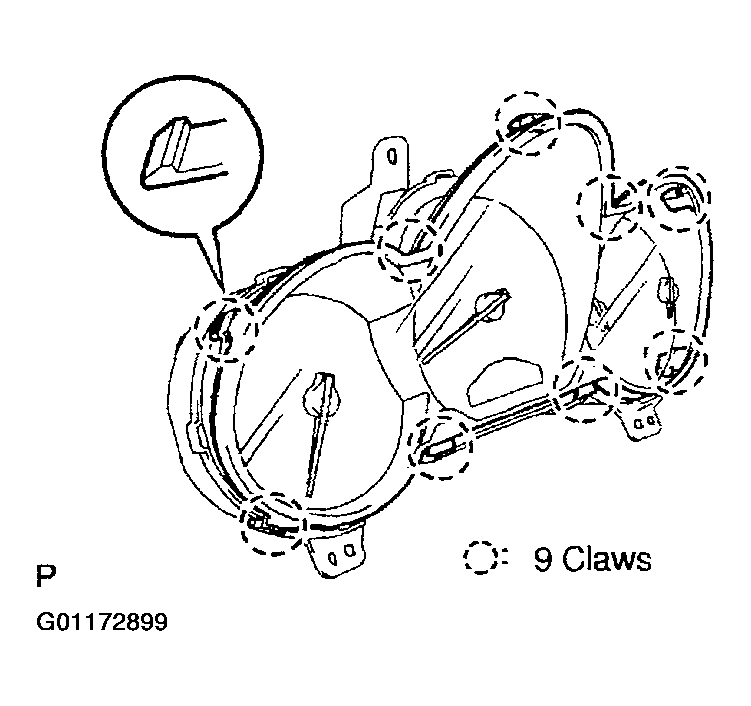

   1. Disengage the 9 claws and remove the combination meter glass.
      Fig 1: Removing Combination Meter Glass

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
