Oil Pump ASSY: Components

Fig 1: Removing/Installing Oil Pump Assy (1 Of 3)
G01172910Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

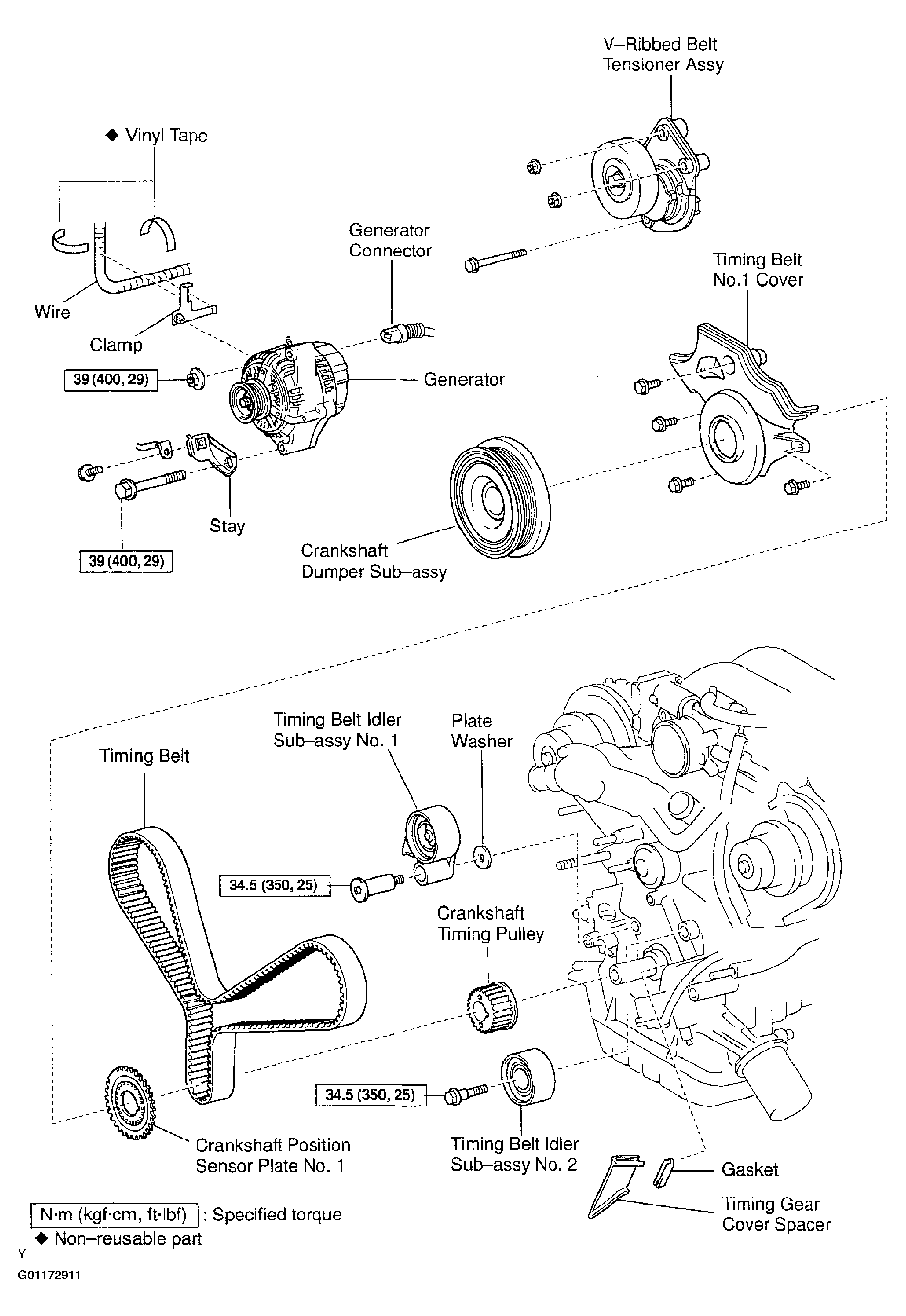

Fig 2: Removing/Installing Oil Pump Assy (2 Of 3)
G01172911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

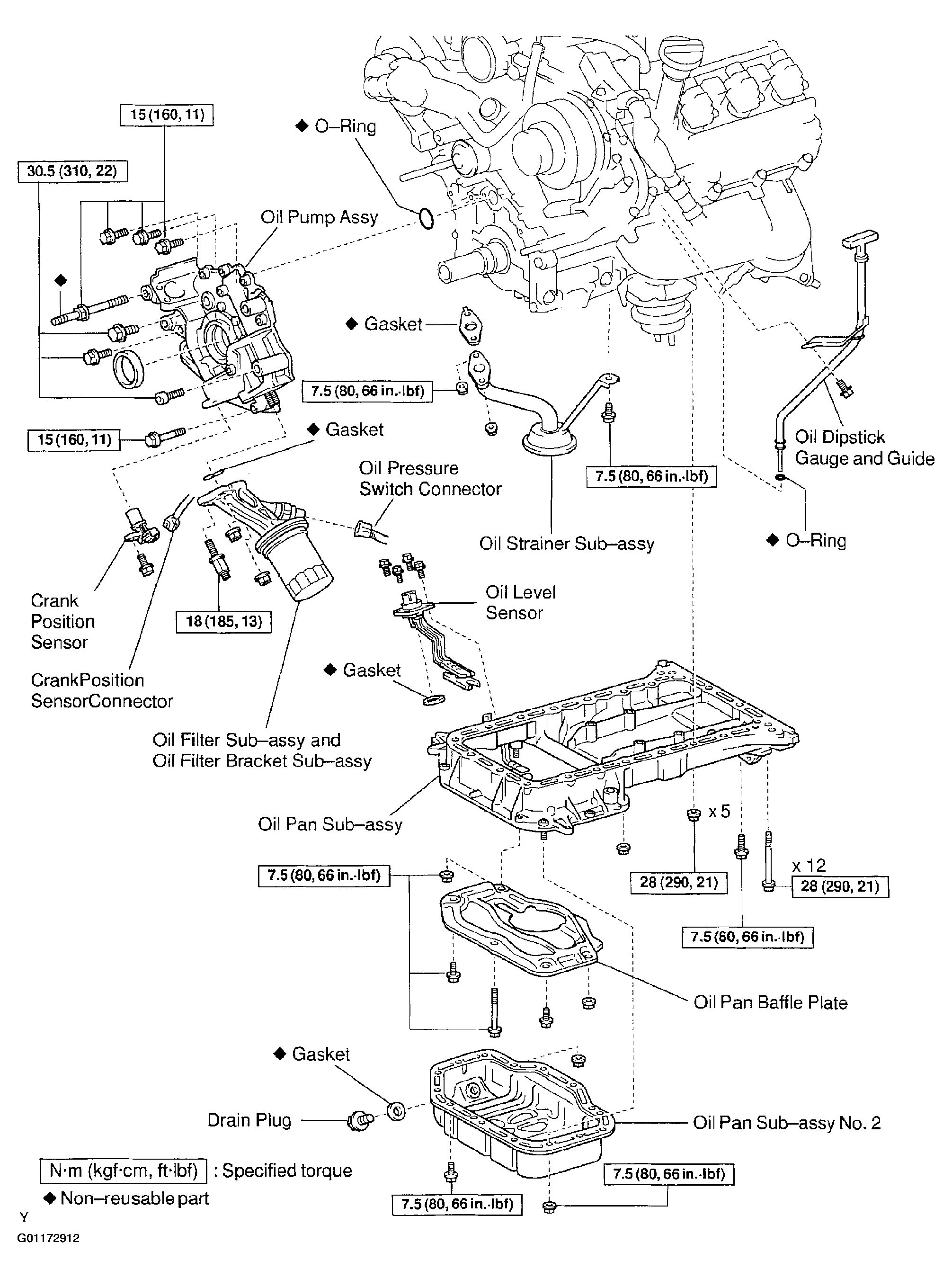

Fig 3: Removing/Installing Oil Pump Assy (3 Of 3)
G01172912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

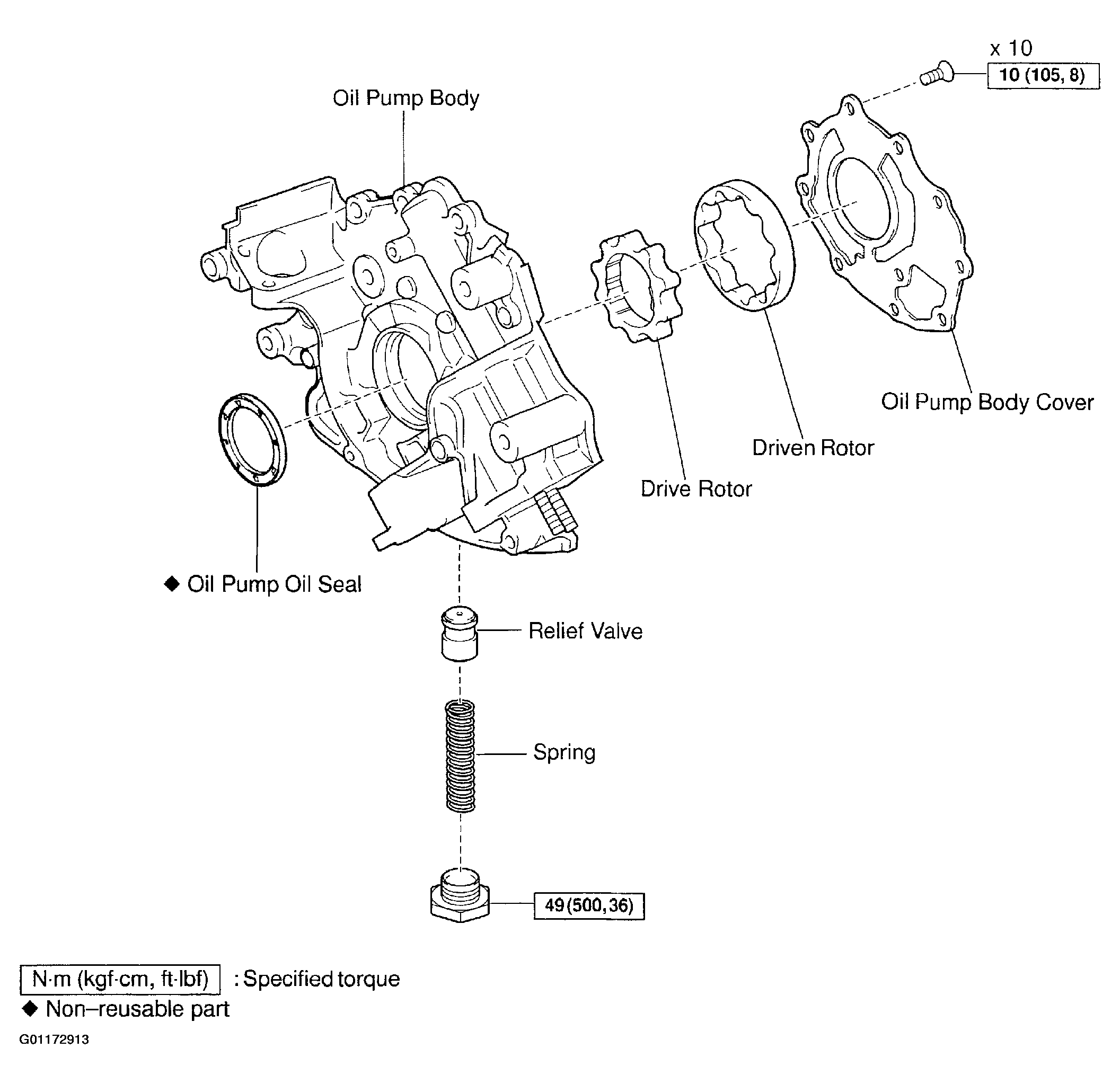

Fig 4: Exploded View Of Oil Pump Assy
G01172913Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
