Oil Pump ASSY: Overhaul

1. Remove the plug, spring and relief valve.

1. Remove the 10 screws, pump body cover and the drive and driven rotors.

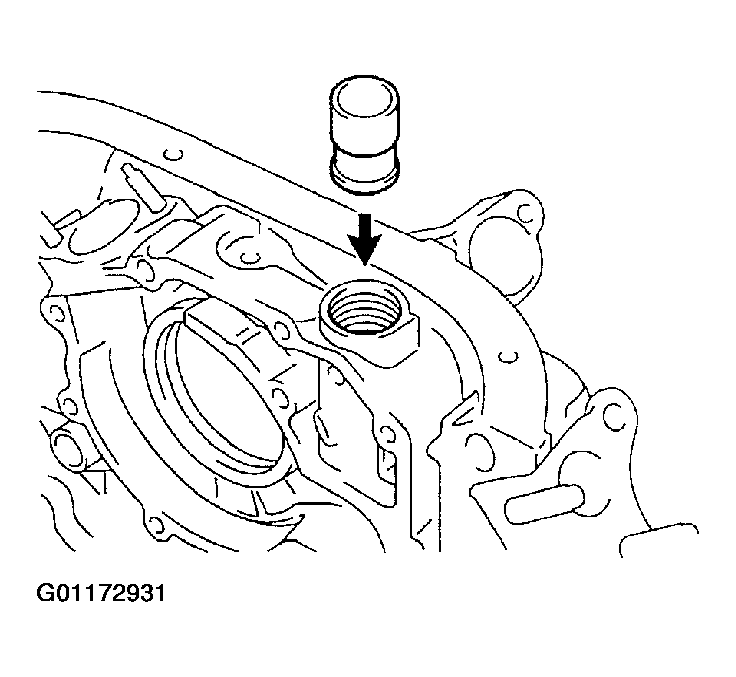

   Fig 1: Inspecting Oil Pump Relief Valve

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Coat the relief valve with engine oil and drop it to the relief valve hole.
2. Check that the relief valve falls smoothly by its own weight.

1. Install the rotors to the oil pump body and align the rotors matchmarks.
2. Check the clearance between the rotors.

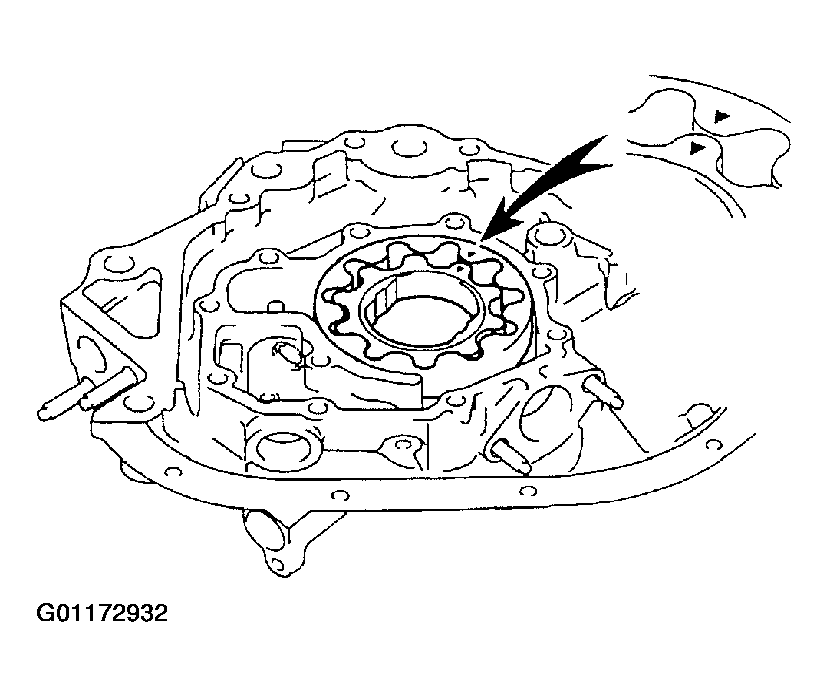

   Fig 2: Installing Rotors To Oil Pump Body And Aligning Rotors Matchmarks

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using a feeler gauge, measure the clearance between the drive and driven rotor tips.

   Clearance:

   Fig 3: Measuring Clearance Between Drive And Driven Rotor Tips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the clearance is greater than the maximum, replace a set of the drive and driven rotor.

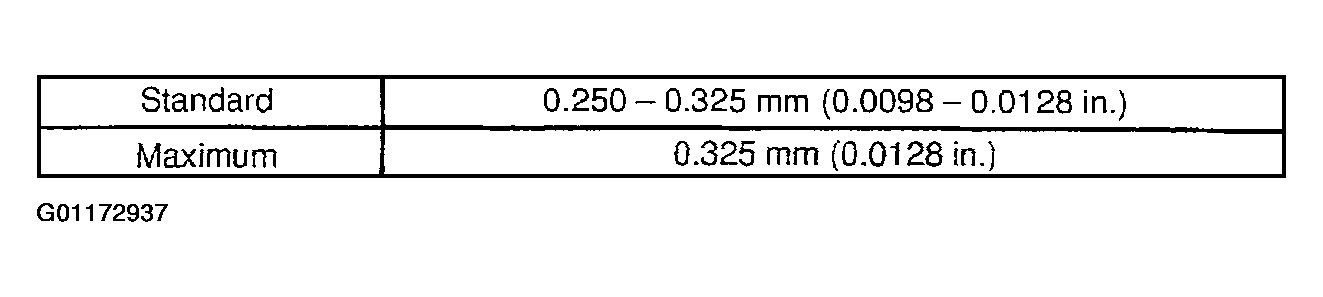

   Fig 4: Clearance Between Rotors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Check the rotors side clearance.
   1. Using a feeler gauge and precision straight edge, measure the clearance between the rotors and precision straight edge.

   Clearance:

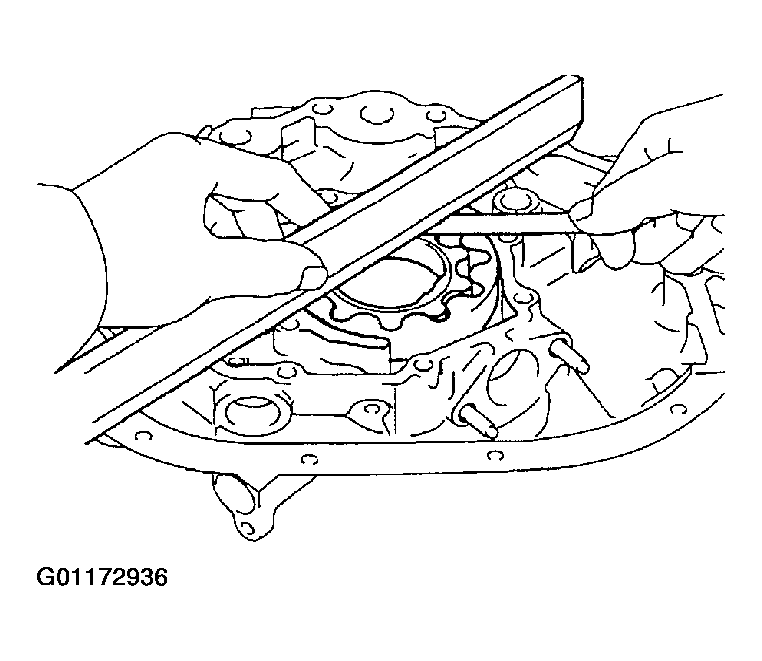

   Fig 5: Measuring Clearance Between Rotors And Precision Straight Edge

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   If the clearance is greater than the maximum, replace a set of the drive and driven rotor.

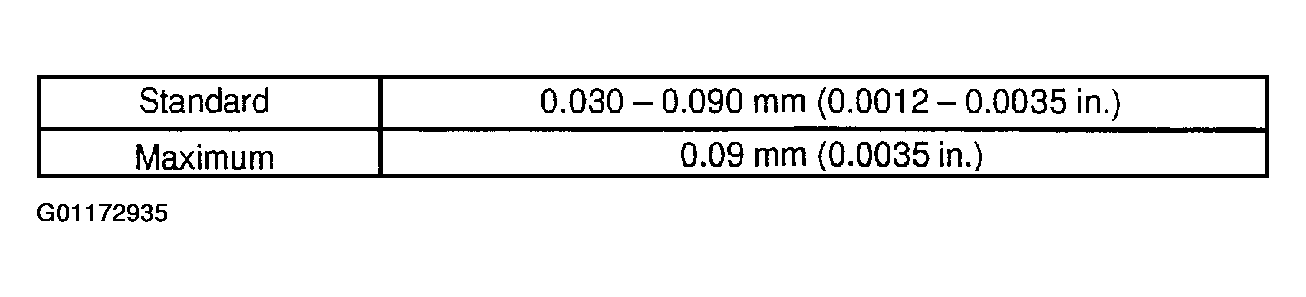

   Fig 6: Rotors Side Clearance

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Check the clearance between the oil pump body and driven rotor.

1. Using a feeler gauge, measure the clearance between the oil pump body and driven rotor.

Clearance:

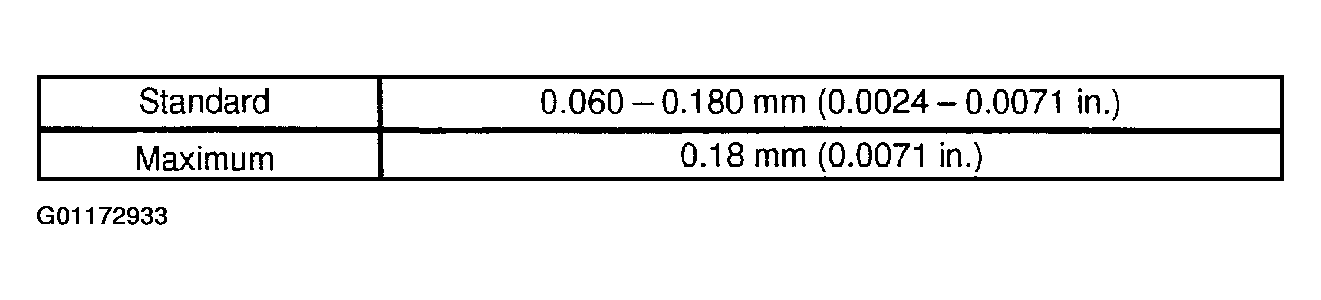

Fig 7: Oil Pump Body And Driven Rotor Clearance

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If the clearance is greater than the maximum, replace the oil pump assembly.

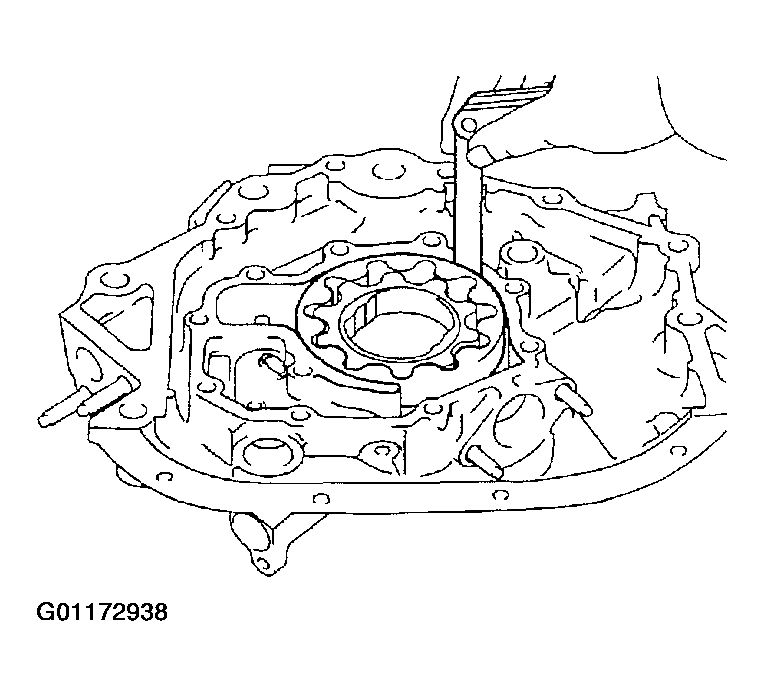

Fig 8: Measuring Clearance Between Oil Pump Body And Driven Rotor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
