ACIS Vacuum Tank

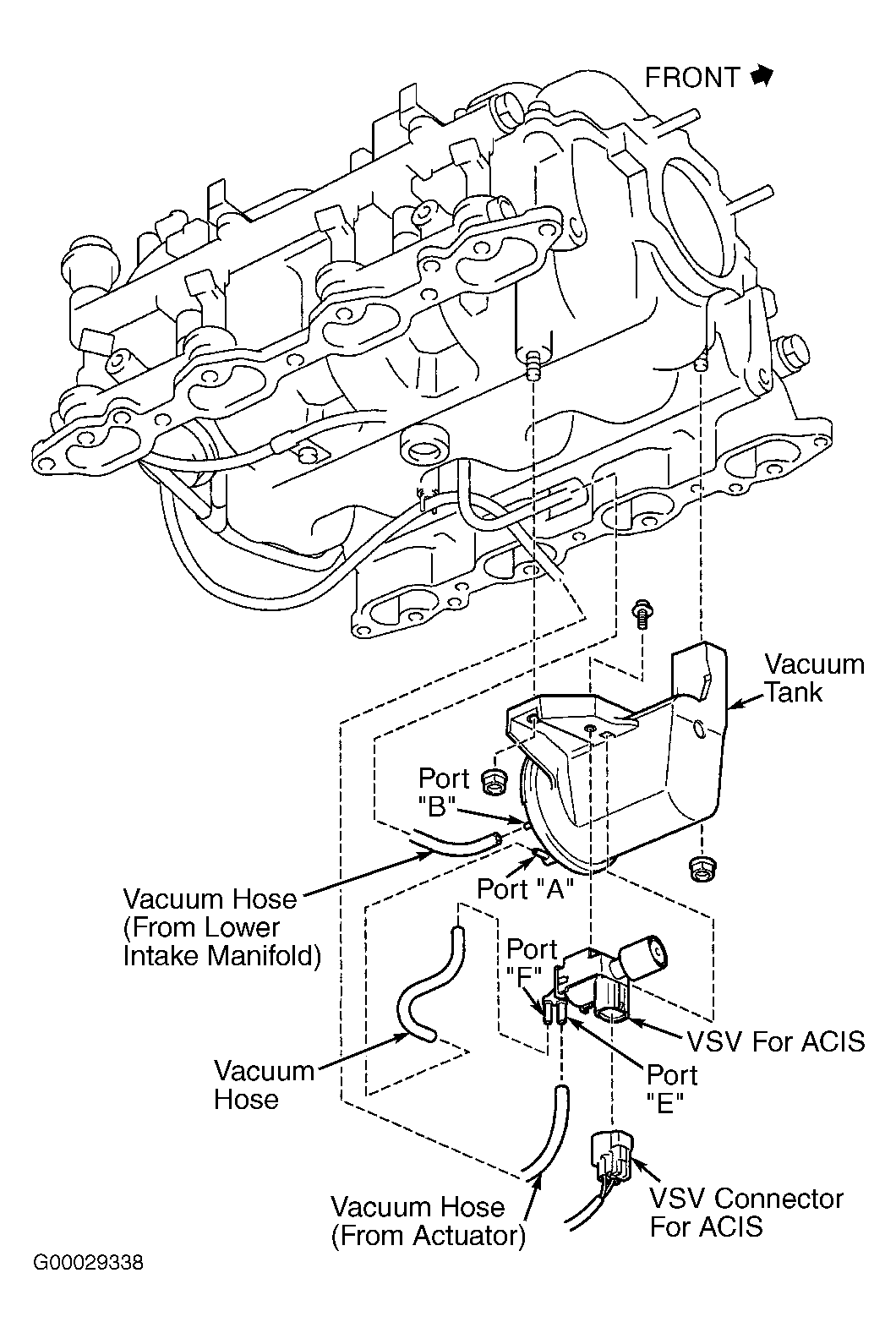

Disconnect vacuum hoses from vacuum tank. Vacuum tank is located under front of intake manifold. Apply compressed air to port "A". See Fig 1. Air should flow out of port "B". Apply compressed air to port "B". Air should not flow out of port "A". Plug port "B". Apply 11.8 in. Hg of vacuum to port "A". Vacuum should hold for at least one minute. If ACIS vacuum tank does not operate as specified, replace ACIS vacuum tank. If ACIS vacuum tank operates as specified, check vacuum switching valve. See ACIS VACUUM SWITCHING VALVE .
