Remove Multi Display

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the 4 screws and multi display.

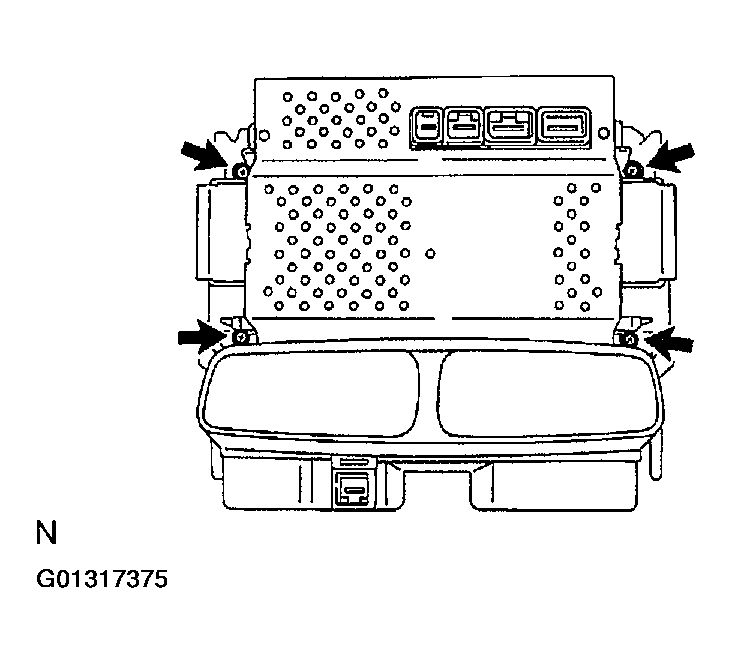

    Fig 1: Removing Multi Display
    G01317375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove the 8 bolts and 2 brackets.

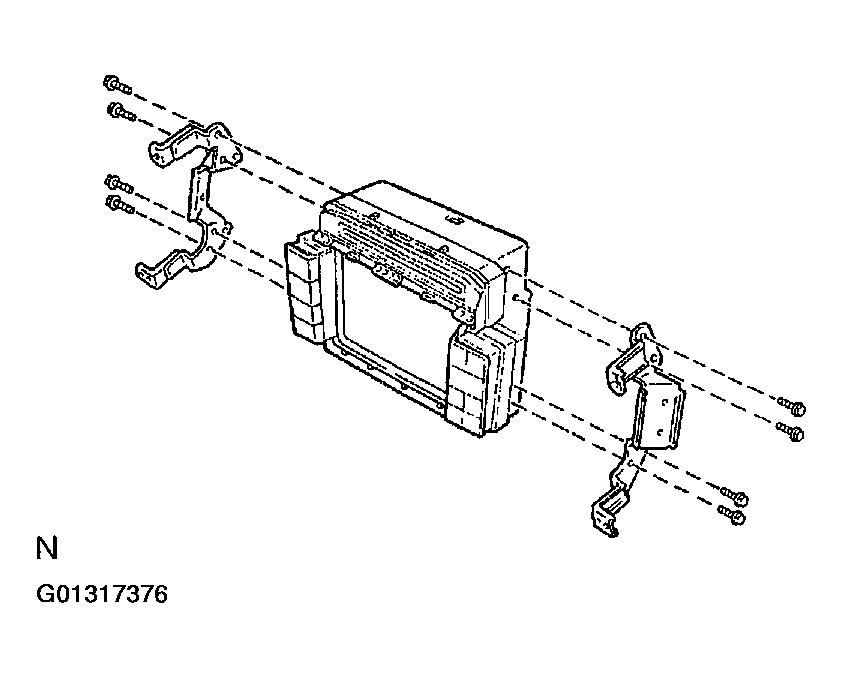

    Fig 2: Removing 8 Bolts & 2 Brackets
    G01317376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
