Section 155 (Air Conditioning System): Condenser: Removal

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
HINT:

At the time of installation, please refer to the following item. Evacuate air from refrigeration system.

Charge system with refrigerant and inspect for leakage of refrigerant.

Specified Amount:

Single A/C: 650 +/- 50 g (22.93 +/- 1.76 oz.)

Dual A/C: 900 +/- 50 g (31.74 +/- 1.76 oz.)
REMOVE AIR INLET DUCT
REMOVE AIR CLEANER ASSEMBLY

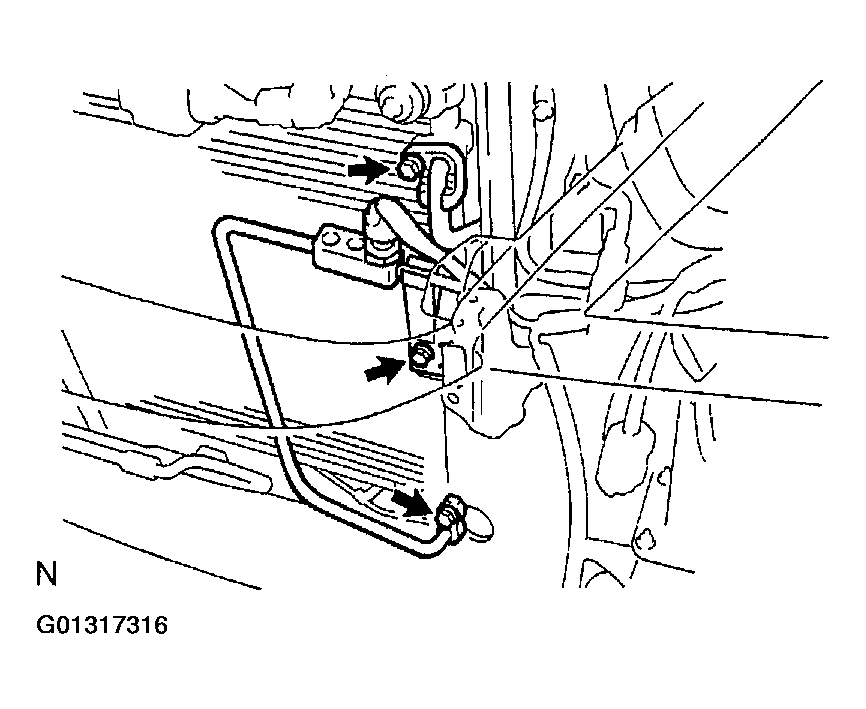

DISCONNECT DISCHARGE HOSE AND LIQUID TUBE
1. Remove the bolt and bracket.
2. Remove the 2 bolts and disconnect the hose and tube.
Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

HINT:

At the time of installation, please refer to the following item. Lubricate 2 new O-rings with compressor oil and install the hose and tube.

Fig 1: Disconnecting Discharge Hose & Liquid Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE RADIATOR UPPER SEAL

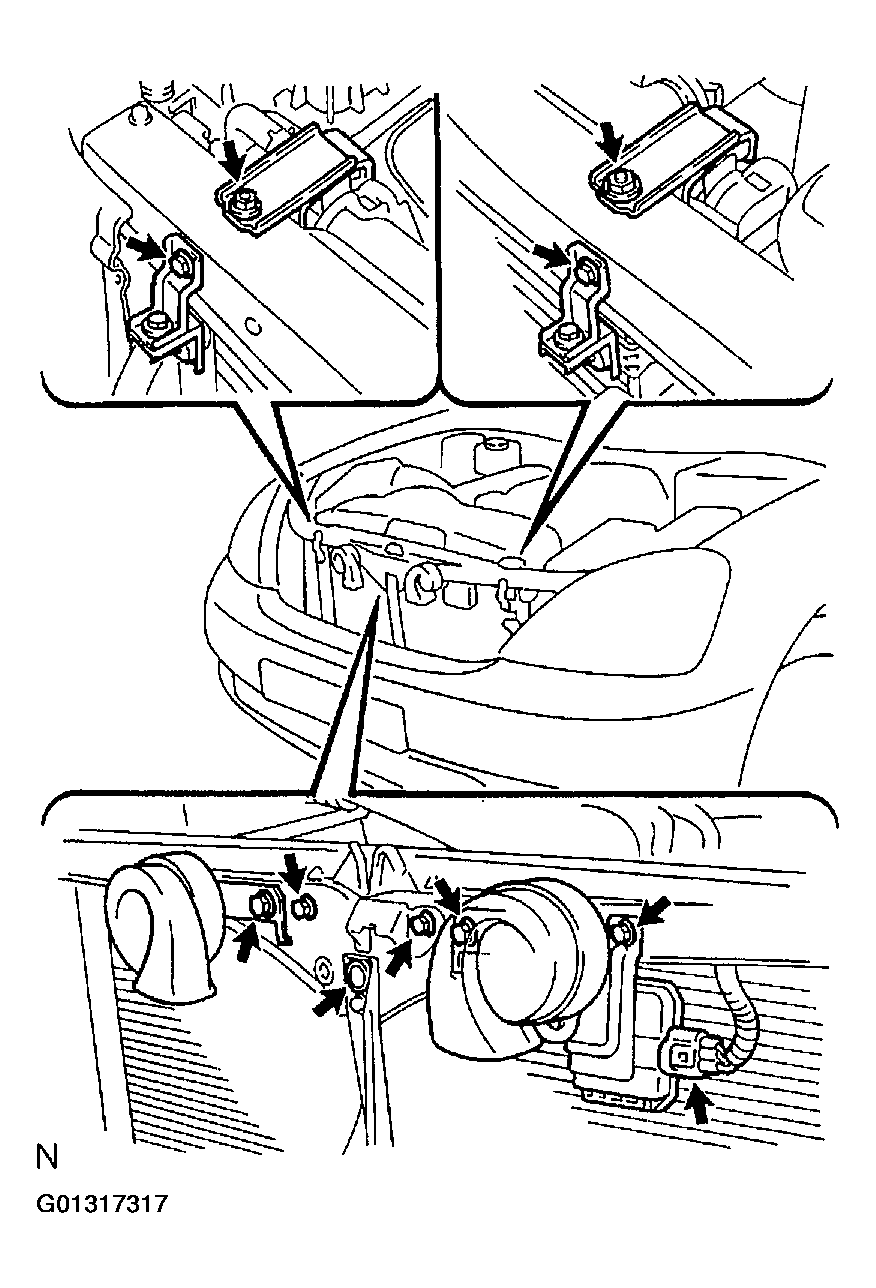

1. Remove the 2 nuts and 2 radiator brackets.

  Fig 2: Removing Radiator Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts.
3. Disconnect the 3 connectors.
4. Remove the 2 bolts and 2 horns.
5. Remove the bolt and smog ventilation sensor.
6. Remove the cover, nut, 2 bolts and food lock.

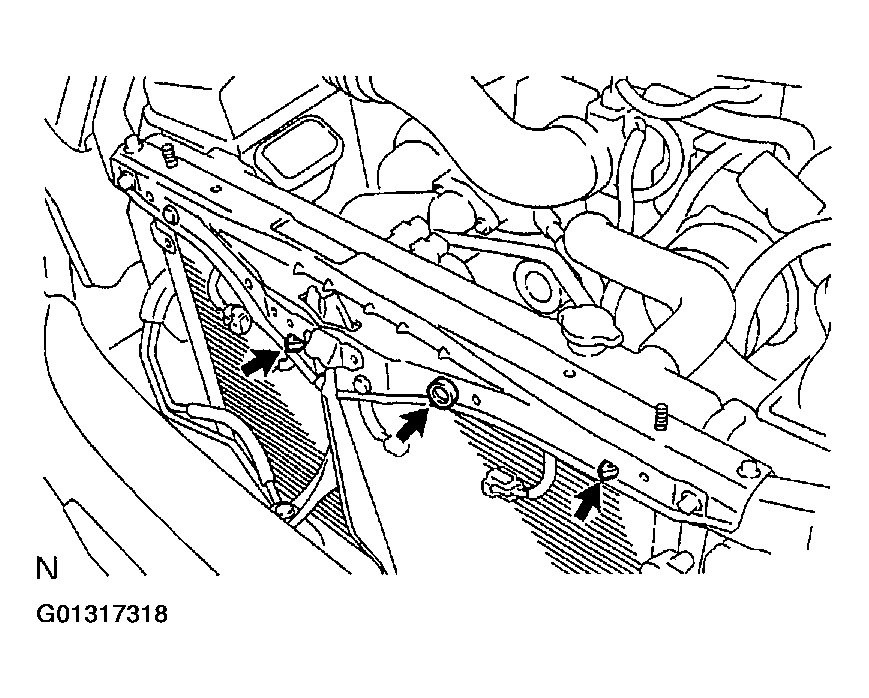

7. Remove the cover, nut, 2 clips and wire cover.

  Fig 3: Removing Cover, Nut, Clips & Wire Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

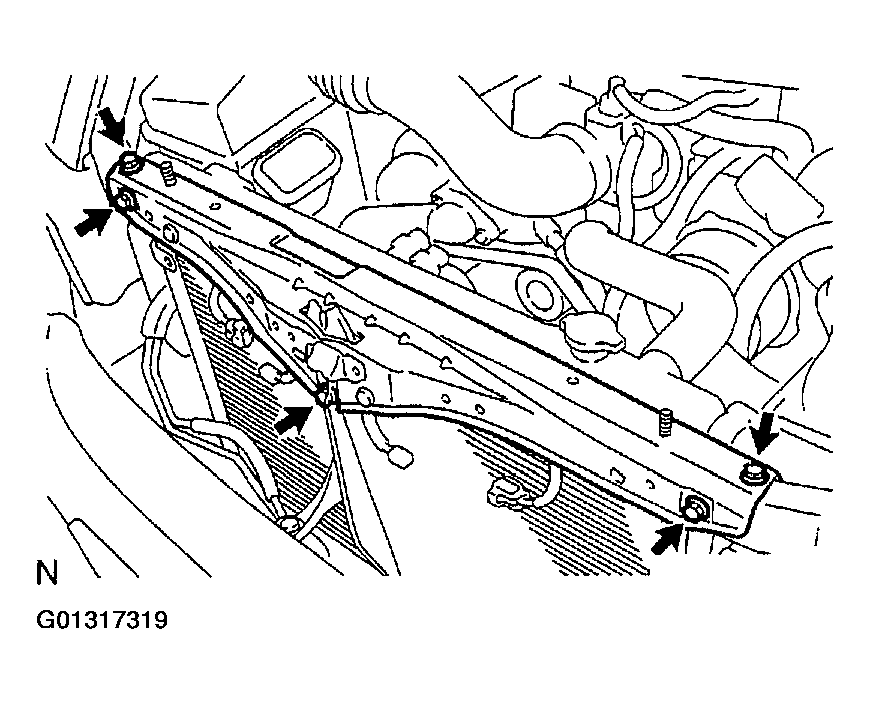

8. Remove the 5 bolts and radiator upper seal.

  Fig 4: Removing Radiator Upper Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

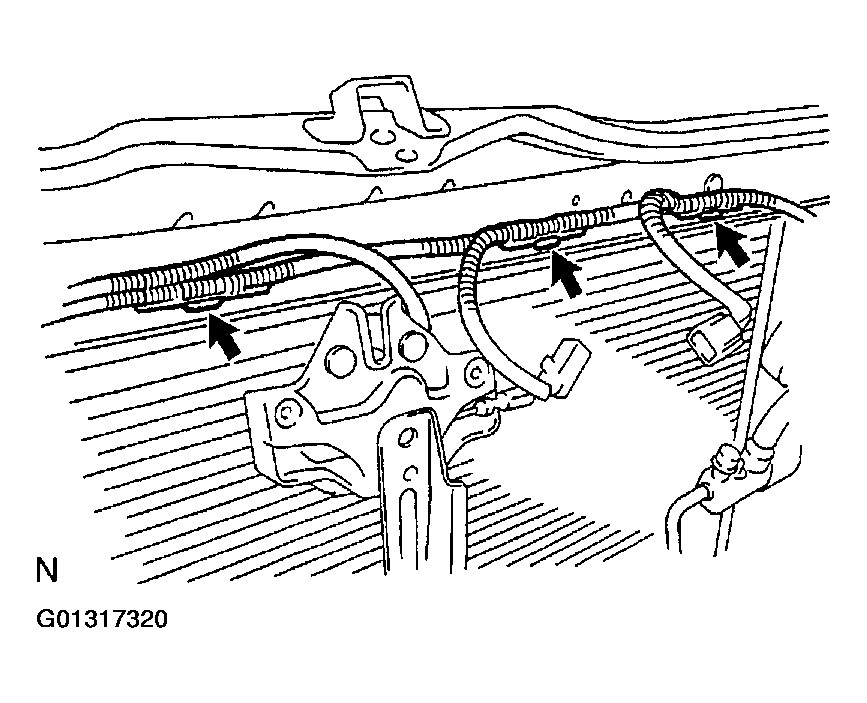

9. Remove the 3 wire harness clamps.

  Fig 5: Removing Wire Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONDENSER

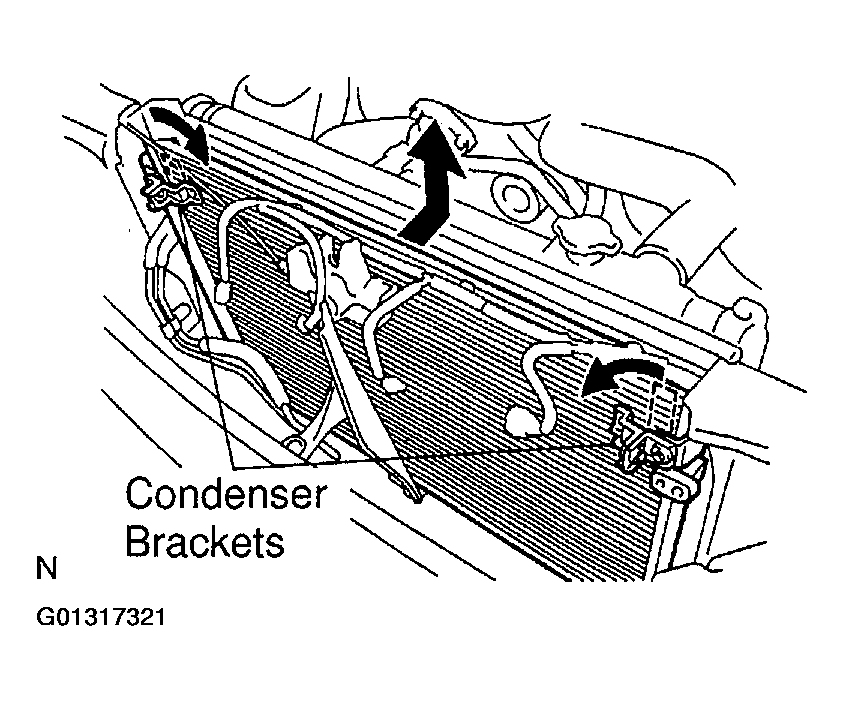

1. Push down the 2 condenser brackets as shown.
2. Push the radiator toward the engine.
3. Push the condenser toward toe radiator pull it upward.

  Fig 6: Removing Condenser Brackets
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
