Water Valve Control Servomotor: Inspection

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FINISH PANEL ASSEMBLY (See INSTRUMENT PANEL ).
REMOVE BLOWER UNIT (See REMOVAL ).
REMOVE WATER VALVE CONTROL SERVOMOTOR
1. Disconnect the connector.
2. Disconnect the control cable.
3. Remove the 2 screws and servomotor.

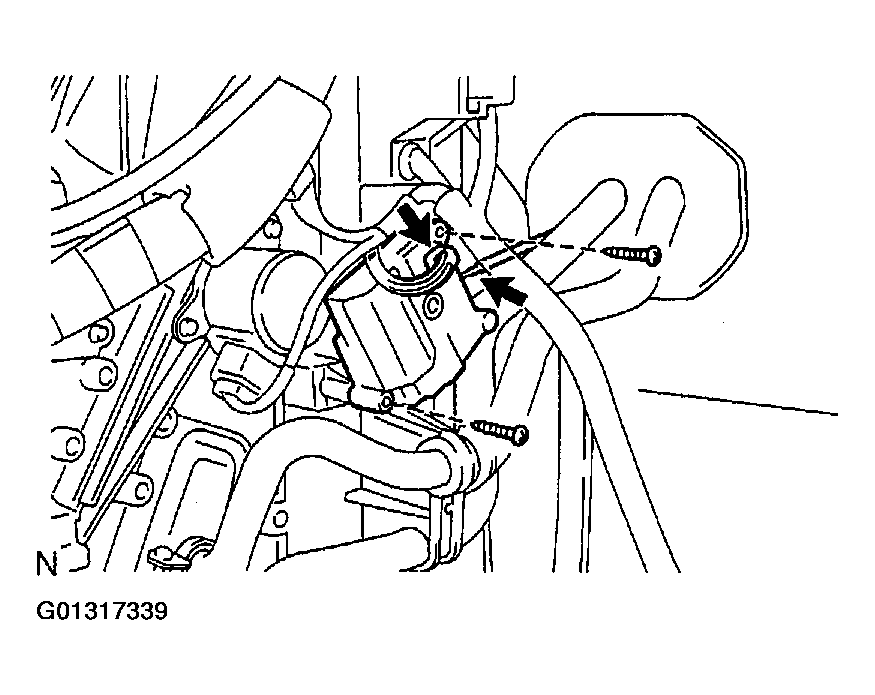

  Fig 1: Removing Water Valve Control Servomotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT WATER VALVE CONTROL SERVOMOTOR CIRCUIT (See WATER VALVE CONTROL SERVOMOTOR CIRCUIT ).
INSTALL WATER VALVE CONTROL SERVOMOTOR
