Combination Meter ASSY: Overhaul

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS

REMOVE INSTRUMENT PANEL REGISTER ASSY NO. 1 (See REPLACEMENT )
REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSY (See REPLACEMENT )
REMOVE COMBINATION METER ASSY

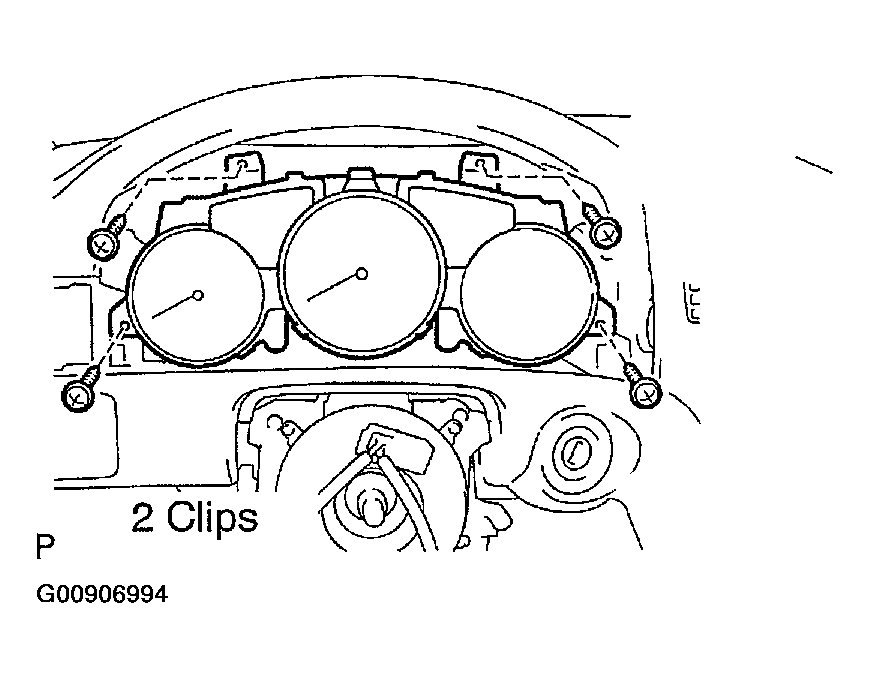

1. Remove the 4 screws.
2. Pull out the combination meter assy, then disconnect the connectors.
REMOVE SPEEDOMETER GLASS

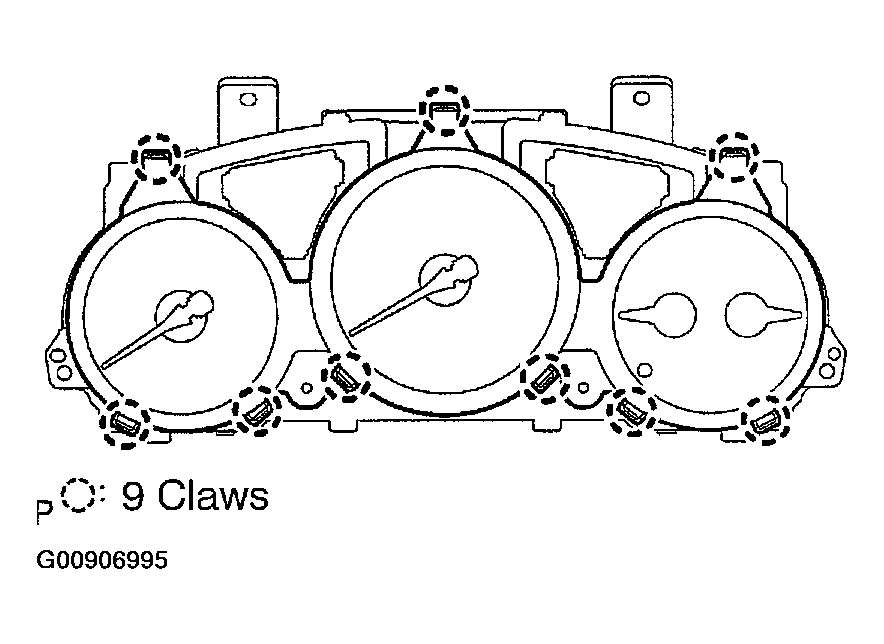

1. Disengage the 9 claws and remove the speedometer glass.

  Fig 2: Removing Speedometer Glass
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
