Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

CHECK WIRE HARNESS (OUTSIDE DOOR HANDLE - DOOR OSCILLATOR) (OUTSIDE DOOR HANDLE OR DOOR OSCILLATOR - BODY GROUND)

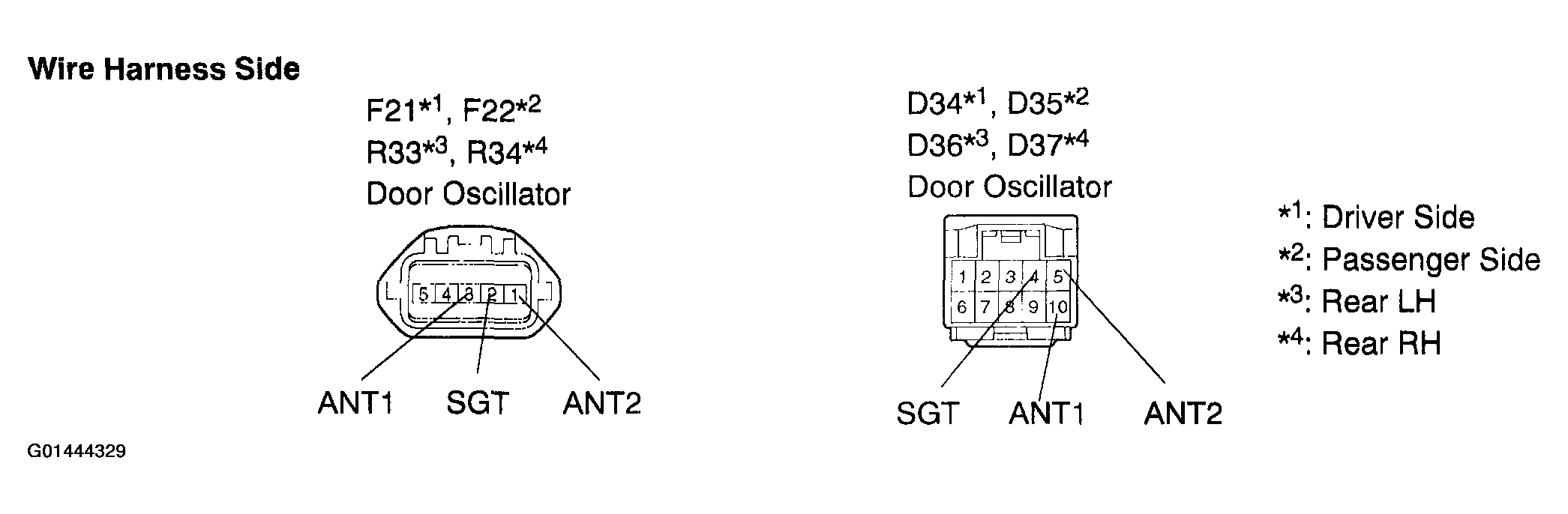

Fig 1: Identifying Wire Harness Outside Door Handle
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the F21, F22, R33 and R34 outside handle connectors.
2. Disconnect the D34, D35, D36 and D37 door oscillator connectors.
3. Measure the resistance of the wire harness side connectors.
  Standard:

  Driver side:

  Fig 2: Resistance Specifications (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

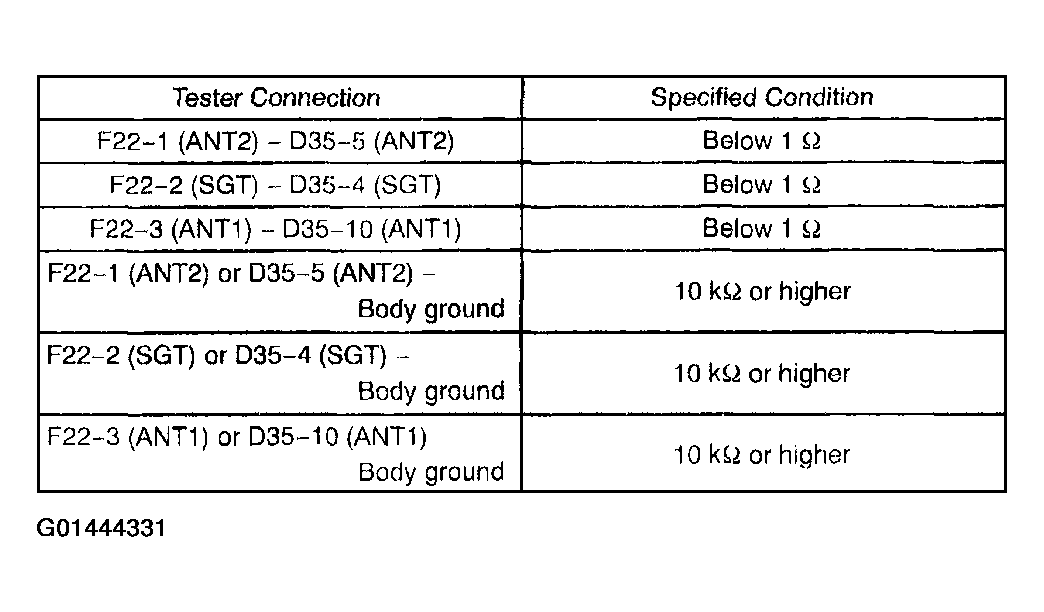

  Passenger side:

  Fig 3: Resistance Specifications (2 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

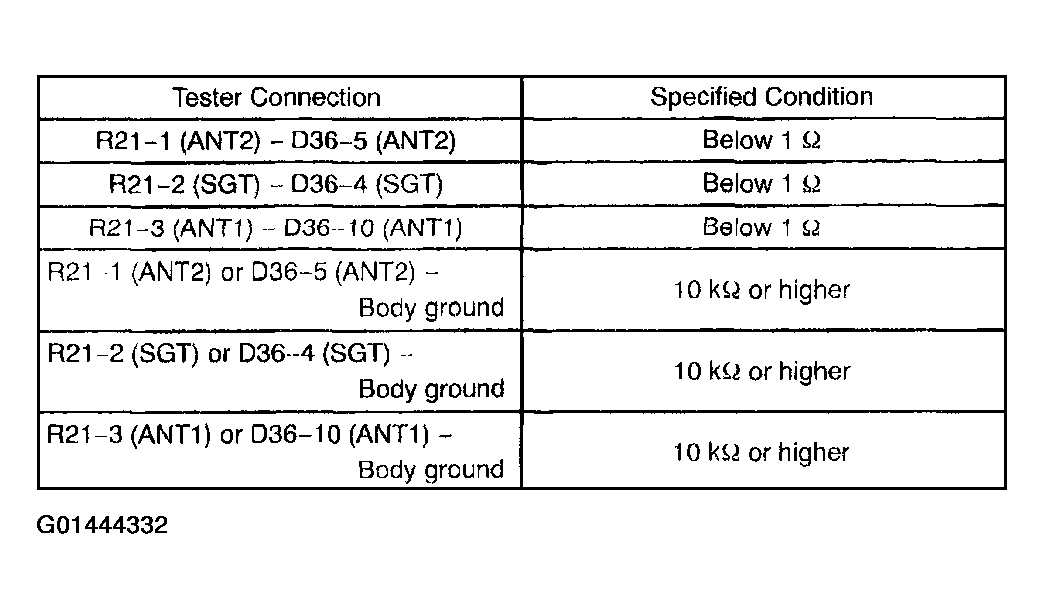

  Rear LH:

  Fig 4: Resistance Specifications (3 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

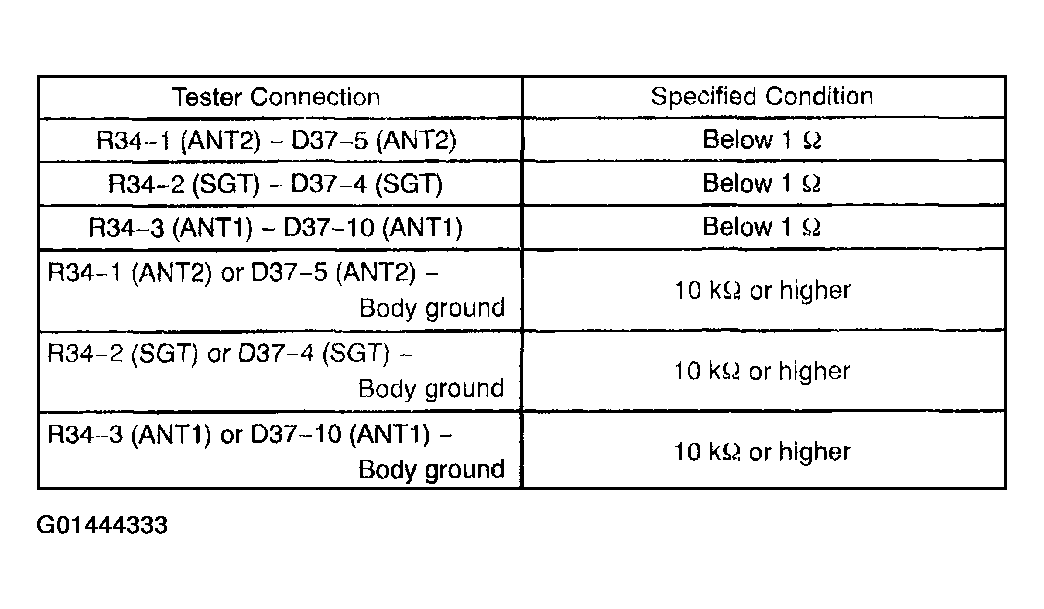

  Rear RH:

  Fig 5: Resistance Specifications (4 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
