Data List/Active Test

HINT:

Using the hand-held tester DATA LIST allows switch, actuator and other item values to be read without removing any parts. Reading the DATA LIST early in troubleshooting is one way to shorten labor time.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Read the DATA LIST according to the display on the tester.

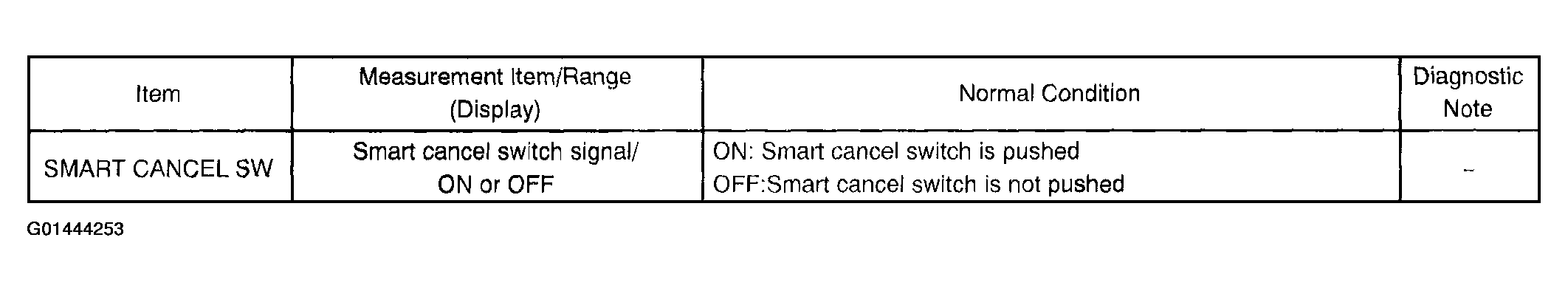

Theft warning ECU:

Fig 1: Data List - Theft Warning ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

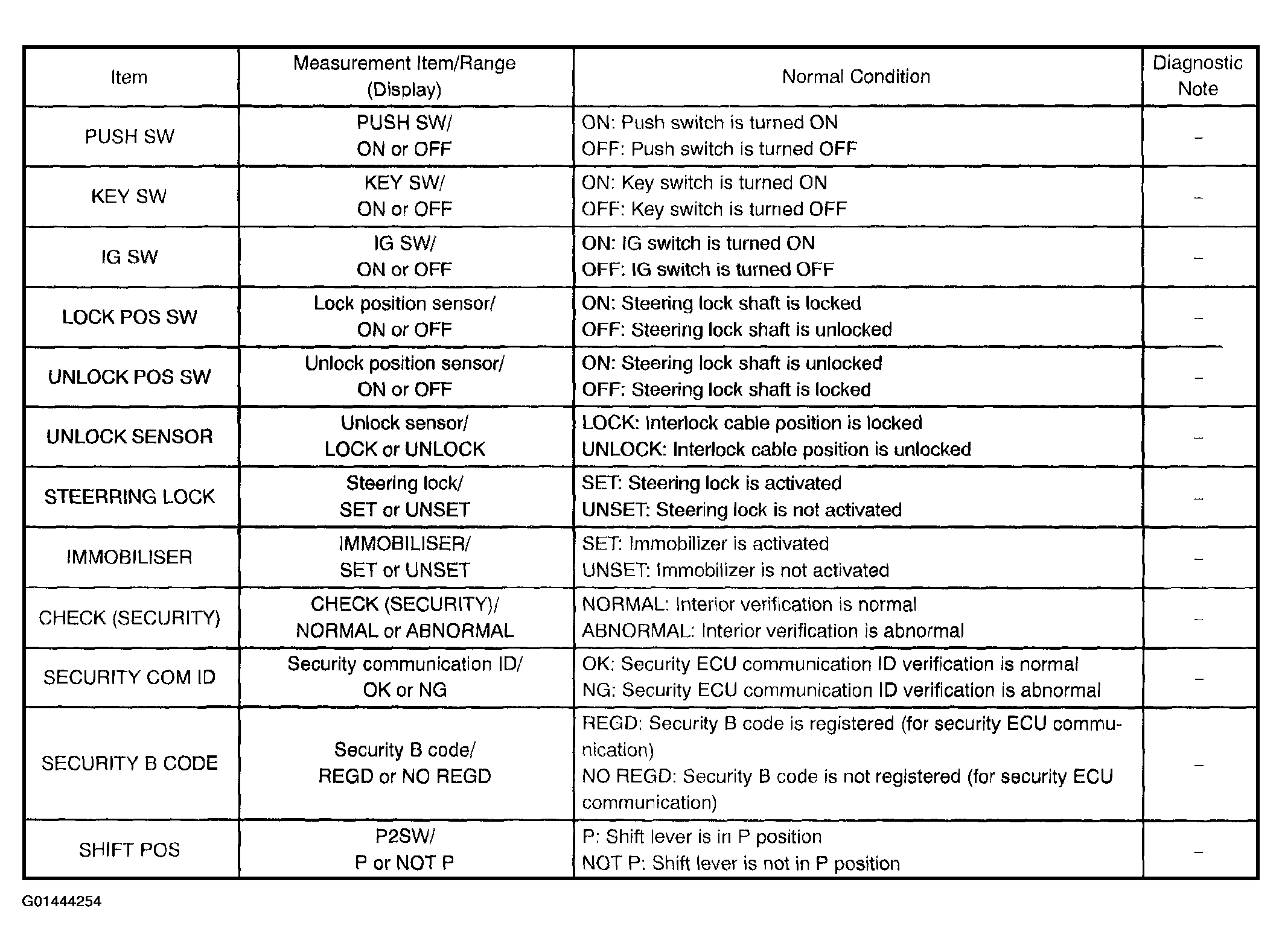

Steering lock ECU:

Fig 2: Data List - Steering Lock ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

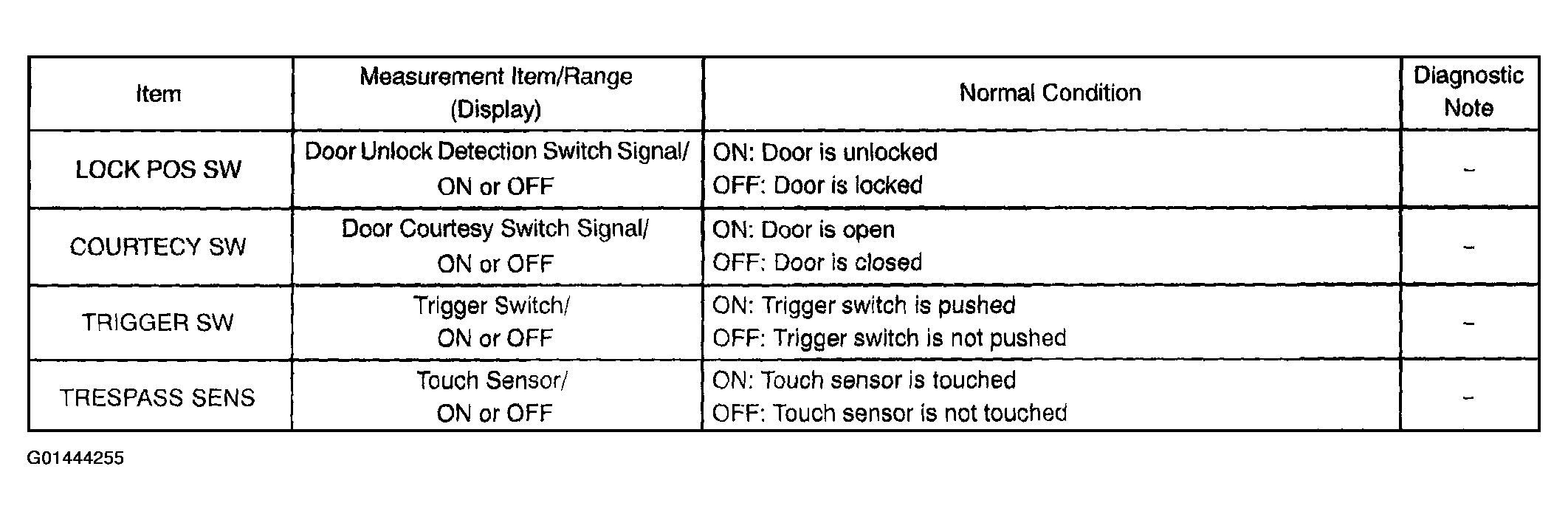

Door ECU (Driver side, Passenger side, Rear LH, Rear RH):

Fig 3: Data List - Door ECU (Driver Side, Passenger Side, Rear LH, Rear RH)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

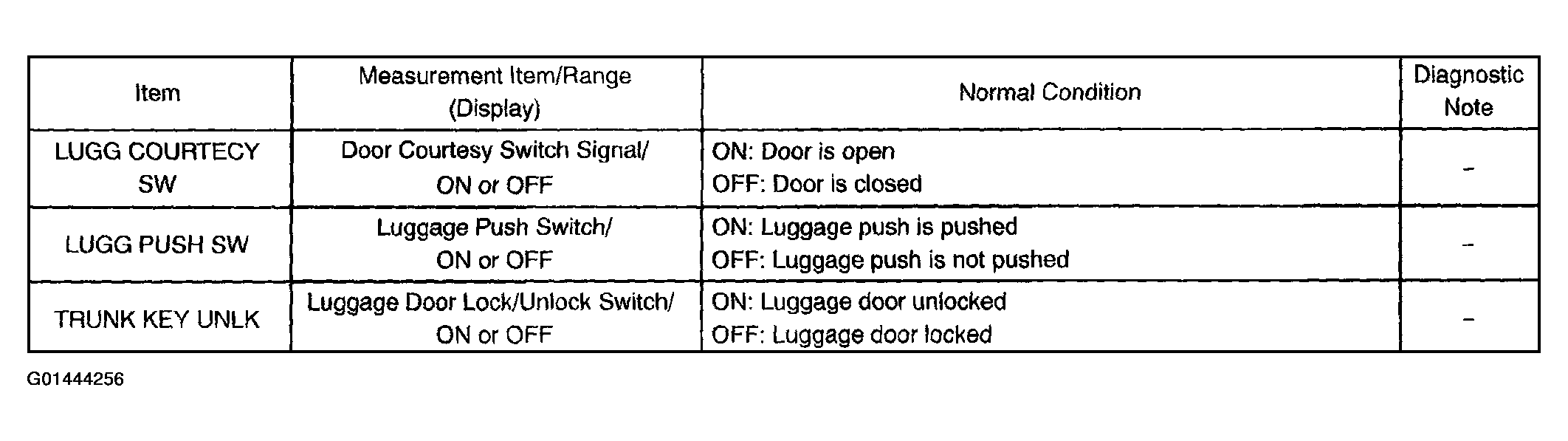

Luggage room J/B ECU:

Fig 4: Data List - Luggage Room J/B ECU

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Performing the hand-held tester ACTIVE TEST allows relay, VSV, actuator and other items to be operated without removing any parts. Performing the ACTIVE TEST early in troubleshooting is one way to shorten labor time. The DATA LIST can be displayed during the ACTIVE TEST.

1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON.
3. Performing the DATA LIST according to the display on the tester.

   Steering lock ECU:

   Fig 5: Data List - Steering Lock ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

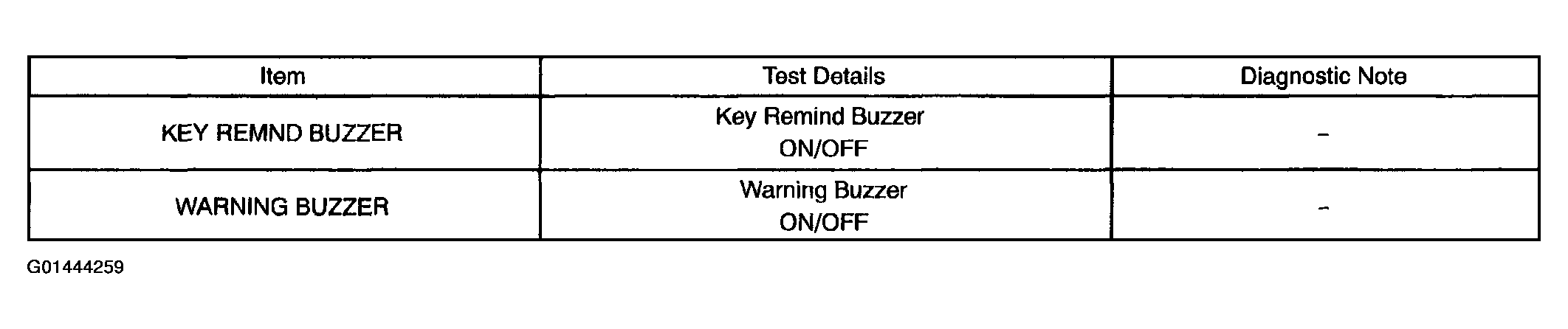

   Theft warning ECU:

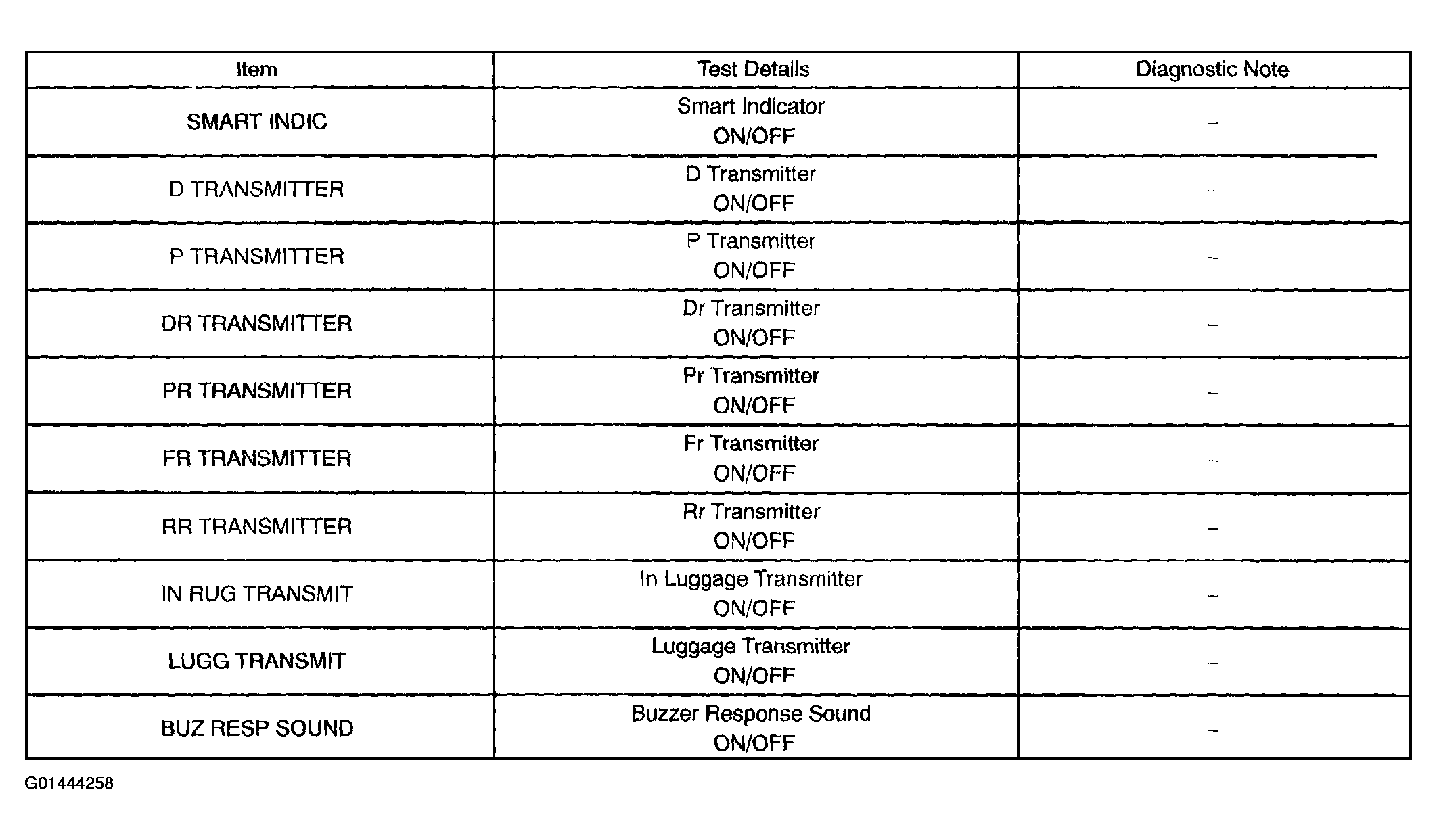

   Fig 6: Data List - Theft Warning ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

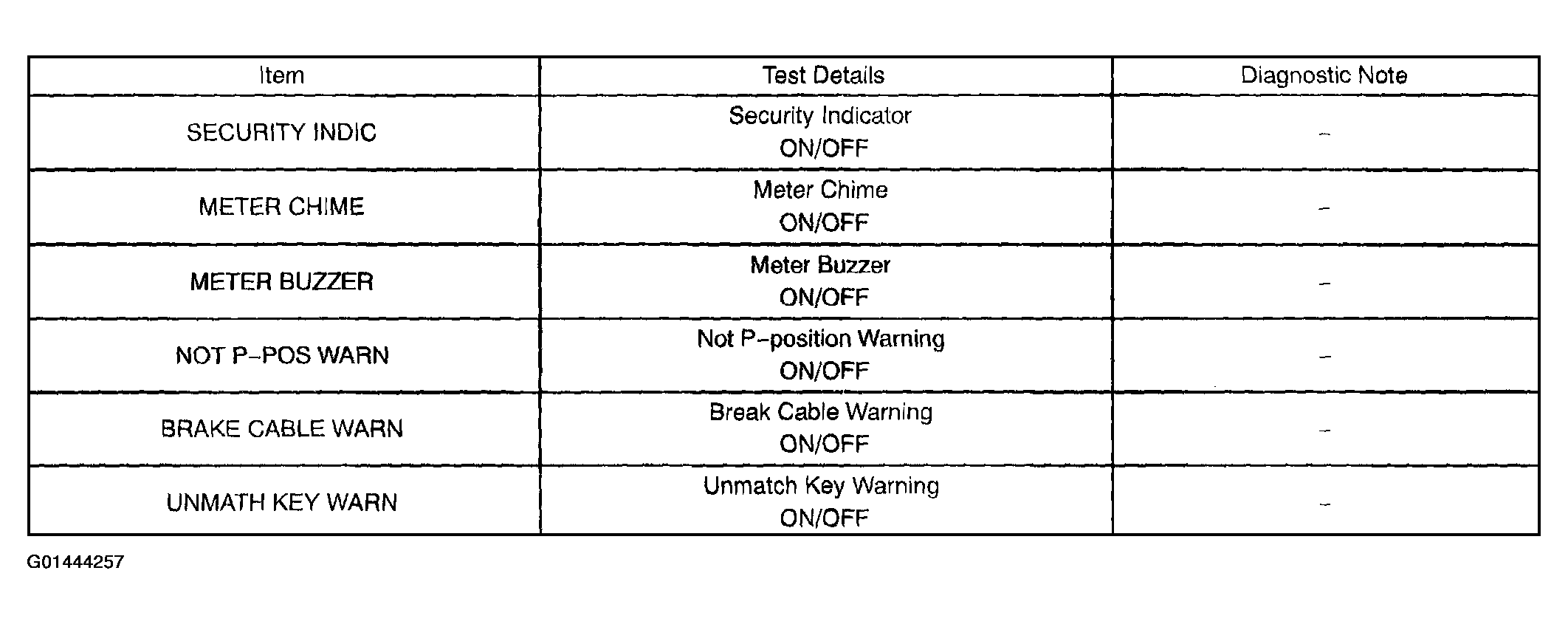

   Driver side J/B ECU:

   Fig 7: Data List - Driver side J/B ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

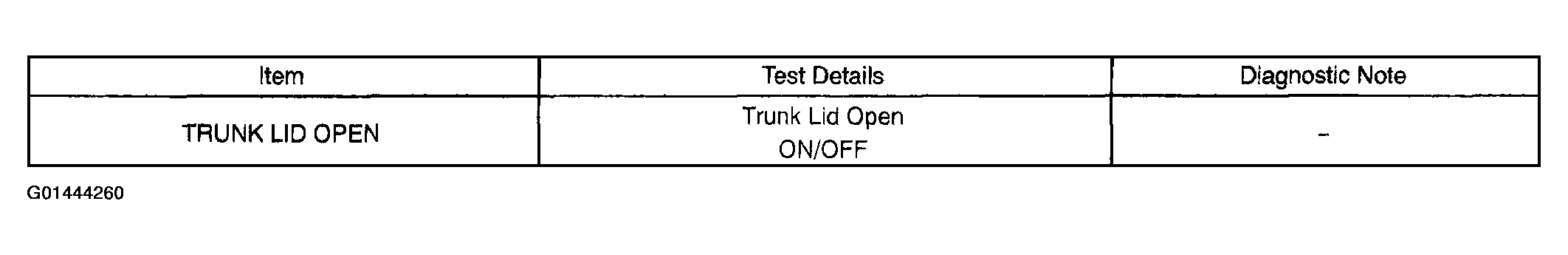

   Luggage room J/B ECU:

   Fig 8: Data List - Luggage Room J/B ECU

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

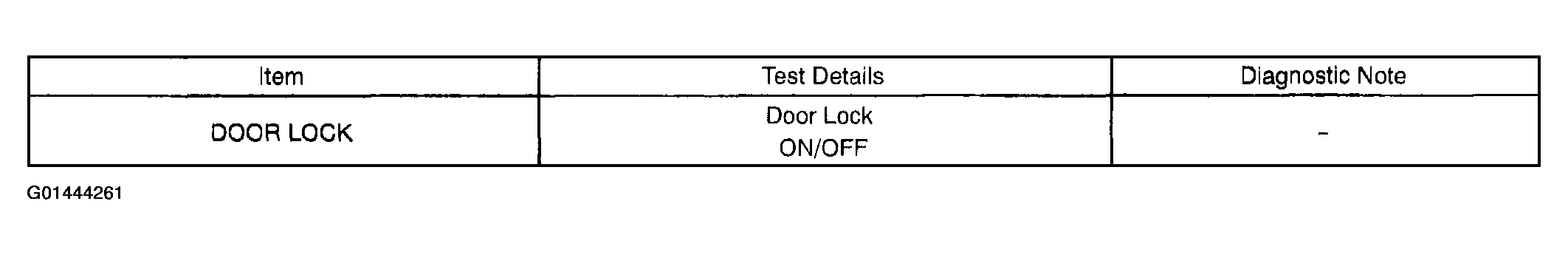

   Door ECU (Driver side, Passenger side, Rear LH, Rear RH):

   Fig 9: Data List - Door ECU (Driver Side, Passenger Side, Rear LH, Rear RH)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
