Section 249 (Smart Key System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

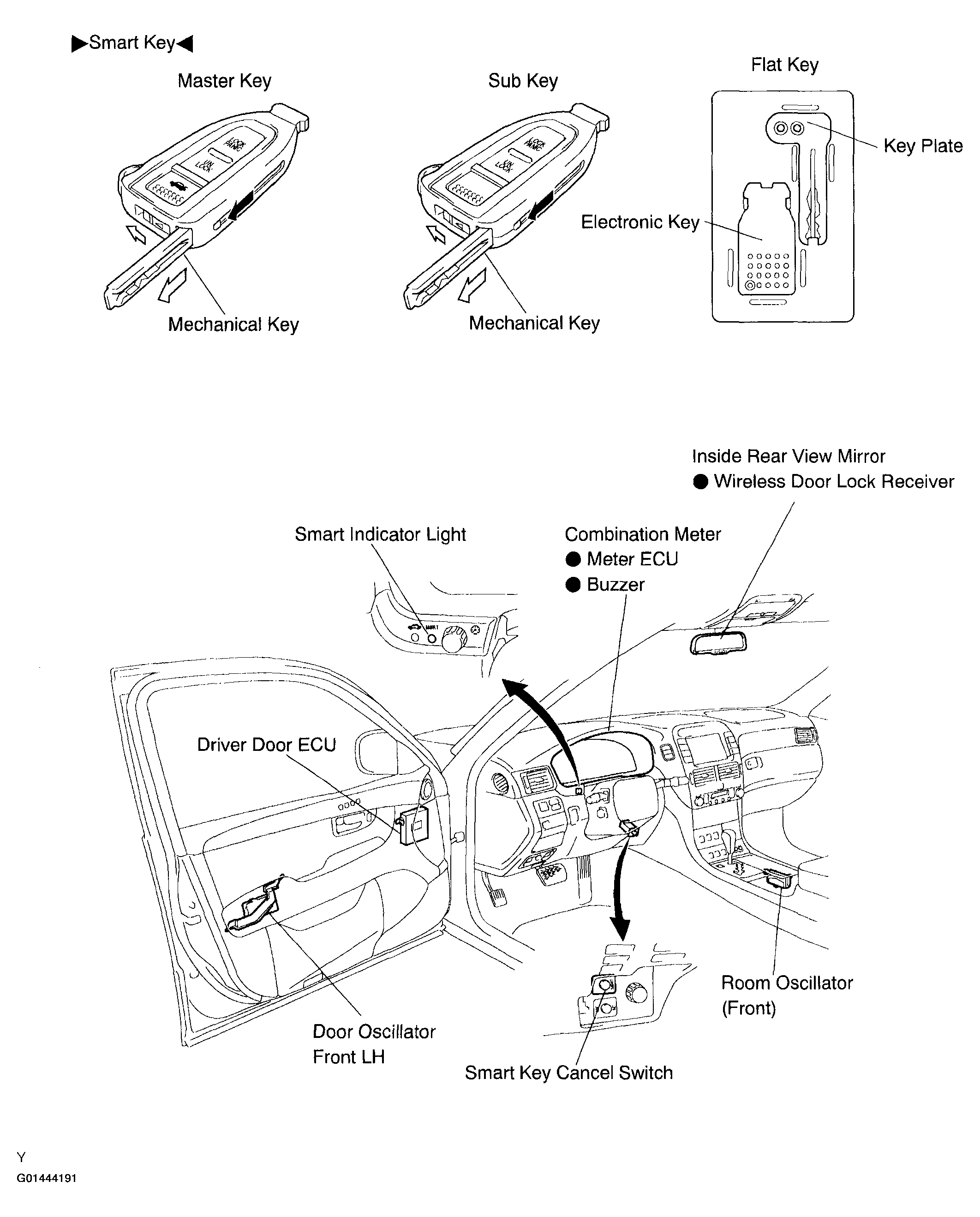

Fig 1: Locating Smart Key System Components (1 Of 2)
G01444191Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

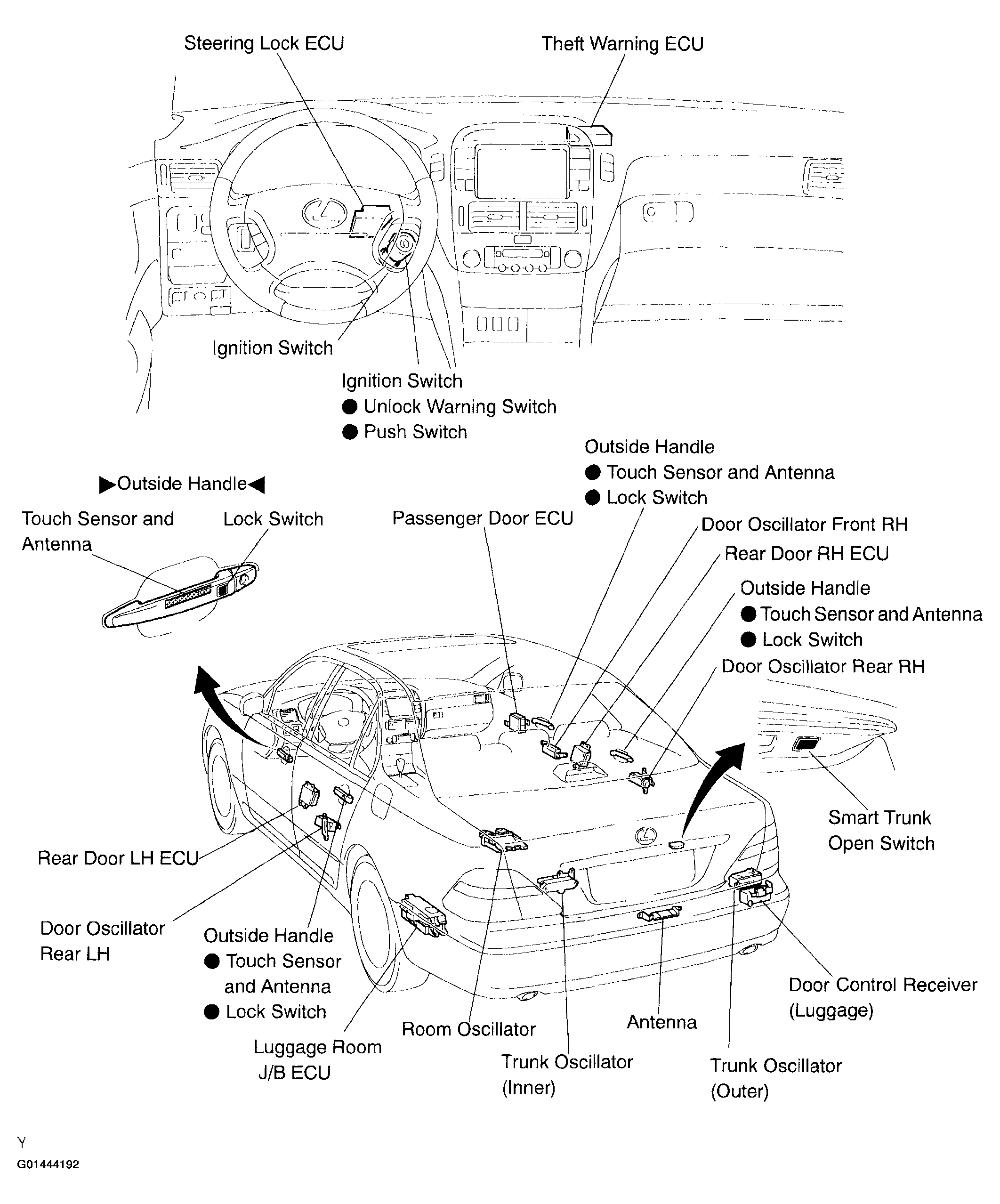

Fig 2: Locating Smart Key System Components (2 Of 2)
G01444192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
