Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. PERFORM ACTIVE TEST USING HAND-HELD TESTER
    1. Connect the hand-held tester (with CAN VIM) to the DLC3.
    2. Turn the ignition switch ON and press the hand-held tester main switch ON.
    3. Select the item below in the ACTIVE TEST and then check that the smart indicator operates.

      Theft warning ECU:

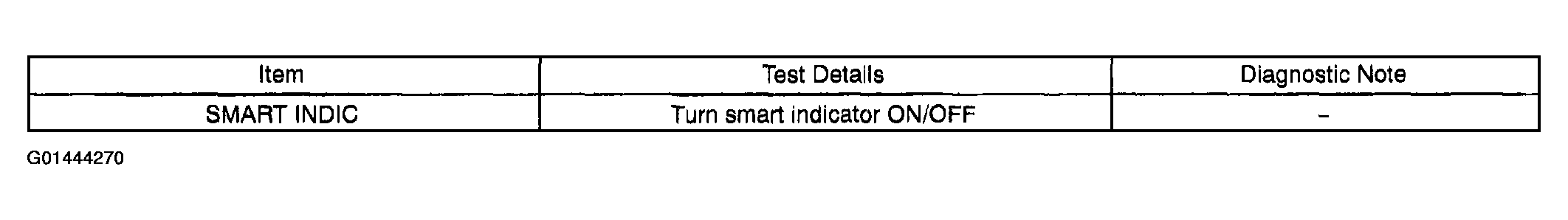

      Fig 1: Hand-Held Tester Display Chart
      G01444270Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    OK:

    Smart indicator turns on and off.

    NG: Go to step 2

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )

  2. INSPECT RHEOSTAT
    1. Remove the rheostat.
    2. Apply 12 V positive (+) voltage between the terminals of the indicator and check the lighting condition of the smart indicator.

      OK: Go to next step

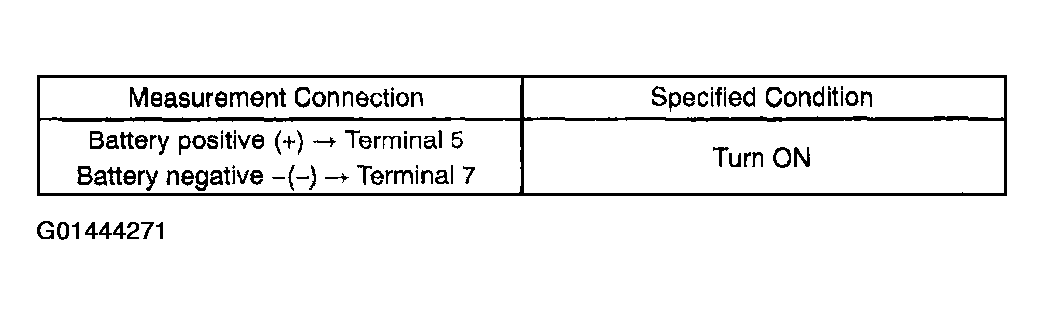

      Fig 2: Voltage Specifications
      G01444271Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

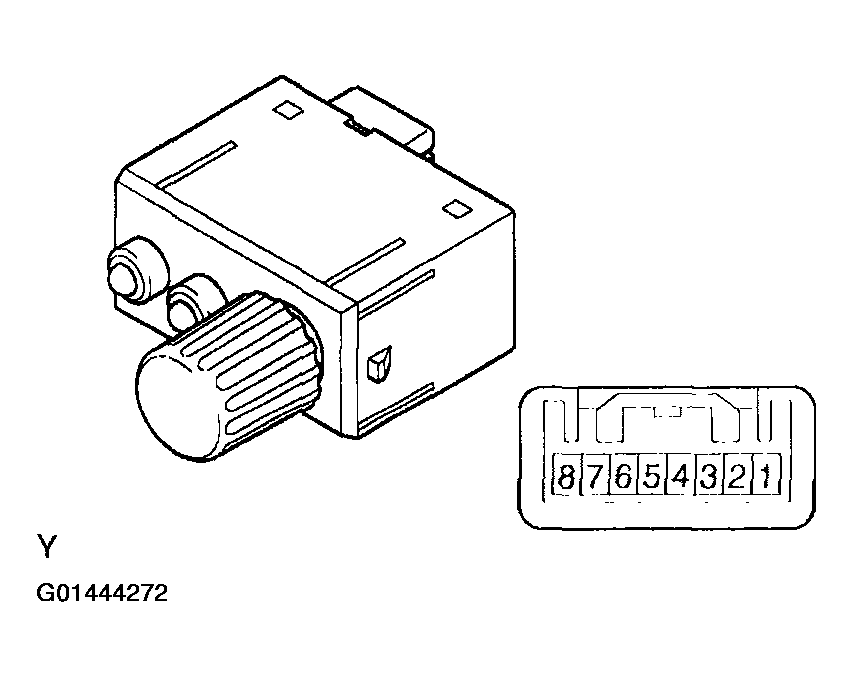

      Fig 3: Identifying Rheostat
      G01444272Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    NOTE:
    • If the positive (+) lead and the negative (-) lead are incorrectly connected, the smart indicator does not illuminate.
    • Voltage of more than 12 V will damage the smart indicator.
    • If the voltage is too low, the smart indicator will not illuminate.

    NG: REPLACE RHEOSTAT

    OK: Go to next step

  3. CHECK WIRE HARNESS (RHEOSTAT - THEFT WARNING ECU AND BODY GROUND)
    1. Disconnect the R4 rheostat connector.
    2. Disconnect the T5 ECU connector.
    3. Measure the resistance between the wire harness side connectors.

      Standard:

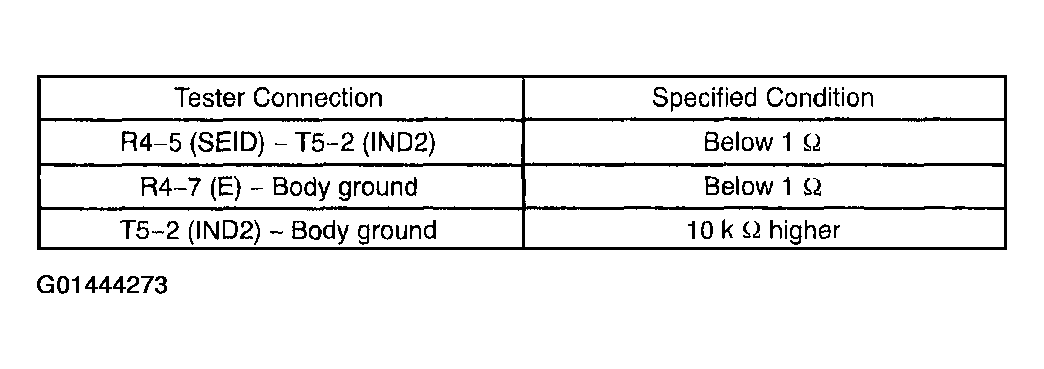

      Fig 4: Voltage Specifications
      G01444273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

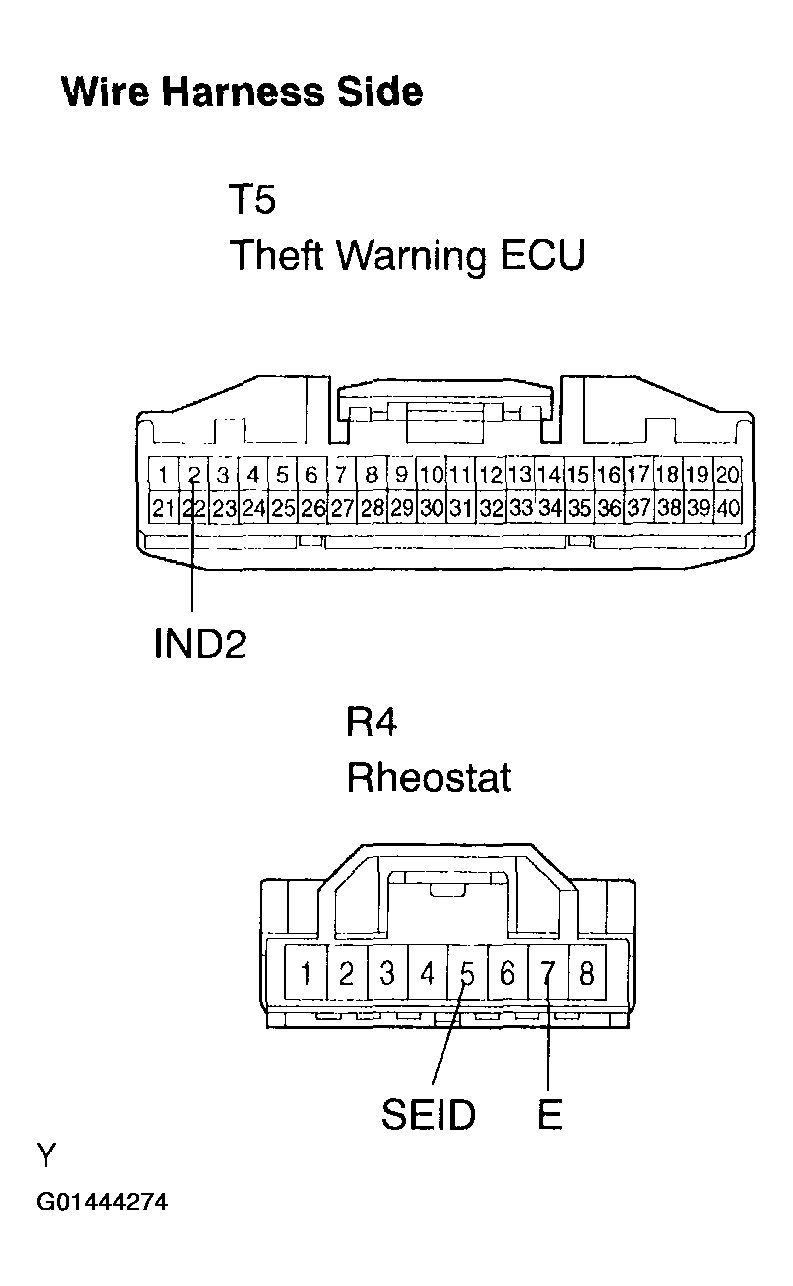

      Fig 5: Identifying Wire Harness
      G01444274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPLACE OR REPLACE HARNESS AND CONNECTOR

    OK: Go to next step

    PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See  PROBLEM SYMPTOMS TABLE  )
