Communication line

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

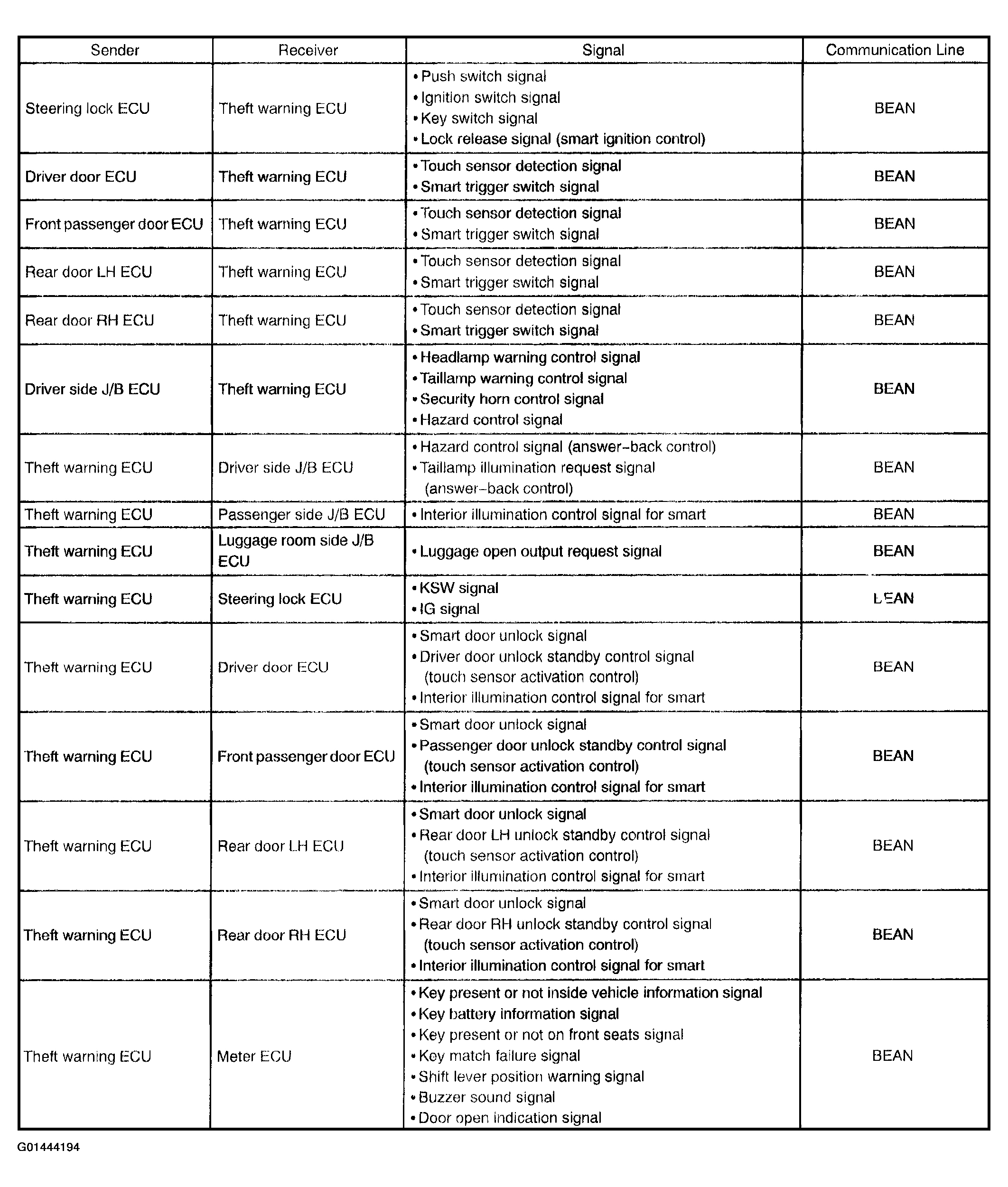

Fig 1: Communication Line Description Chart
G01444194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
