Inspection Procedure

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

READ VALUE OF HAND-HELD TESTER
1. Connect the hand-held tester (with CAN VIM) to the DLC3.
2. Turn the ignition switch ON and press the hand-held tester main switch ON.
3. Select the items below in the DATA LIST and read the displays on the hand-held tester.
  Door ECU (Driver side, Passenger side, Rear LH, Rear RH):

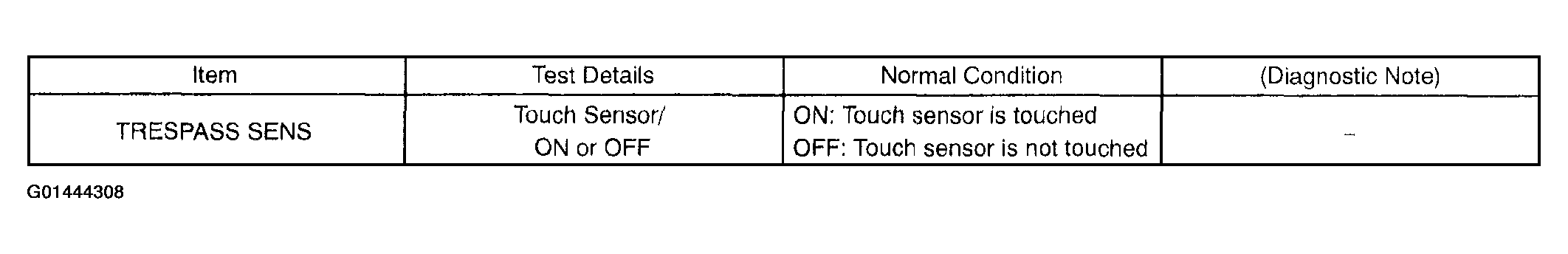

  Fig 1: Hand-Held Tester Values Chart
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK:

"ON" (sensor is touched) appears on the screen.

NG: Go to step 2

OK: Go to next step

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
CHECK WIRE HARNESS (DOOR OSCILLATOR - DOOR ECU) (DOOR OSCILLATOR OR DOOR ECU - BODY GROUND)

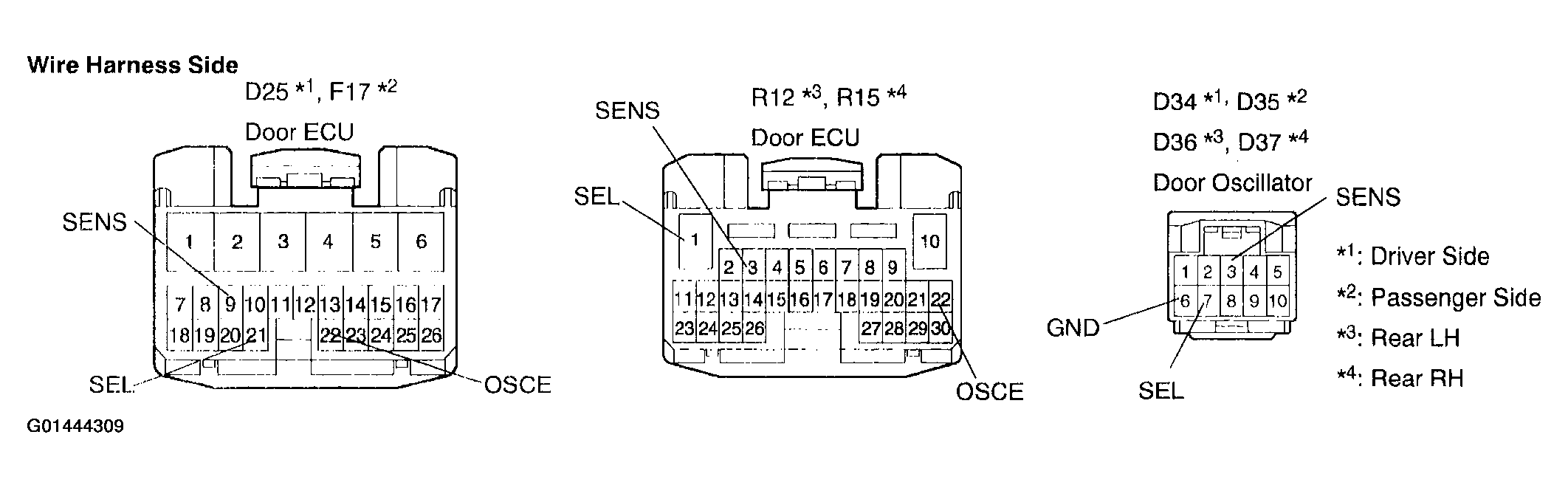

Fig 2: Identifying Wire Harness Door Oscillator - Door ECU
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the D25, F17, R12 and R15 door ECU connectors.
2. Disconnect the D34, D35, D36 and D37 door oscillator connectors.
3. Measure the resistance between the wire harness side connectors.
  Standard:

  Driver side

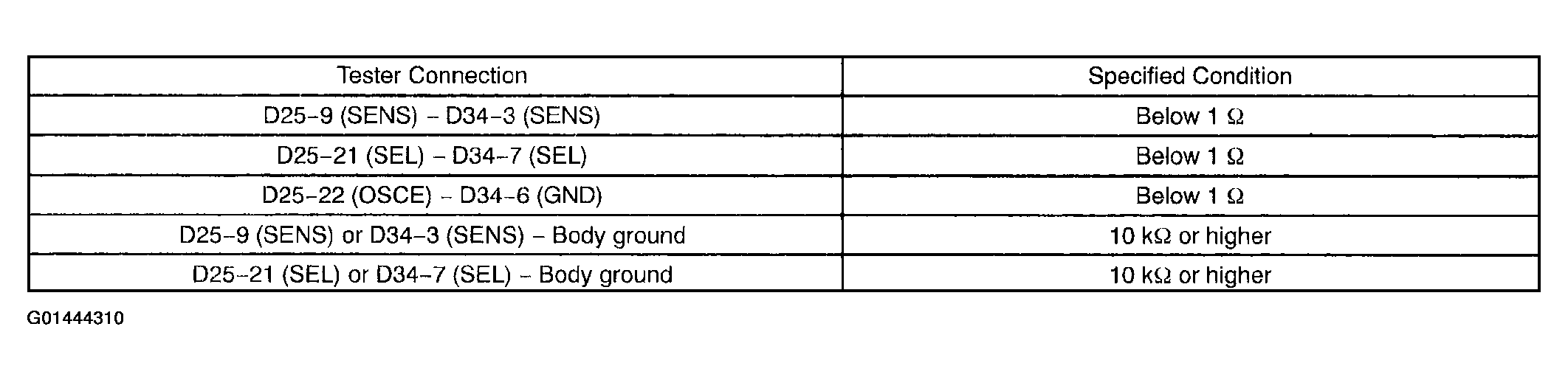

  Fig 3: Resistance Specifications (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Passenger side

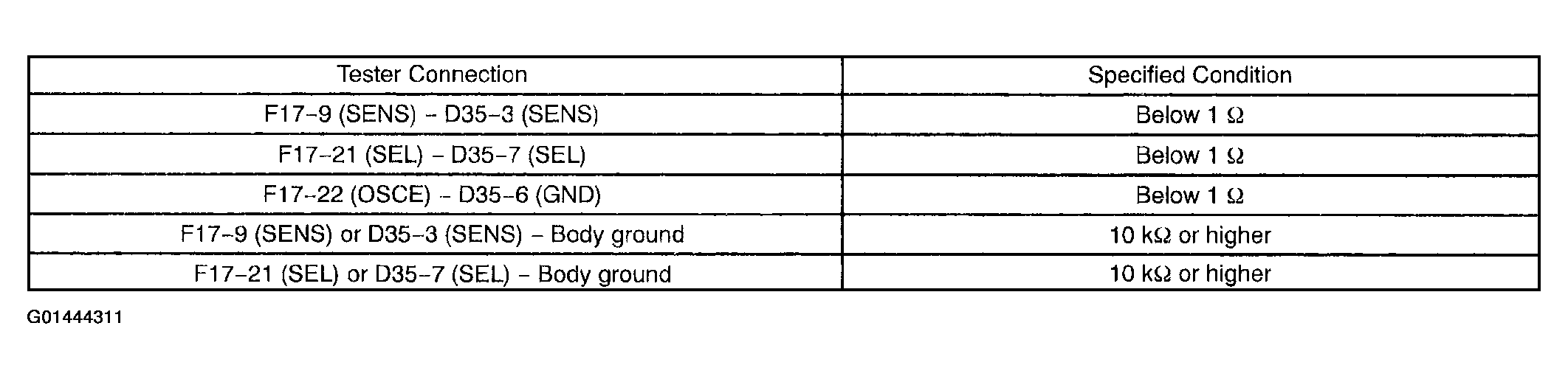

  Fig 4: Resistance Specifications (2 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear LH

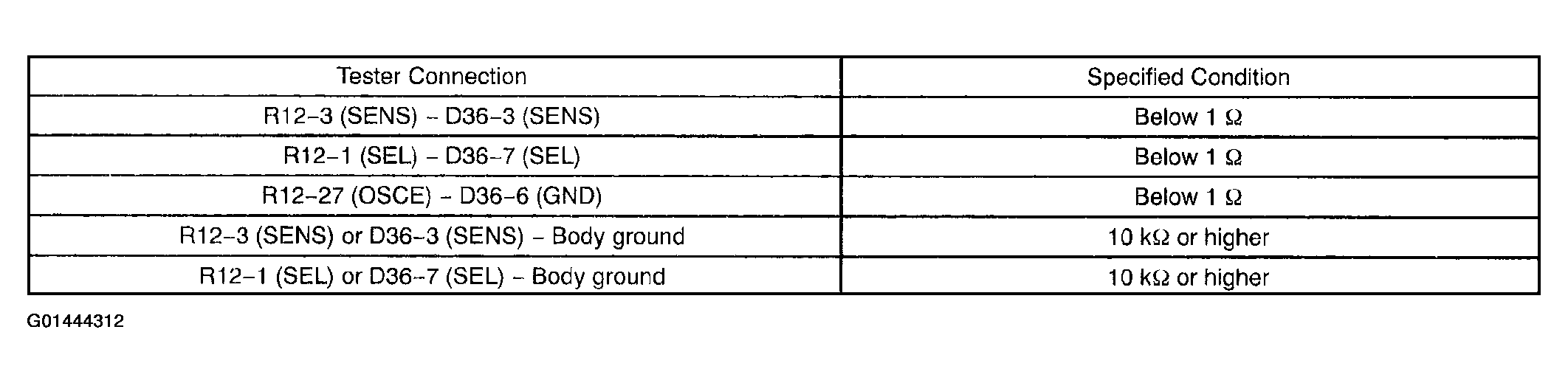

  Fig 5: Resistance Specifications (3 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear RH

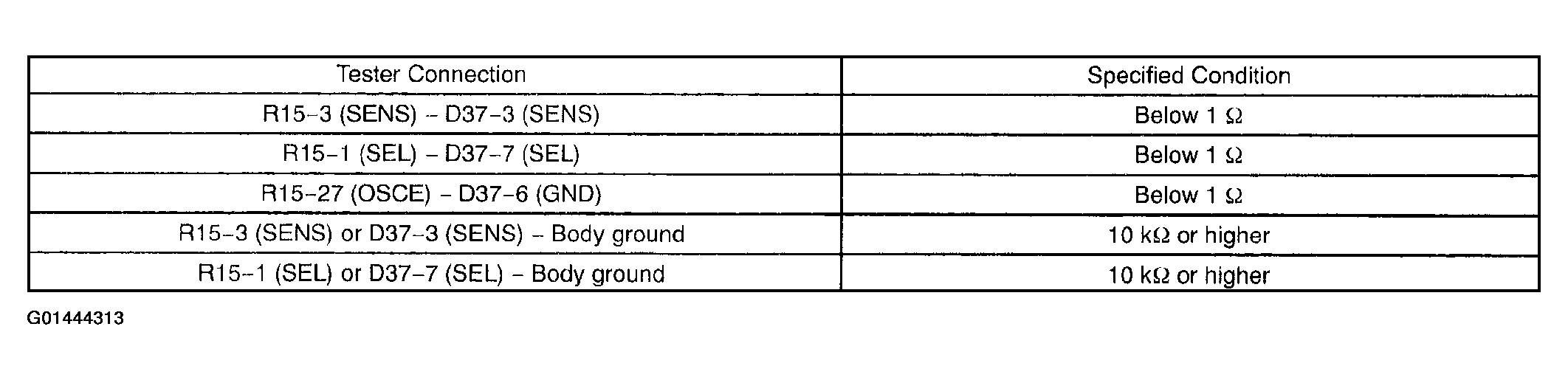

  Fig 6: Resistance Specifications (4 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE OR REPLACE HARNESS AND CONNECTOR

OK: Go to next step
INSPECT DOOR OSCILLATOR
1. Measure the volt (1 age between wire harness side connectors.
  Standard:

  Driver side

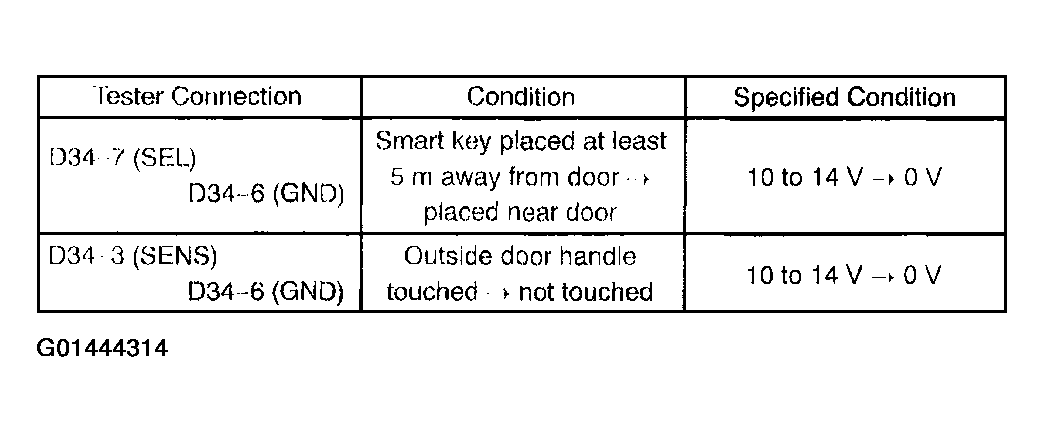

  Fig 7: Voltage Specifications (1 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Passenger side

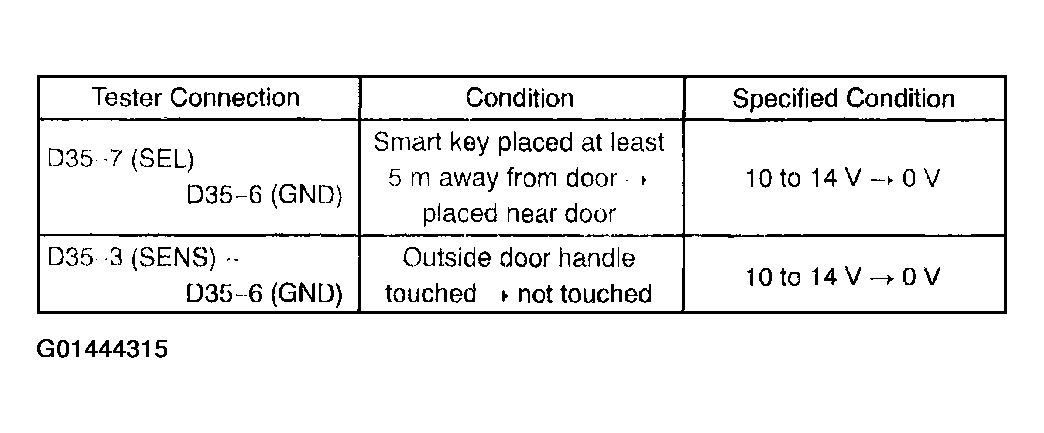

  Fig 8: Voltage Specifications (2 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear LH

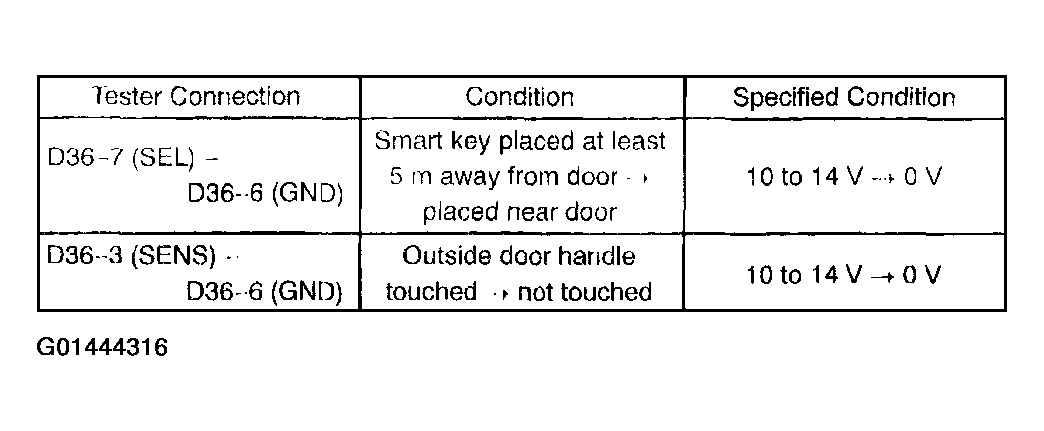

  Fig 9: Voltage Specifications (3 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Rear RH

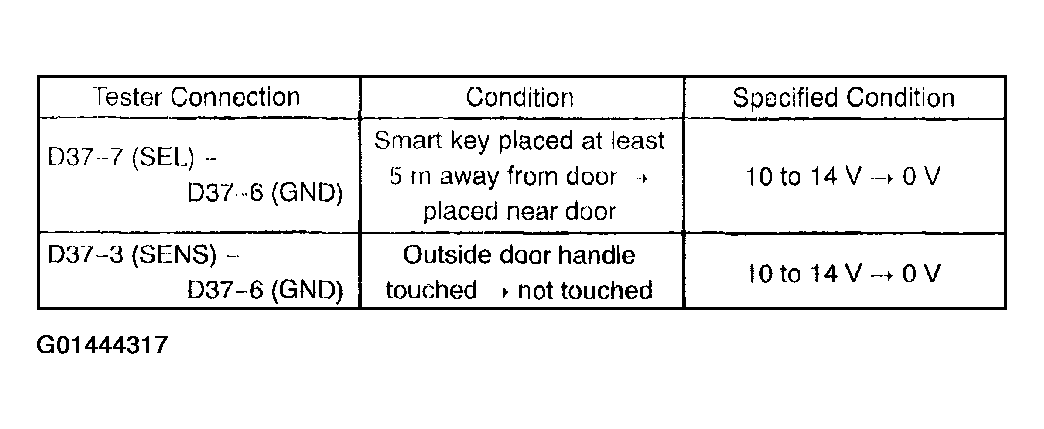

  Fig 10: Voltage Specifications (4 Of 4)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

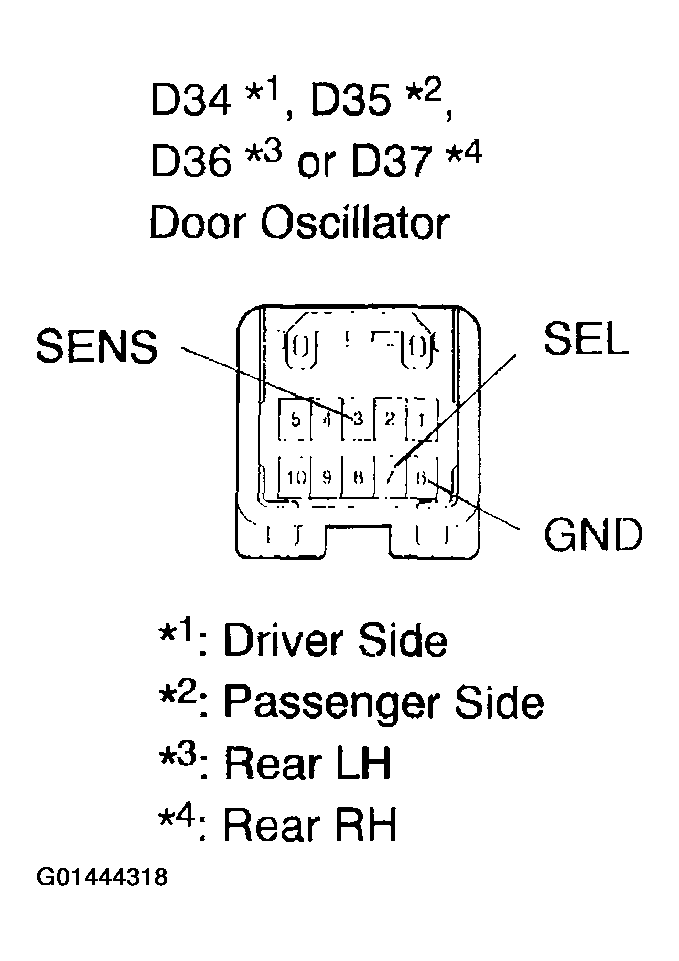

  Fig 11: Identifying Door Oscillator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NG: REPLACE DOOR OSCILLATOR

PROCEED TO NEXT CIRCUIT INSPECTION SHOWN ON PROBLEM SYMPTOMS TABLE (See PROBLEM SYMPTOMS TABLE )
