Section 462 (Power Source): Location

WARNING: This page is about a different car, the 2003 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

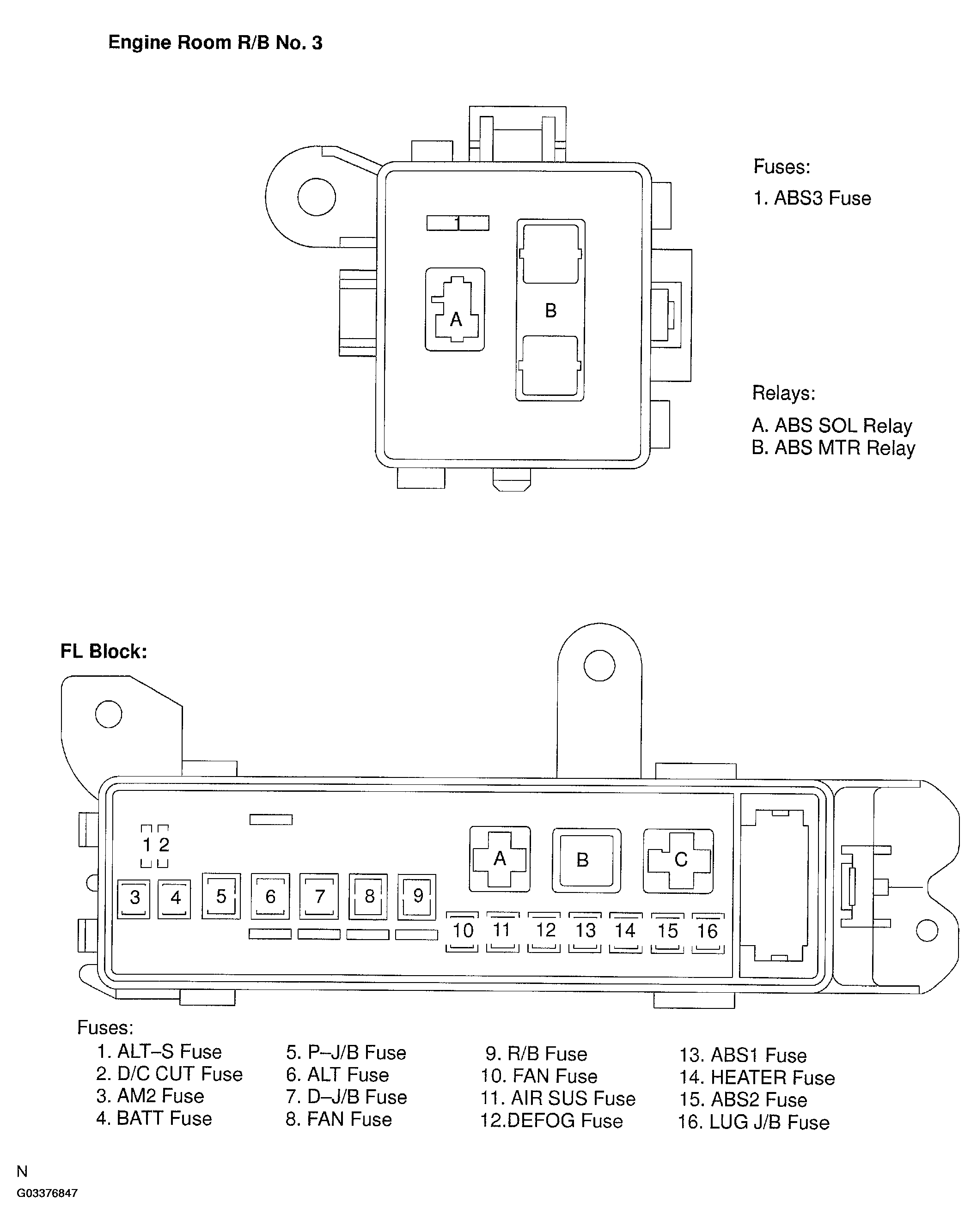

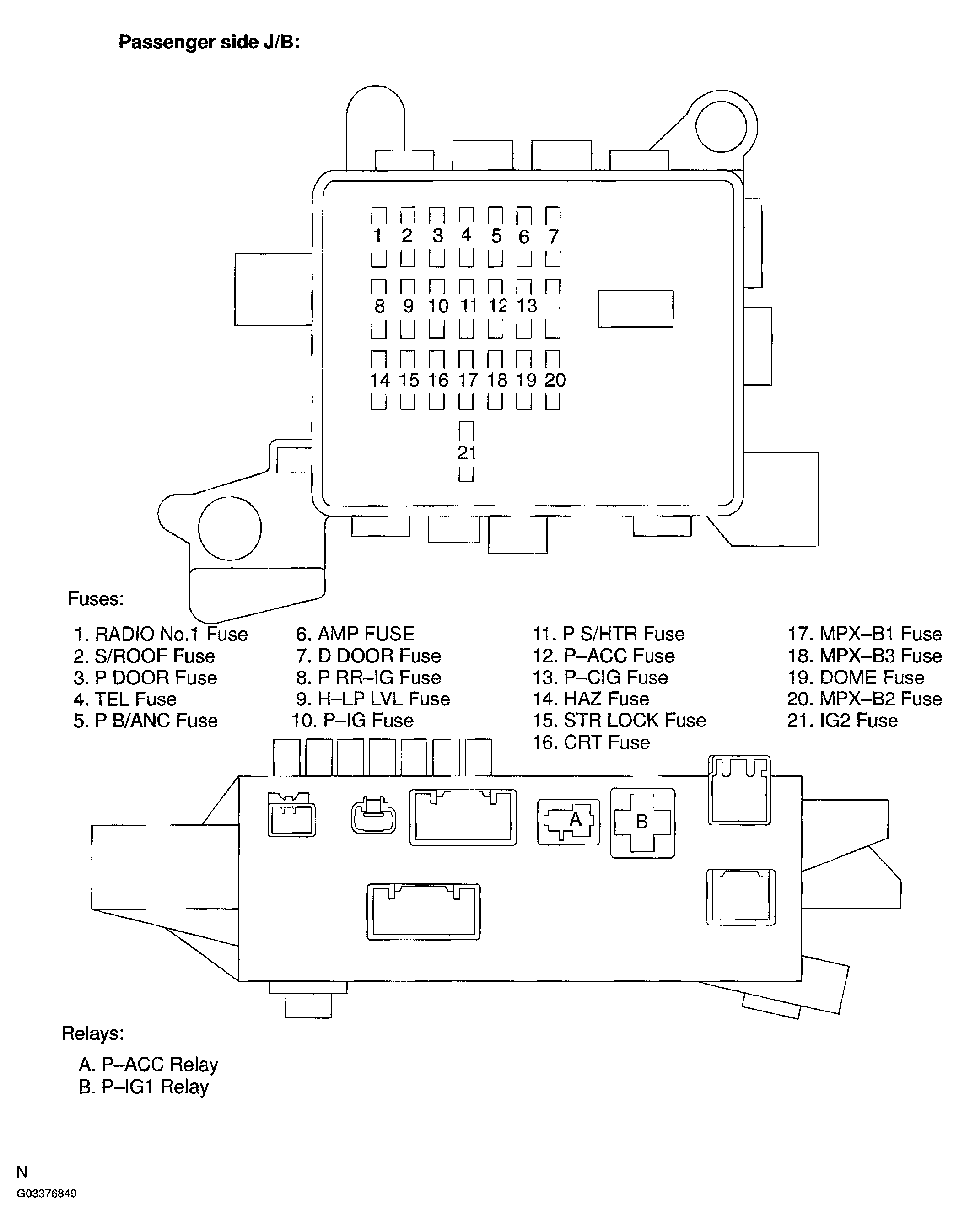

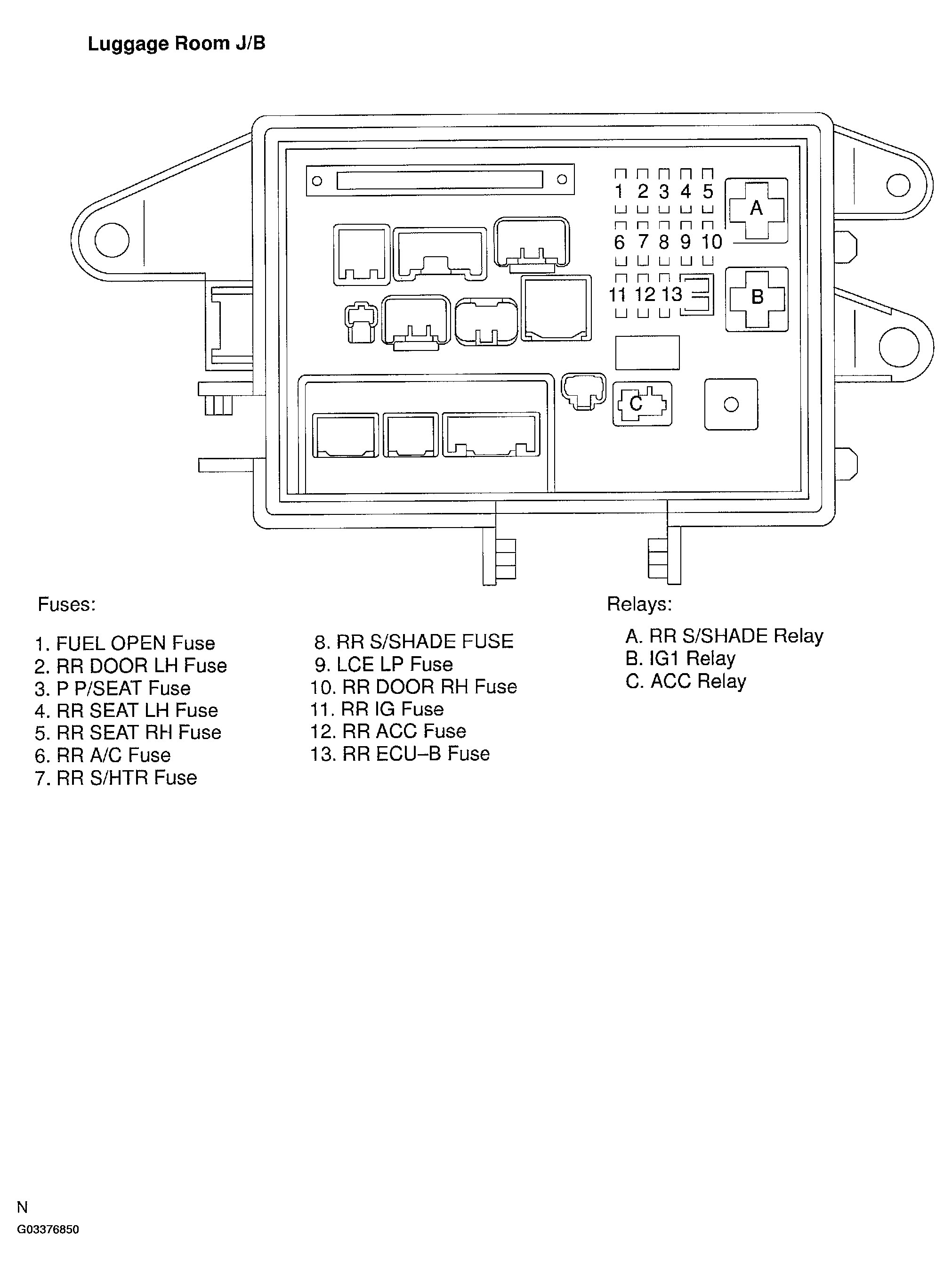

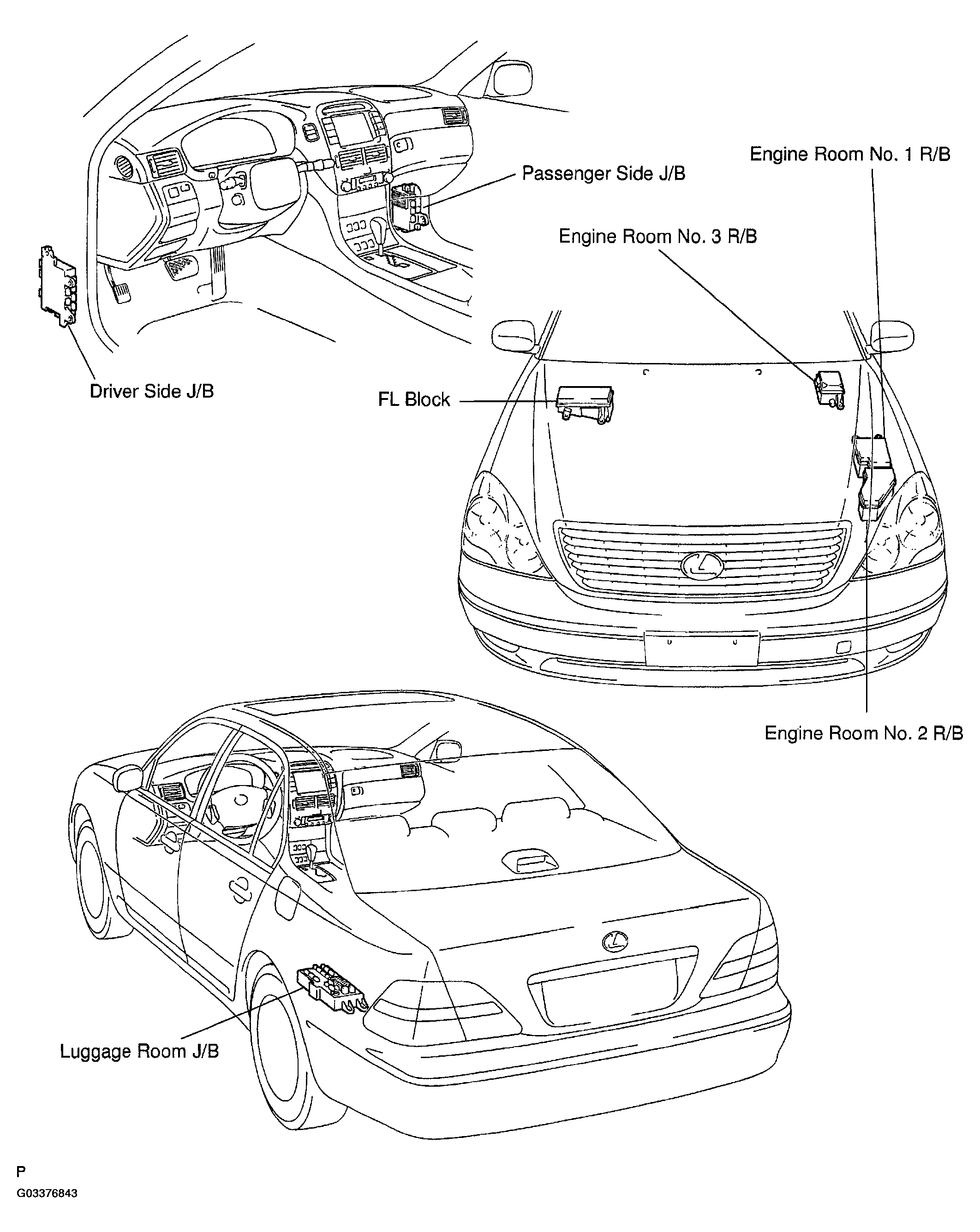

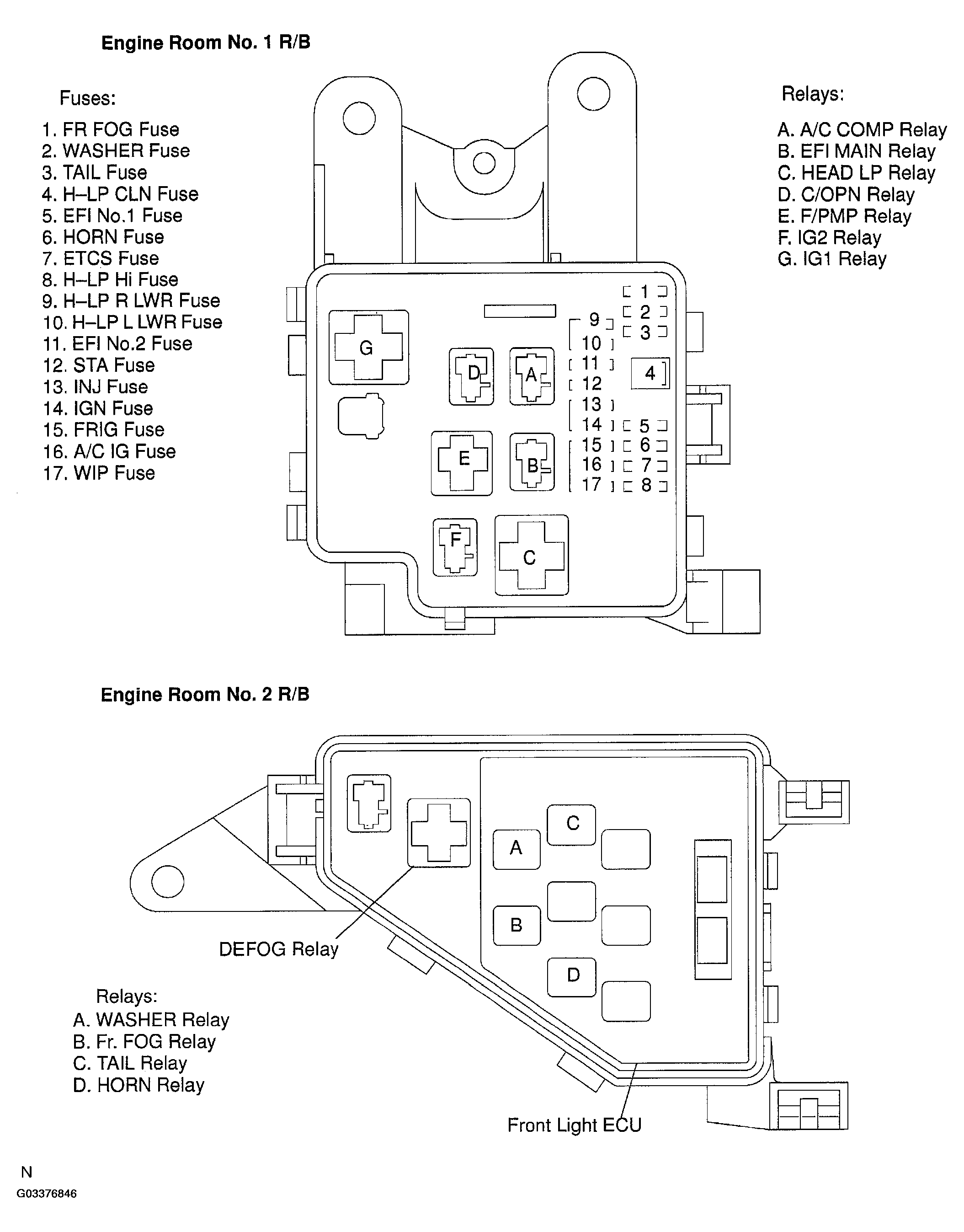

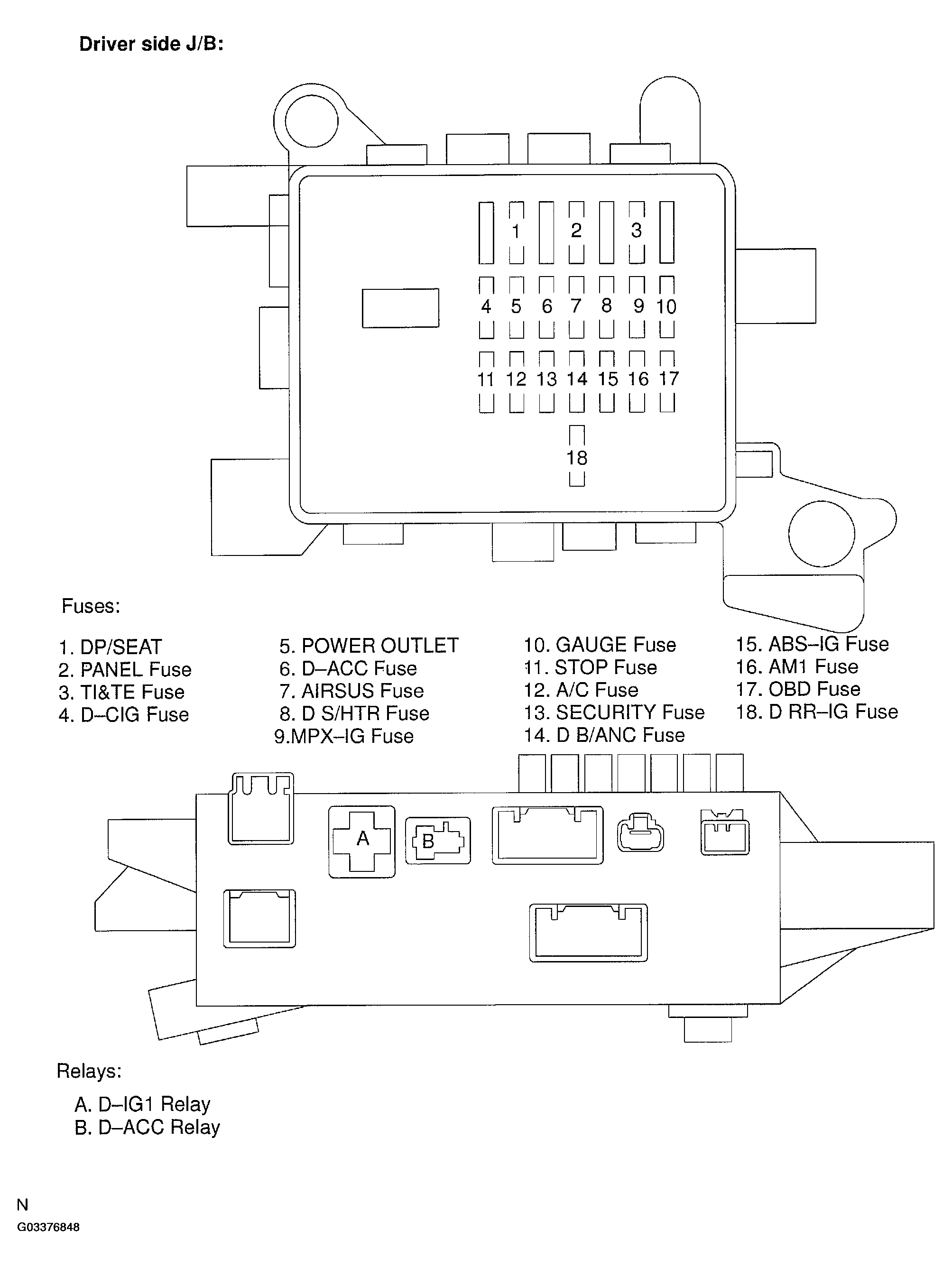

Fig 1: Identifying Power Source Components Location

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

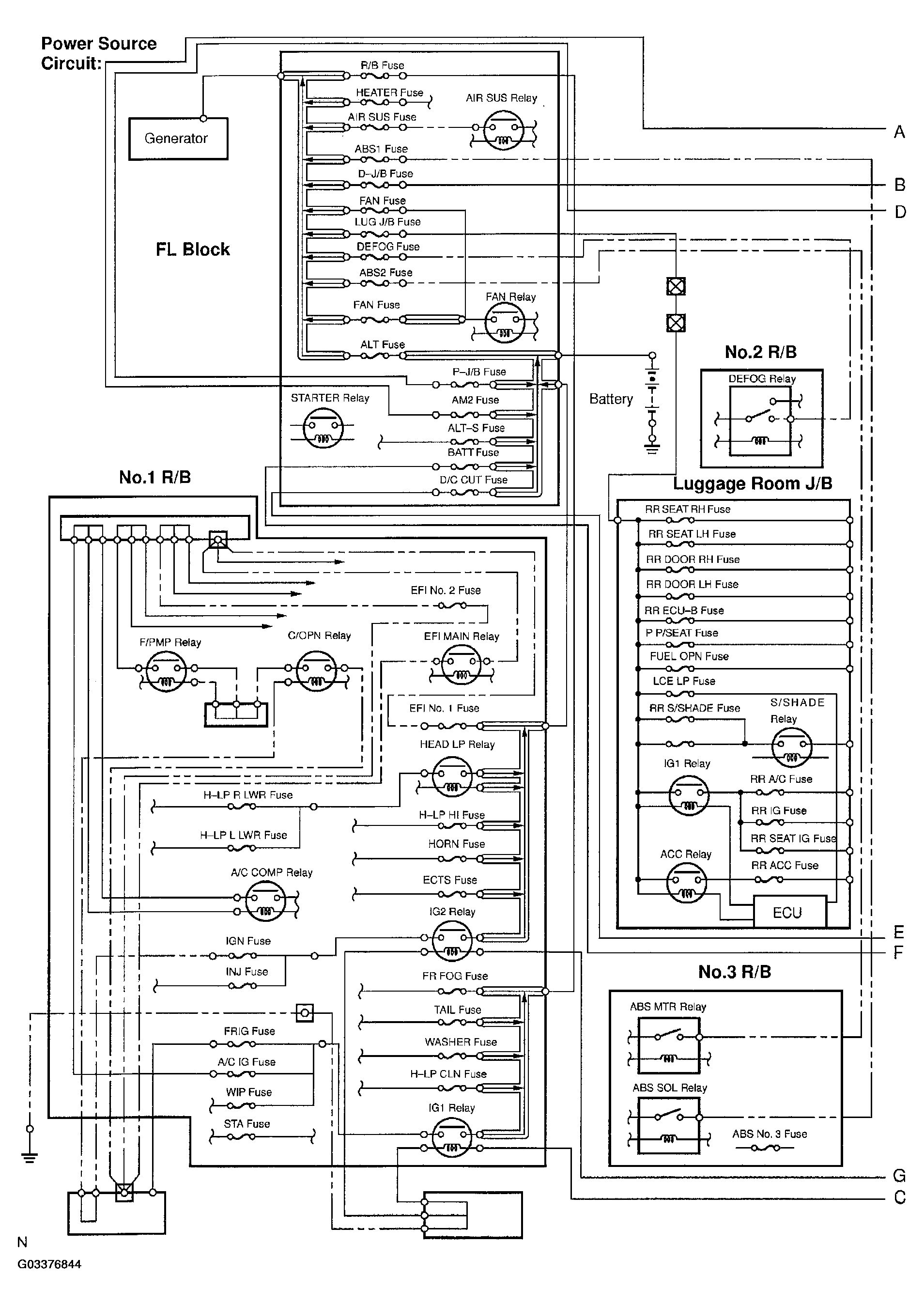

Fig 2: Identifying Power Source Circuit Wiring Diagram (1 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

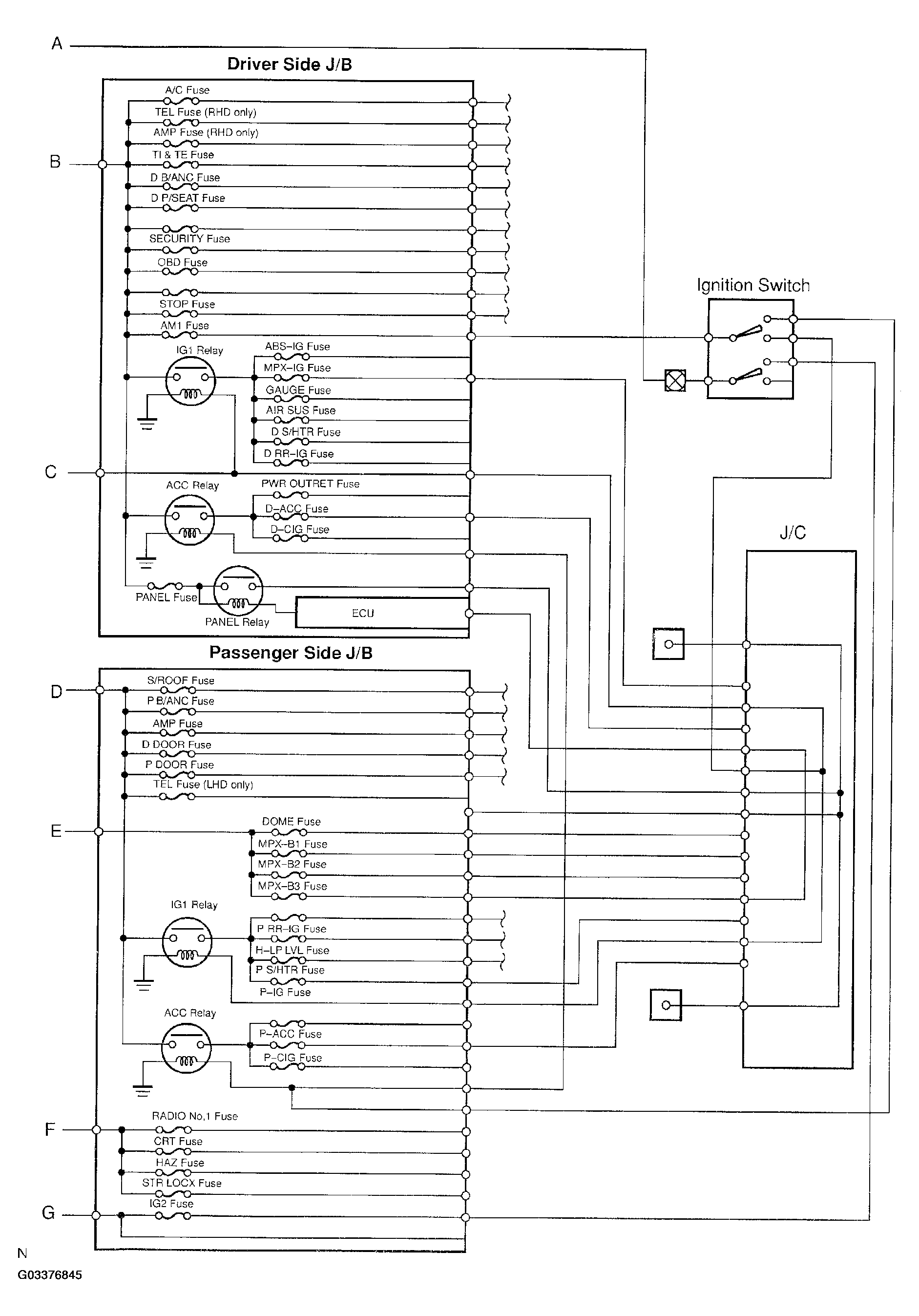

Fig 3: Identifying Power Source Circuit Wiring Diagram (2 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Power Source Circuit Wiring Diagram (3 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Power Source Circuit Wiring Diagram (4 Of 7)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Power Source Circuit Wiring Diagram (5 Of 7)

Fig 7: Identifying Power Source Circuit Wiring Diagram (6 Of 7)

Fig 8: Identifying Power Source Circuit Wiring Diagram (7 Of 7)
