Back Up Lamp: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE LUGGAGE COMPARTMENT DOOR COVER (See REPLACEMENT )
BACK UP LAMP LENS LH
1. Remove the 3 nuts, and disconnect the connector of back up light.
2. Remove the back up light lens LH.

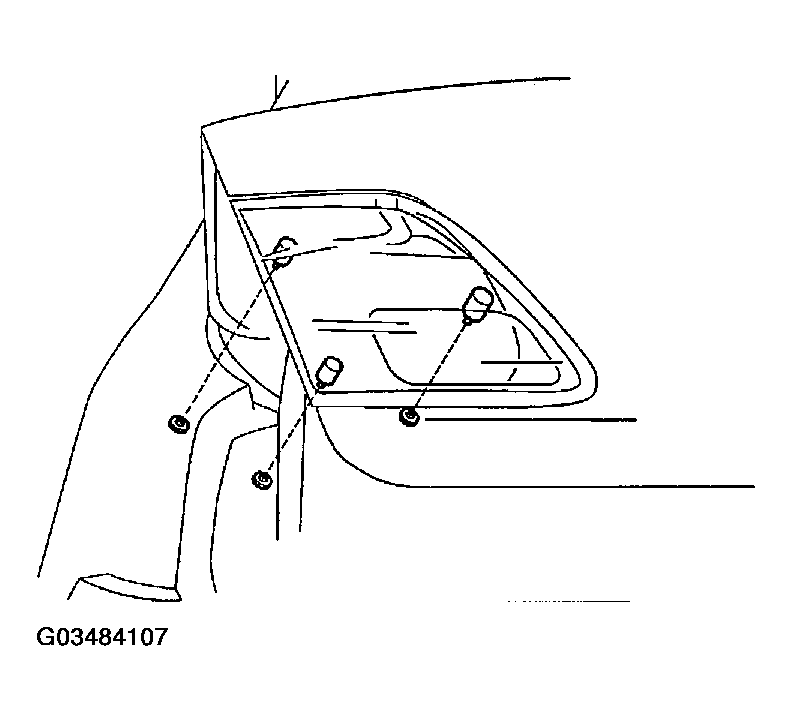

  Fig 1: Removing 3 Nuts & Disconnecting Connector Of Back Up Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
