Fog Lamp Unit: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE FRONT FENDER LINER LH (See REPLACEMENT )
REMOVE FOG LAMP UNIT LH
1. Remove a bolt and release a claw.
2. Remove the fog light unit LH.

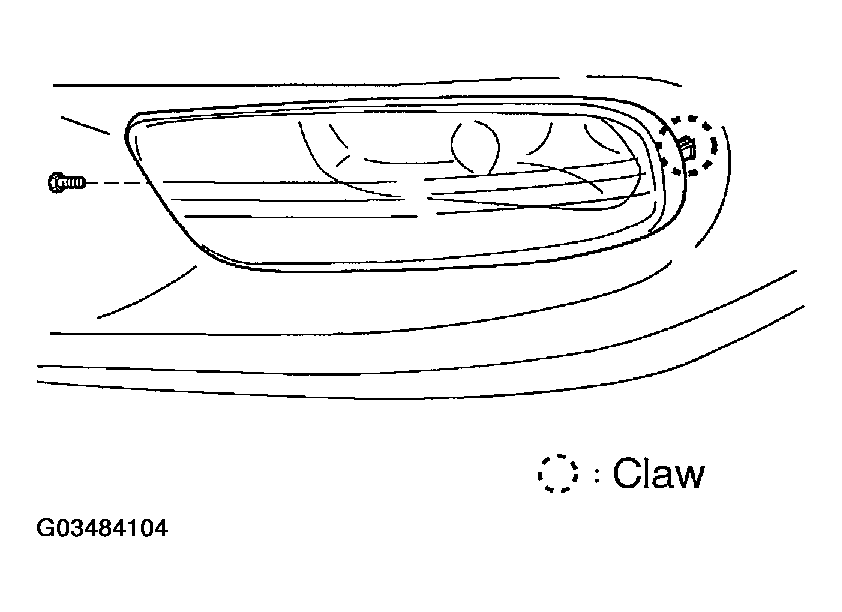

  Fig 1: Removing Bolt And Claw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHECK FOG LIGHT AIM (See ADJUSTMENT )
ADJUST FOG LIGHT AIM (See ADJUSTMENT )
