Rear Combination Lamp: Replacement

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR COMBINATION LAMP LENS LH
1. Remove the service hole cover.
2. Remove the 3 nuts and disconnect the connector of rear combination light.
3. Pull the rear combination light assy to the back of the vehicle, and remove the rear combination light assy.

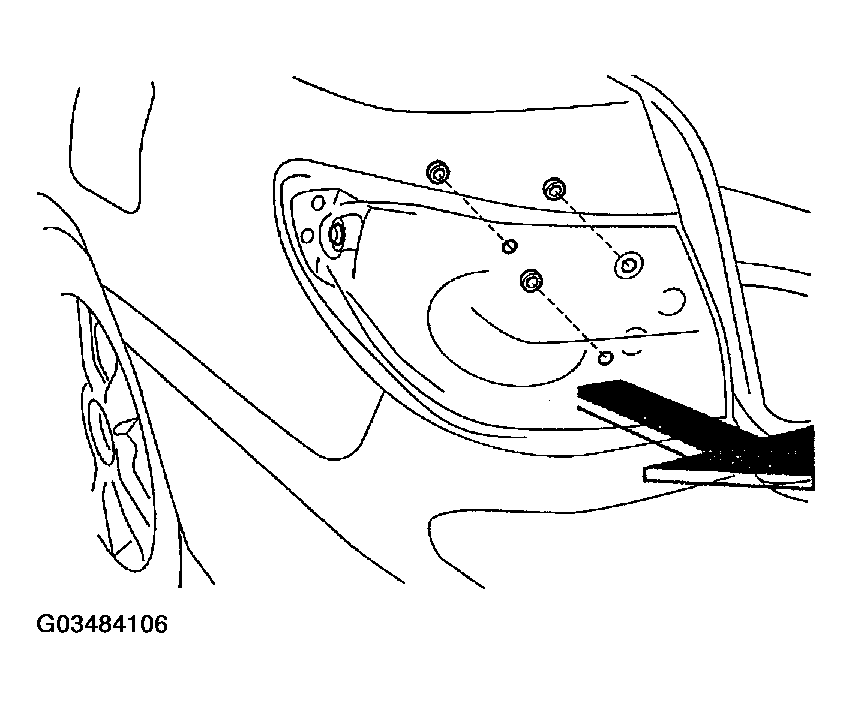

  Fig 1: Removing Nuts And Disconnecting Connector Of Rear Combination Light
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
