Microphone Amplifier ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

SEE: LOCATION .
Installation is in the reverse order of removal.

REMOVE MAP LAMP ASSY (SEE REPLACEMENT )
REMOVE MICROPHONE ASSY (SEE MICROPHONE ASSY )

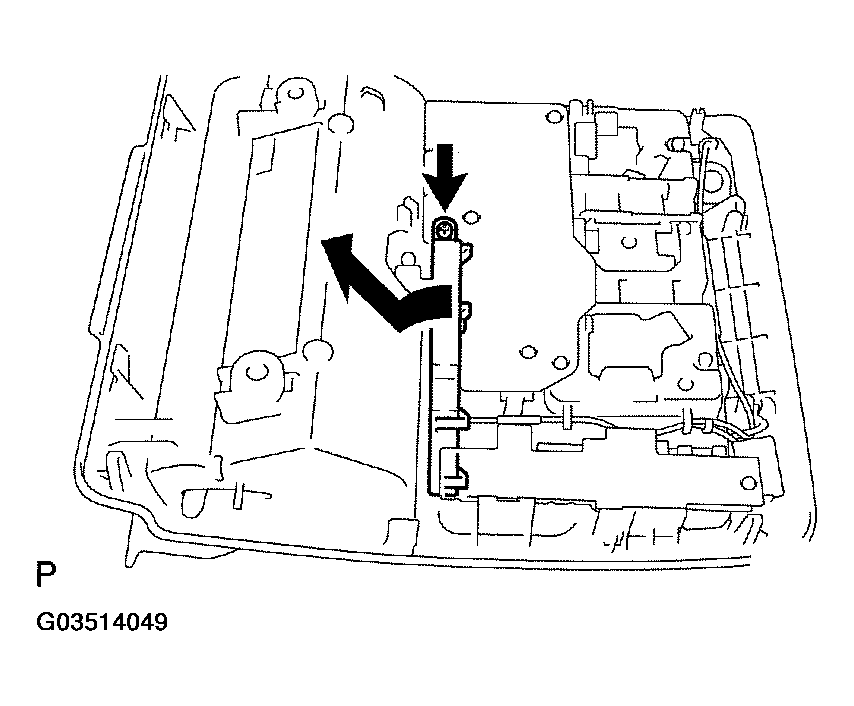

Fig 1: Removing Screw Microphone Amplifier Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

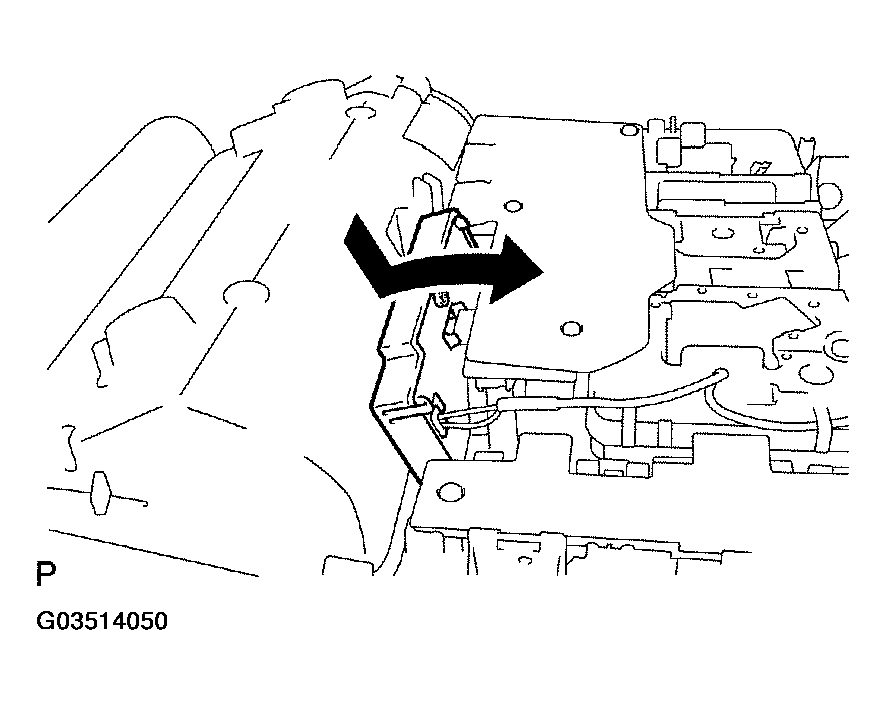

Fig 2: Installing Microphone Amplifier Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MICROPHONE AMPLIFIER ASSY
1. Remove the screw.
2. Disconnect the connector as shown in the illustration, and remove the microphone amplifier assy.
INSTALL MICROPHONE AMPLIFIER ASSY
1. Connect the connector as shown in the illustration, and install the microphone amplifier assy.
2. Install the screw.
