Stereo Component Tuner ASSY: Replacement

HINT:

• SEE: COMPONENTS
• SEE: LOCATION .
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
2. REMOVE DECK TRIM SIDE BOARD RH (SEE  REPLACEMENT  )

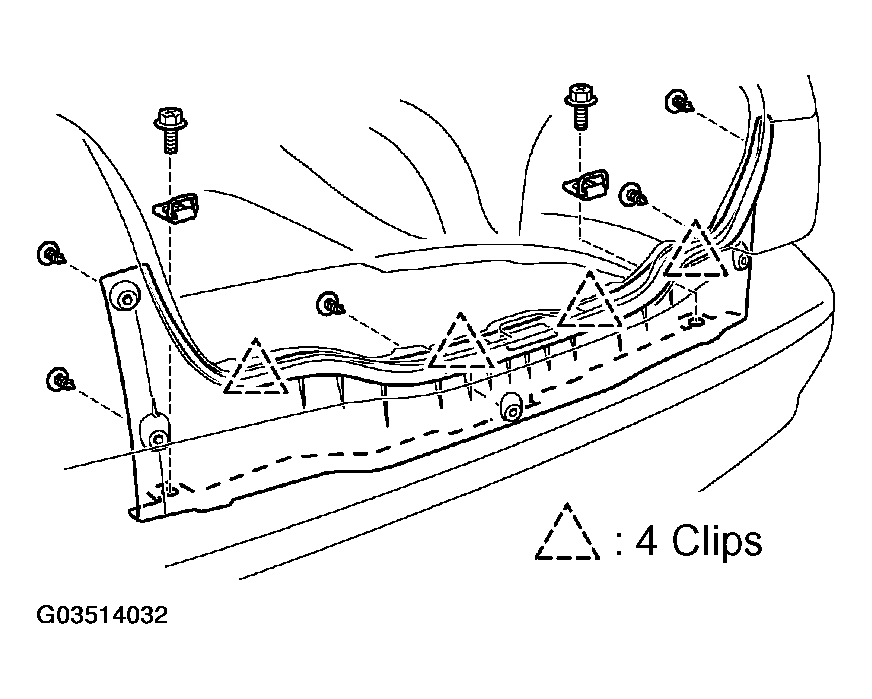

3. REMOVE REAR FLOOR FINISH PLATE
   1. Remove the 2 bolts and 2 hooks.
   2. Remove the 5 clips.
   3. Disengage the 4 clips and remove the rear floor finish plate.
      Fig 1: Disengaging Clips And Removing Rear Floor Finish Plate

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

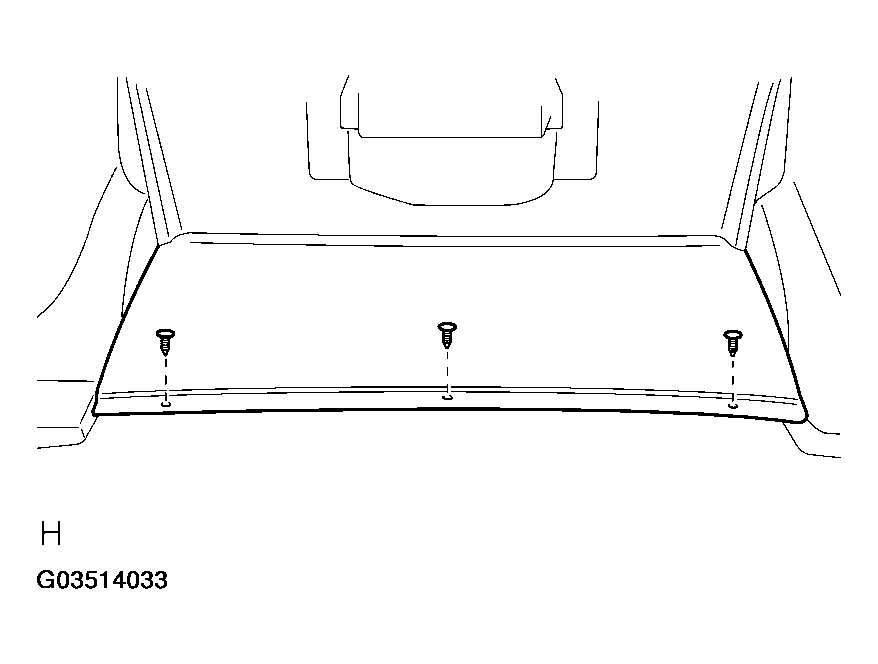

4. SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT
   1. Remove the 3 clips and luggage compartment trim cover front.
      Fig 2: Removing Clips And Luggage Compartment Trim Cover Front

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

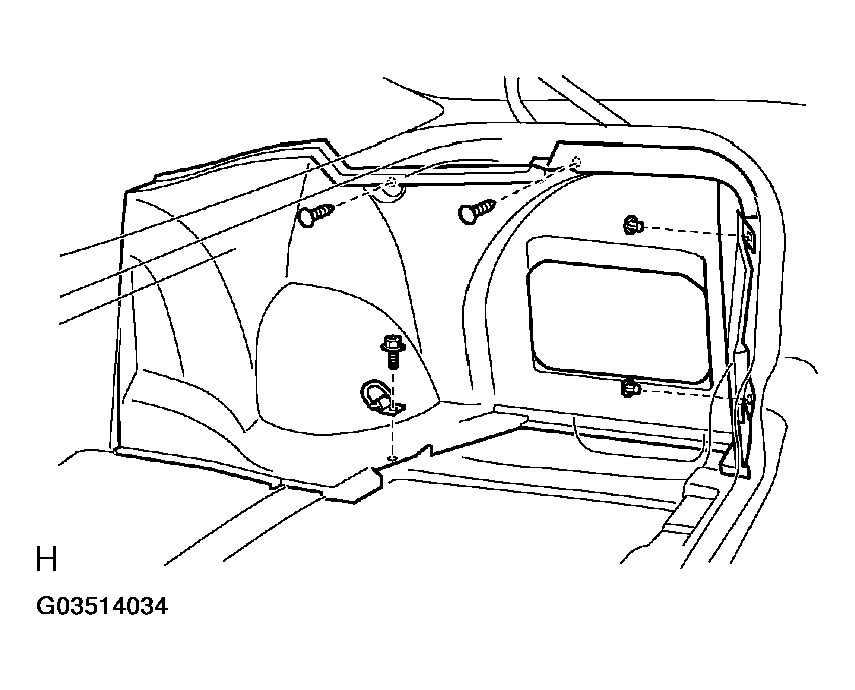

5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH
   1. Remove the bolt and hook.
   2. Remove the 4 clips and luggage compartment trim cover assy RH.
      Fig 3: Removing Clips And Luggage Compartment Trim Cover Assy RH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. REMOVE NAVIGATION ECU W/BRACKET (W/ LEXUS NAVIGATION SYSTEM) (SEE  NAVIGATION ECU  )
   Fig 4: Removing Stereo Component Tuner Assy With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 5: Removing Stereo Component Tuner Assy With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 6: Removing Screws And Brackets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

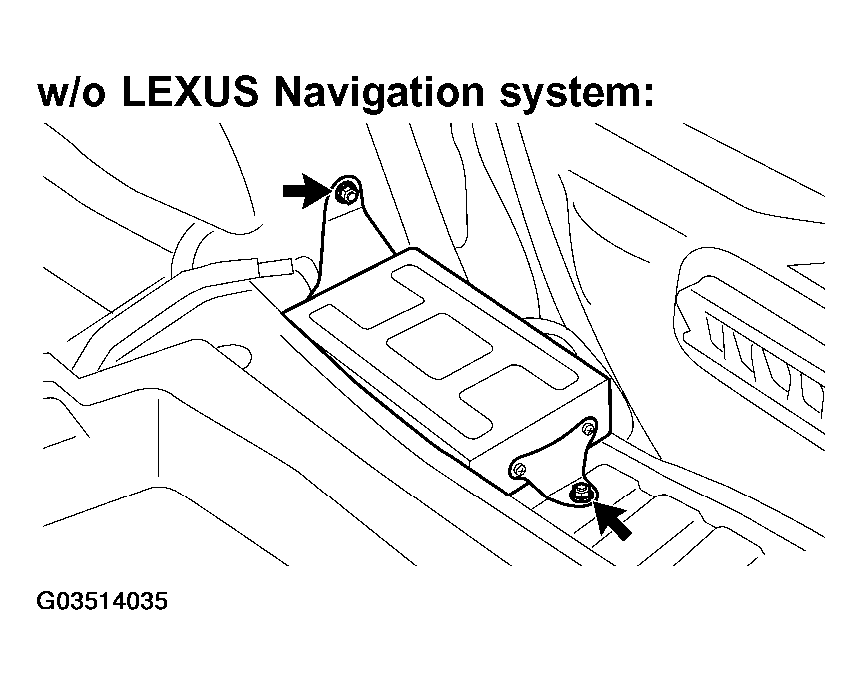

7. REMOVE STEREO COMPONENT TUNER ASSY W/BRACKET (W/O LEXUS NAVIGATION SYSTEM)
   1. Disconnect the connector.
   2. Remove the 2 nuts and stereo component tuner assy with bracket.

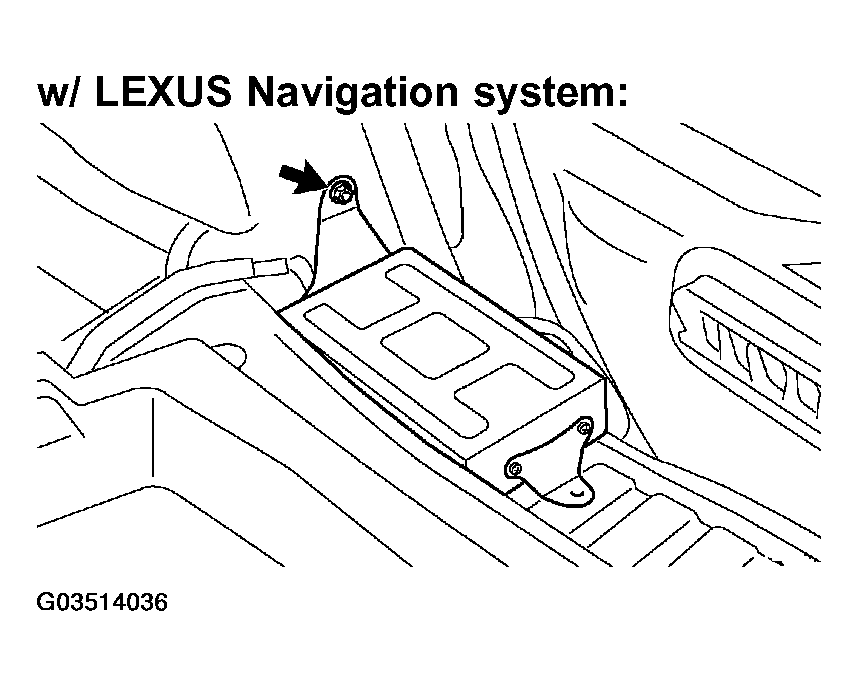

8. REMOVE STEREO COMPONENT TUNER ASSY W/BRACKET (W/ LEXUS NAVIGATION SYSTEM)
   1. Disconnect the connector.
   2. Remove the nut and stereo component tuner assy with bracket.

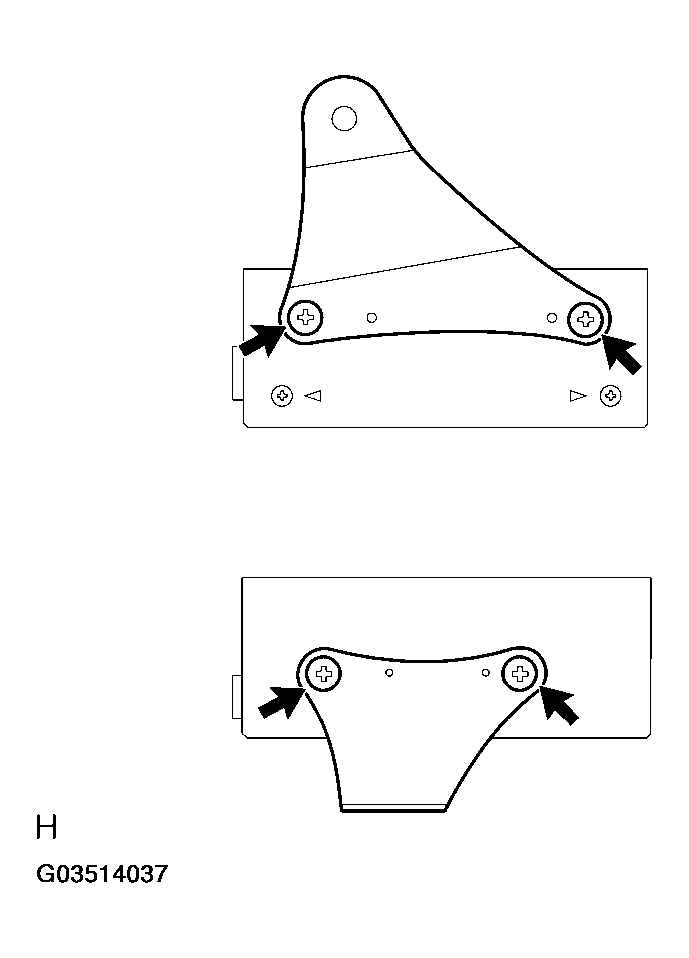

9. REMOVE STEREO COMPONENT TUNER ASSY
   1. Remove the 4 screws and 2 brackets.
