Section 577 (Instrument Panel): Components

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Instrument Panel Components (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Instrument Panel Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Instrument Panel Components (3 Of 3)

HINT:

Screw shapes and sizes are indicated in the Fig 4 . The codes ("A" - "I") correspond to those indicated in Fig 1-Fig 3 .

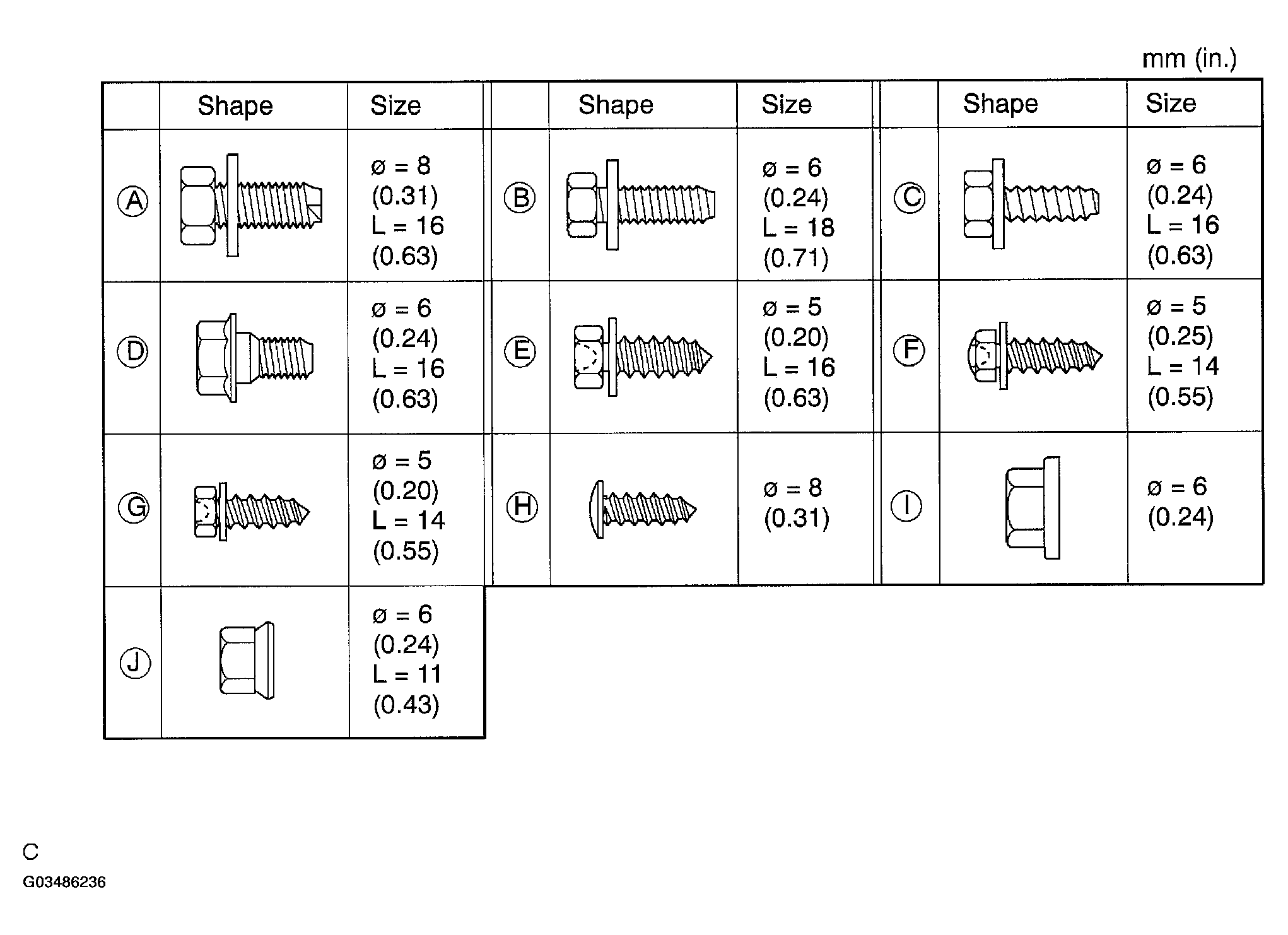

Fig 4: Screw Identification Table
