Height Control Sensor Sub-ASSY Rear LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

REMOVE HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Disconnect the connector.
2. Place matchmarks on the link and bracket.

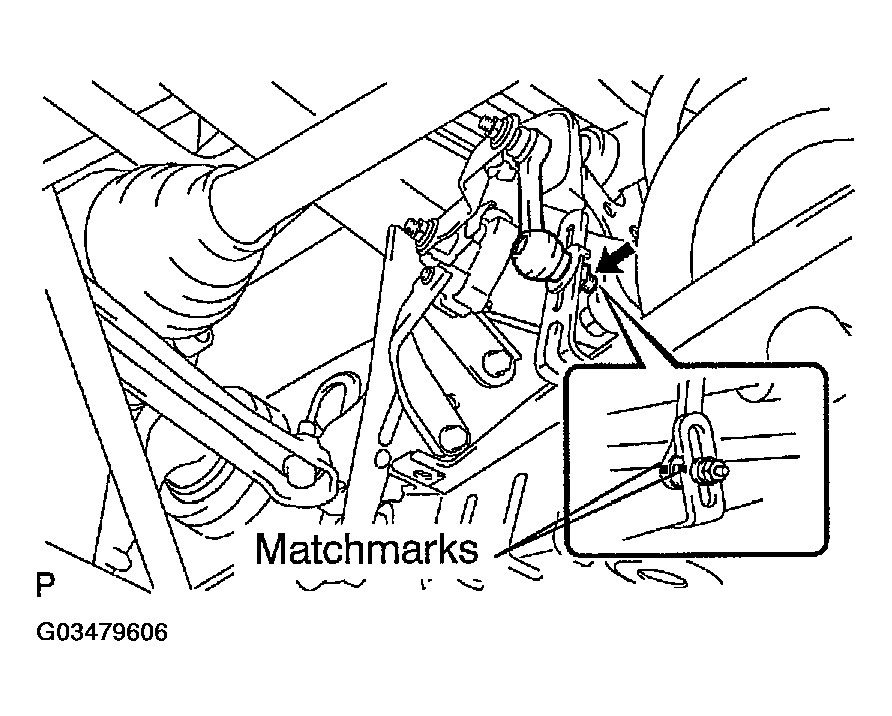

  Fig 1: Placing Matchmarks On Link & Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the nut and disconnect the height control sensor link.
4. Remove the 2 bolts and height control sensor sub-assy rear LH.

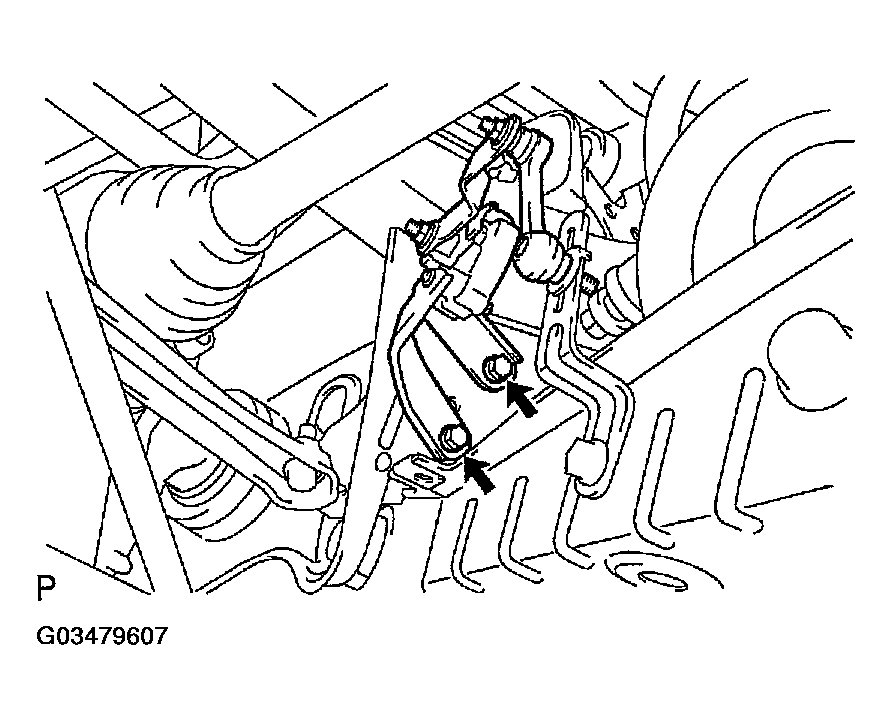

Fig 2: Removing Height Control Sensor Sub-Assy Rear LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HEIGHT CONTROL SENSOR SUB-ASSY REAR LH
1. Install the height control sensor sub-assy rear LH with the 2 bolts.
  Torque: 7.8 N.m (80 kgf.cm, 69 in.lbf)
2. Align the matchmarks on the height control sensor link and bracket.
3. Install the nut.
  Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)
4. Connect the connector.
HEADLIGHT AIM ONLY (See ADJUSTMENT )
