Cigarette Lighter ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

REMOVE CONSOLE UPPER PANEL GARNISH REAR (See REPLACEMENT )
REMOVE CONSOLE PANEL SUB-ASSY UPPER (See REPLACEMENT )
REMOVE CIGARETTE LIGHTER ASSY
1. Rotate the socket cap counterclockwise to remove it.
2. Remove the cigarette lighter assy from the cigar-lighter hole bezel.

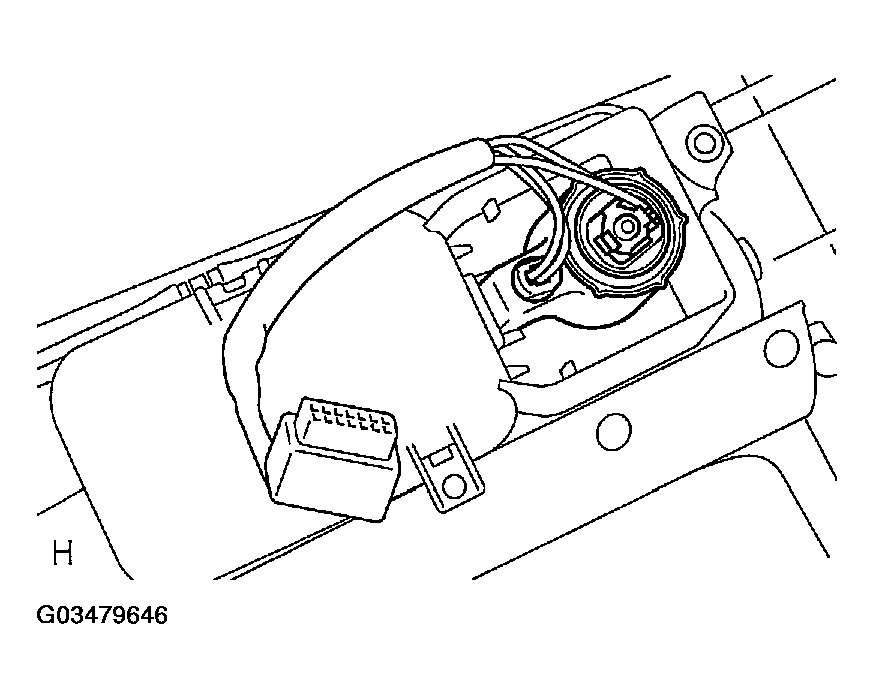

Fig 1: Removing Cigarette Lighter Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CIGARETTE LIGHTER ASSY

Properly position the socket and ring at the cutout of the cigar-lighter hole bezel and insert them.
Rotate the socket cap clockwise from the backside.
