Terminals Of Ecu

WARNING: This page is about a different car, the 2003 Lexus GS 430, 2003 Lexus GS 300, 2002 Lexus GS 430, and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

For ECU connector views, see Fig 1-Fig 12 .

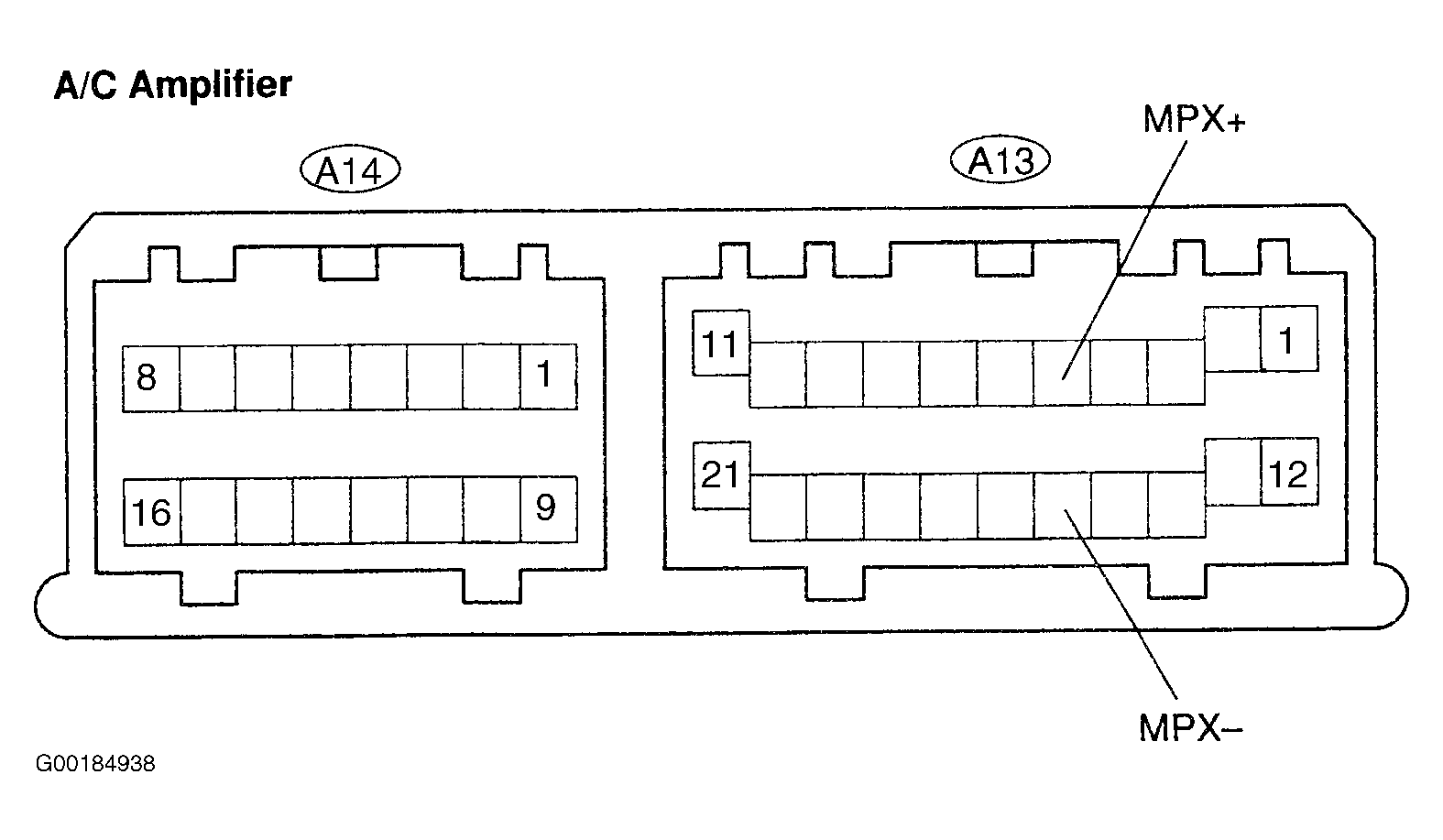

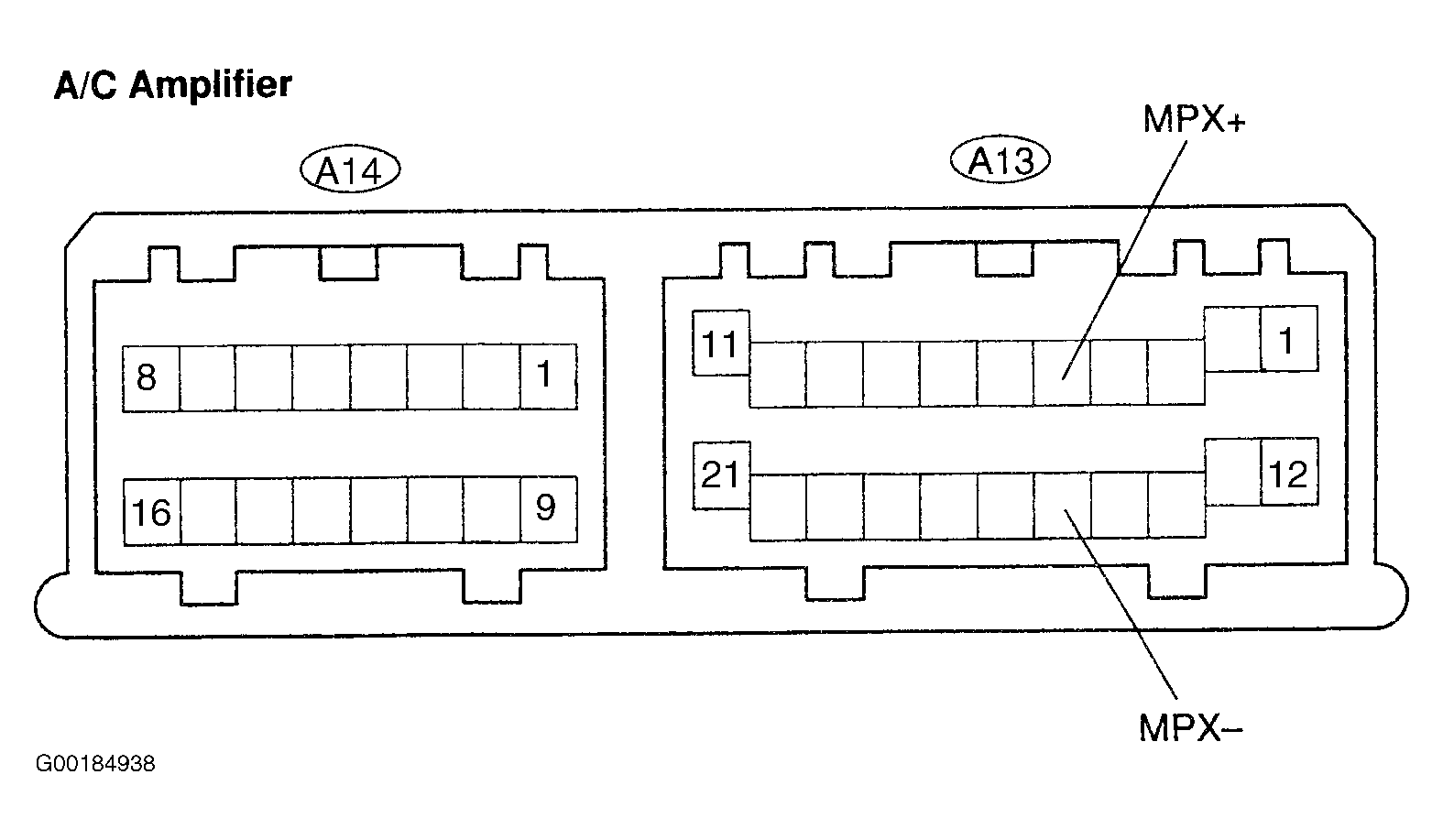

Fig 1: Identifying A/C Amplifier Terminals

G00184938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

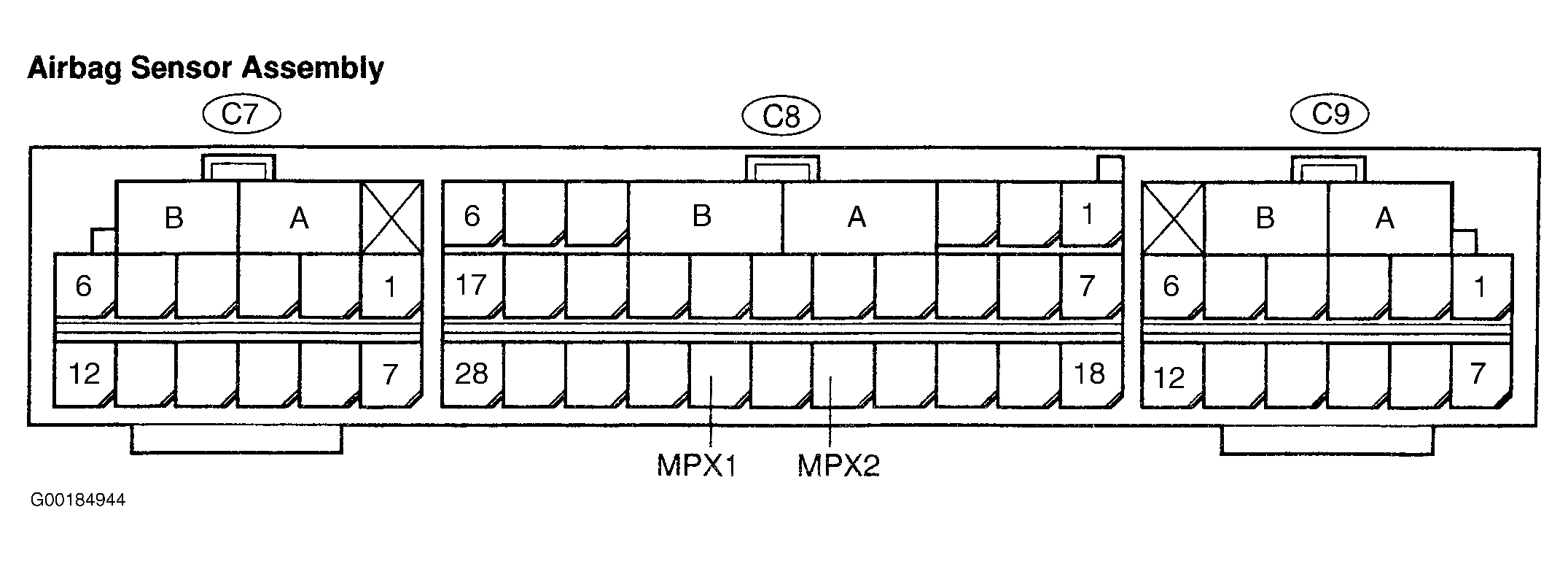

Fig 2: Identifying Air Bag Sensor Assembly Terminals

G00184944

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Body ECU No. 1 & No. 2 Terminals

G00184933

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

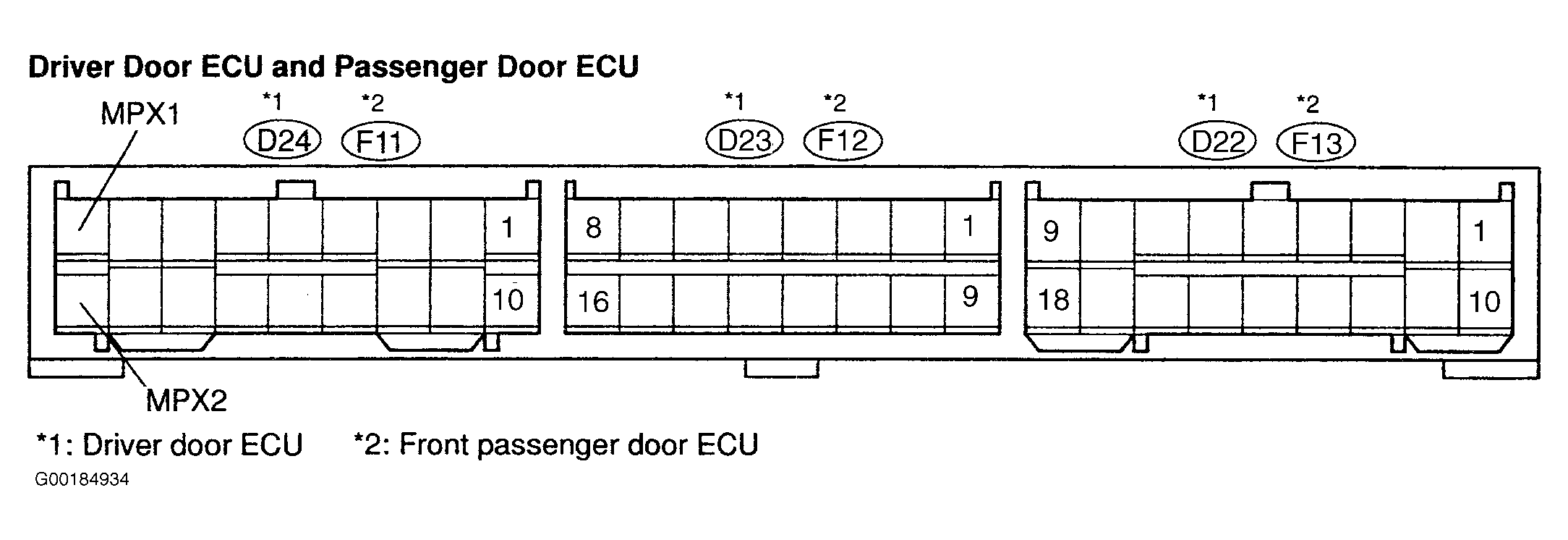

Fig 4: Identifying Driver & Passenger Door ECU Terminals

G00184934

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying ECM (Engine Control Module) Terminals

G00184937

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

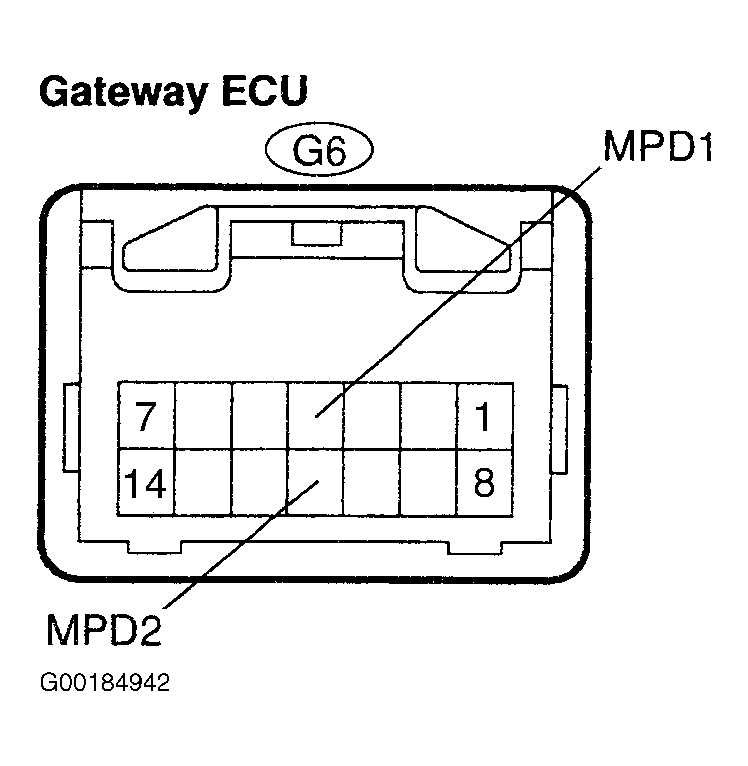

Fig 6: Identifying Gateway ECU Terminals

G00184942

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

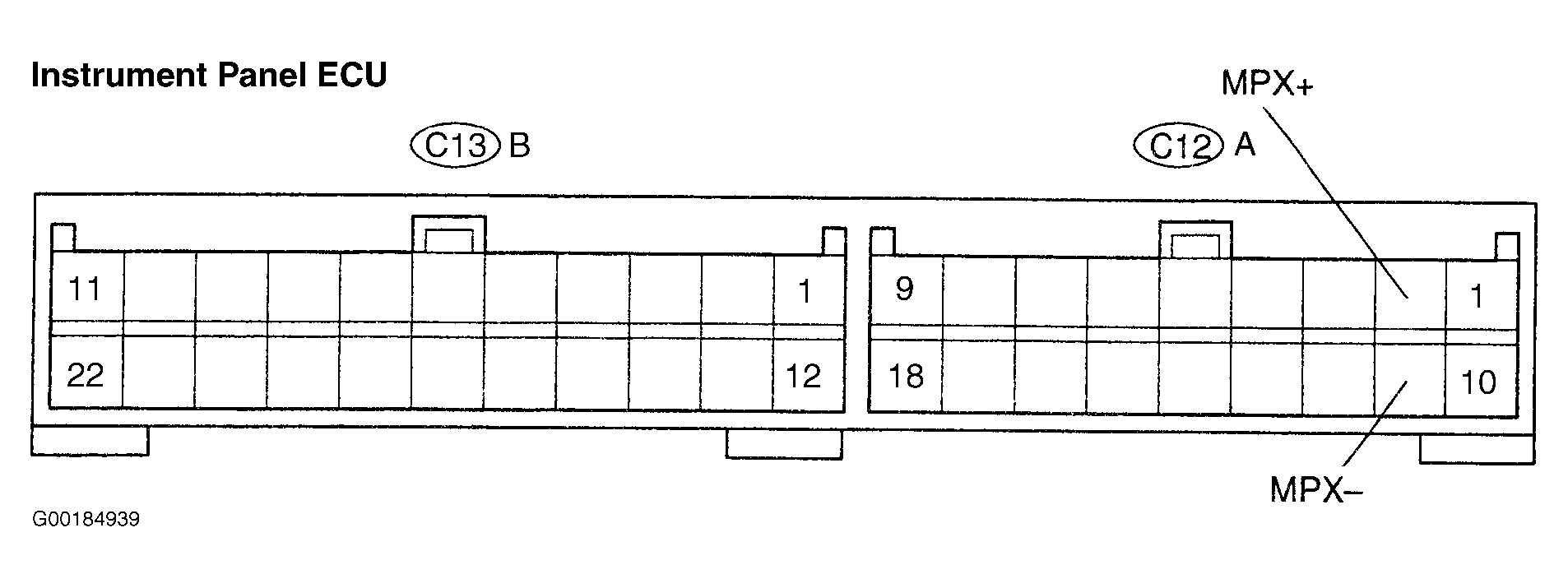

Fig 7: Identifying Instrument Panel ECU Terminals

G00184939

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

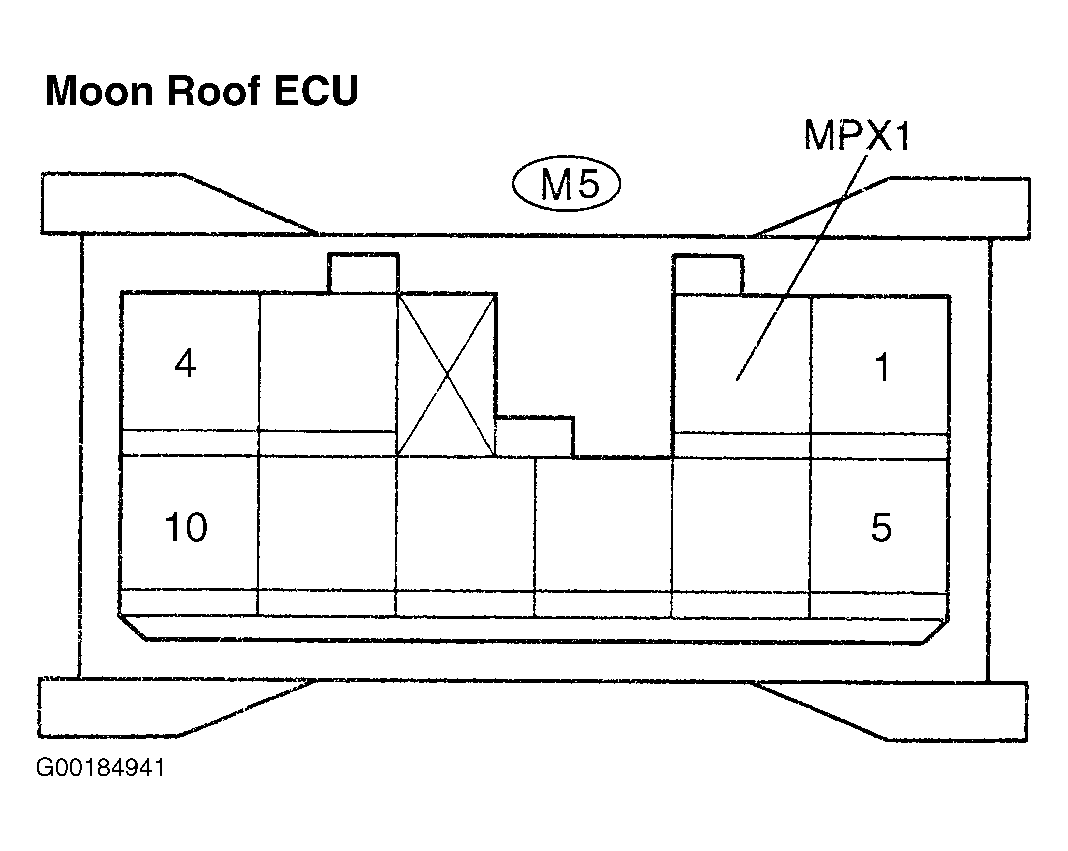

Fig 8: Identifying Moon Roof ECU Terminals

G00184941

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

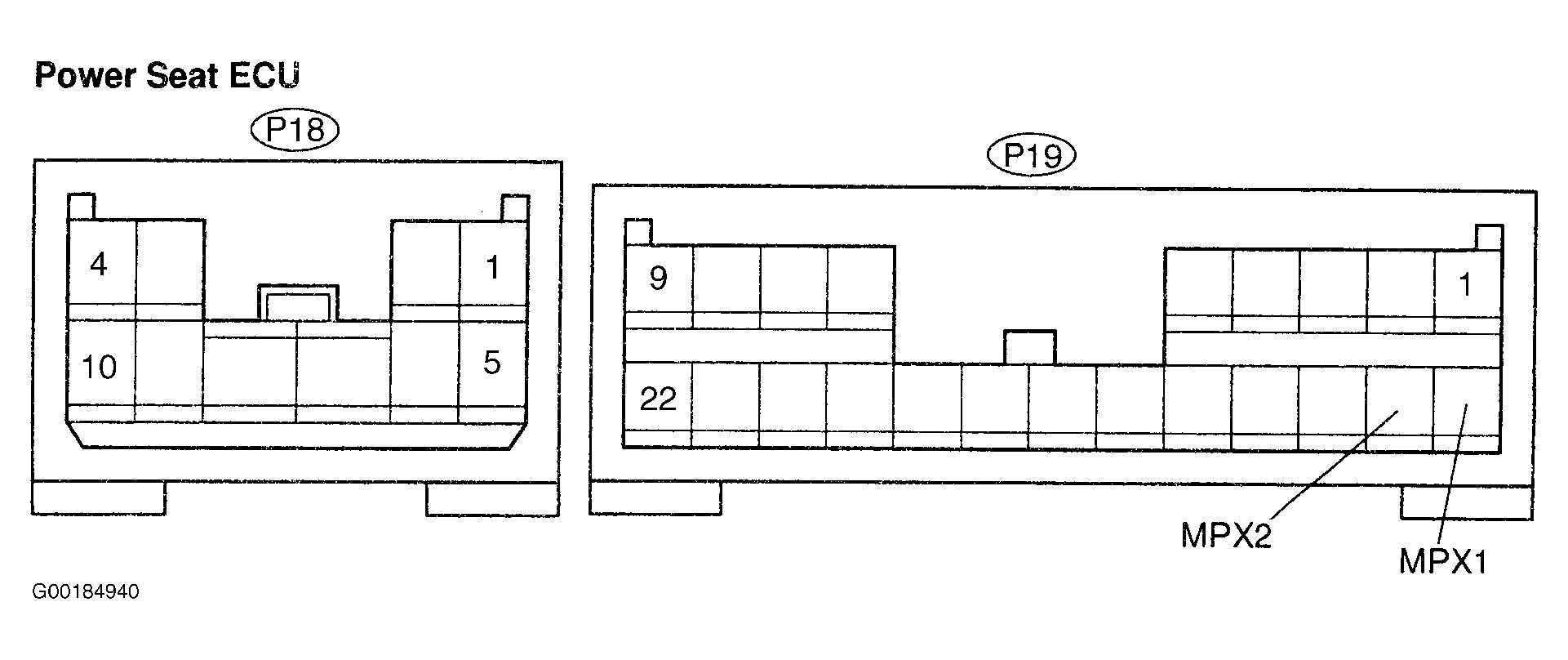

Fig 9: Identifying Power Seat ECU Terminals

G00184940

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

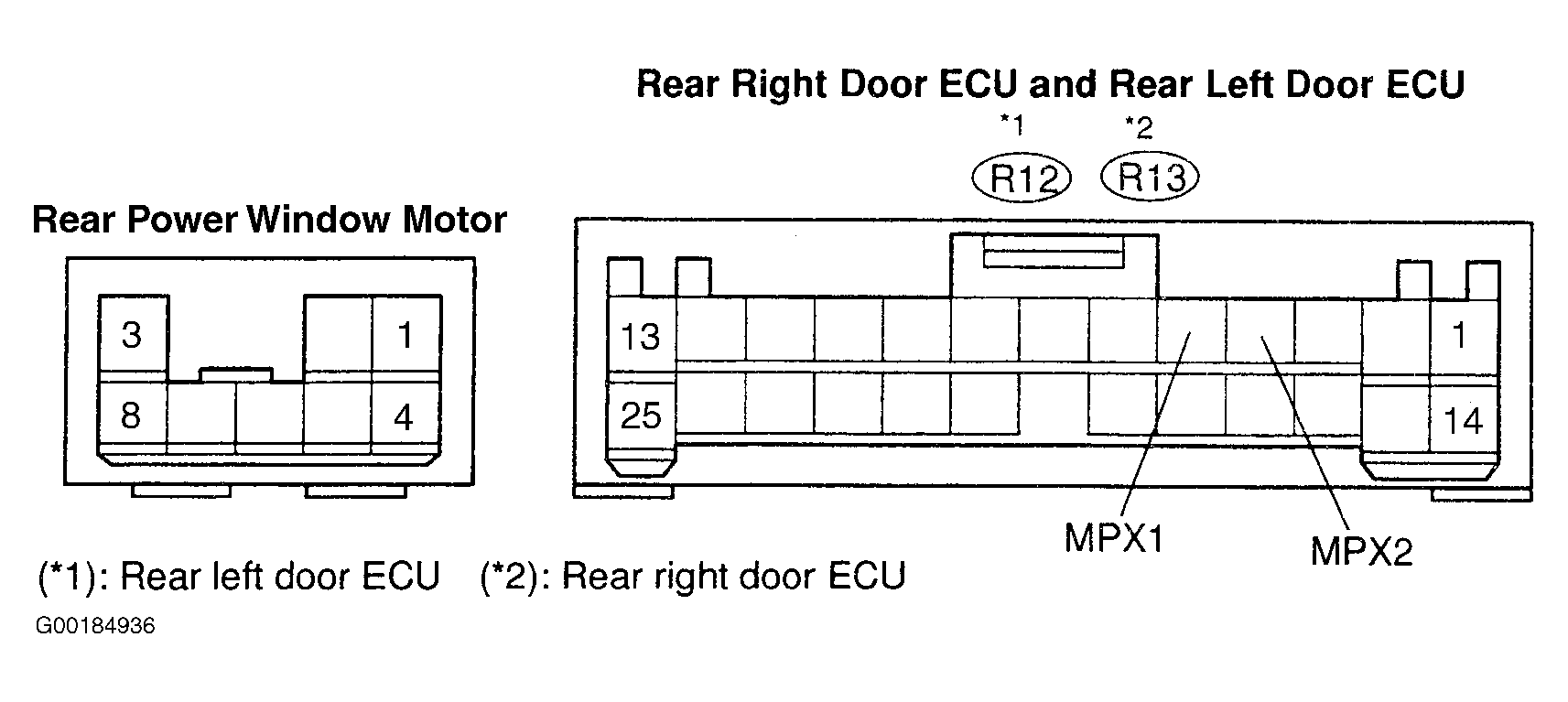

Fig 10: Identifying Rear Right & Left Door ECU Terminals

G00184936

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

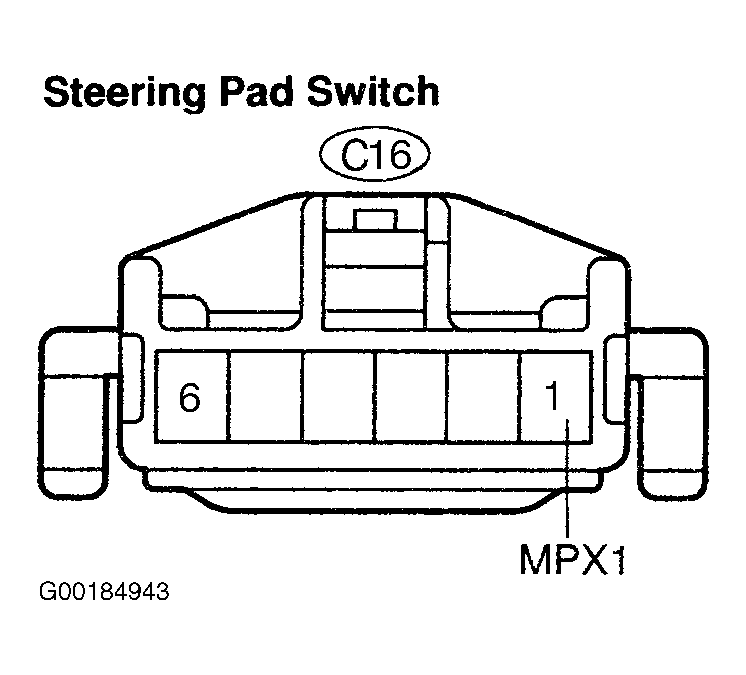

Fig 11: Identifying Steering Pad Switch Terminals

G00184943

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

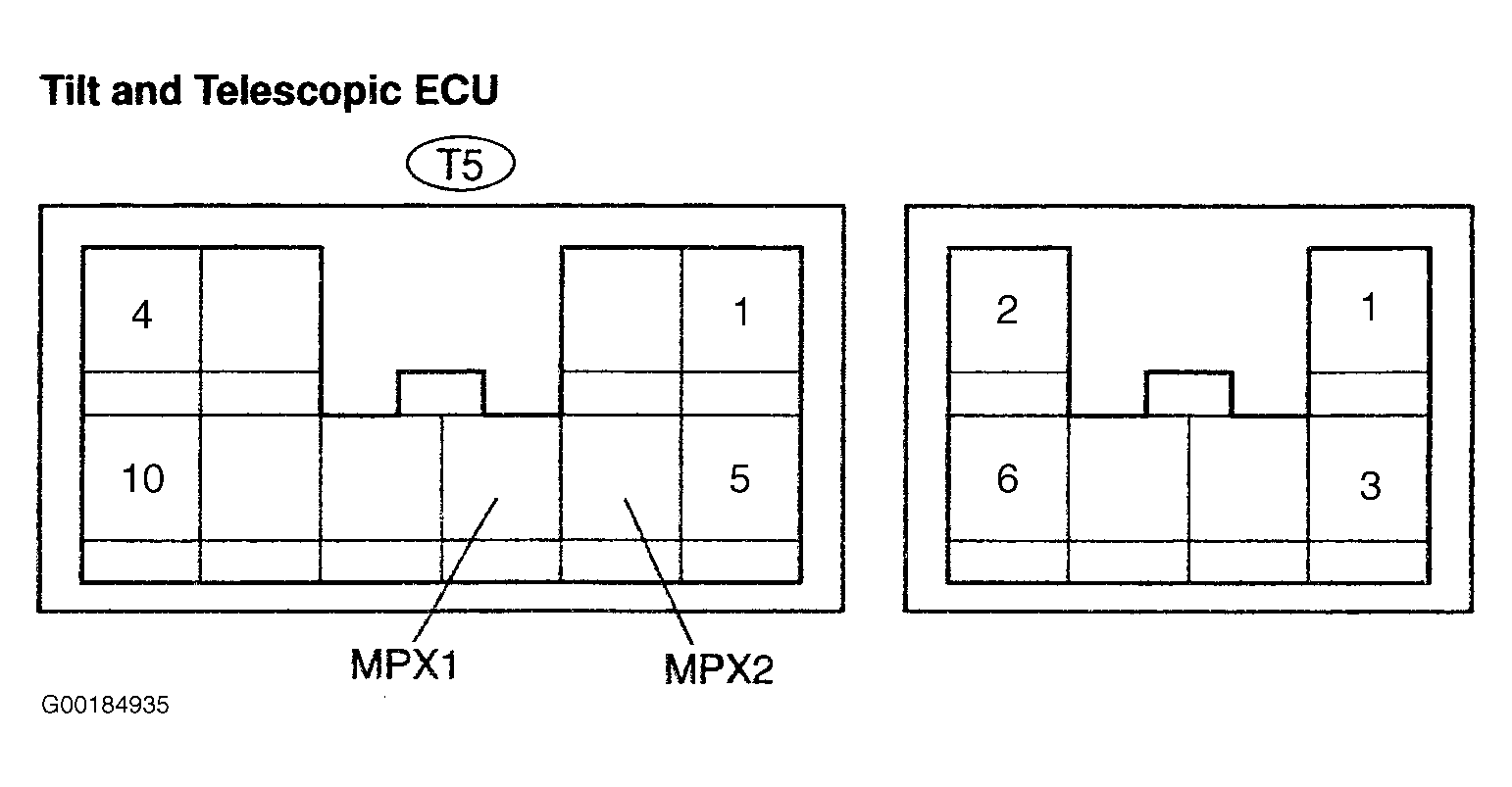

Fig 12: Identifying Tilt & Telescopic ECU Terminals

G00184935

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
