Component Locations
WARNING: This page is about a different car, the 2002 Lexus GS 430 and 2002 Lexus GS 300. However, it is still accessible from the selected car via links, so may be relevant.

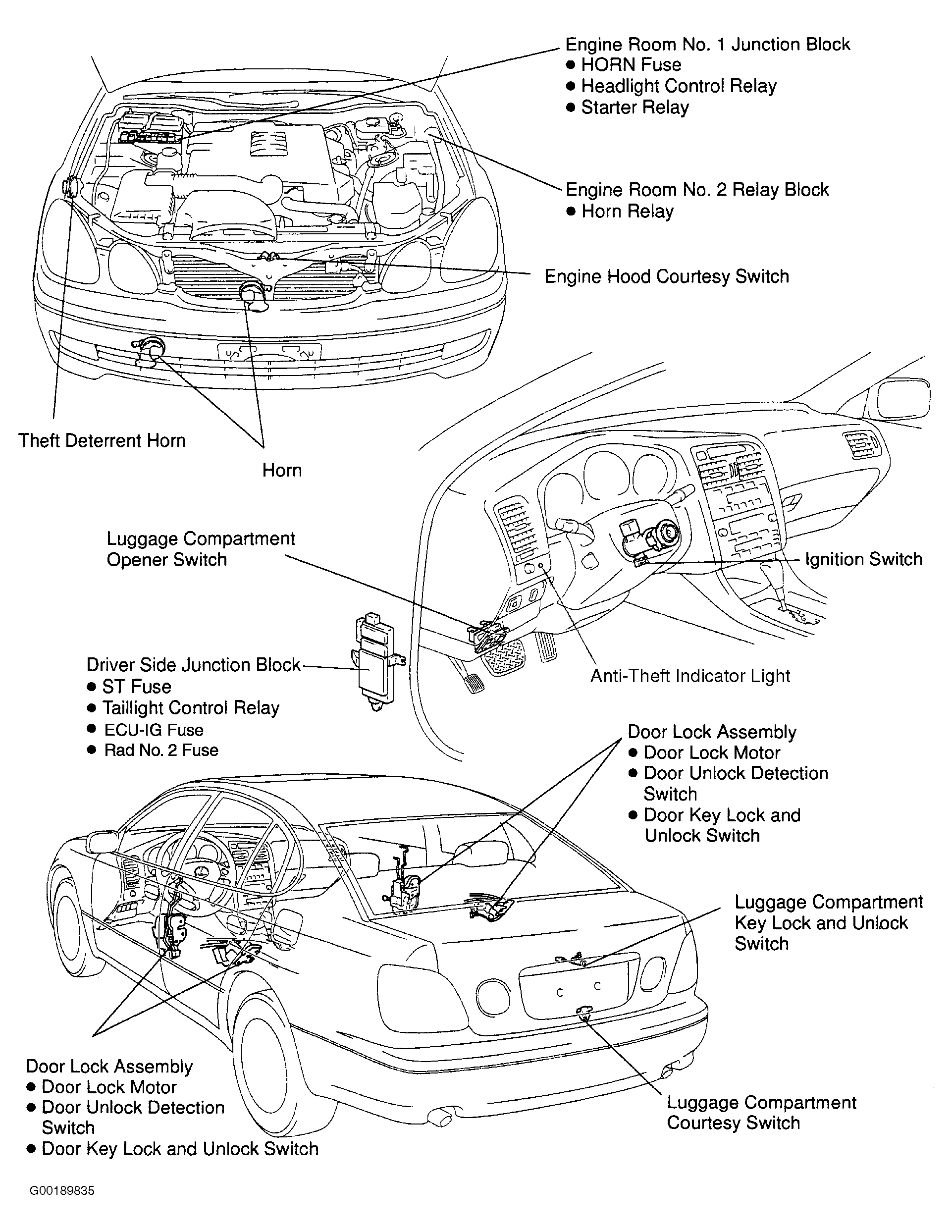

For anti-theft component locations, see Fig 1.
For anti-theft component locations, see Fig 1.
