Precaution For Console Panel Upper Installation (BO012-01)

Publication date: 2001-09-28
Reference number: BO012-01

PRECAUTION FOR CONSOLE PANEL UPPER INSTALLATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): BO012-01, Date of Issue: September 28, 2001

LEXUS:	2002 SC 430
GROUP:	Body
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

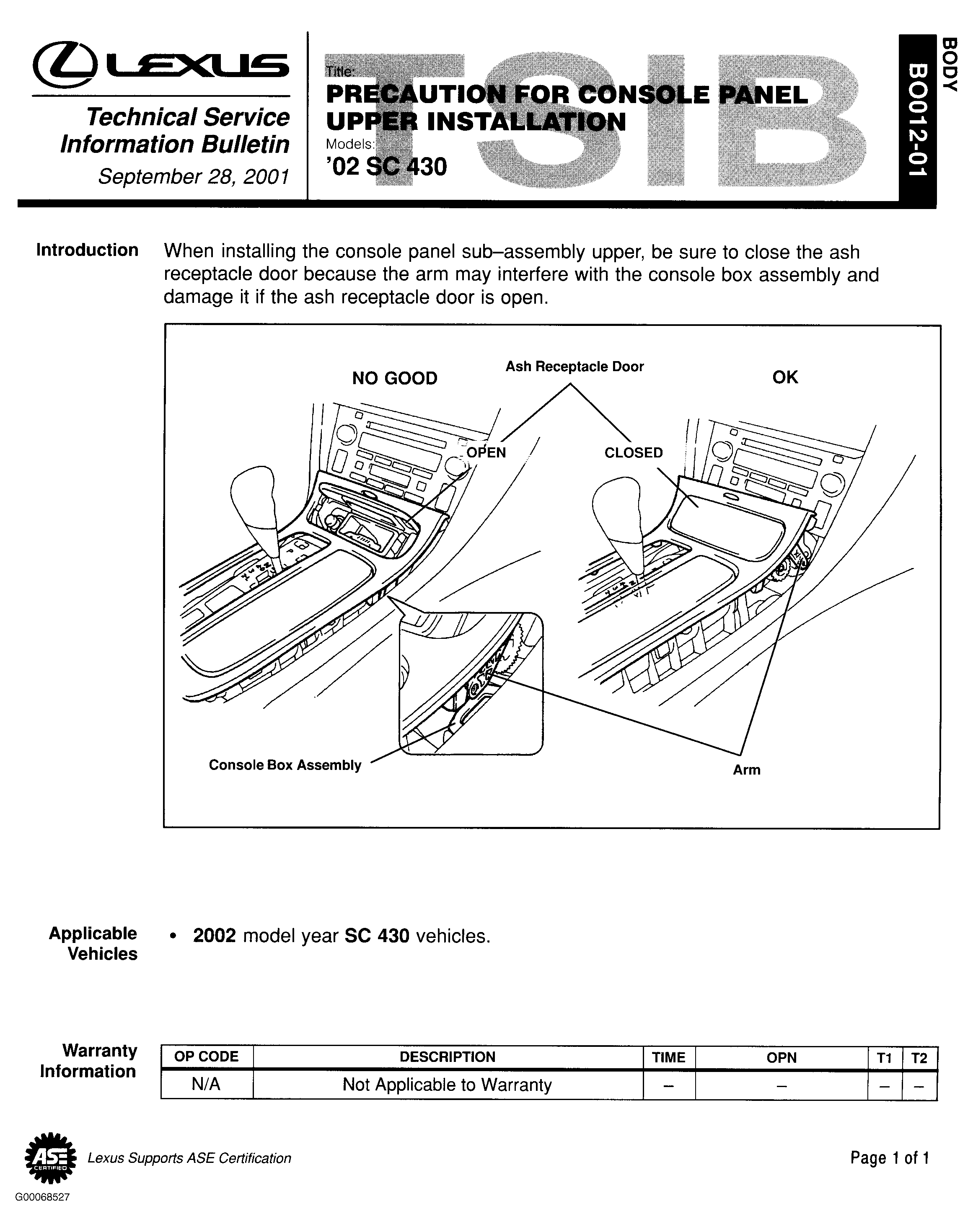

Fig 1: Page 1
