CUSTOMIZE FUNCTION - DIAGNOSTIC PROGRAM CARD VERSION 8.0

TECHNICAL SERVICE BULLETIN

Reference Number(s): SS004-01, Date of Issue: June 22, 2001

LEXUS:	2001 GS 430/300, IS 300, LS 430 & 2002 SC 430
SECTION:	Special Service Tools
COPYRIGHT:	© 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

The Customize feature for the Lexus Diagnostic Tester allows Lexus Dealers to customize many of the electrical functions on 2001 model year GS 430, GS 300, IS 300, LS 430 and 2002 model year SC 430 vehicles to match individual customer desires. This bulletin will provide you with a comprehensive list of available features for customization.

NOTE: These functions require version 8.0a, or later, software. Diagnostic Tester software can be updated using TIS. Click the link on the TIS home page to download.

Applicable Vehicles

2001 model year GS 430/300, IS 300, LS 430 vehicles.
2002 model year SC 430 vehicles.

Required Tools & Material

TOOLS AND MATERIAL

TOOLS & MATERIALS	PART NUMBER	QUANTITY
Lexus Diagnostic Tester Kit	01001270	1
12 Megabyte Diagnostic Tester Program Card with version 8.0a Software (or later)	01002593-005	1

NOTE: Additional Diagnostic Tester Kits or Program Cards may be ordered by calling OTC.

Service Procedure

When customizing, a detailed description including the "Item Selected", the old setting and the new setting must be entered into the Lexus National Service History as a vehicle note.

EXAMPLE:

If changing the WIRELESS BUZZ VOLUME function from MID2 to MAX, enter the following information into the National Service History Vehicle Notes:

Customize Service - WIRELESS BUZZ VOLUME / Old - MID2 / New - MAX

NOTE: Having these records in the National Service History is very important. If a customer decides that they preferred a previous setting, they may not be able to provide the Dealer with a correct description of the function or its previous setting. The National Service History can be used in conjunction with the customer's explanation to verify that the correct function is being reset.

Warranty Information

WARRANTY INFORMATION

OP CODE	DESCRIPTION	TIME	OPN	T1	T2
N/A	Not Applicable to Warranty	---	---	---	---

Operation Procedure

The following steps show the user how to access the "FUNCTION SELECT" screen for customizing.

Insert the key into the ignition key cylinder and turn to the ON position.
Connect the LEXUS Diagnostic Tester to DLC3 and press the "ON" key.
Using the Diagnostic Tester, follow the screen flow below to access the customize function select menu.

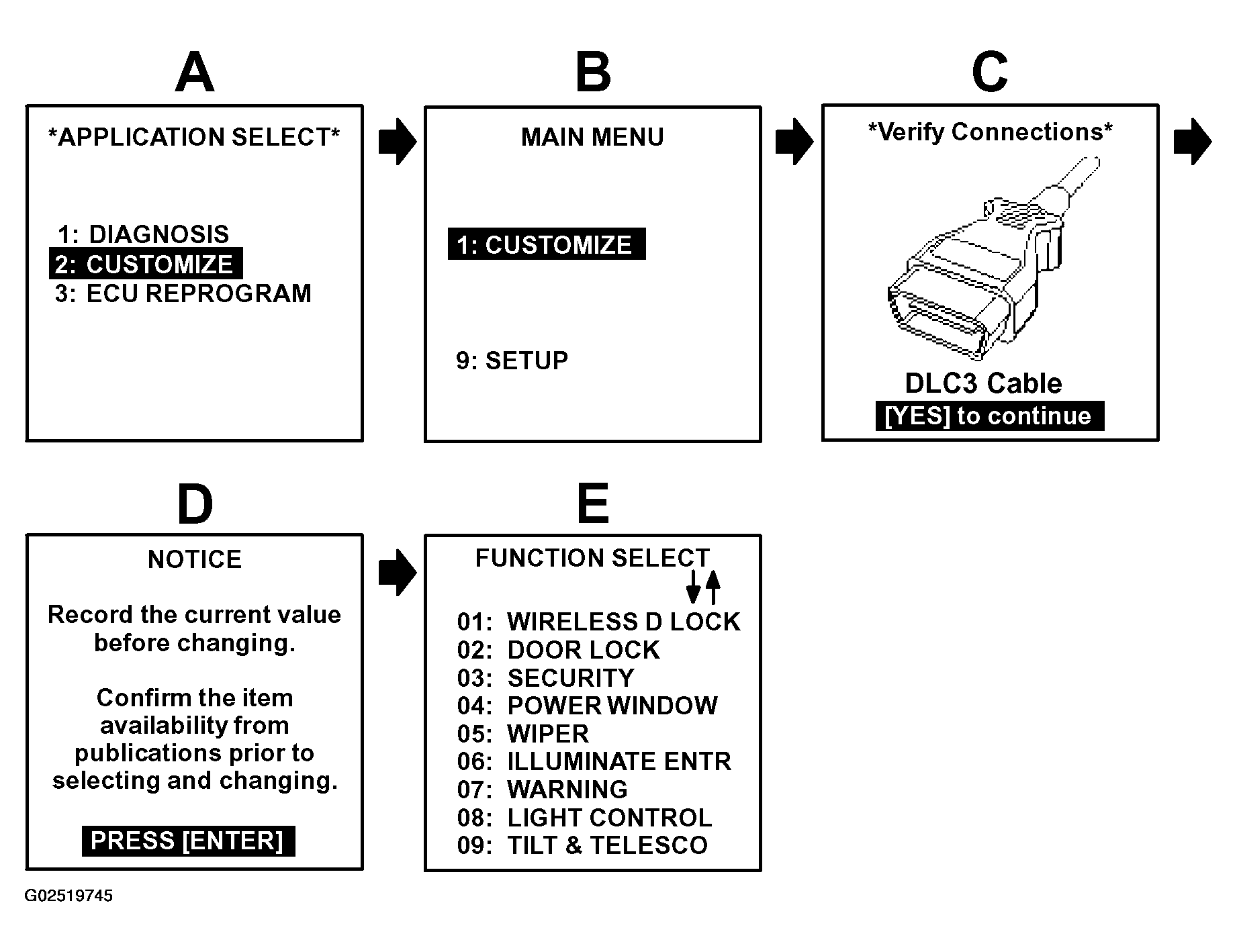

Fig 1: Function Select Screen Accessing Procedure
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Before changing any customize item, be sure to record the current value.

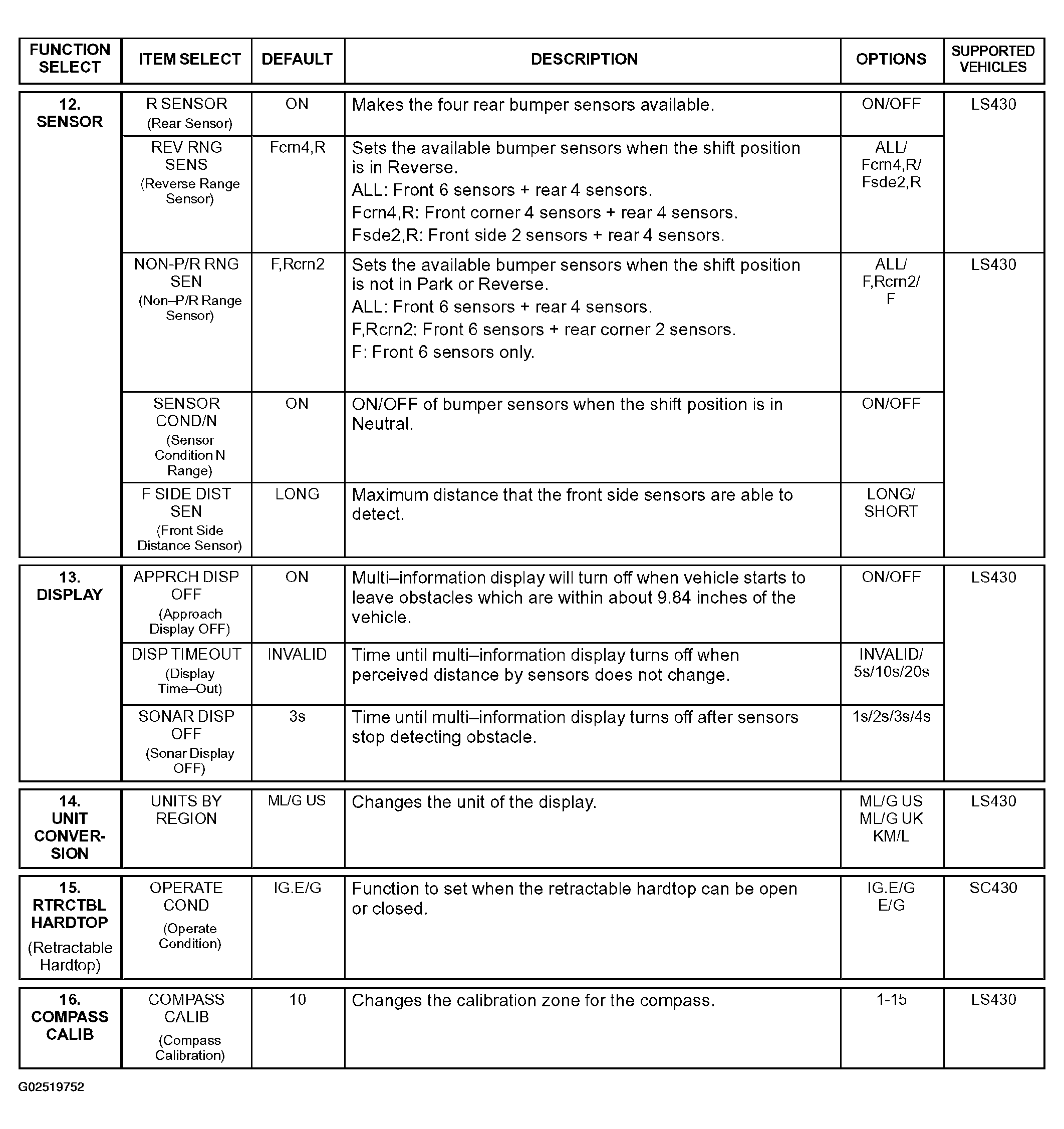

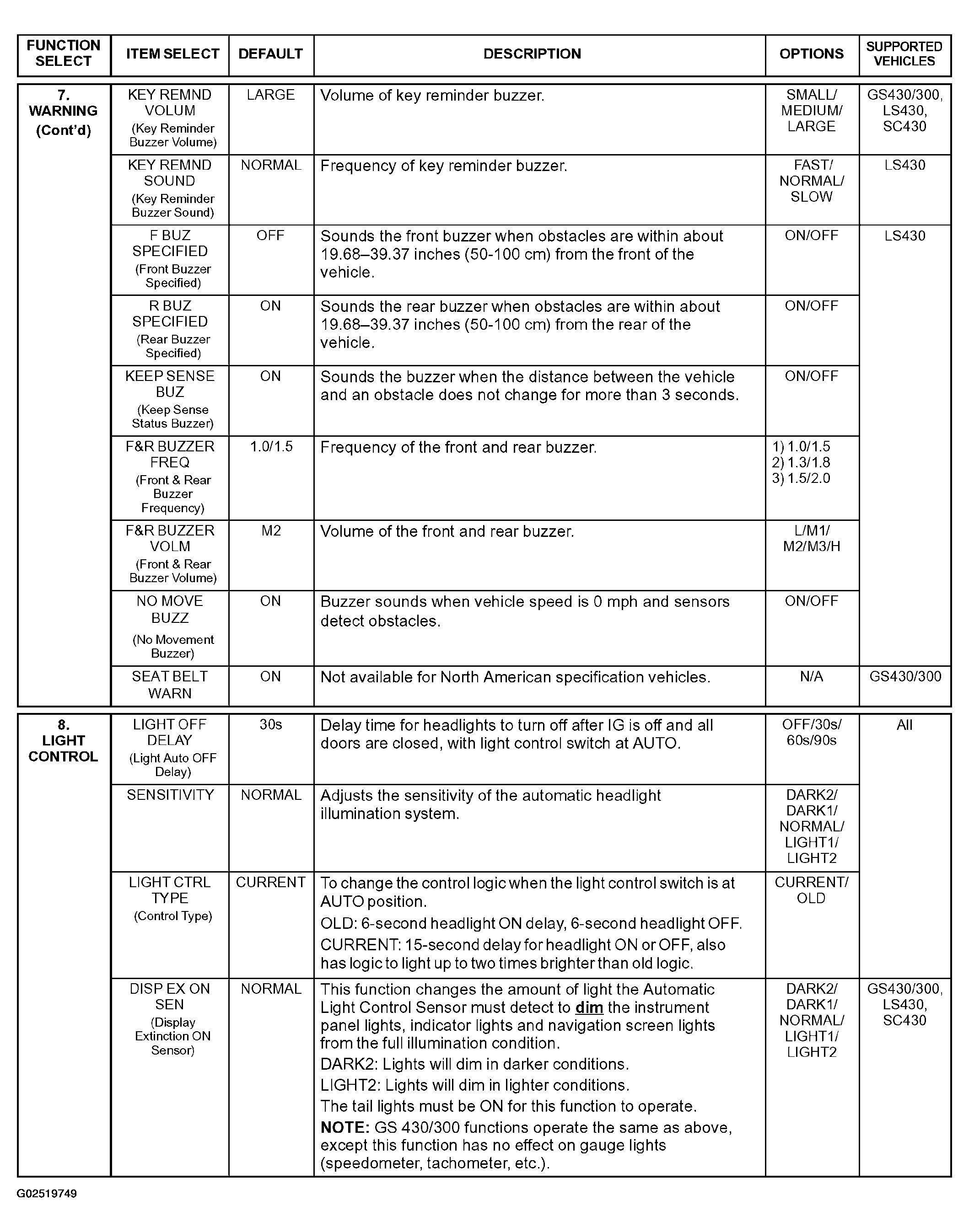

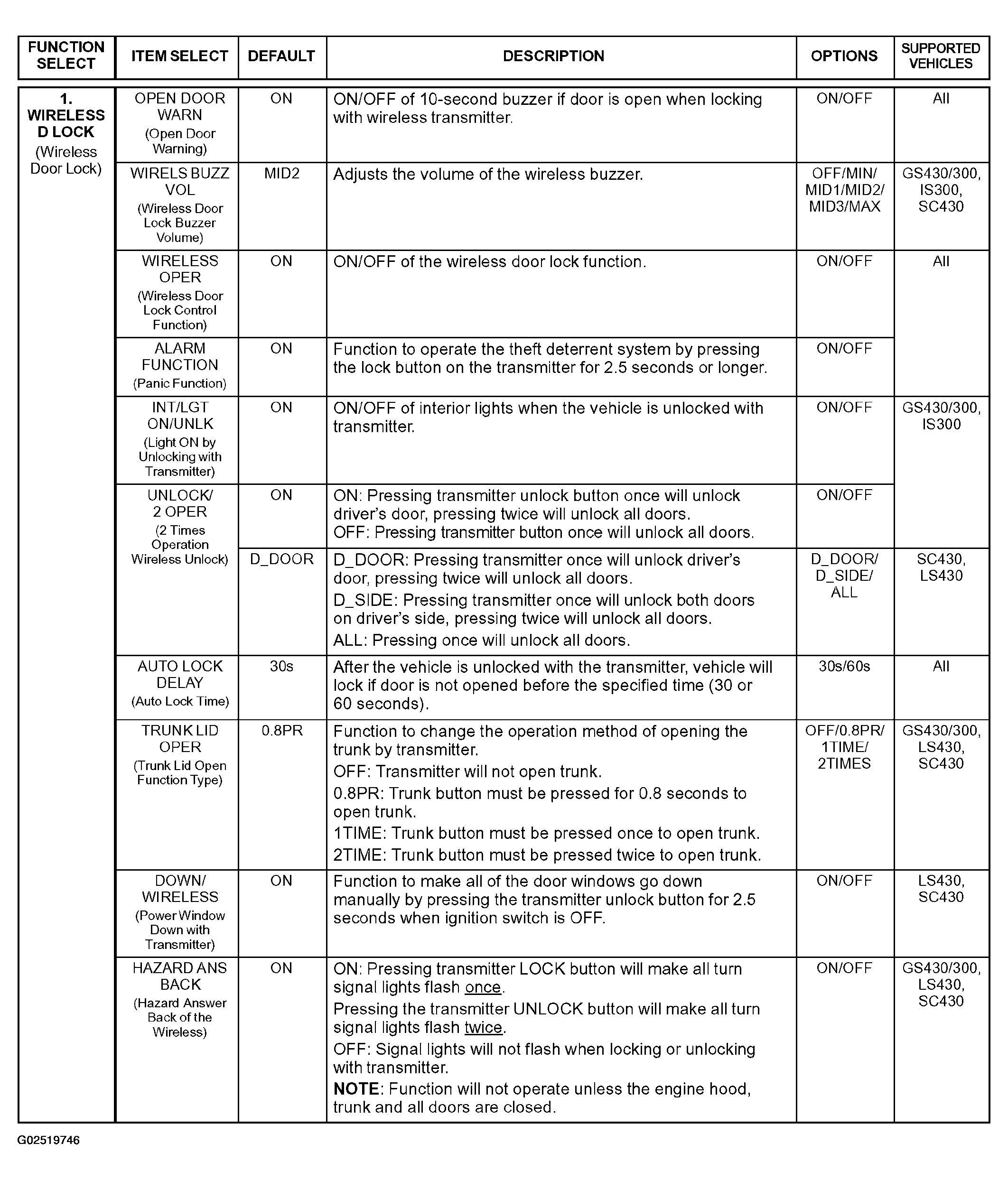

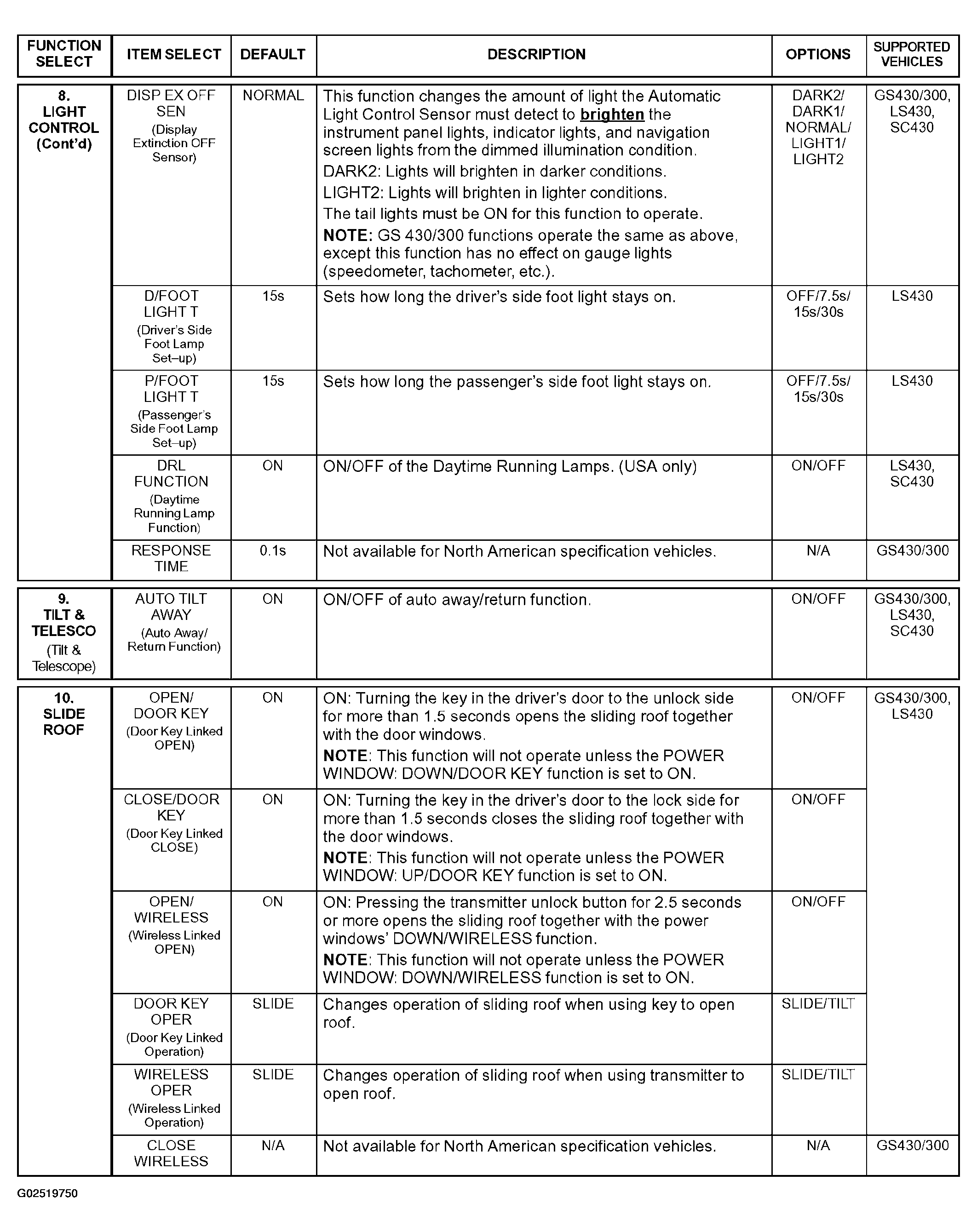

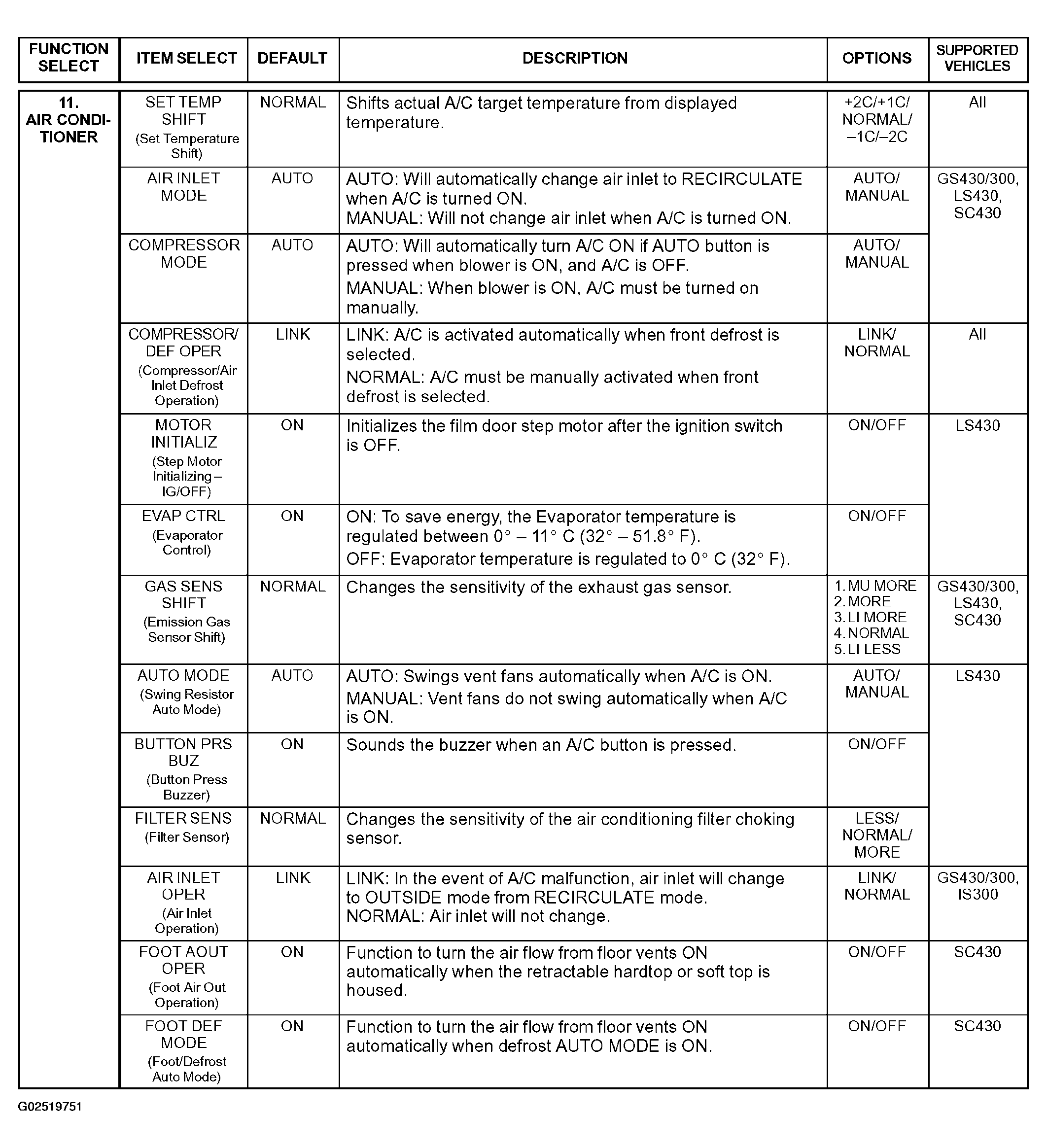

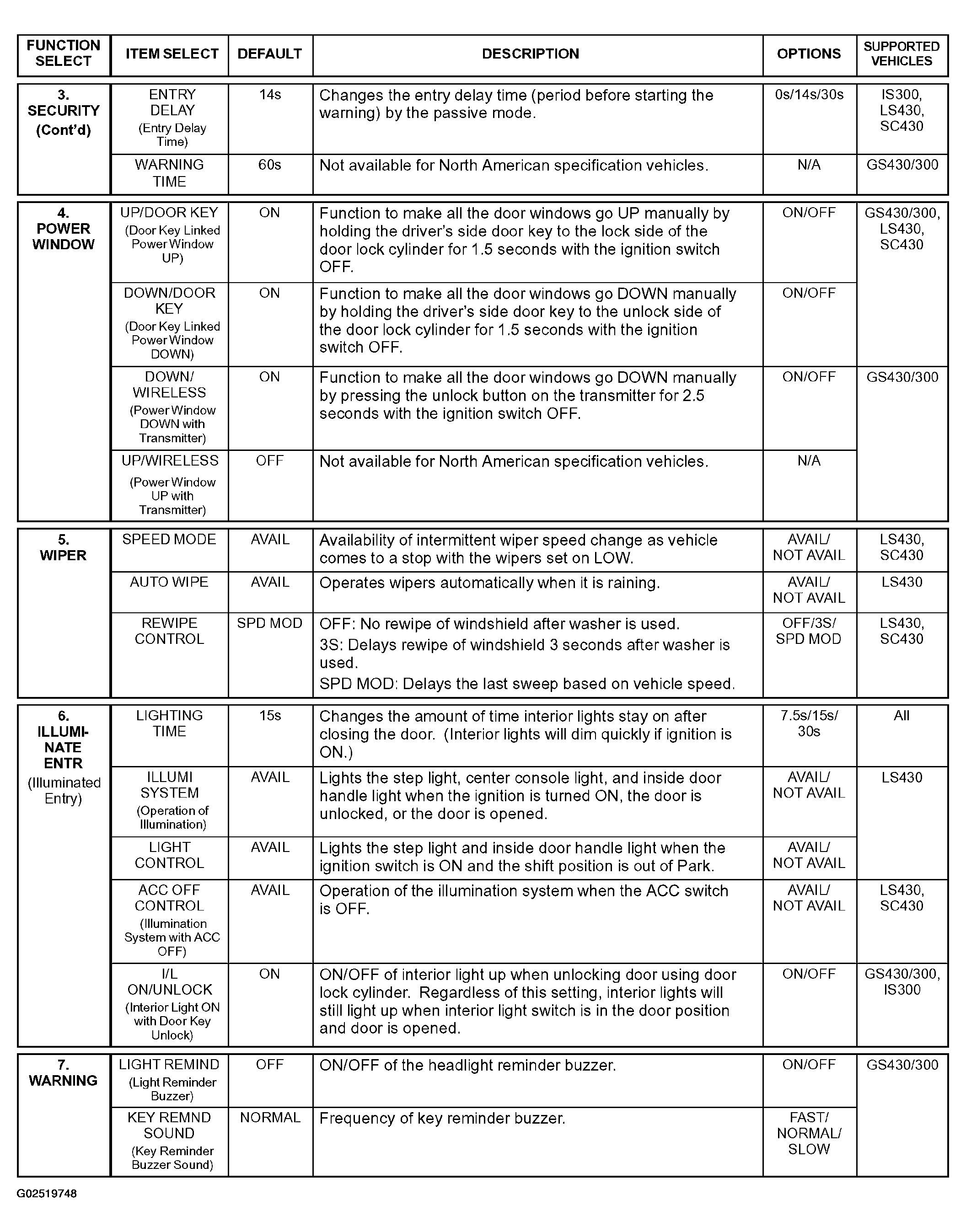

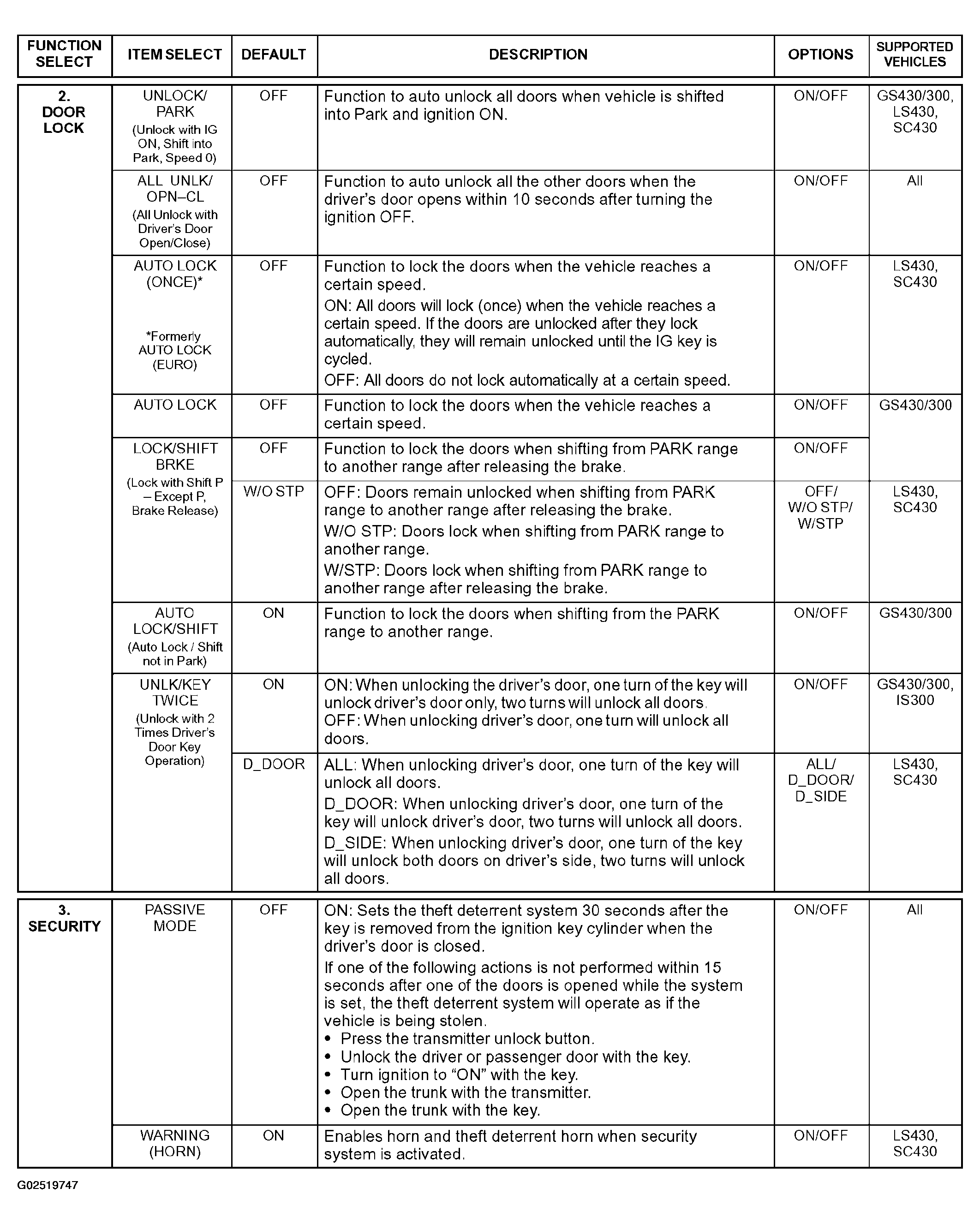

Fig 2: Selecting Customized Function (1 Of 7)
