Rear Seat Belt: Replacement

NOTE:
  • Installation is in the reverse order of the removal. But, the installation indicated only when it has a point.
  • In the LH side, work in the same procedure as in the RH side.
  • See the components' drawing of rear seat belt in COMPONENTS .
  1. REMOVE REAR SEAT CUSHION ASSY (See  OVERHAUL  )
  2. REMOVE REAR SEAT HEADREST PLATE COVER

    (See  OVERHAUL  )

  3. REMOVE WIND DEFLECTOR BOARD ASSY

    (See  OVERHAUL  )

  4. REMOVE REAR SEAT HEADREST PLATE

    (See  OVERHAUL  )

  5. REMOVE REAR SEAT HEADREST ASSY

    (See  OVERHAUL  )

  6. REMOVE REAR SEAT BACK ASSY (See  OVERHAUL  )
  7. REMOVE REAR SEAT BACK BOARD
    1. Remove the bolt.
    2. Remove the 2 clips and rear seat back board.

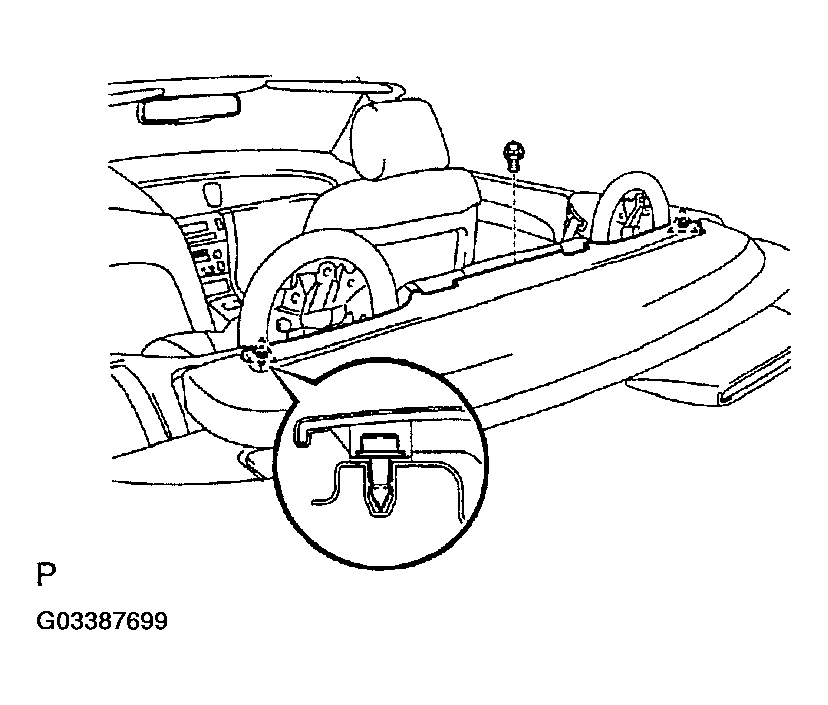

    Fig 1: Removing Rear Seat Back Board
    G03387699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT
    1. Using a screwdriver, remove the 2 caps.
    2. Remove the 2 nuts and the tonneau cover assembly.
    3. Remove the 12 clips and luggage compartment trim cover.

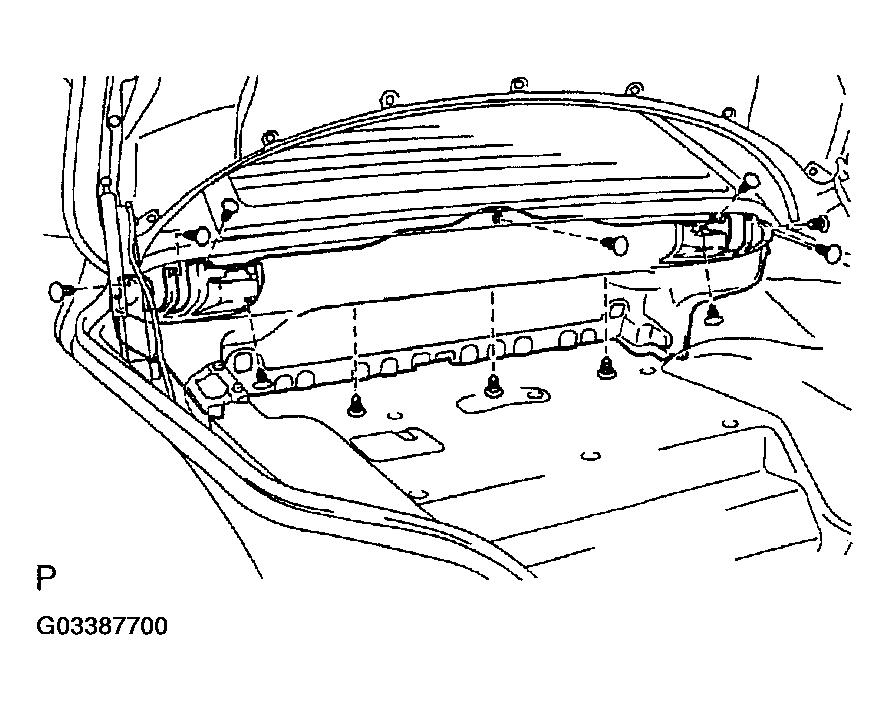

    Fig 2: Removing Luggage Compartment Trim Cover
    G03387700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE REAR SEAT BELT ASSY OUTER
    1. Remove the bolt and floor anchor.
    2. Remove the 2 bolts and rear seat belt assembly.
  10. REMOVE REAR SEAT BELT ASSY INNER
    1. Remove the bolt and the rear seat outer belt.
  11. INSTALL REAR SEAT BELT ASSY OUTER
    1. Check the degree of tilt when beginning to lock the ELR
      1. Make sure that belt cannot be pulled out by over 45 degrees of tilt.
      NOTE: Do not disassemble the retractor.

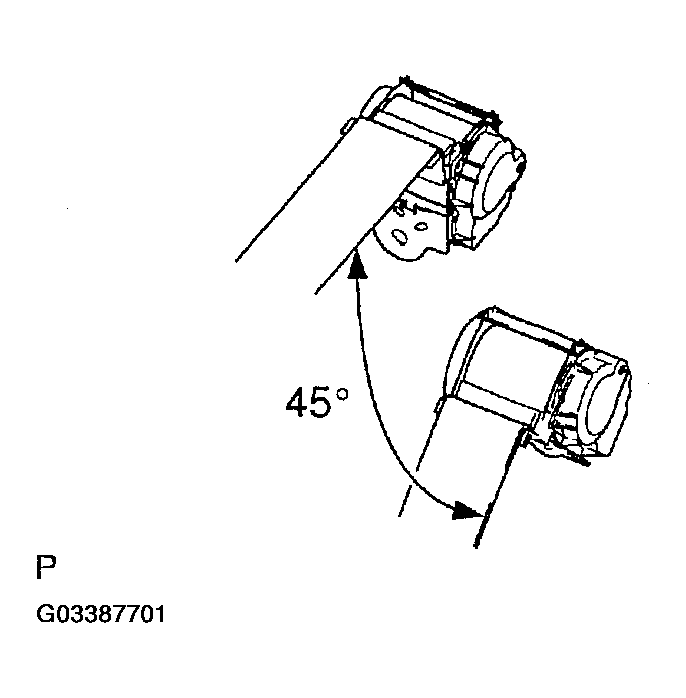

      Fig 3: Checking Degree Of Tilt Before ELR Begins To Lock
      G03387701Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear seat belt assembly with the 2 bolts.

      Torque:

      Upper side: 7.5 N.m (77 kgf.cm, 66 in.lbf)

      Lower side: 42 N.m (428 kgf.cm, 31 ft.lbf)

    3. Install the floor anchor with the bolt.

      Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

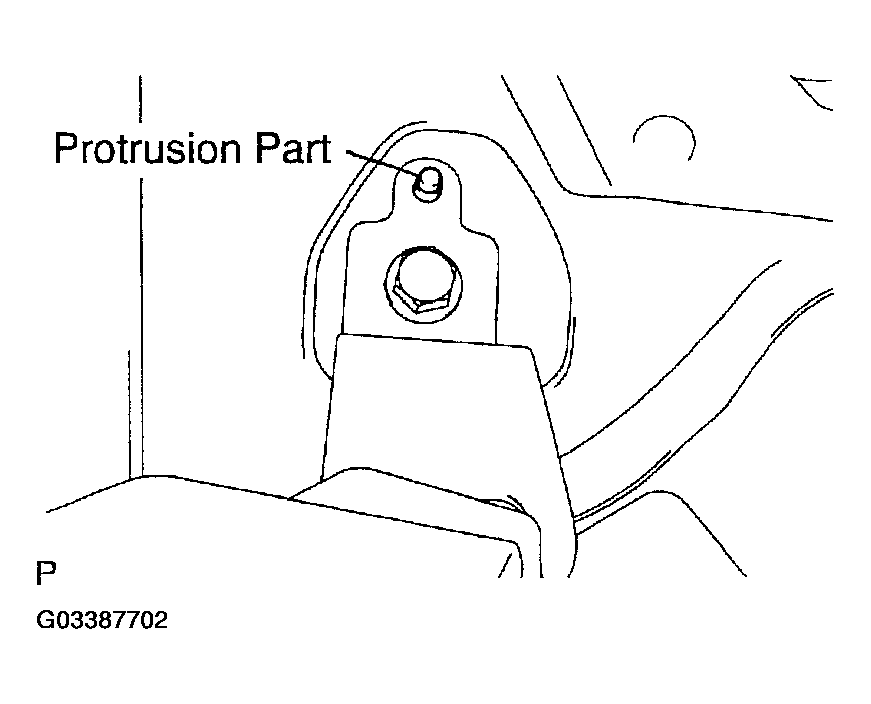

      Fig 4: Installing Floor Anchor With Bolt
      G03387702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Check the ELR lock.
      1. Check that the seat belt is locked when the seat belt is pulled out quickly with the seat belt installed with the vehicle.
  12. INSTALL REAR SEAT BELT ASSY INNER
    1. Install the rear seat outer belt with the bolt.

      Torque: 42 N.m (428 kgf.cm, 31 ft.lbf)

    NOTE: Do not make the anchor part run onto the protrusion part of the floor panel.

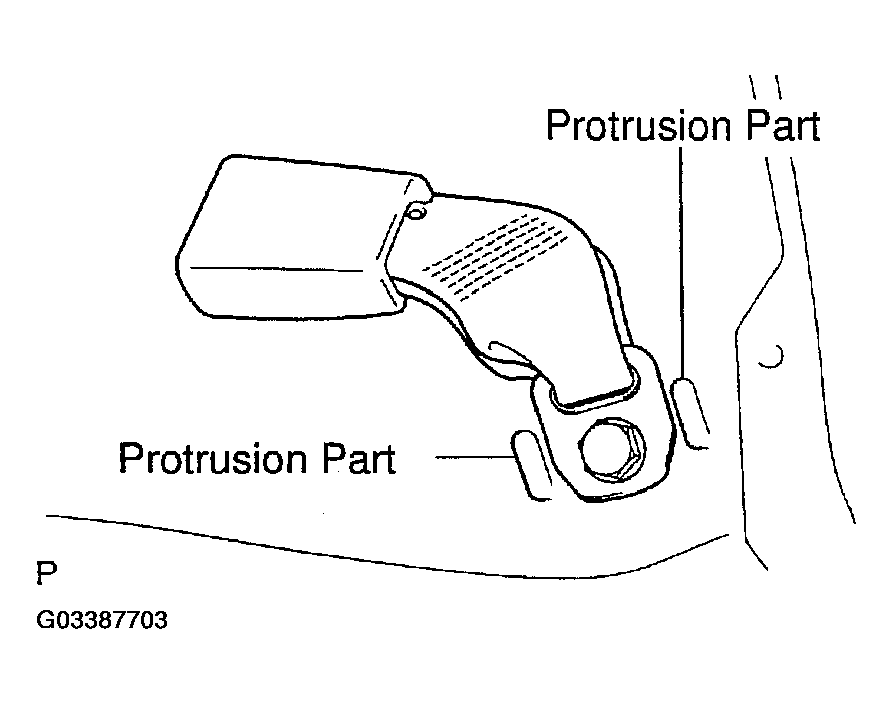

    Fig 5: Installing Rear Seat Outer Belt With Bolt
    G03387703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
