On-Vehicle Inspection

1. CHECK STEERING WHEEL FREEPLAY

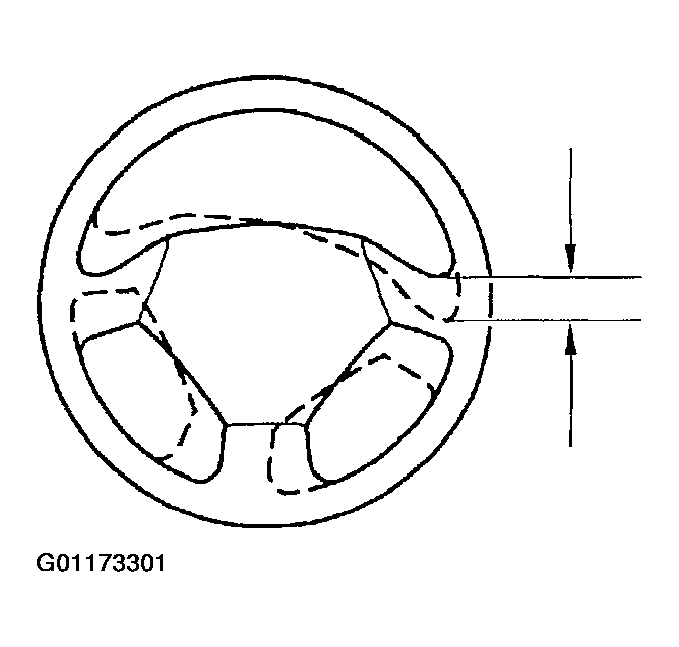

   Fig 1: Checking Steering Wheel Freeplay

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Stop the vehicle and face the tires straight ahead.
   2. Rock the steering wheel gently up and down with a finger lightly, check the steering wheel freeplay.

Maximum freeplay: 30 mm (1.18 in.)
