Park/Neutral Position Switch

If vehicle starts in positions other than Neutral and Park, adjust PNP switch. Loosen PNP switch bolt and set shift lever in "N" position. Align groove and neutral base line on PNP switch. See Fig 1 or Fig 2 . Hold switch in position and tighten bolt to 48 INCH lbs. (5.4 N.m) on ES300, RX300 and SC430, or 115 INCH lbs. (13 N.m) on all other models.

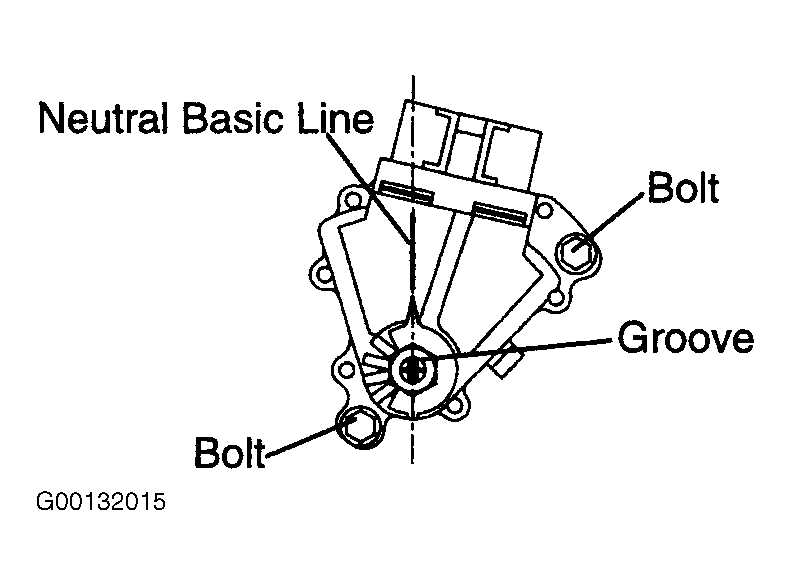

Fig 1: Adjusting PNP Switch
G00132015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

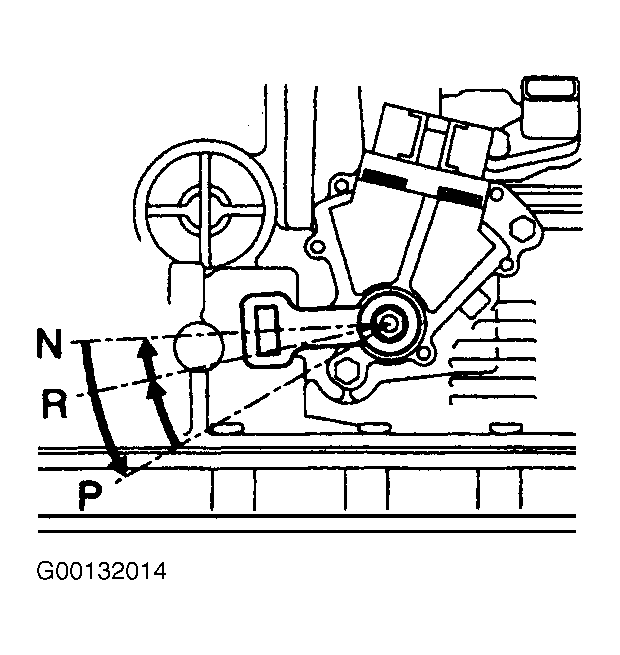

Fig 2: Adjusting PNP Switch Lever Assembly (U-140 Series)
G00132014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
