Transfer Case

Remove the transfer case protector plate. Remove filler plug and ensure fluid level is at the bottom of the opening. See Fig 1. Add fluid as necessary. Install filler plug and tighten to specification. See TORQUE SPECIFICATIONS . Install protector plate.

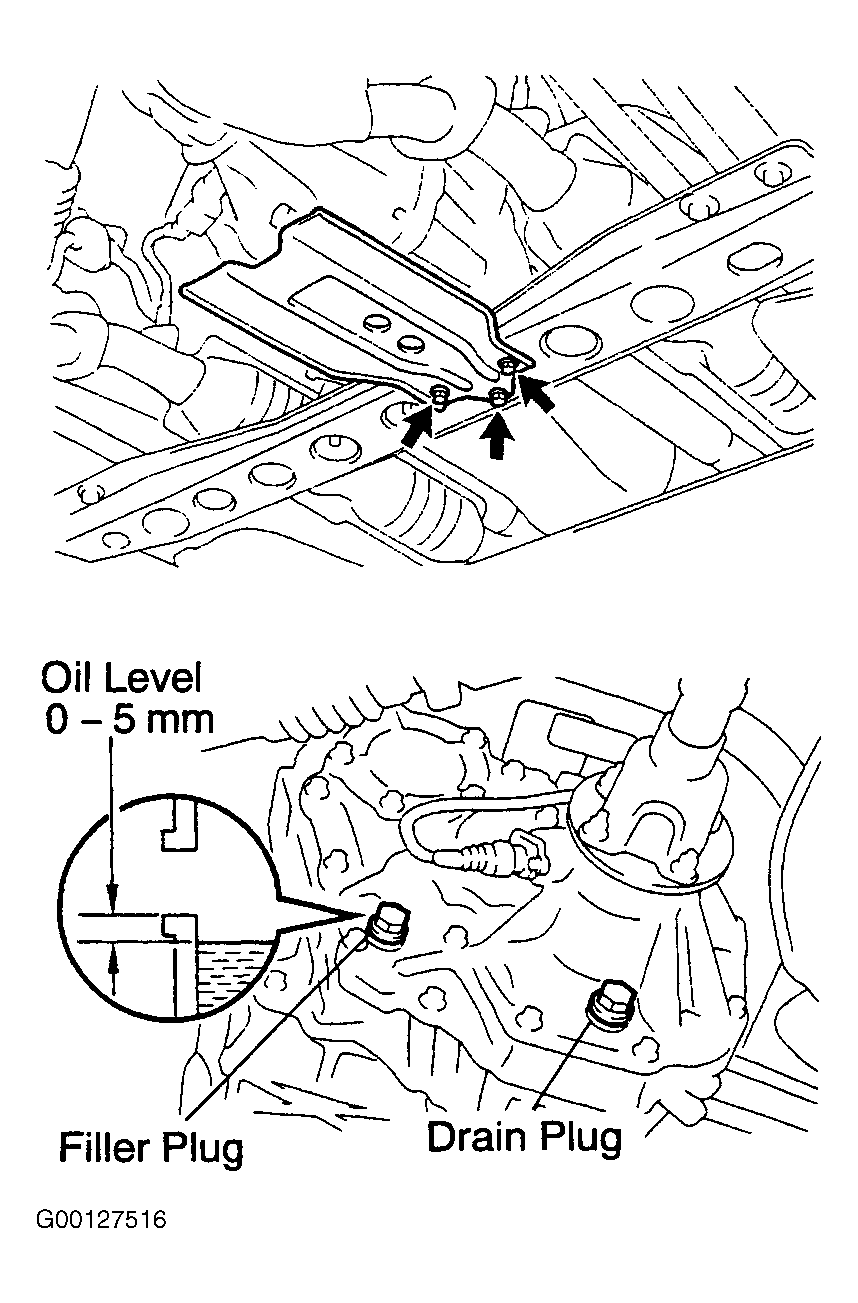

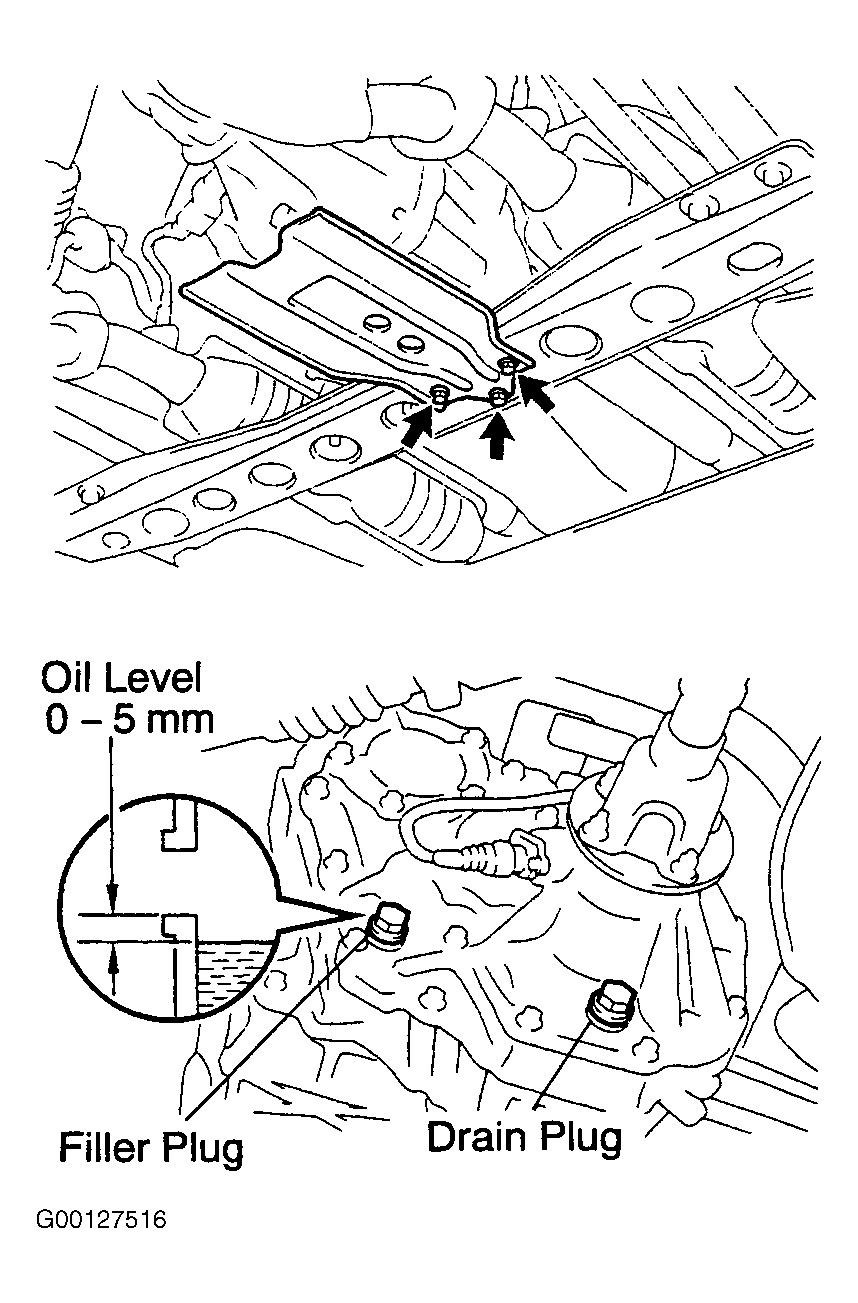

Fig 1: Checking Transfer Case Fluid Level

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
